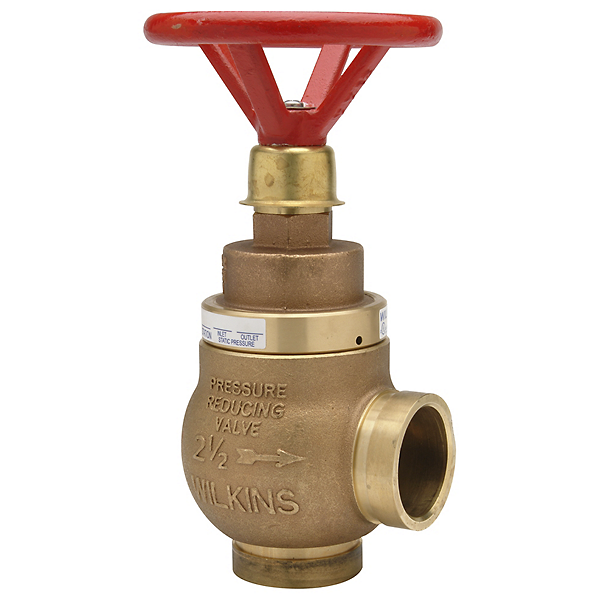

Wilkins ZW4004GSS-S | 2-1/2" Fire Control Pressure Reducing Valve
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.
The Wilkins ZW4004GSS-S is a Pressure-Tru™ automatic fire control pressure reducing valve designed for reliable pressure regulation in automatic sprinkler and standpipe systems under both flow and no-flow conditions.
Key Specifications:
- Size: 2 1/2 Inches
- Maximum Inlet Pressure: 400 psi
- Connection Type: Grooved AWWA C606
- Supervisory Switch Rating: 3 A @ 125 VAC
- Notable Certifications: UL, C-UL, NYC MEA, California Fire Marshal
Other Related Variants:
- ZW4004GSS-Q: Pressure setting Q
- ZW4004GSS-R: Pressure setting R
- ZW4004GSS-T: Pressure setting T
- ZW4004GSS-U: Pressure setting U
Materials:
- Cast Bronze ASTM B 584
- Buna Nitrile (FDA approved)
- EPDM (FDA approved)
Typical Installation:
The Zurn ZW4004GSS-S Series Pressure Reducing Valve is listed as a floor control valve, an indicating valve, and a check valve in automatic sprinkler systems as well as a standpipe valve for CLASS I and CLASS III systems.
Standards Compliance:
UL Listed; C-UL Listed; NYC MEA 325-06-E; City of Los Angeles Approved; California State Fire Marshal Listed
Features & Benefits:
- Factory Set Precision: Non-field adjustable design ensures consistent pressure regulation under both flow and no-flow conditions.
- Integral Supervisory Switch: Built-in listed supervisory switch with tamper resistant cover provides immediate valve position monitoring.
- Pressure Monitoring Capability: Tapped and plugged inlet and outlet ports allow for easy pressure gauge installation.
- Open/Close Indication: Built-in indicating feature provides visual confirmation of valve position for enhanced system monitoring.
FAQ
Q: What is the difference between the pressure setting variants (Q, R, S, T, U)?
A: Each pressure setting corresponds to a specific factory-set outlet pressure profile optimized for different system requirements. Setting S (this model) provides a 250 psi maximum inlet pressure, while Q, R, T, and U provide 310, 290, 225, and 200 psi respectively.
Q: Can the Wilkins ZW4004GSS-S be adjusted in the field?
A: No, the ZW4004GSS-S is factory set and non-field adjustable to ensure consistent performance and prevent unauthorized tampering in critical fire protection systems.
Q: What is the minimum pressure differential required for proper operation?
A: A minimum of 20 psi pressure differential between inlet static pressure and outlet set static pressure is recommended to ensure a well-regulated and efficient system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
