Wilkins TP3000-5C-150C | T&P Relief Valve, 1" FNPT, 150 PS...

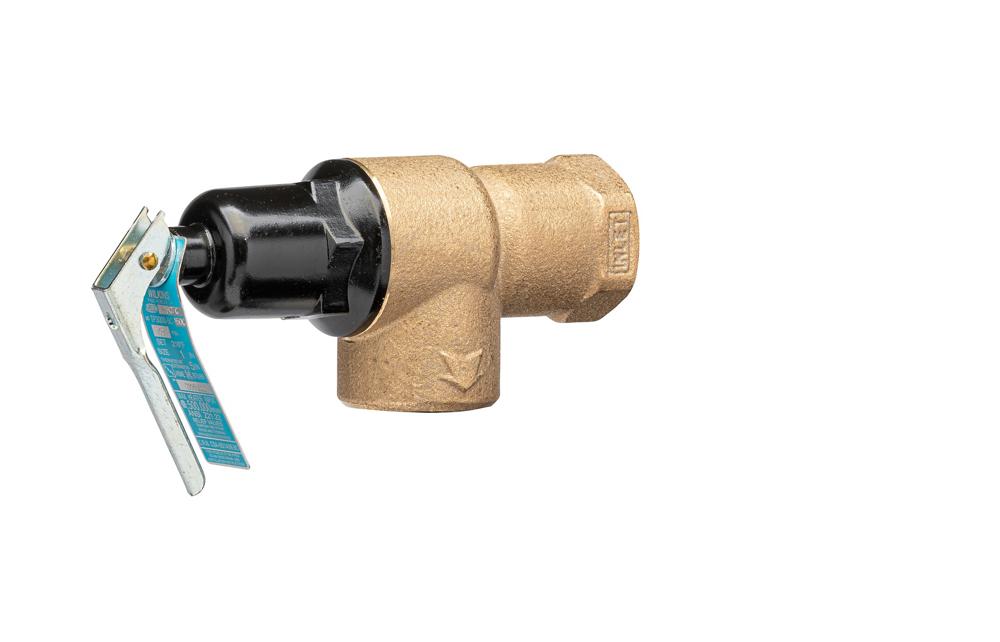

The Wilkins TP3000-5C-150C is a temperature and pressure relief valve designed to protect water heating storage vessels against over-temperature and excessive pressure conditions with superior discharge capacity.
Key Specifications:
- Probe Size: 5 Inches
- Pressure Relief Setting: 150 PSI
- Temperature Relief Setting: 210°F
- Notable Certifications: ANSI Z21.22, ASME Section IV
- Connection Type: 1" FNPT Inlet/Outlet
Other Related Variants:
- TP3000-5C-125C: 125 PSI pressure setting
- TP3000-5C-100C: 100 PSI pressure setting
- TP1100AE-3C-150C: 3/4" connections, 3" probe
- TP220-5C-150C: 3/4" connections, 5" probe
Materials:
- Body: Cast Brass or Bronze (ASTM B 584)
- Internals: Stainless Steel (300 Series)
- Internals: Brass (ASTM B 36 and B 16)
- Springs: Stainless Steel (ASTM A 313)
- Probe: Epoxy-Coated Copper Tube (FDA approved)
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the relief valve shall be installed in accordance with manufacturer's instructions and the latest edition of the Uniform Plumbing Code. The valve must be installed on water heaters with adequate, safe drain lines terminating outside.
Standards Compliance:
CSA Compliant to ANSI Z21.22/CSA 4.4; Certified to ASME Section IV by National Board
Features & Benefits:
- High Discharge Capacity: The Zurn TP3000-5C-150C delivers 500,000 BTU/hr (ANSI Z21.22) and 2,155,000 BTU/hr (ASME) for maximum protection.
- Dual Compliance Certification: Meets both ANSI Z21.22/CSA 4.4 and ASME Section IV standards for comprehensive code compliance.
- Durable Construction: Cast brass or bronze body with stainless steel internals ensures long-lasting performance in demanding applications.
- FDA-Approved Probe: 5-inch epoxy-coated copper tube probe provides reliable temperature sensing for safe operation.
FAQ
Q: What is the discharge capacity of the Wilkins TP3000-5C-150C?
A: The valve provides 500,000 BTU/hr discharge capacity under ANSI Z21.22 standards and 2,155,000 BTU/hr under ASME Section IV standards.
Q: What size water heater connections does this valve require?
A: The Zurn TP3000-5C-150C features 1-inch FNPT (Female National Pipe Thread) connections for both inlet and outlet.
Q: Can this valve be used for steam service applications?
A: No, this valve is designed exclusively for installation on water heating storage vessels and is not suitable for steam service.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
