Wilkins AG-8 | Air Gap Adaptor Fitting for RP Backflow Preventers

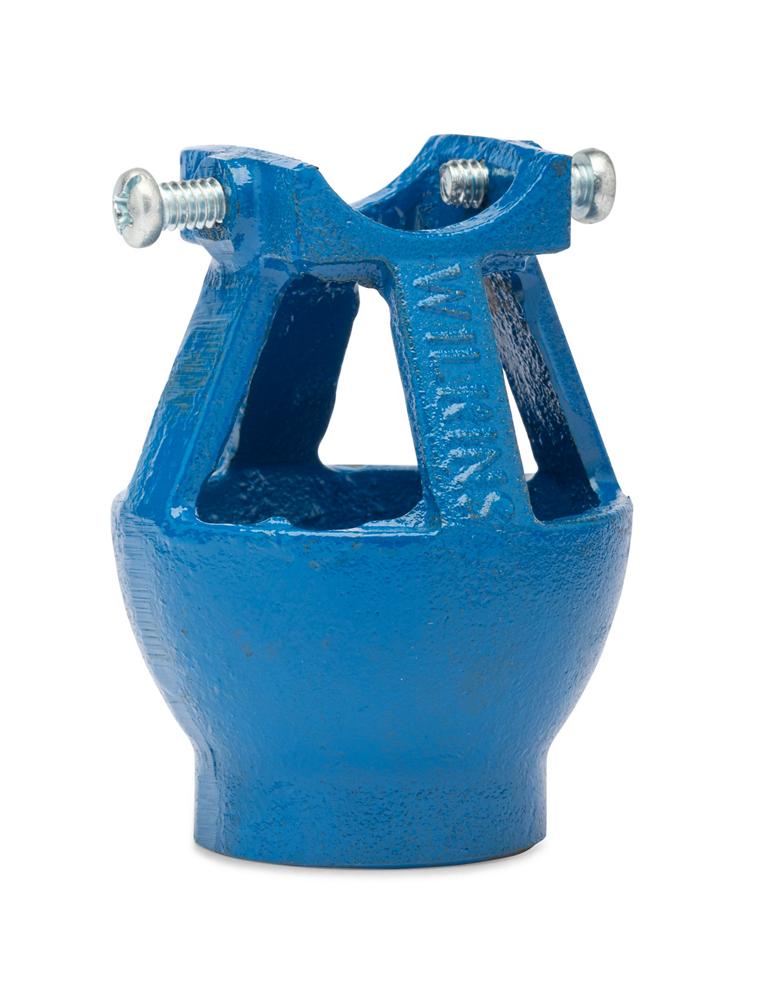

The Wilkins AG-8 is an air gap adaptor fitting designed for use with Zurn Wilkins reduced pressure principle backflow preventers on horizontal or vertical installations, providing essential drain line connectivity.
Key Specifications:
- Compatible Sizes: 1/4 Inches to 1 Inches
- Outlet Connection: 1 Inches NPT
- Body Material: Epoxy coated cast iron
- Notable Certifications: ANSI/ASME A112.1.2 compliant
- Approximate Dimensions: 2 1/2 Inches (A), 3 1/2 Inches (B)
Other Related Variants:
- AG-10: 8 Inches to 10 Inches version for 475V series
- AG-11: 1/2 Inches to 1 Inches nylon body version
- AG-12: 1 1/4 Inches to 2 Inches nylon body version
- AG-13: 4 Inches to 6 Inches for 475ST series
- AG-14: 8 Inches to 10 Inches for 475ST series
- AG-4: 3/4 Inches to 1 1/2 Inches version
- AG-5: 1 1/4 Inches to 2 Inches version
- AG-6: 2 1/2 Inches to 6 Inches version
- AG-7: 8 Inches to 10 Inches version
- AG-9: 4 Inches to 6 Inches for 475V series
Materials:
- Body: Cast grey iron, epoxy painted
- Elbow: Cast grey iron, epoxy painted
- Bolts: Steel, zinc plated
Typical Installation:
Local codes shall govern installation requirements. To be installed in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code. The Wilkins AG-8 is designed for indoor installations with Zurn Wilkins reduced pressure principle backflow preventers on horizontal or vertical configurations.
Standards Compliance:
ANSI/ASME A112.1.2; Uniform Plumbing Code
Features & Benefits:
- Compact Design: Specifically engineered for small diameter backflow preventers including 975XL, 975XL2, and 975XL3 series models.
- Durable Construction: Epoxy coated cast iron body with zinc plated steel bolts ensures long-lasting corrosion resistance and reliable performance.
- Versatile Installation: Suitable for both horizontal and vertical installations, accommodating various installation configurations and space requirements.
- Standards Compliant: ANSI/ASME A112.1.2 certified design ensures code compliance and reliable protection for reduced pressure principle backflow preventers.
FAQ
Q: Which backflow preventer models is the Zurn AG-8 compatible with?
A: The AG-8 is designed for use with 1/4 Inches to 1 Inches 975XL, 975XL2, and 975XL3 series reduced pressure principle backflow preventers.
Q: Can the Zurn AG-8 be used for both horizontal and vertical installations?
A: Yes, the AG-8 air gap adaptor fitting is designed for use with reduced pressure principle backflow preventers in both horizontal and vertical installation configurations.
Q: What type of drain line material can be used with the AG-8?
A: The AG-8 can be mounted to the backflow preventer body and accepts any standard piping material for the drain line connection via the 1 Inches NPT outlet.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
