Wilkins AG-7 | Air Gap Adaptor Fitting, 8"-10" 375/475 Se...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

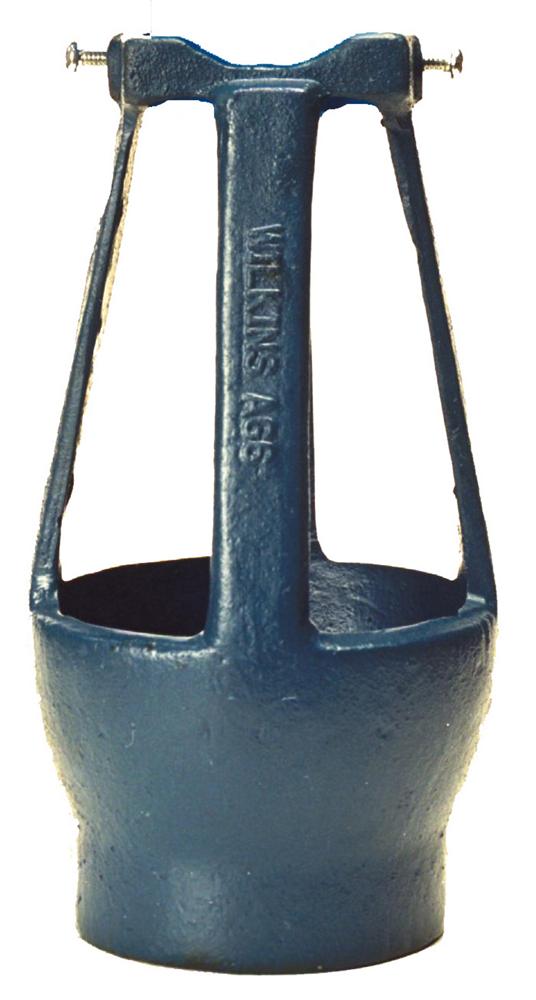

The Wilkins AG-7 is an air gap adaptor fitting designed for use with reduced pressure principle backflow preventers on horizontal or vertical installations, providing essential drain line integration and body mounting capabilities.
Key Specifications:
- Size: 8" - 10" assemblies
- Outlet Connection: 4" NPT
- Dimension A: Approximately 7 Inches
- Dimension B: Approximately 11 Inches
- Notable Certifications: ANSI/ASME A112.1.2 compliant
Other Related Variants:
- AG-4: 3/4" - 1" and 1 1/4" - 1 1/2" versions
- AG-5: 1 1/4" - 2" version
- AG-6: 2 1/2" - 6" version
- AG-8: 1/4" - 1/2" version
- AG-9: 4" - 6" version
- AG-10: 8" - 10" vertical installation
- AG-11: 1/2" - 1" IPS slip
- AG-12: 1 1/4" - 2" IPS slip
- AG-13: 4" - 6" ST series
- AG-14: 8" - 10" ST series
Materials:
- Body: Cast grey iron with epoxy painted finish
- Elbow: Cast grey iron with epoxy painted finish
- Bolts: Steel with zinc plating
Typical Installation:
Local codes shall govern installation requirements. To be installed in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code.
Standards Compliance:
ANSI/ASME A112.1.2
Features & Benefits:
- Universal Compatibility: Designed specifically for use with Zurn AG-7 and Wilkins AG-7 Reduced Pressure Principle Backflow Preventers on 375 and 475 series assemblies.
- Flexible Installation: Accommodates both horizontal and vertical installations with body-mount capability for convenient drain line integration.
- Durable Construction: Epoxy-coated cast grey iron body provides long-lasting corrosion resistance and structural integrity.
- Code Compliant: ANSI/ASME A112.1.2 approved for safe and reliable backflow prevention system integration.
FAQ
Q: Which backflow preventer models is the Wilkins AG-7 compatible with?
A: The AG-7 is designed for 8"-10" size 375 and 475 series reduced pressure principle backflow preventers, including models 375, 375A, 375ADA, 475, 475DA, 475MS, and related variants.
Q: What type of drain line can be used with this air gap adaptor?
A: The drain line can be any standard piping material. The AG-7 features a 4" NPT outlet connection for flexible drain line attachment.
Q: Can the AG-7 be installed on vertical backflow preventer installations?
A: Yes, the AG-7 is designed for use on both horizontal and vertical installations when a drain line is necessary and can be mounted directly to the backflow preventer body.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
