Wilkins AG-5 | Air Gap Adaptor Fitting for Backflow Preventers, 2&q...

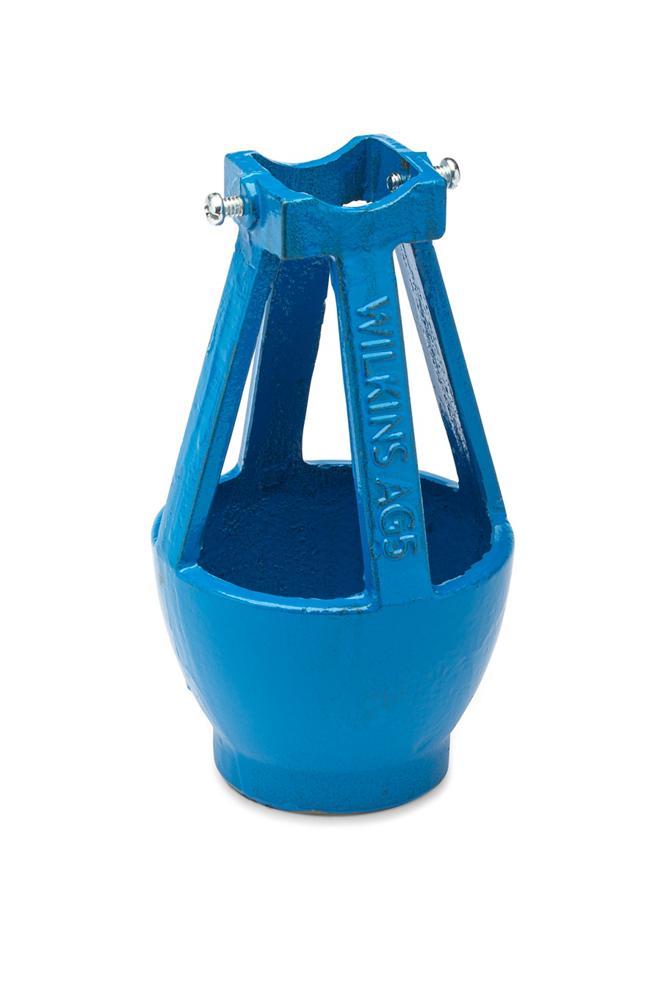

The Wilkins AG-5 is an air gap adaptor fitting designed for use with Zurn Wilkins Reduced Pressure Principle Backflow Preventers on horizontal or vertical installations.
Key Specifications:
- Compatible Sizes: 1 1/4 to 2 Inches
- Outlet Connection: 2 Inches NPT outlet
- Compatible Models: 975XL, 975XL2, 975XL3 series
- Notable Certifications: ANSI/ASME A112.1.2 compliant
- Approximate Dimensions: 4.5 Inches A, 8 Inches B
Other Related Variants:
- AG-4: 3/4 Inch to 1 1/2 Inch version
- AG-6: 2 1/2 Inch to 6 Inch model
- AG-7: 8 Inch to 10 Inch model
- AG-8: 1/4 Inch to 1 Inch version
- AG-9: 4 Inch to 6 Inch model
- AG-10: 8 Inch to 10 Inch model
- AG-11: 1/2 Inch to 1 Inch IPS slip version
- AG-12: 1 1/4 Inch to 2 Inch IPS slip version
- AG-13: 4 Inch to 6 Inch model
- AG-14: 8 Inch to 10 Inch model
Materials:
- Body: Cast grey iron, epoxy painted
- Elbow: Cast grey iron, epoxy painted
- Bolts: Steel, zinc plated
Typical Installation:
Local codes shall govern installation requirements. To be installed in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code. Indoor installation.
Standards Compliance:
ANSI/ASME A 112.1.2
Features & Benefits:
- Backflow Prevention Protection: Specifically designed for use with Zurn AG-5 Reduced Pressure Principle Backflow Preventers to ensure proper air gap installation and drain line protection.
- Versatile Installation: Compatible with both horizontal and vertical installations, offering flexibility in various plumbing configurations.
- Durable Construction: Epoxy-painted cast grey iron body and elbow with zinc-plated steel bolts provide corrosion resistance and long-lasting performance.
- Wide Compatibility: Works with 975XL, 975XL2, and 975XL3 series backflow preventers, ensuring proper drain line integration.
FAQ
Q: What backflow preventer models is the AG-5 compatible with?
A: The AG-5 is designed for use with 1 1/4 Inch to 2 Inch 975XL and 975XL2 models, as well as 2 Inch 975XL3 models.
Q: Can this air gap adaptor be installed in both horizontal and vertical orientations?
A: Yes, the AG-5 air gap adaptor fitting is designed for installation on both horizontal and vertical backflow preventer installations.
Q: What is the outlet pipe size for the AG-5?
A: The AG-5 features a 2 Inch NPT outlet pipe connection for drain line installation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
