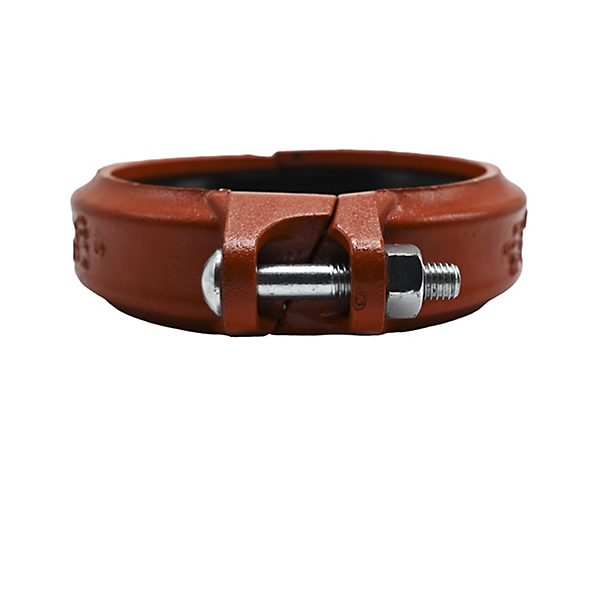

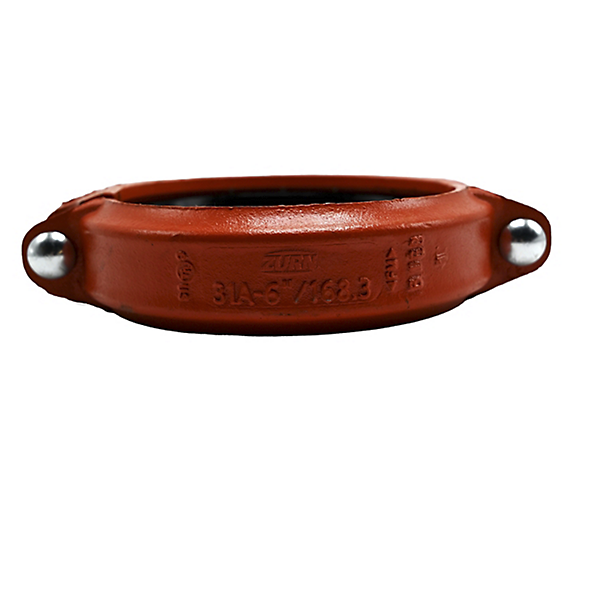

Wilkins 4-FP23R | Rigid Angle Pad Groove Coupling, 4 Inches
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.
The Wilkins 4-FP23R delivers a rigid, inflexible joint for grooved pipe systems requiring flanged-like connection strength.
Key Specifications:
| Size | 4 Inches |
| Maximum Pressure Rating | 300 PSI |
| Gasket Type | Pre-lubricated EPDM Gasket |
| Notable Certifications | UL Listed; C-UL Listed; FM Approved |
| Connection Type | Grooved End Connection |
Other Related Variants:
- 112-FP23R: 1 1/2 Inches size configuration
Materials:
- Ductile Iron Casting (ASTM A536 65-45-12)
- EPDM Gasket, Pre-lubricated, Pressure Responsive
- Grade 5 Bolts & Nuts
Typical Installation:
Used to join grooved pipe, fittings, valves, and accessories in fixed piping systems requiring rigid connections comparable to flanged, welded, or threaded joints, preventing angular and axial deflection.
Standards Compliance:
UL Listed; C-UL Listed; FM Approved
Features & Benefits:
- Rigid Joint Design: Provides a sturdy, inflexible connection comparable to flanged, welded, or threaded joints.
- Durable Construction: Ductile iron casting ensures long-term structural integrity under pressure.
- Reliable Sealing: Pre-lubricated, pressure-responsive EPDM gasket maintains a secure seal over time.
- Alignment Stability: Eliminates angular and axial deflection to keep piping systems properly aligned.
FAQ
Q: What sizes are available for the Zurn 4-FP23R coupling?
A: The Zurn 4-FP23R Series is available in sizes ranging from 1-1/4" to 12", including the 4 Inches model and the 112-FP23R (1 1/2") variant.
Q: What is the maximum pressure rating for this coupling?
A: The Wilkins 4-FP23R is rated for a maximum working pressure of 300 PSI.
Q: What certifications does this product hold?
A: The 4-FP23R is UL Listed, C-UL Listed, and FM Approved.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
