Wilkins 34-ZW1070XLC | Thermostatic Mixing Valve, 3/4" Copper ...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

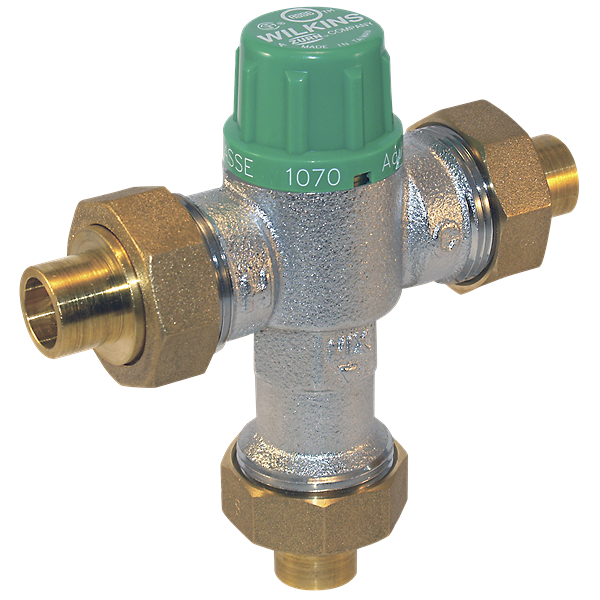

The Wilkins 34-ZW1070XLC is an Aqua-Gard® thermostatic mixing valve engineered for point-of-use scald protection in residential and commercial plumbing fixtures.
Key Specifications:
- Size: 3/4 Inches
- Maximum Working Pressure: 125 psi inlet
- Outlet Temperature Range: 95-115°F maximum
- Notable Certifications: ASSE 1070, cUPC, CSA
- Connection Type: Copper sweat connections
Other Related Variants:
- 12-ZW1070XL: 1/2 Inch FNPT version
- 12-ZW1070XLC: 1/2 Inch copper sweat
- 12-ZW1070XLCPVC: 1/2 Inch CPVC model
- 12-ZW1070XLPEX: 1/2 Inch barb connection
- 12-ZW1070XLPEXF1960: 1/2 Inch barb variant
- 12-ZW1070XLPF: 1/2 Inch push fit
- 1-ZW1070XLC: 1 Inch copper sweat
- 34-ZW1070XL: 3/4 Inch FNPT version
- 38-ZW1070XLCOMP: 3/8 Inch compression connection
Materials:
- Low lead cast bronze body (ASTM B 584) with chrome plating (ASTM B 456)
- Low lead brass internal components (ASTM B 927, UNS C27450)
- Polysulfone piston
- Noryl GFN2 guide tube and checks
- 300 series stainless steel spring and screen
- Viton seals
Typical Installation:
The Zurn 34-ZW1070XLC is designed for installation at single outlet points of use including fixtures, sinks, lavatories, bathtubs, and sensor faucets. The device may be used to supply individual outlets when there is sufficient supply pressure, and it is suggested to use ball valves on the hot and cold inlet supplies for optimal performance.
Standards Compliance:
ASSE Listed 1070; cUPC Listed; CSA Certified B125.70; NSF/ANSI/CAN 61-9 Q≤1 (0.25% max. weighted average lead content)
Features & Benefits:
- Rapid Scald Protection: Extremely rapid response rate provides immediate temperature control to prevent scalding at plumbing fixtures and appliances.
- Lead-Free Construction: Meets stringent lead-free requirements with 0.25% maximum weighted average lead content for safe potable water applications.
- Versatile Installation: Available in multiple end configurations including copper sweat, FNPT, CPVC, and PEX for all residential and commercial installations.
- Precision Temperature Control: Adjustable outlet temperature range of 95-115°F with +/- 3°F set temperature accuracy ensures consistent safe water delivery.
FAQ
Q: What is the maximum pressure differential allowed between hot and cold water inlets?
A: The Wilkins 34-ZW1070XLC requires a maximum pressure differential of 15 psi between hot and cold inlets for proper operation.
Q: Does the outlet temperature need to be adjusted after installation?
A: Yes, the temperature must be field set during installation to achieve the desired outlet temperature within the 95-115°F range.
Q: What are the minimum and maximum flow rates for this valve?
A: The Zurn 34-ZW1070XLC has a minimum flow rate of 0.25 GPM and can achieve up to 10 GPM flow rate at 45 psi pressure loss.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
