Wilkins 34-SXL | Cast Bronze Y-Type Strainer | 3/4 Inches

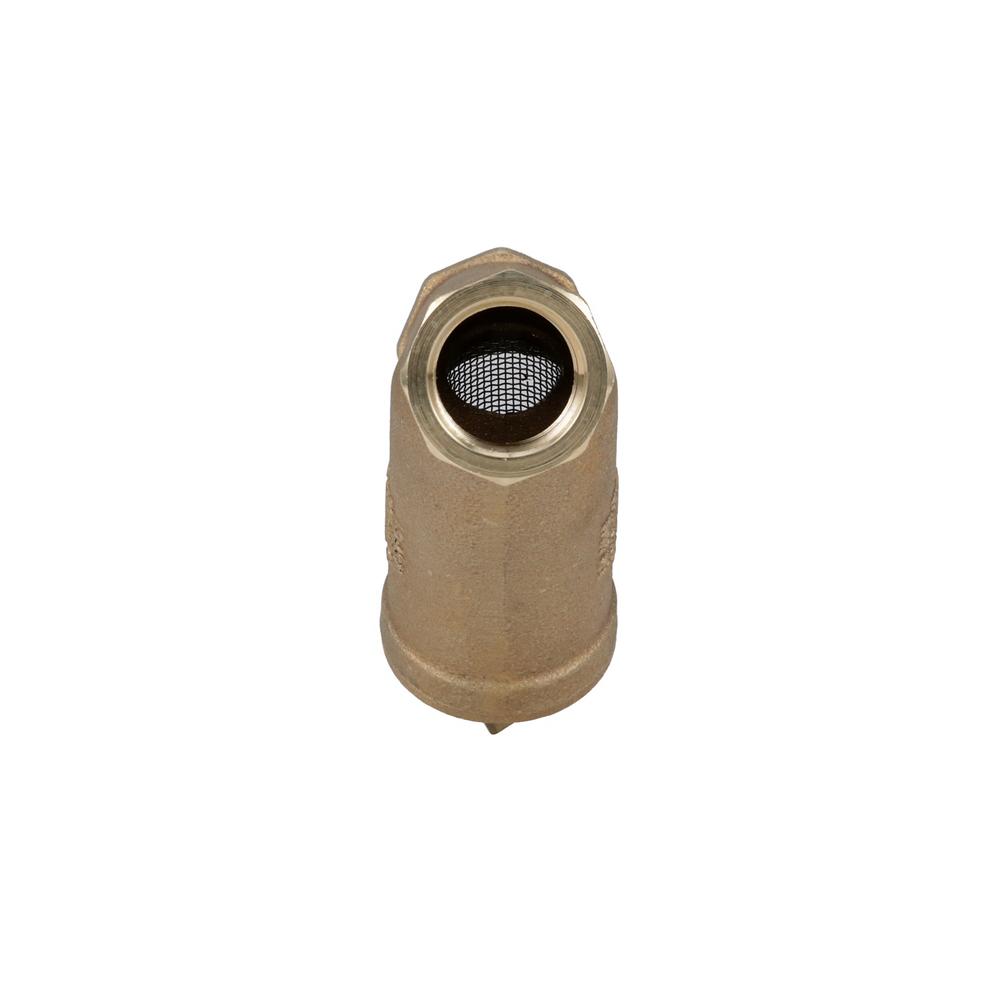

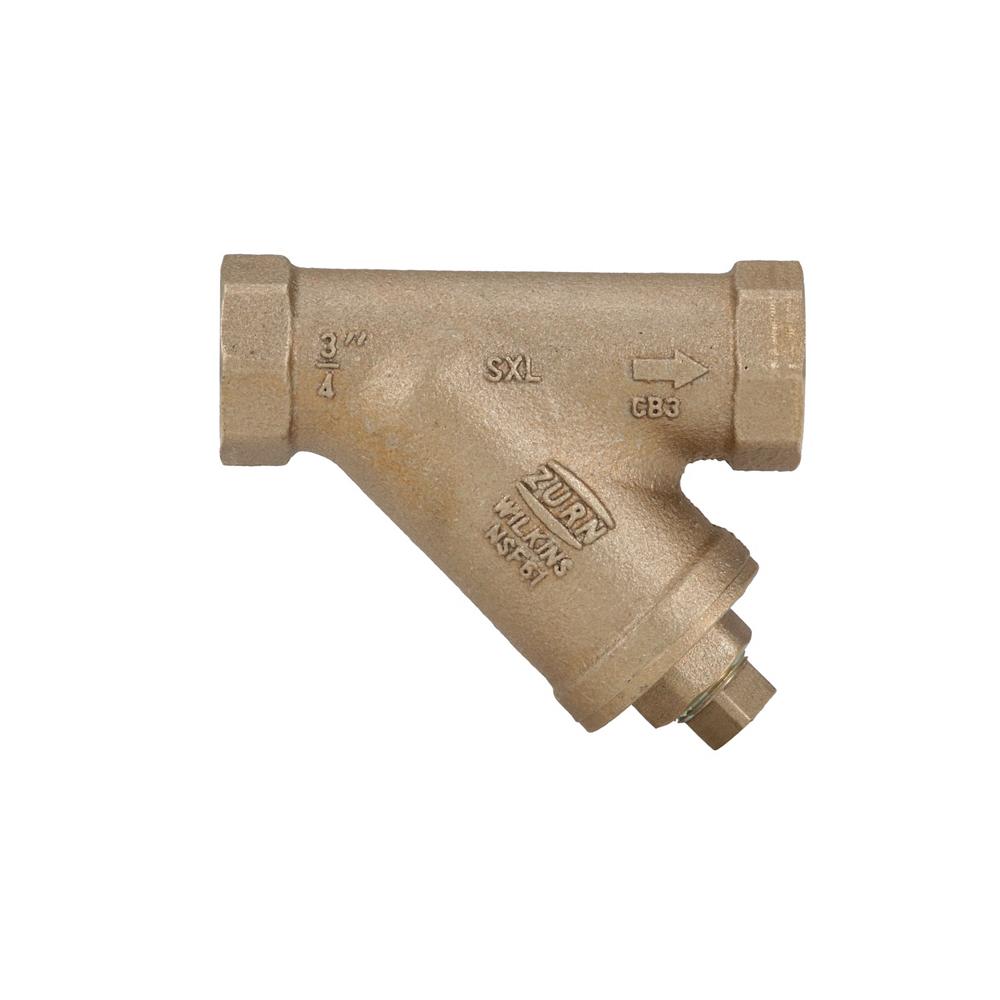

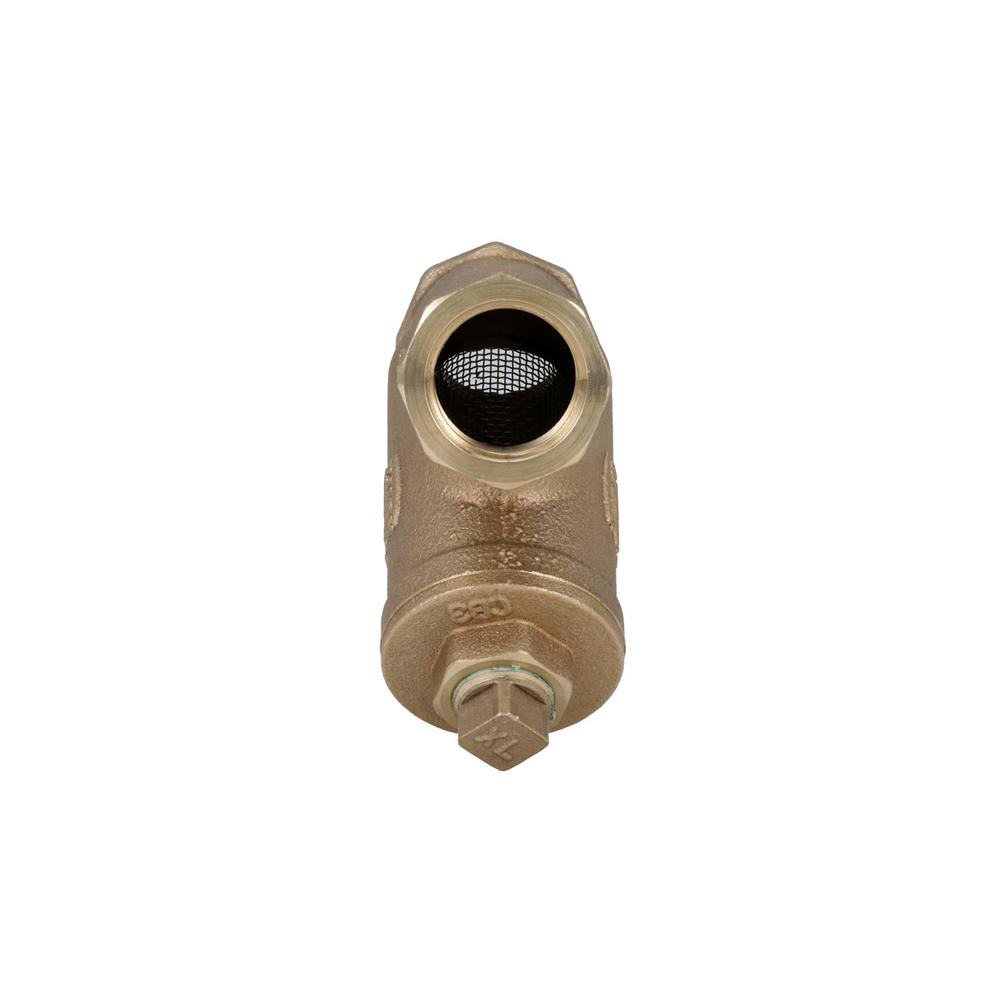

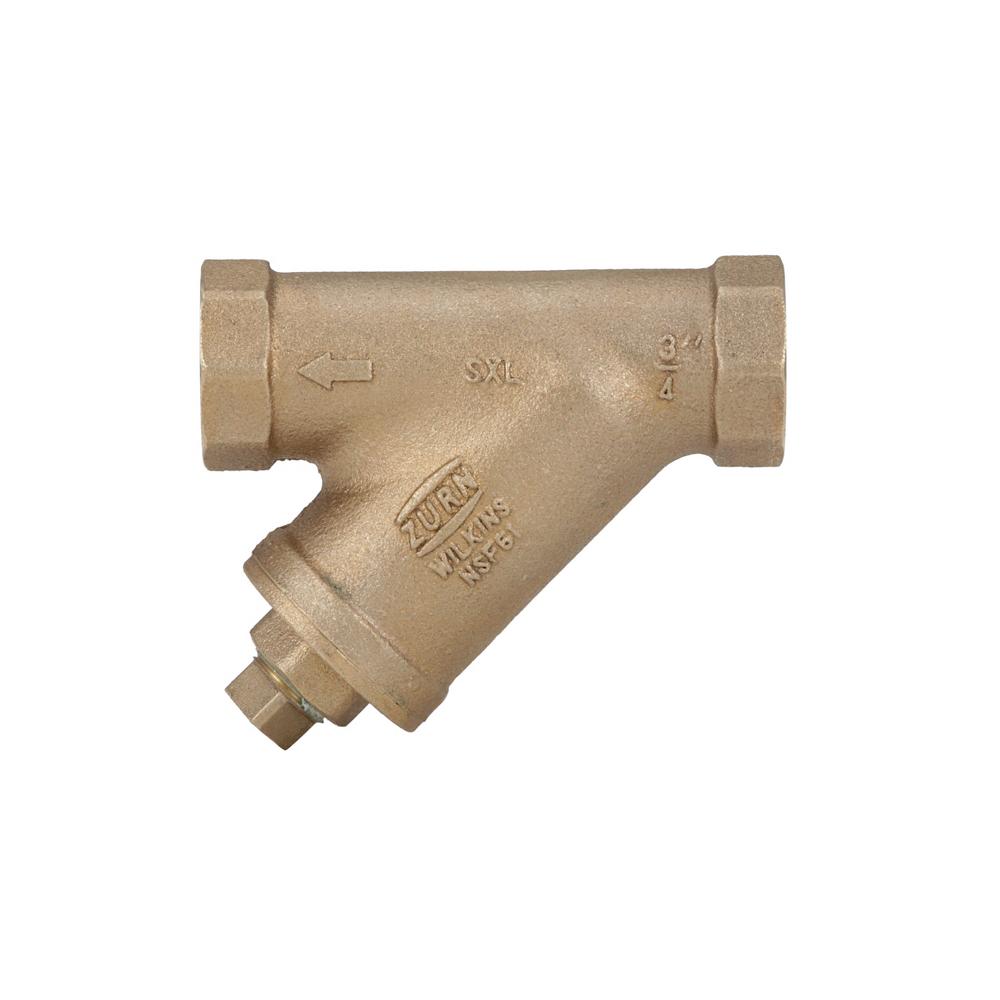

The Wilkins 34-SXL is a 3/4 Inches cast bronze Y-type strainer for potable water, irrigation, and equipment protection.
Key Specifications:
- Size: 3/4 Inches
- Pressure Rating: 300 psi WOG
- Temperature Rating: 180°F maximum
- Notable Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372
- End Connections: Threaded FNPT ANSI B1.20.1
Other Related Variants:
- 12-SXL: 1/2 Inches NPT version
- 1-SXL: 1 Inches NPT version
- 114-SXL: 1 1/4 Inches NPT version
- 112-SXL: 1 1/2 Inches NPT version
- 2-SXL: 2 Inches NPT version
- 212-SXL: 2 1/2 Inches NPT version
- 3-SXL: 3 Inches NPT version
Materials:
- Main Valve Body: Low Lead Cast Bronze ASTM B806
- Access Cover and Plug: Low Lead Cast Bronze ASTM B806
- Screen: 20 Mesh 300 Series Stainless Steel
- O-Ring: Buna Nitrile
- Closure Plug: Brass (supplied)
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted in accordance with the latest edition of the Uniform Plumbing Code. If installed below grade, adequate drainage must be provided to prevent the device from being submerged. Horizontal installation with the strainer cap facing downward is the preferred orientation; however, the Zurn 34-SXL strainer will provide protection in any orientation. Typical installations include upstream of pressure reducing valves and reduced pressure backflow preventers in outdoor protective enclosures, with a mounting height between 12 inches minimum and 30 inches maximum above grade.
Standards Compliance:
NSF/ANSI/CAN 61; NSF/ANSI/CAN 372 (Lead Free)
Features & Benefits:
- Sediment Protection: The Zurn 34-SXL 20-mesh stainless steel screen filters sediment to protect regulators, backflow preventers, and other delicate downstream equipment from premature failure.
- Lead-Free Durability: Low lead cast bronze body and cover (ASTM B806) provide long-lasting corrosion resistance and comply with lead-free standards for potable water applications.
- Easy Maintenance: The strainer screen is accessible for cleaning and maintenance without removing the device from the line, minimizing system downtime.
- Versatile Installation: Functional in any orientation and suitable for residential, commercial domestic water, and irrigation service lines.
FAQ
Q: What is the preferred installation orientation for the Wilkins 34-SXL?
A: Horizontal installation with the strainer cap facing downward is preferred; however, the strainer is functional in any orientation.
Q: Can the screen be cleaned without removing the strainer from the pipeline?
A: Yes. The strainer screen on the Wilkins 34-SXL is accessible for maintenance without removing the device from the line.
Q: Is the 34-SXL certified safe for potable water use?
A: Yes. It meets NSF/ANSI/CAN 61 and NSF/ANSI/CAN 372, confirming it is lead-free and safe for use in potable water systems.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
