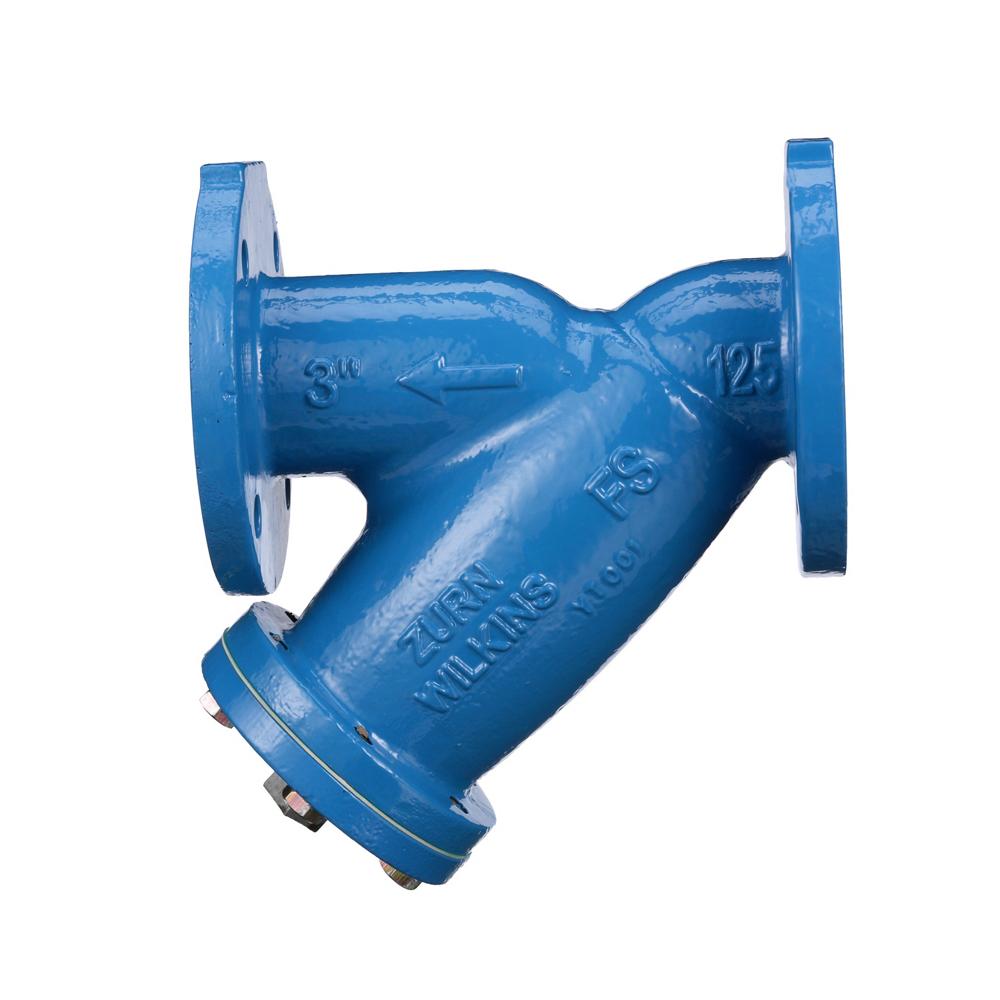

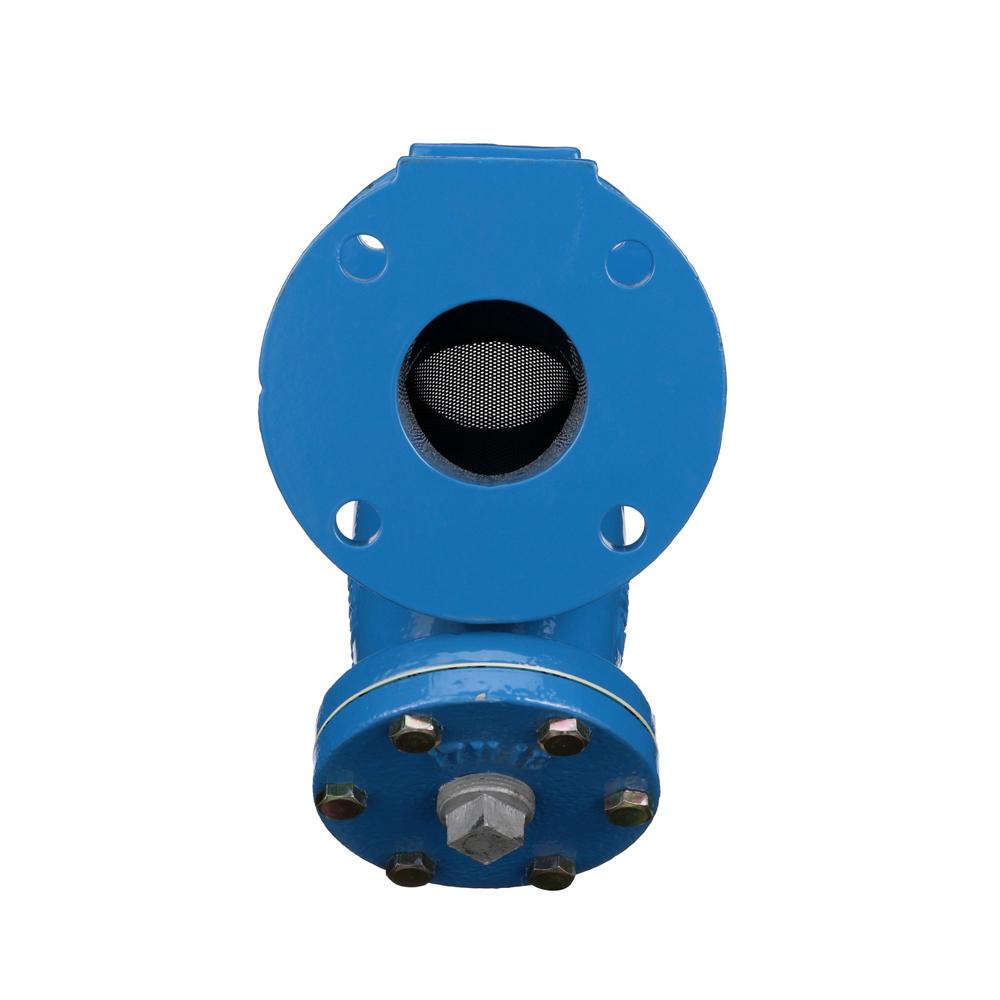

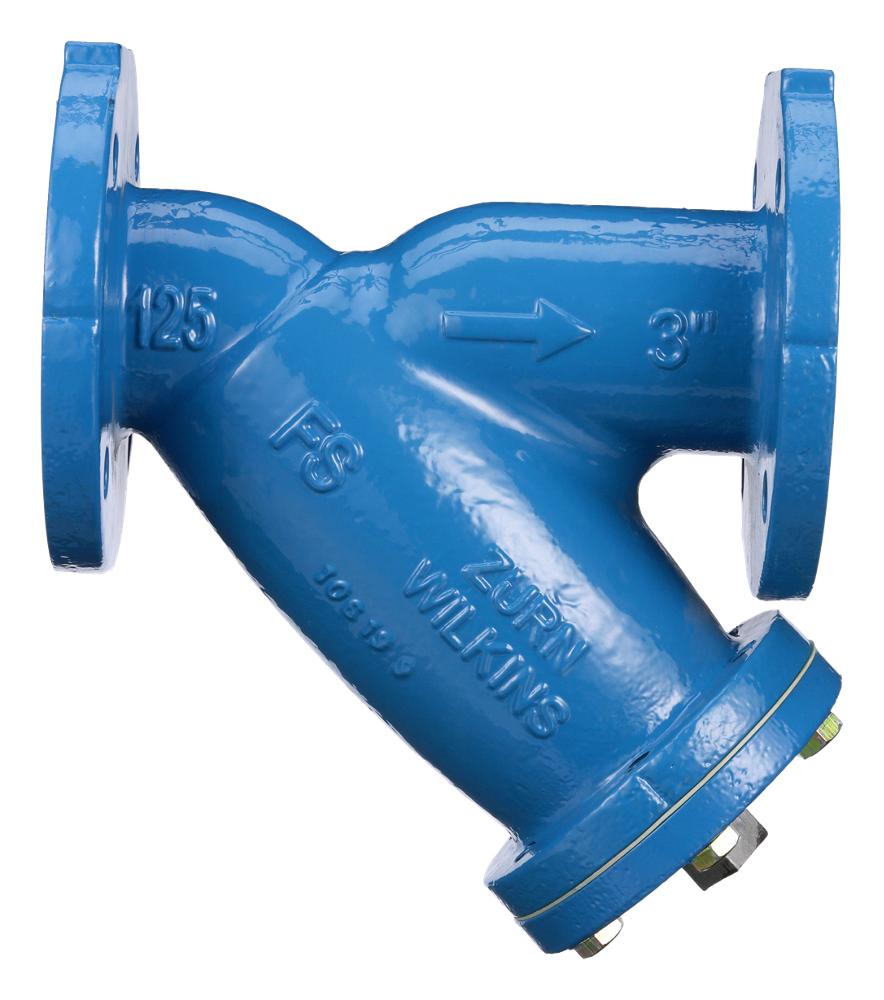

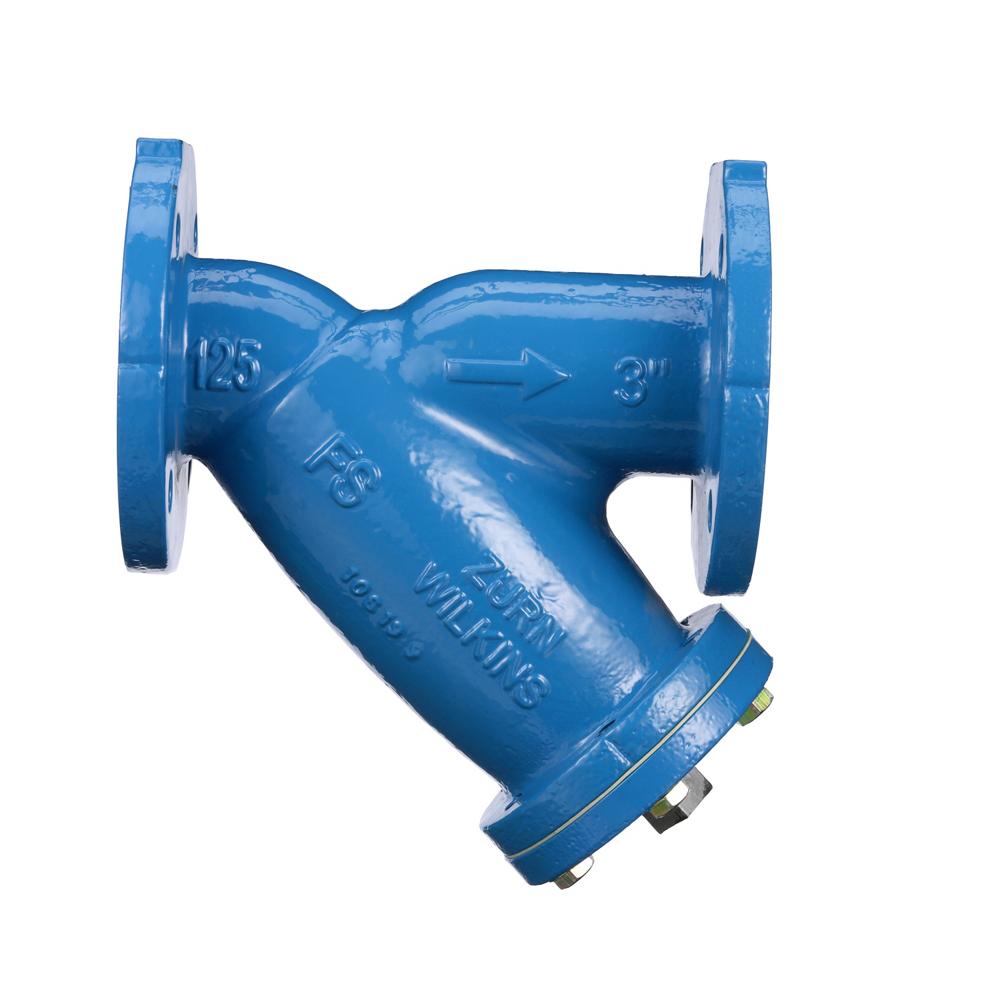

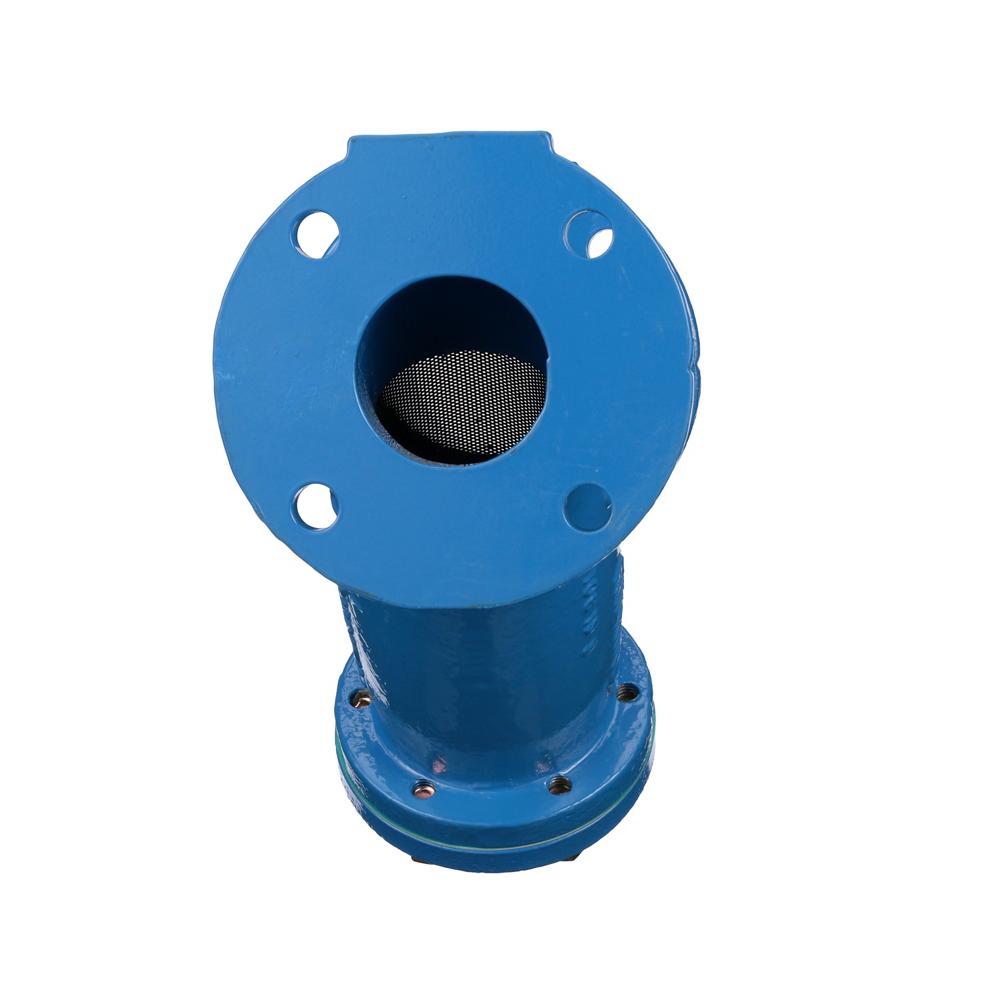

Wilkins 3-FSC | Ductile Iron Y-Type Strainer | 3 Inches Flanged
The Wilkins 3-FSC is a 3 Inches ductile iron Y-type strainer protecting downstream equipment from sediment and debris.
Key Specifications:
- Size: 3 Inches
- Pressure Rating: 200 psi @ 150°F WOG; 125 psi @ 450°F Steam
- End Connections: ASME B16.42 Class 150 Flanged
- Notable Certifications: MIL-S-16293F Type 2; NSF/ANSI/CAN 372; NSF/ANSI/CAN 61
- Flow Capacity: 115 GPM @ 5 ft/sec; 230 GPM @ 10 ft/sec
Other Related Variants:
- 212-FSC: 2 1/2 Inches version
- 4-FSC: 4 Inches version
- 6-FSC: 6 Inches version
- 8-FSC: 8 Inches version
- 10-FSC: 10 Inches version
- 12-FSC: 12 Inches version
Materials:
- Main Valve Body: Ductile Iron ASTM A536
- Access Cover: Ductile Iron ASTM A536
- Coating: Fusion Epoxy Finish (NSF/ANSI/CAN 61 compliant) inside and out
- Screen: Perforated 300 Series Stainless Steel
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted with sufficient clearance for maintenance in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code. The installation shall be made so that no part of the unit can be submerged. Horizontal installation with the strainer cap facing downward is the preferred installation orientation; however the Zurn 3-FSC strainer will provide protection in any orientation. Suitable for both outdoor installations with a protective enclosure and indoor installations with an air gap and drain.
Standards Compliance:
MIL-S-16293F Type 2; NSF/ANSI/CAN 372 (Lead Free); NSF/ANSI/CAN 61 (Fusion Epoxy Finish)
Features & Benefits:
- Downstream Equipment Protection: The Zurn 3-FSC effectively filters sediment and debris from water lines, preventing premature equipment failure.
- Durable Construction: Ductile iron ASTM A536 body and access cover with fusion epoxy finish ensure long-lasting corrosion resistance inside and out.
- Easy Maintenance: The integral strainer screen is accessible for cleaning without removing the device from the line, minimizing system downtime.
- Flexible Installation: Functions in any orientation while horizontal installation with the cap facing downward is preferred for optimal performance.
FAQ
Q: What is the preferred installation orientation for the Wilkins 3-FSC?
A: Horizontal installation with the strainer cap facing downward is the preferred orientation; however, the strainer will provide protection in any orientation.
Q: Can the screen be cleaned without removing the strainer from the pipeline?
A: Yes. The integral strainer screen on the 3-FSC is designed to be accessible for cleaning without removing the device from the line.
Q: What drain connection size is provided on the 3 Inches model?
A: The 3 Inches model features a 1 1/4 Inches NPT drain connection (Dimension D), with 6 Inches of clearance required for screen removal.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
