Wilkins 212-ZW209FPG | 2 1/2" Fire Protection Pressure Reducin...

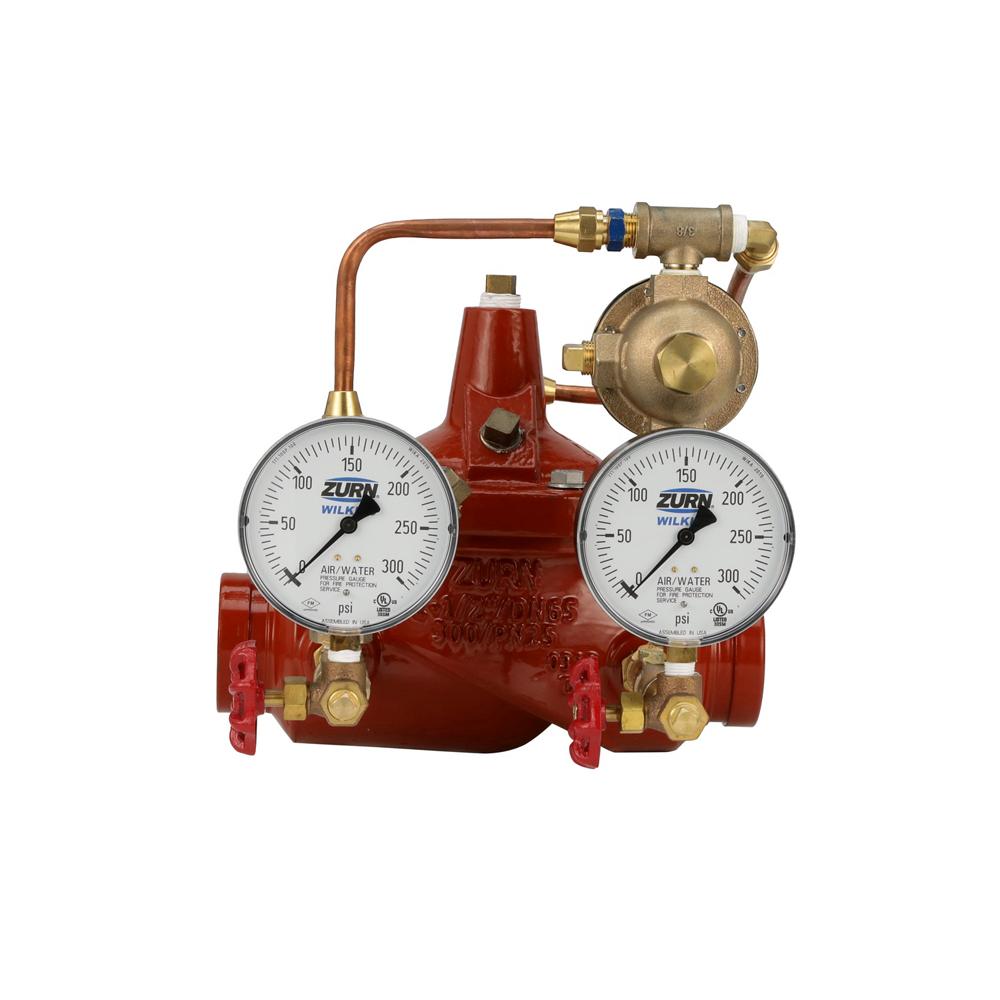

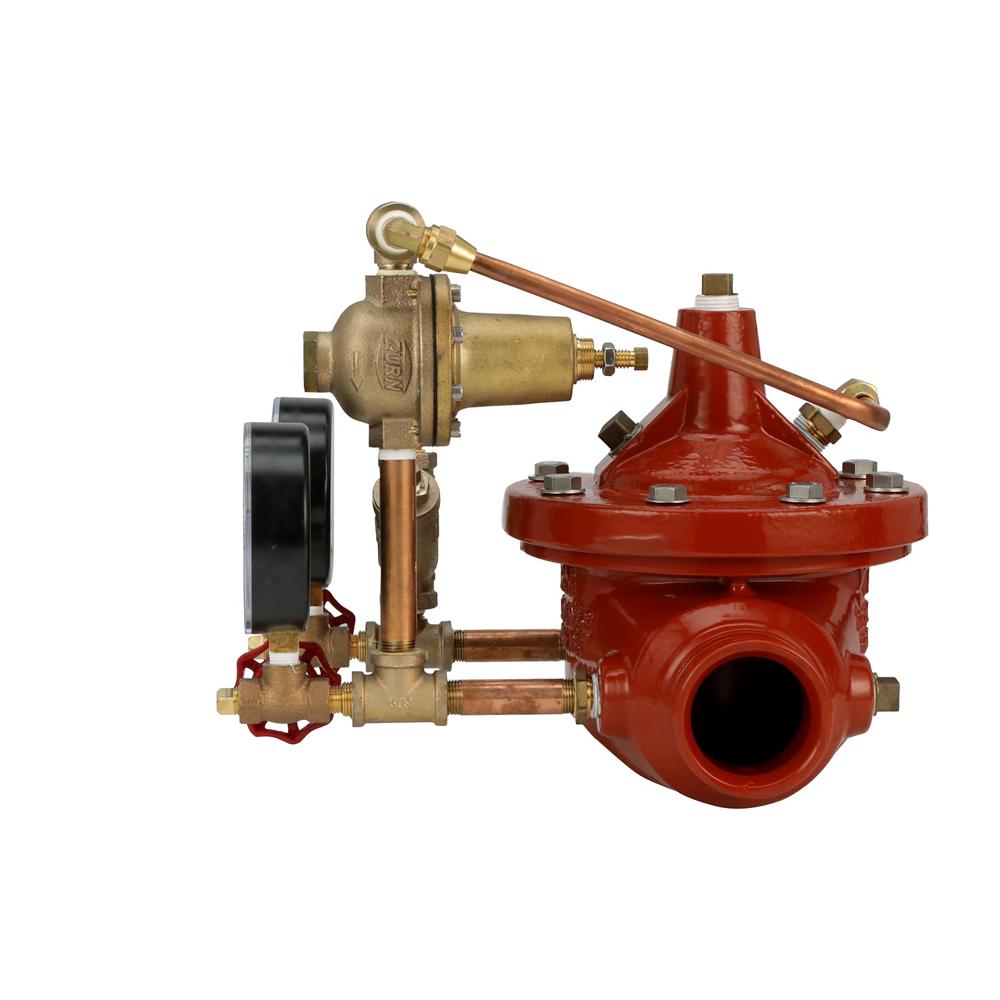

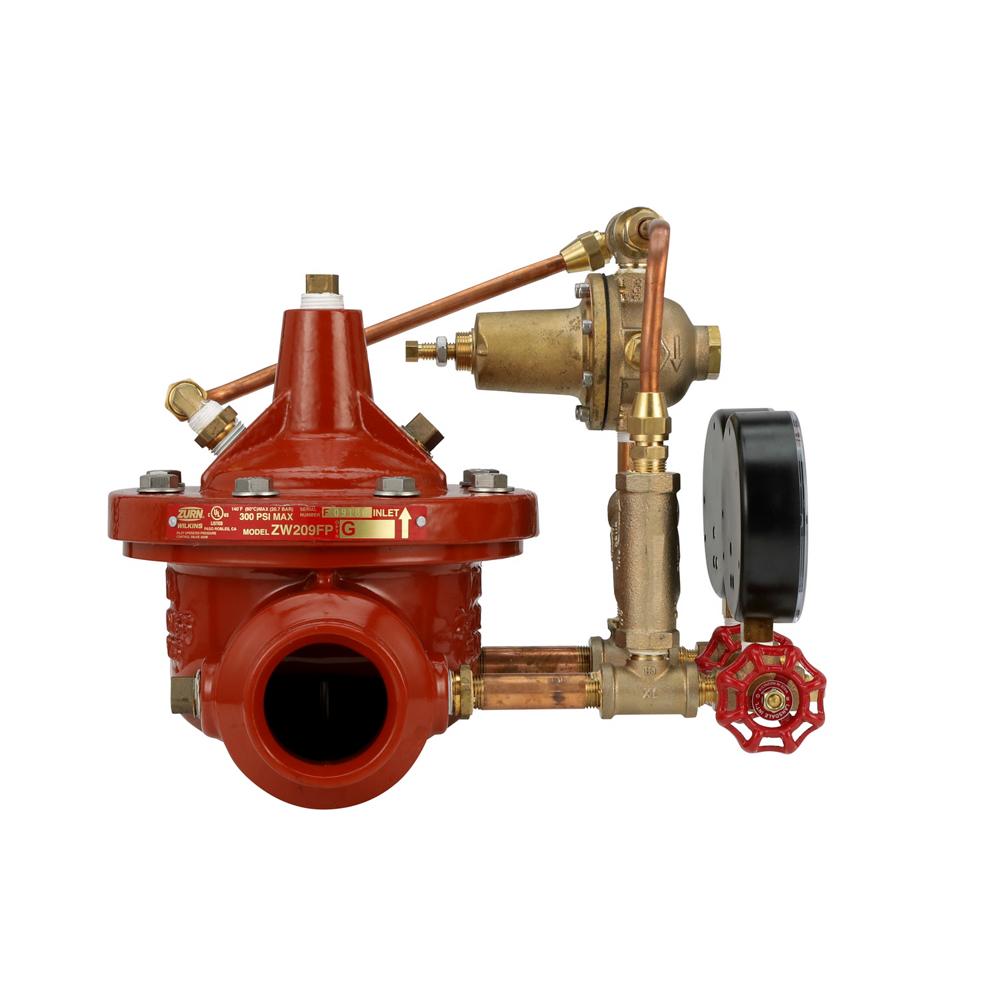

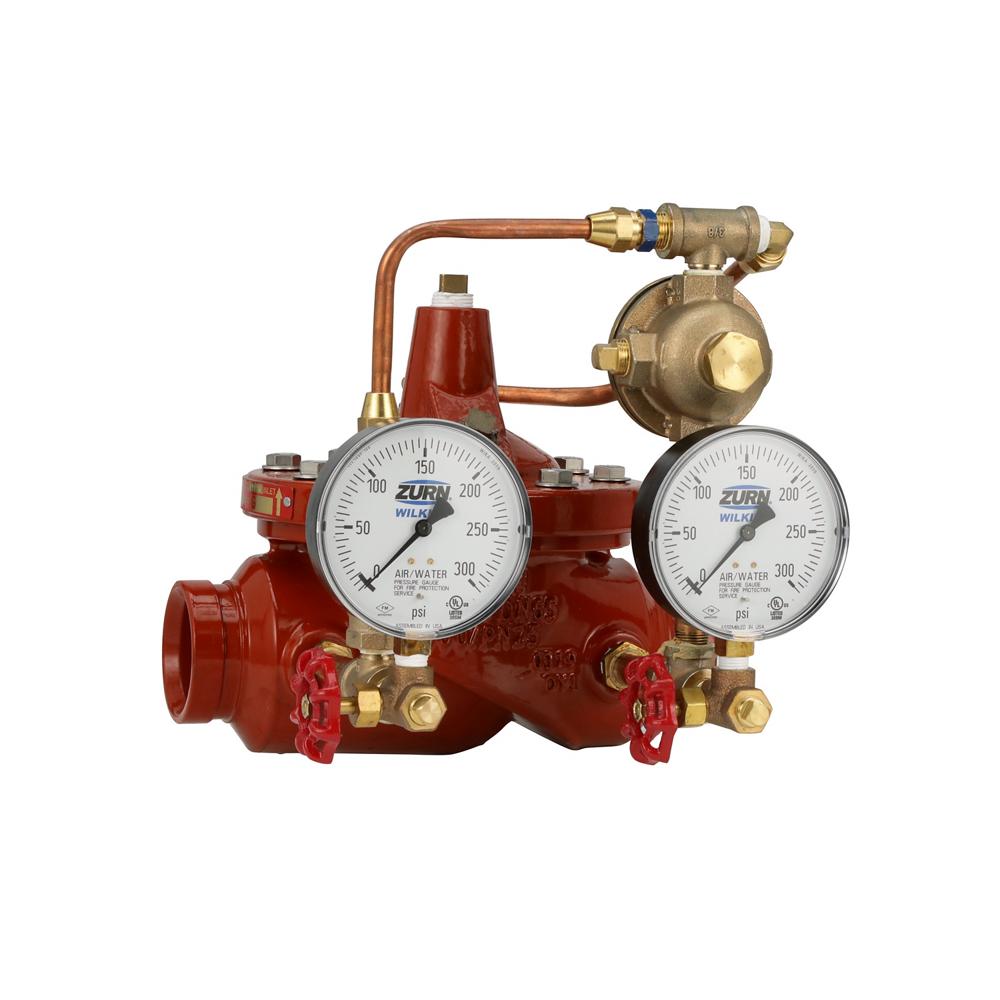

The Wilkins 212-ZW209FPG is a pilot-operated pressure reducing valve designed for fire suppression systems, reducing high inlet pressures to stable outlet pressure with grooved end connections.
Key Specifications:
- Size: 2 1/2 Inches
- Inlet Pressure Rating: 300 psi maximum
- Temperature Rating: 33°F to 140°F water
- Notable Certifications: UL and C-UL Listed
- Connection Type: Grooved Ends
Other Related Variants:
- 10-ZW209FPG: 10 Inches valve size
- 8-ZW209FPG: 8 Inches valve size
- 6-ZW209FPG: 6 Inches valve size
- 4-ZW209FPG: 4 Inches valve size
- 3-ZW209FPG: 3 Inches valve size
- 2-ZW209FPG: 2 Inches valve size
Materials:
- Main Valve Body: Ductile Iron ASTM A536
- Main Valve Cover: Ductile Iron ASTM A536
- Disc Guide: Stainless Steel
- Seat: Stainless Steel
- Disc: Buna-N Rubber
- Diaphragm: Nylon Reinforced Buna-N
- Stem: Stainless Steel
- Spring: Stainless Steel
Typical Installation:
The upstream and downstream pressure gauges are required by Underwriters Laboratories® (UL). Also a relief valve of not less than 1/2" in size MUST be installed on the downstream side of the pressure control valve. Adequate drainage for the relief valve discharge must be provided.
Standards Compliance:
ANSI/AWWA C530; AWWA C606; ANSI B1.20.1; ANSI B16.42; NFPA 13; NFPA 14; NFPA 25
Features & Benefits:
- Pilot Operated Control: Maintains constant downstream pressure regardless of flow rate or inlet pressure variations.
- Corrosion Protection: Red epoxy coated internally and externally (FDA approved) for long-lasting durability.
- Installation Ready: Includes wye strainer, inlet/outlet pressure gauges with 3-way gauge isolation valves for quick setup.
- Adjustable Pressure Range: Field adjustable pilot spring from 50-165 psi residual pressure for versatile applications.
FAQ
Q: What is the adjustable pressure range for the Zurn 212-ZW209FPG?
A: The Wilkins 212-ZW209FPG pilot control is field adjustable from 50 psi to 165 psi residual pressure, with a maximum static pressure of 175 psi.
Q: Is a relief valve required when installing the Zurn 212-ZW209FPG?
A: Yes, UL installation requirements specify that a relief valve of not less than 1/2" in size MUST be installed on the downstream side of the pressure control valve with adequate drainage.
Q: What is the recommended installation orientation for this valve?
A: The recommended installation orientation is horizontal with the valve cover up. The 2 1/2" valve can be installed in other orientations, but proper air bleeding and maintenance access should be considered.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
