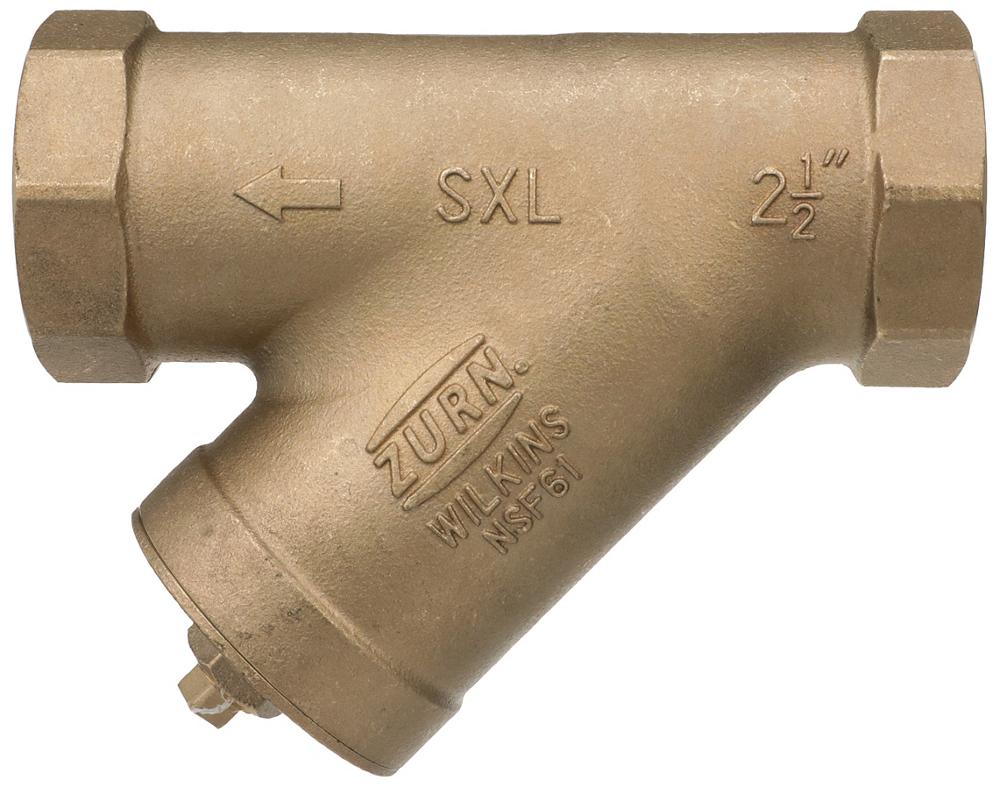

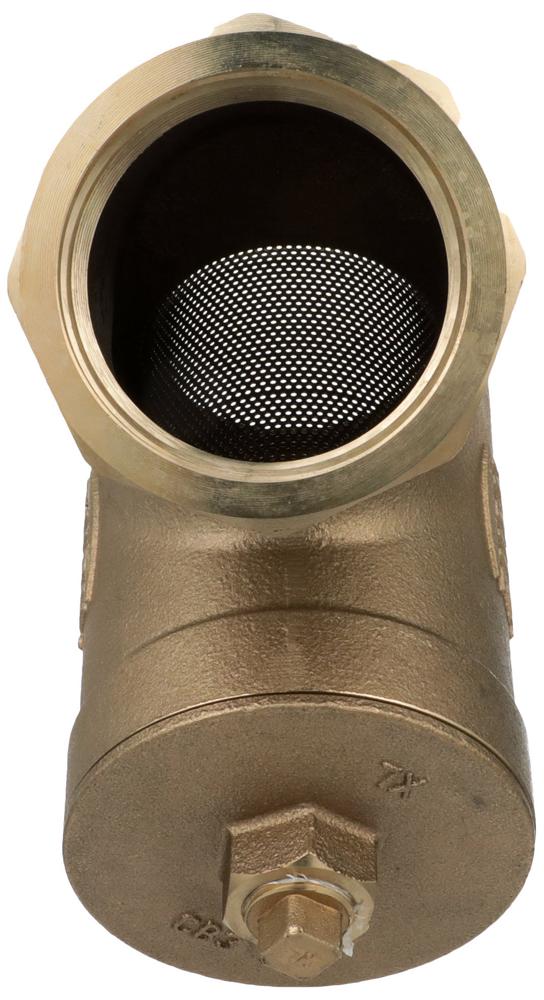

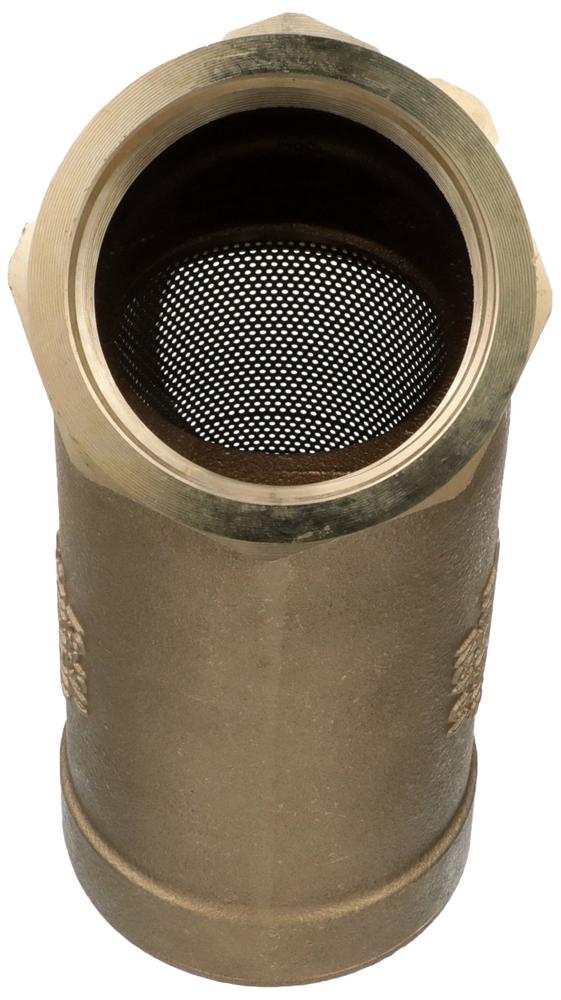

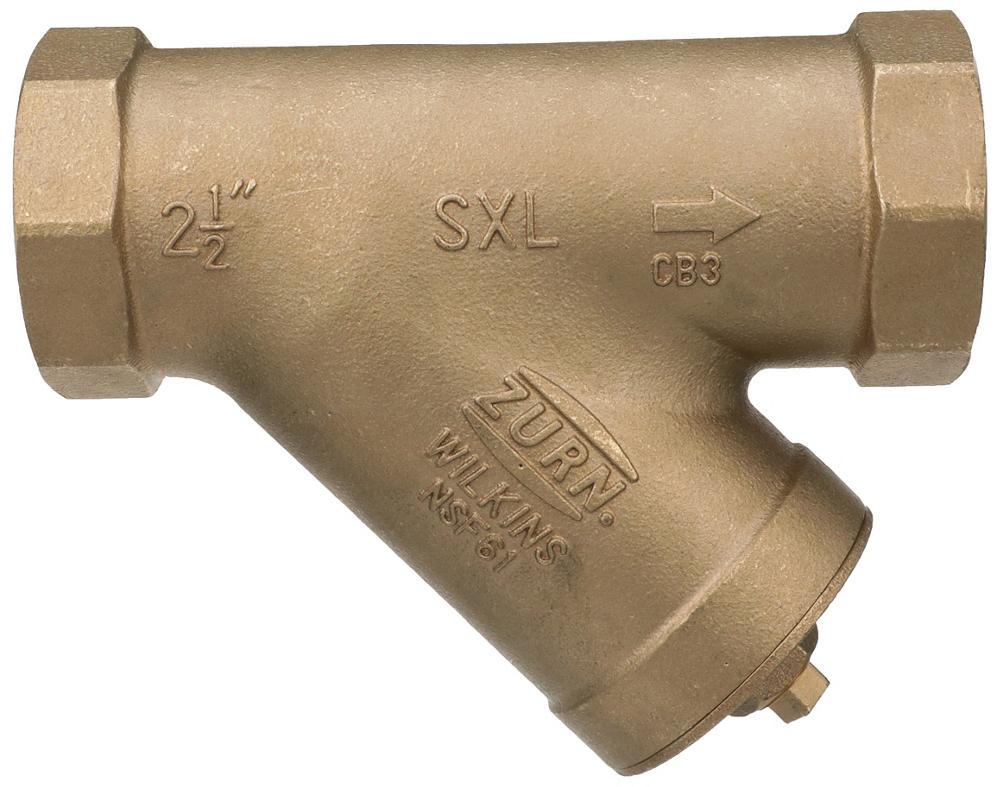

Wilkins 212-SXL | Cast Bronze Y-Type Strainer | 2-1/2 Inches
The Wilkins 212-SXL is a 2-1/2 Inches cast bronze Y-type strainer for potable water, protecting equipment from sediment damage.
Key Specifications:
- Size: 2 1/2 Inches
- Pressure Rating: 300 psi WOG
- Temperature Rating: 180°F maximum
- Notable Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372
- End Connections: Threaded FNPT ANSI B1.20.1
Other Related Variants:
- 12-SXL: 1/2 Inches version
- 34-SXL: 3/4 Inches version
- 1-SXL: 1 Inches version
- 114-SXL: 1 1/4 Inches version
- 112-SXL: 1 1/2 Inches version
- 2-SXL: 2 Inches version
- 3-SXL: 3 Inches version
Materials:
- Main Valve Body: Low Lead Cast Bronze ASTM B806
- Access Cover and Plug: Low Lead Cast Bronze ASTM B806
- Screen: 20 Mesh 300 Series Stainless Steel
- O-Ring: Buna Nitrile
- Closure Plug: Brass (supplied)
Typical Installation:
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted in accordance with the latest edition of the Uniform Plumbing Code. If installed below grade, adequate drainage must be provided to prevent the device from being submerged. Horizontal installation with the strainer cap facing downward is the preferred orientation; however, the Zurn 212-SXL strainer will provide protection in any orientation.
Standards Compliance:
NSF/ANSI/CAN 61; NSF/ANSI/CAN 372 (Lead Free)
Features & Benefits:
- Sediment Protection: The 20 mesh stainless steel screen filters sediment, safeguarding regulators, backflow preventers, and delicate downstream equipment from premature failure.
- Durable Lead-Free Construction: Low lead cast bronze body and cover (ASTM B806) ensure long-lasting performance and compliance with lead-free standards.
- Flexible Installation: Functional in any orientation, with preferred horizontal installation and strainer cap facing downward for optimal sediment collection.
- Easy Maintenance: The strainer screen is accessible for cleaning and maintenance without removing the Zurn 212-SXL from the line, minimizing downtime.
FAQ
Q: What type of water service is the Wilkins 212-SXL recommended for?
A: It is recommended for potable water service lines including residential and commercial domestic water systems and irrigation applications.
Q: Can the strainer be installed in any orientation?
A: Yes. While horizontal installation with the strainer cap facing downward is preferred, the strainer will function effectively in any orientation.
Q: Can the screen be serviced without removing the strainer from the pipeline?
A: Yes. The strainer screen is designed to be accessible for maintenance and cleaning without removing the device from the line.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
