Wilkins 212-F100G | 2-1/2" Fire Hose Valve, Grooved × NH

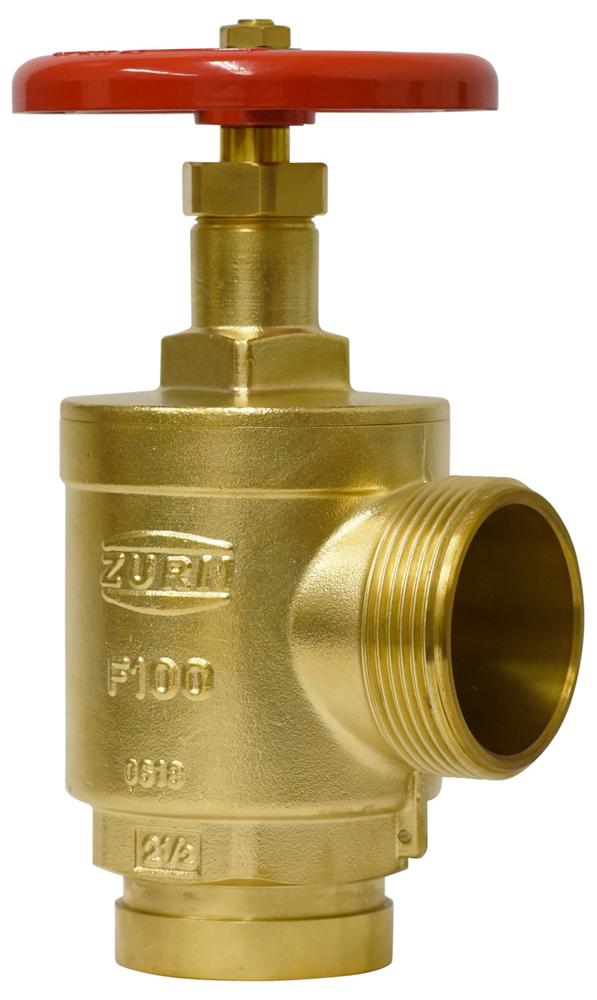

The Wilkins 212-F100G is a 2-1/2" angle body standpipe valve designed for fire hose rack assemblies and fire department outlet connections, featuring grooved inlet and NH outlet connections for reliable fire protection systems.
Key Specifications:
- Size: 2 1/2 Inches
- Maximum Inlet Pressure: 300 psi
- Flow Coefficient (Cv): 148
- Notable Certifications: UL Listed, FM Approved, C-UL/ULC Listed
- Connection Type: Grooved Inlet × NH Outlet
Other Related Variants:
- 212-F100: FNPT inlet × NH outlet version
- 212-F100F: FNPT inlet × FNPT outlet version
- 212-F100GST: Grooved inlet × Special Thread outlet
- 112-F100: 1-1/2 Inches FNPT × NH outlet
- 112-F100F: 1-1/2 Inches FNPT × FNPT outlet
Materials:
- Main valve body: Brass C37700
- O-Rings: EPDM (A70)
- Handwheel: Aluminum A03600
- Handwheel Bolt: Brass C37700
- Handwheel Retaining Washer: 304 Stainless Steel
Typical Installation:
Fire hose rack assemblies and fire department outlet connections for standpipe systems in commercial and industrial buildings.
Standards Compliance:
UL Listed; C-UL, ULC Listed (2-1/2" only); FM Approved
Features & Benefits:
- High Flow Capacity: Cv 148 rating ensures optimal water flow for effective fire suppression operations.
- Durable Brass Construction: Brass C37700 body with EPDM O-rings provides long-lasting corrosion resistance and reliable performance.
- Versatile Connection Options: Grooved inlet design allows for quick installation and compatibility with standard fire protection piping systems.
- Certified Safety Compliance: UL Listed, FM Approved, and C-UL/ULC Listed for 2-1/2" models ensures code compliance and reliable operation.
FAQ
Q: What is the maximum inlet pressure rating for the Zurn 212-F100G?
A: The Zurn 212-F100G has a maximum inlet pressure rating of 300 psi, making it suitable for standard fire protection system applications.
Q: What type of outlet connection does the Wilkins 212-F100G feature?
A: The Wilkins 212-F100G features a male NH (National Hose) outlet connection, which is standard for fire hose connections.
Q: Can the 212-F100G be used with different inlet connection types?
A: Yes, while the 212-F100G features a grooved inlet, alternative models like the 212-F100 offer FNPT inlet connections for different piping configurations.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
