Wilkins 14-860XLFT | Resilient Seated Ball Test Cock, 1/4" MNP...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

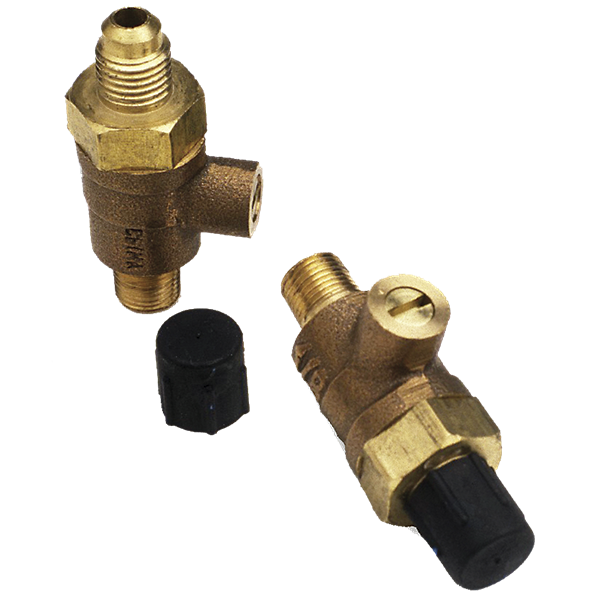

The Wilkins 14-860XLFT is a resilient seated ball type test cock designed for backflow preventer test ports, featuring a 45° SAE flare fitting for fast and easy differential pressure gauge hose attachment.
Key Specifications:
- Size: 1/4 Inches
- Maximum Working Pressure: 300 PSI WOG
- Maximum Temperature: Up to 180°F
- Notable Certifications: NSF/ANSI 372 Certified
- Connection Type: 1/4" MNPT x 45° SAE
Other Related Variants:
- 18-860XLFT: 1/8 Inch version
- 14-860XL: 1/4 Inch model without SAE flare fitting
- 18-860XL: 1/8 Inch model without SAE flare fitting
Materials:
- Main valve body: Low Lead Cast Bronze ASTM B 584
- Ball: Low Lead Brass, Chrome Plated
- Seat and packing: Teflon
- Flare fitting: Brass ASTM B 16
Typical Installation:
The Zurn 14-860XLFT is designed for installation on backflow preventers as a test port for attaching a differential pressure gauge. It is typically installed indoors on devices such as the Wilkins 350XL, positioned within the direction of flow at a height between 12 inches minimum and 30 inches maximum for optimal accessibility during testing procedures.
Standards Compliance:
Certified to NSF/ANSI 372 (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT) by IAPMO R&T; Threaded ANSI B1.20.1
Features & Benefits:
- Fast Test Connection: The 45° SAE flare fitting allows for faster and easier attachment of differential pressure gauge hoses compared to standard test cocks, reducing testing time and improving efficiency.
- Fouling Protection: Includes a threaded dust cover that protects against fouling caused by insects, dirt, and debris, ensuring reliable operation and reducing maintenance requirements.
- Low-Lead Compliance: Certified to NSF/ANSI 372 low-lead requirements, making it safe for potable water applications and compliant with current plumbing codes.
- Quarter-Turn Operation: Features a quarter-turn ball with screwdriver slot for quick and easy opening and closing during backflow preventer testing procedures.
FAQ
Q: What is the difference between the 14-860XLFT and the 14-860XL models?
A: The 14-860XLFT features a 45° SAE flare outlet connection for fast and easy attachment of test kit hoses, while the 14-860XL has a standard 1/4" FNPT outlet. The XLFT model also includes a threaded dust cover for fouling protection.
Q: What type of backflow preventers is this test cock compatible with?
A: The Zurn 14-860XLFT is designed for installation on backflow preventers as a test port for attaching differential pressure gauges. It is compatible with devices such as the Wilkins 350XL and other backflow prevention assemblies requiring 1/4" MNPT test ports.
Q: What is the maximum working pressure for this test cock?
A: The maximum working pressure is 300 PSI WOG (Water, Oil, Gas) with a maximum temperature rating of 180°F, making it suitable for most backflow preventer testing applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
