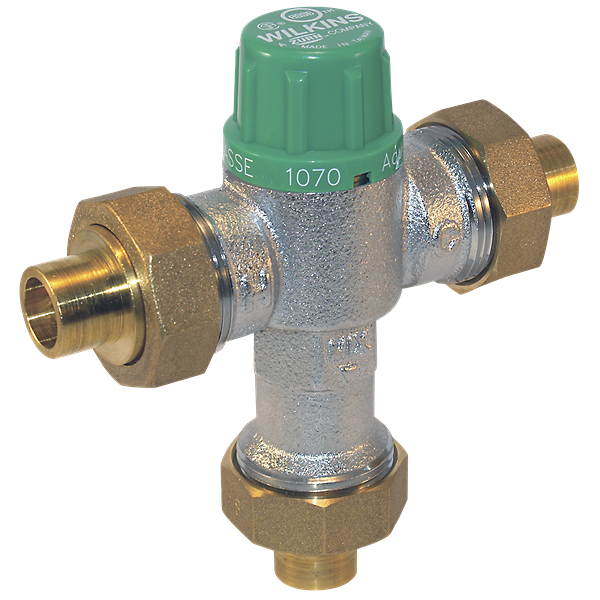

Wilkins 12-ZW1070XLPF | 1/2" Thermostatic Mixing Valve, Z-Bite...
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.
The Wilkins 12-ZW1070XLPF is an Aqua-Gard® thermostatic mixing valve designed for point-of-use scald protection, featuring Z-Bite™ push-fit connections for fast, reliable installation with outlet temperature control from 95–115°F.
Key Specifications:
- Size: 1/2 Inches
- Maximum Working Pressure: 125 psi inlet
- Outlet Temperature Range: 95-115°F (35-46°C)
- Notable Certifications: ASSE 1070, cUPC, CSA B125.70
- Connection Type: Z-Bite push-fit tailpiece
Other Related Variants:
- 12-ZW1070XL: 1/2 Inch FNPT version
- 12-ZW1070XLC: 1/2 Inch copper sweat
- 12-ZW1070XLCPVC: 1/2 Inch CPVC version
- 12-ZW1070XLPEX: 1/2 Inch barb connection
- 12-ZW1070XLPEXF1960: 1/2 Inch barb F1960
- 1-ZW1070XLC: 1 Inch copper sweat
- 34-ZW1070XL: 3/4 Inch FNPT model
- 34-ZW1070XLC: 3/4 Inch copper sweat
- 38-ZW1070XLCOMP: 3/8 Inch compression connection
Materials:
- Body: Low Lead Cast Bronze, ASTM B 584 with Chrome Plating ASTM B 456 Service Condition #2
- Internal Brass: Low Lead Brass, ASTM B 927, UNS C27450
- Piston: Polysufone
- Guide Tube: Noryl GFN2
- Spring & Screen: 300 Series Stainless Steel
- Seals: Viton
- Checks: Noryl GFN2
Typical Installation:
The Zurn 12-ZW1070XLPF is designed for point-of-use installation at plumbing fixtures and appliances for final control of water temperature. Ideal for installation at sinks, lavatories, bathtubs, and sensor faucets. The device is designed to be installed at a single outlet and may be used to supply individual outlets when there is sufficient supply pressure. Ball valves on the hot and cold inlet supplies are suggested.
Standards Compliance:
ASSE Listed 1070; cUPC Listed; CSA Certified B125.70; NSF/ANSI/CAN 61-9 Q≤1 (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)
Features & Benefits:
- Scald Protection: Rapid response thermostatic control mixes hot and cold water to a safer temperature of 95-115°F, preventing scalding injuries at point-of-use fixtures.
- Z-Bite Push-Fit Technology: Push-fit tailpiece connections provide quick, reliable installation without soldering or threading, reducing installation time and labor costs.
- Lead-Free Compliance: Constructed with low lead cast bronze meeting NSF/ANSI/CAN 61-9 requirements with 0.25% maximum weighted average lead content for safe potable water applications.
- High Flow Capacity: Delivers up to 10 GPM flow rate at 45 psi pressure loss with minimum flow of 0.25 GPM, suitable for residential and commercial applications.
FAQ
Q: What is the maximum pressure differential allowed between hot and cold inlets for the Wilkins 12-ZW1070XLPF?
A: The maximum pressure differential is 15 psi between hot and cold inlets. The maximum working inlet pressure is 125 psi.
Q: Does the Zurn 12-ZW1070XLPF come pre-set to a specific temperature?
A: No, the temperature must be field set. The valve can be adjusted within an outlet temperature range of 95-115°F with set temperature accuracy of +/- 3°F.
Q: Can this thermostatic mixing valve be used to supply multiple fixtures?
A: The device is designed to be installed at a single outlet for individual use. It may be used to supply individual outlets when there is sufficient supply pressure, but it is not intended for multiple fixture distribution systems.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
