Wilkins 12-ZW1070XLPEXF1960 | Aqua-Gard® Thermostatic Mixing Valve,...

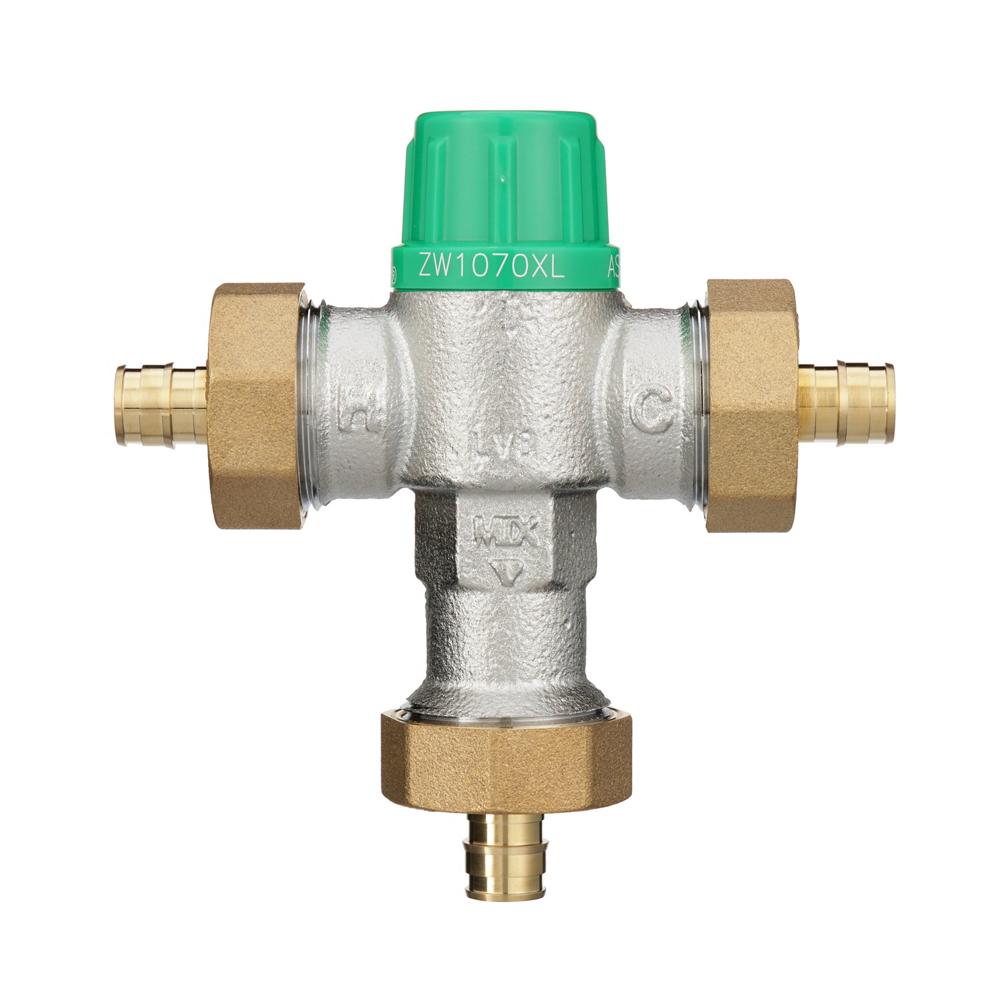

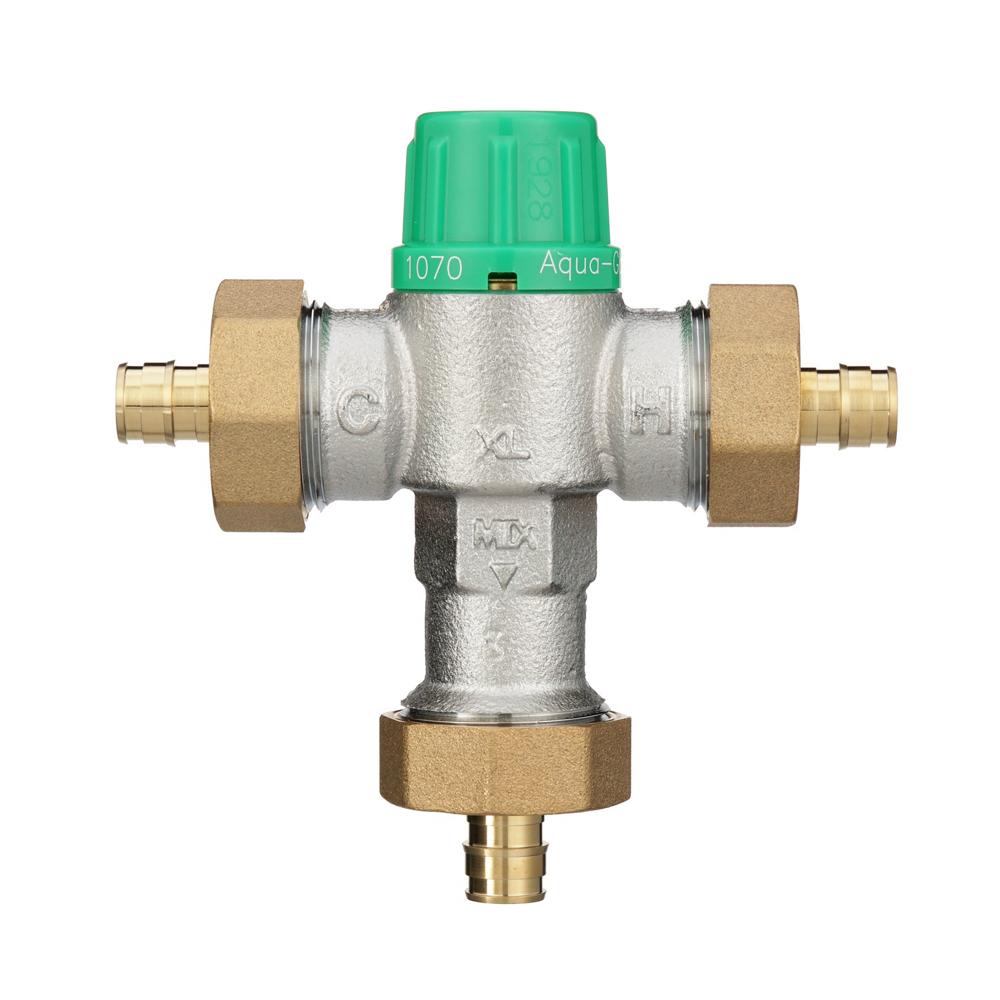

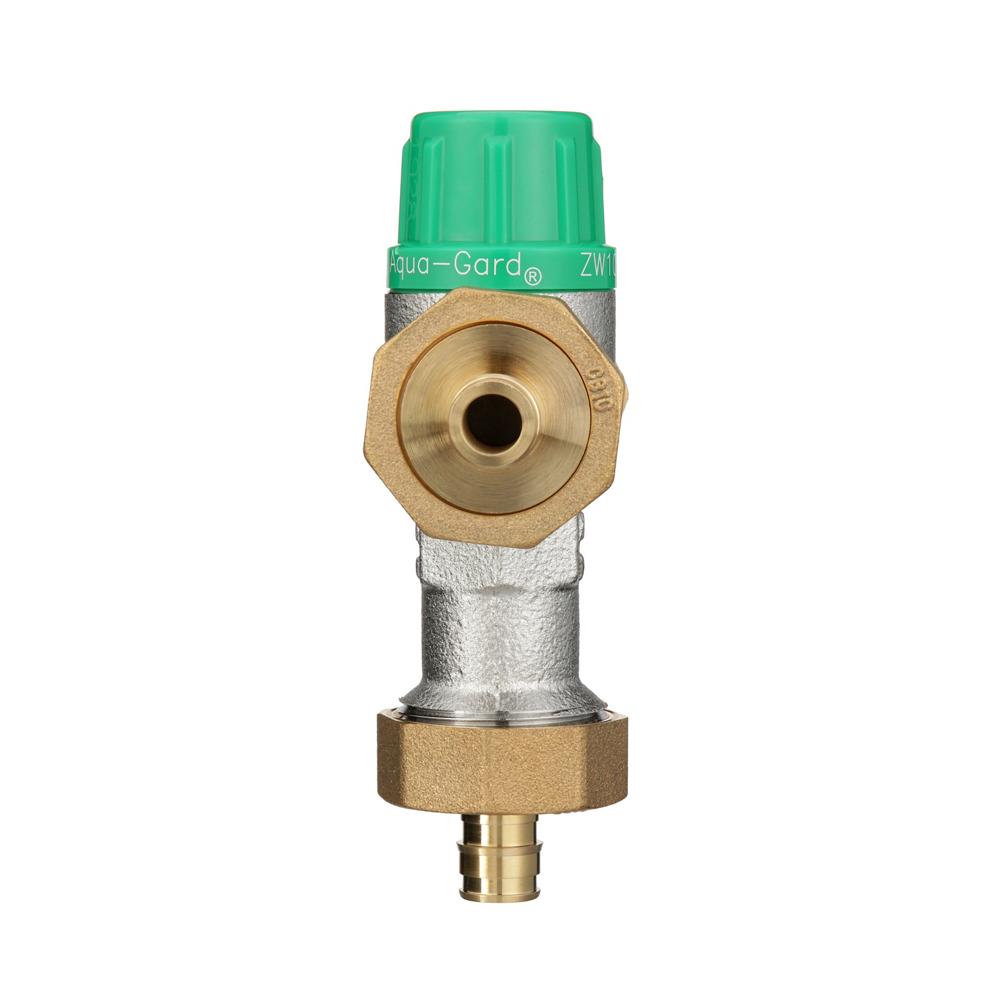

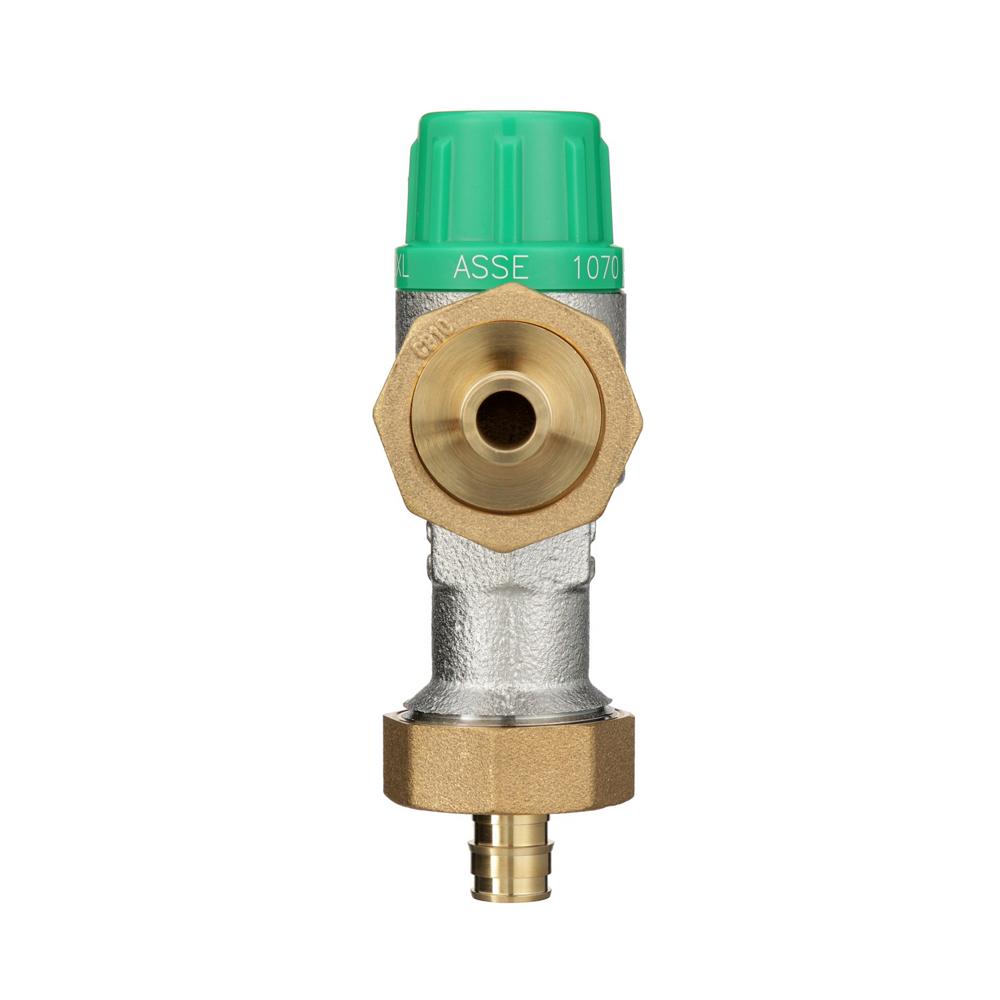

The Wilkins 12-ZW1070XLPEXF1960 Aqua-Gard® thermostatic mixing valve provides point-of-use scald protection with rapid temperature response for safe water delivery.
Key Specifications:
- Size: 1/2 Inches
- Maximum Working Pressure: 125 psi
- Outlet Temperature Range: 95-115°F max
- Notable Certifications: ASSE 1070, cUPC, CSA
- Connection Type: 1/2" PEX F1960 Barb
Other Related Variants:
- 12-ZW1070XL: 1/2 Inch FNPT version
- 12-ZW1070XLC: 1/2 Inch CU Sweat version
- 12-ZW1070XLCPVC: 1/2 Inch CPVC version
- 12-ZW1070XLPEX: 1/2 Inch PEX Barb version
- 12-ZW1070XLPF: 1/2 Inch Z-Bite push fit version
- 1-ZW1070XLC: 1 Inch CU Sweat version
- 34-ZW1070XL: 3/4 Inch FNPT version
- 34-ZW1070XLC: 3/4 Inch CU Sweat version
- 38-ZW1070XLCOMP: 3/8 Inch Compression version
Materials:
- Body: Low Lead Cast Bronze with Chrome Plating, ASTM B 584, ASTM B 456
- Internal Brass: Low Lead Brass, ASTM B 927, UNS C27450
- Piston: Polysufone
- Guide Tube: Noryl GFN2
- Spring & Screen: 300 Series Stainless Steel
- Seals: Viton
- Checks: Noryl GFN2
Typical Installation:
The Zurn 12-ZW1070XLPEXF1960 is designed for point-of-use installation at plumbing fixtures and appliances including sinks, lavatories, bathtubs, individual outlets, and sensor faucets where final control of water temperature is required. The device should be installed at a single outlet and may be used to supply individual outlets when there is sufficient supply pressure.
Standards Compliance:
ASSE Listed 1070; cUPC Listed; CSA Certified B125.70; NSF/ANSI/CAN 61-9 Q≤1
Features & Benefits:
- Scald Protection: Provides extremely rapid response rate to mix hot and cold water to a safer final temperature of 95-115°F, preventing scalding at point of use.
- Lead-Free Construction: Meets 0.25% maximum weighted average lead content requirement for compliance with NSF/ANSI/CAN 61-9, ideal where lead-free valves are required.
- Versatile Installation: Available in multiple end configurations including PEX F1960 barb connections, suitable for all residential and commercial plumbing applications.
- High Flow Capacity: Delivers up to 10 GPM flow rate at 45 psi pressure loss with minimum flow rate of 0.25 GPM for flexible application use.
FAQ
Q: What is the maximum pressure differential allowed between hot and cold inlets?
A: The maximum pressure differential is 15 psi between hot and cold inlets for proper operation.
Q: Does the temperature need to be set during installation?
A: Yes, the temperature must be field set during installation with an accuracy of +/- 3°F.
Q: What are the recommended shutoff valves for installation?
A: It is suggested to use ball valves on both the hot and cold inlet supplies for optimal control and maintenance.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
