Wilkins 12-ZW1070XLCPVC | Aqua-Gard® Thermostatic Mixing Valve, 1/2...

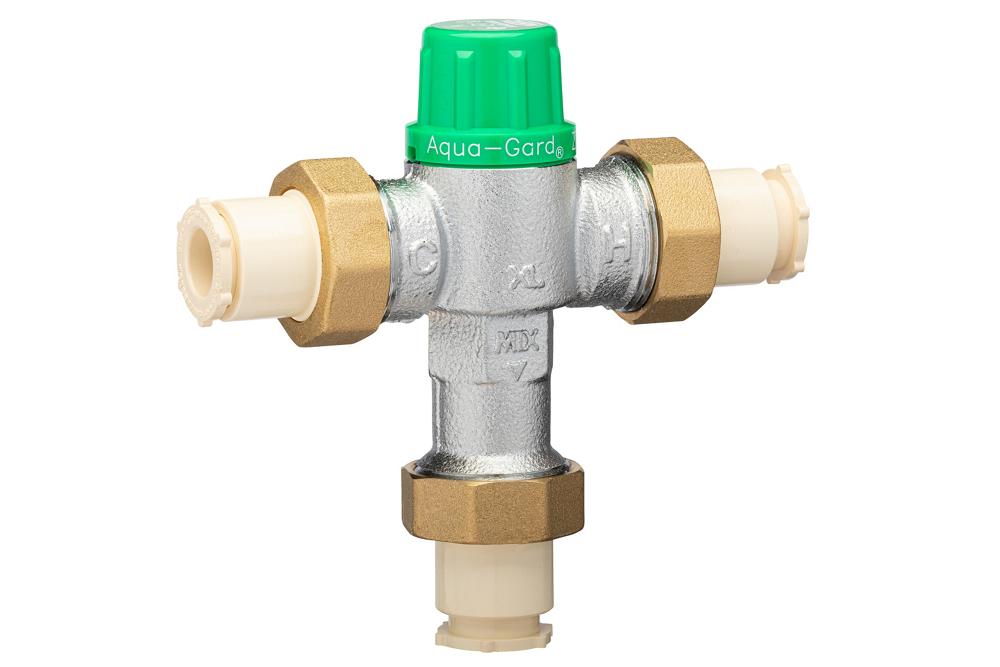

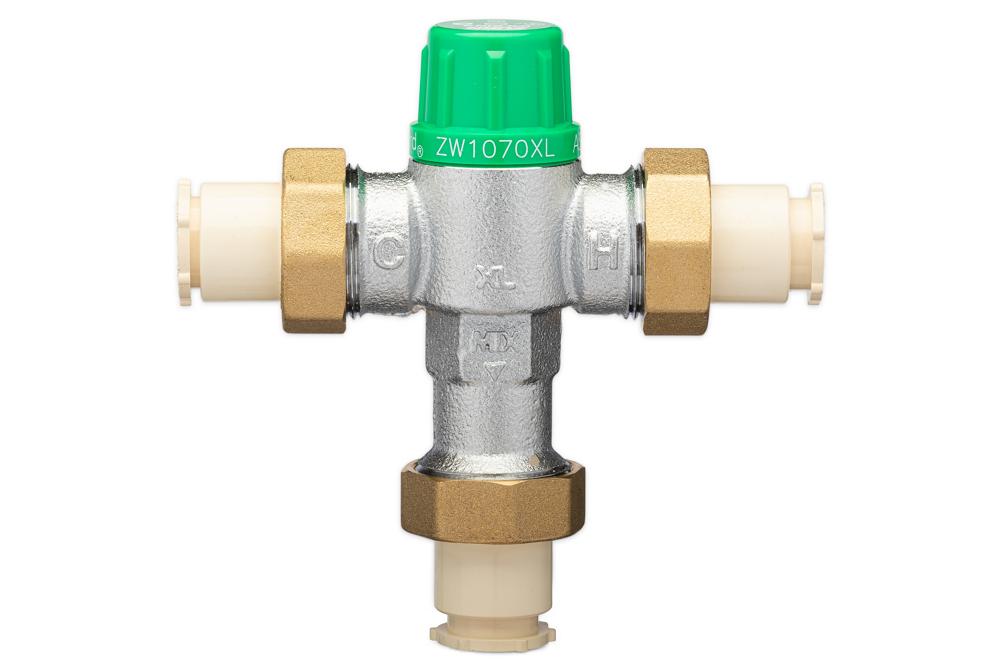

The Wilkins 12-ZW1070XLCPVC is an Aqua-Gard® thermostatic mixing valve designed for point-of-use scald protection with 1/2" CPVC connections for residential and commercial applications.
Key Specifications:
- Size: 1/2 Inches
- Maximum Working Pressure: 125 psi
- Outlet Temperature Range: 95-115°F max
- Notable Certifications: ASSE 1070, cUPC, CSA B125.70
- Connection Type: 1/2" CPVC
Other Related Variants:
- 12-ZW1070XL: 1/2" FNPT version
- 12-ZW1070XLC: 1/2" CU Sweat version
- 12-ZW1070XLPEX: 1/2" Barb version
- 12-ZW1070XLPEXF1960: 1/2" Barb version
- 12-ZW1070XLPF: 1/2" push fit version
- 1-ZW1070XLC: 1" CU Sweat version
- 34-ZW1070XL: 3/4" FNPT version
- 34-ZW1070XLC: 3/4" CU Sweat version
- 38-ZW1070XLCOMP: 3/8" Compression version
Materials:
- Body: Low Lead Cast Bronze, ASTM B 584 with Chrome Plating ASTM B 456
- Internal Brass: Low Lead Brass, ASTM B 927, UNS C27450
- Piston: Polysulfone
- Guide Tube: Noryl GFN2
- Spring & Screen: 300 Series Stainless Steel
- Seals: Viton
- Checks: Noryl GFN2
Typical Installation:
The Zurn 12-ZW1070XLCPVC is designed to be installed at the point of use for individual outlets and single-use applications including plumbing fixtures, appliances, sinks, lavatories, bathtubs, and sensor faucets where final control of water temperature is required.
Standards Compliance:
ASSE Listed 1070; cUPC Listed; CSA Certified B125.70; NSF/ANSI/CAN 61-9 Q≤1
Features & Benefits:
- Lead-Free Compliance: Meets 0.25% maximum weighted average lead content for safe potable water applications.
- Rapid Scald Protection: Extremely rapid response rate prevents scalding at point-of-use installations with outlet temperature control from 95-115°F.
- High Flow Capacity: Delivers up to 10 GPM flow rate at 45 psi pressure loss with minimum flow of 0.25 GPM for versatile installations.
- Durable Construction: Low lead cast bronze body with chrome plating, stainless steel components, and Viton seals ensure long-lasting performance.
FAQ
Q: What is the maximum pressure differential between hot and cold inlets?
A: The maximum pressure differential is 15 psi between hot and cold inlets for proper operation.
Q: What temperature ranges are required for hot and cold supply water?
A: Hot supply should be 120-195°F maximum and cold supply should be 39-80°F for the Wilkins 12-ZW1070XLCPVC to function properly.
Q: Does the outlet temperature need to be field adjusted?
A: Yes, the temperature must be field set within the 95-115°F outlet temperature range with +/- 3°F accuracy.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
