Wilkins 12-ZW1070XLC | Thermostatic Mixing Valve, 1/2" Copper ...

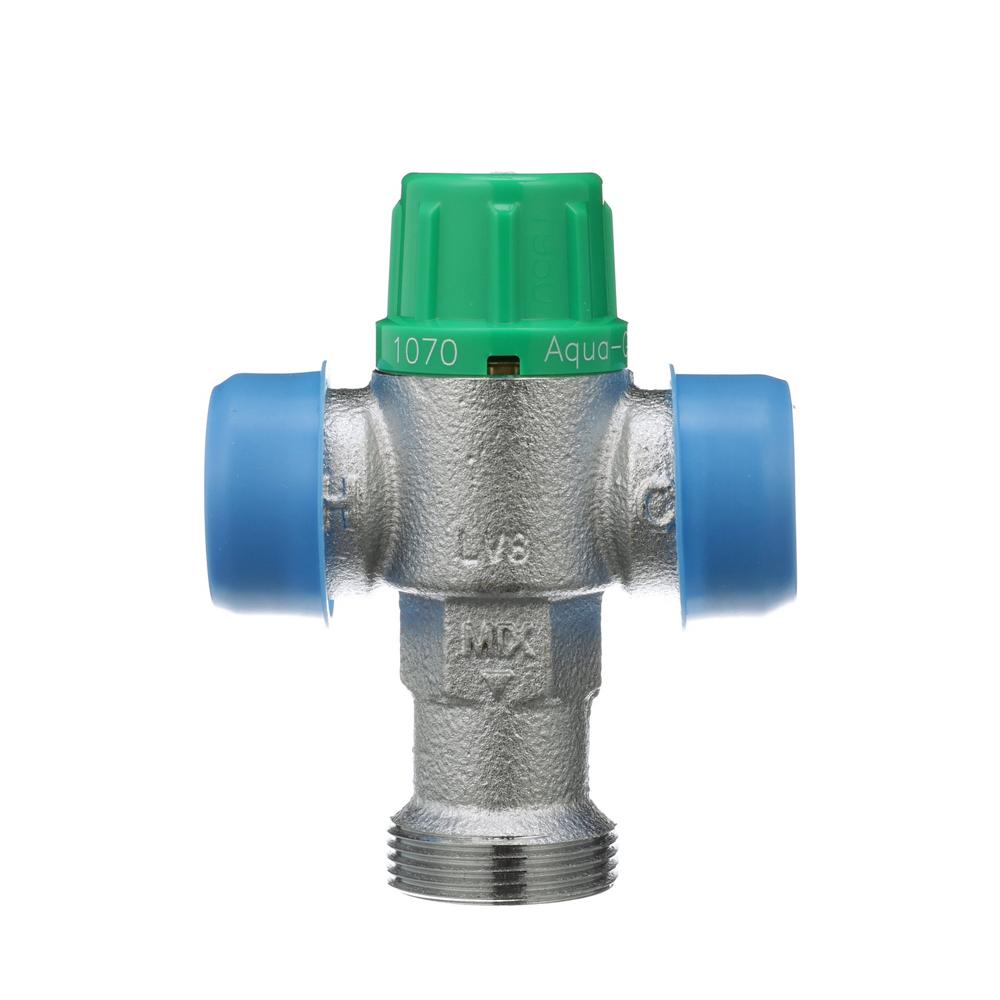

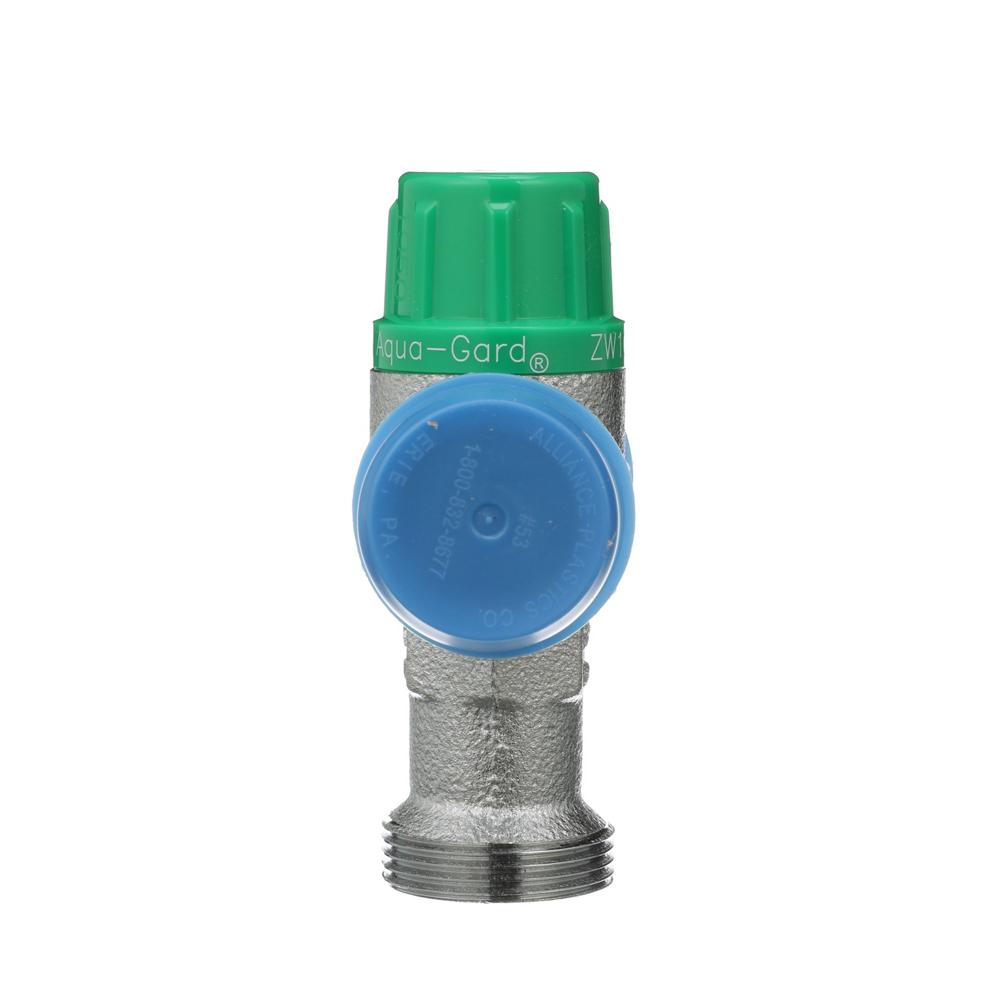

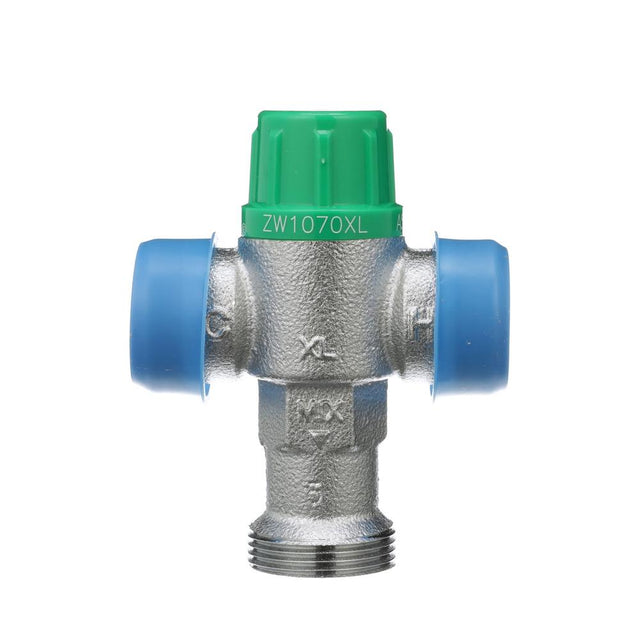

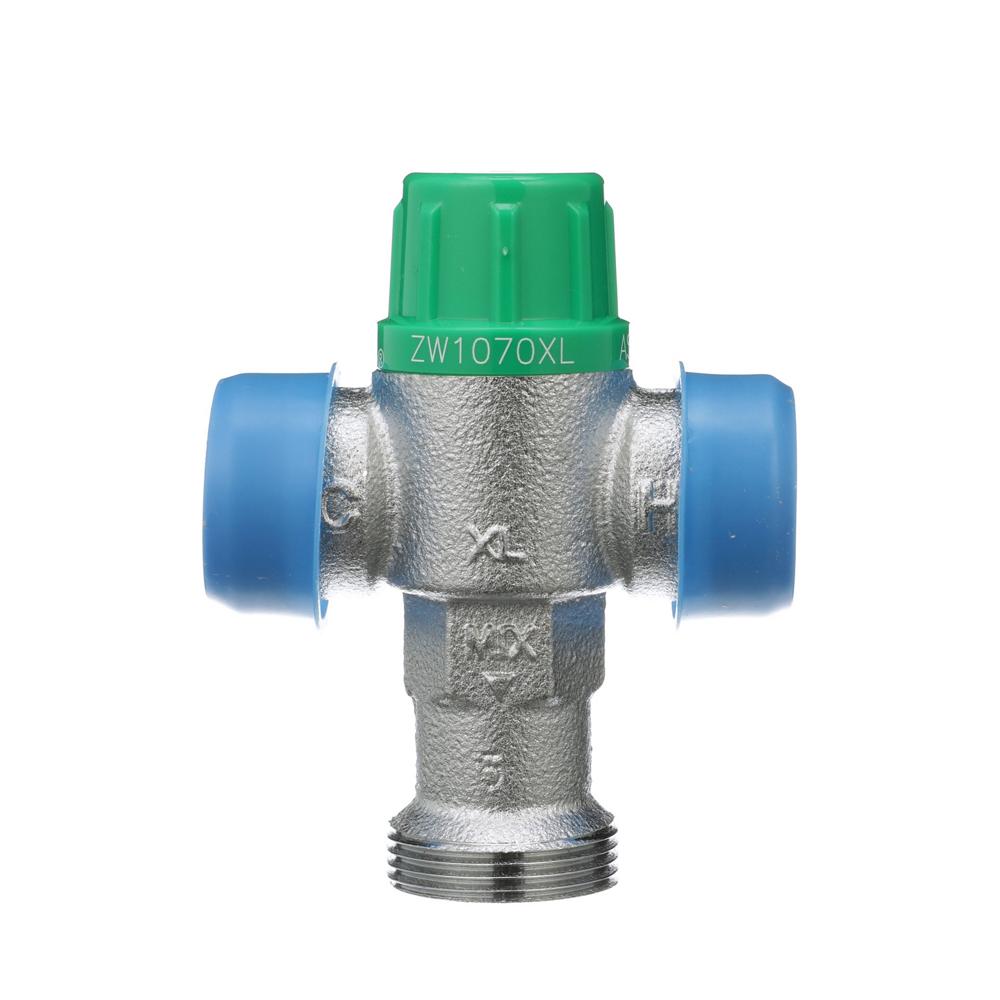

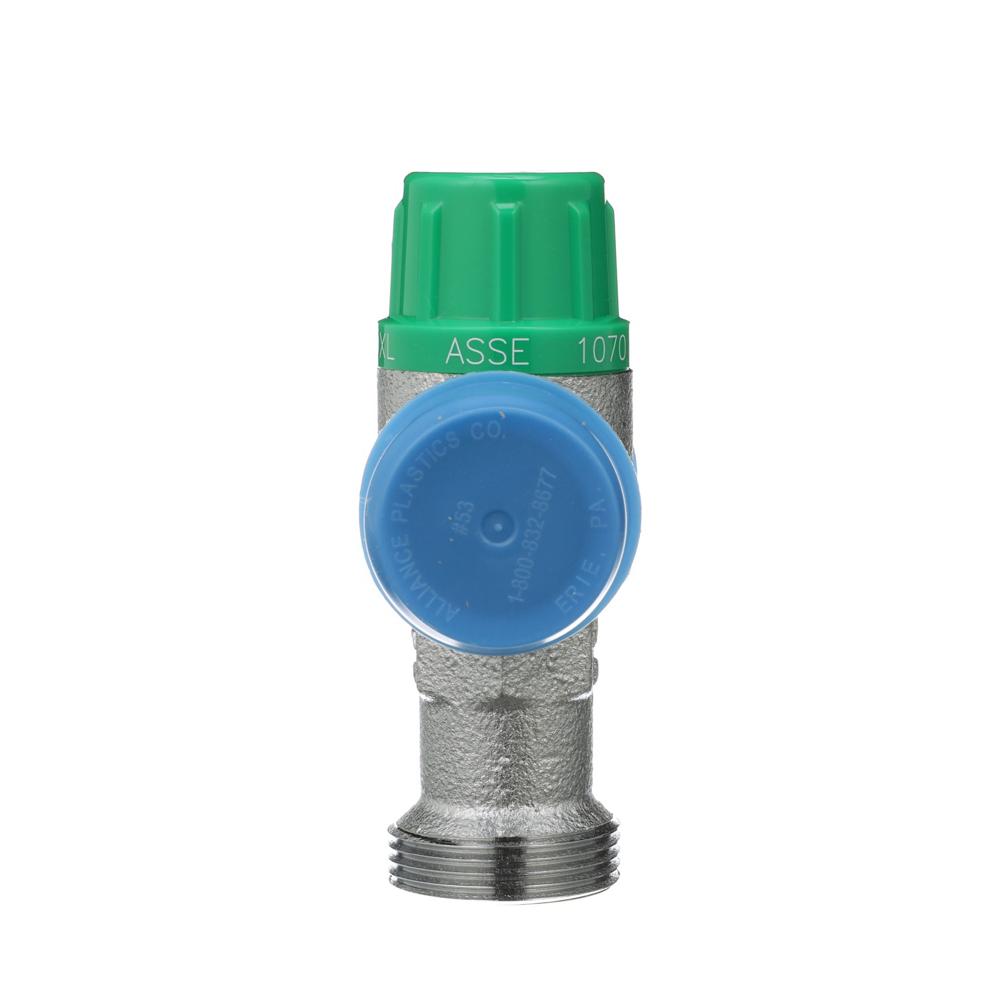

The Wilkins 12-ZW1070XLC Aqua-Gard® thermostatic mixing valve delivers point-of-use scald protection with rapid response for safe water temperature control.
Key Specifications:
- Size: 1/2 Inches
- Maximum Working Pressure: 125 psi inlet
- Outlet Temperature Range: 95-115°F max
- Notable Certifications: ASSE 1070, cUPC, CSA

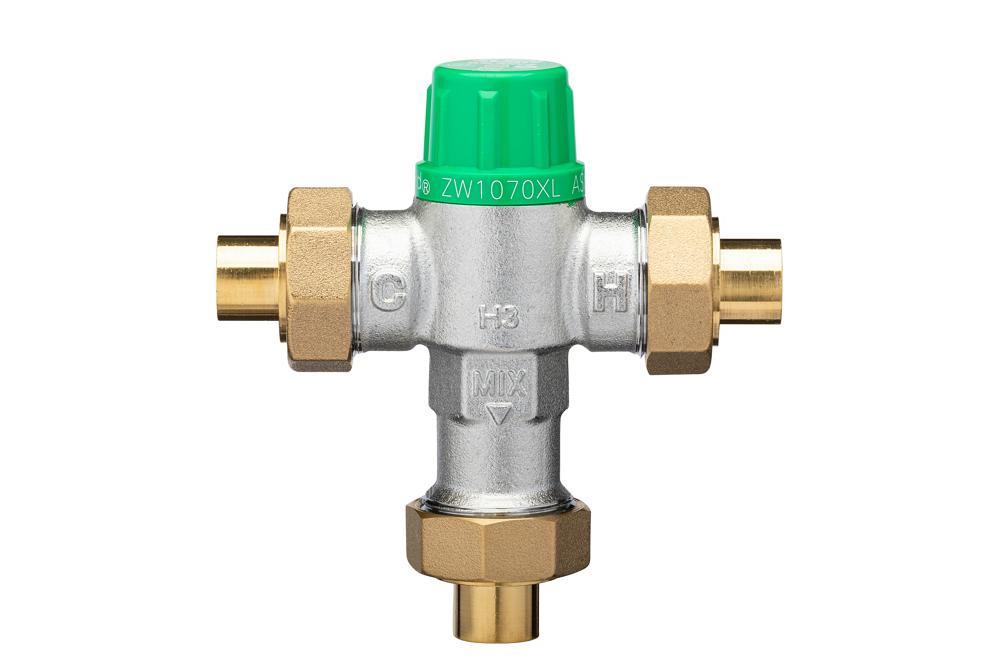

- End Connections: 1/2" Copper Sweat
Other Related Variants:
- 12-ZW1070XL: 1/2 Inch FNPT version
- 12-ZW1070XLCPVC: 1/2 Inch CPVC version
- 12-ZW1070XLPEX: 1/2 Inch Barb version
- 12-ZW1070XLPEXF1960: 1/2 Inch Barb F1960 version
- 12-ZW1070XLPF: 1/2 Inch Push Fit version
- 1-ZW1070XLC: 1 Inch Copper Sweat version
- 34-ZW1070XL: 3/4 Inch FNPT version
- 34-ZW1070XLC: 3/4 Inch Copper Sweat version
- 38-ZW1070XLCOMP: 3/8 Inch Compression version
Materials:
- Body: Low Lead Cast Bronze, ASTM B 584 with Chrome Plating ASTM B 456
- Internal Brass: Low Lead Brass, ASTM B 927, UNS C27450
- Piston: Polysulfone
- Guide Tube: Noryl GFN2
- Spring & Screen: 300 Series Stainless Steel
- Seals: Viton
- Checks: Noryl GFN2
Typical Installation:
The Zurn 12-ZW1070XLC is designed for installation at the point of use at plumbing fixtures and appliances for final control of water temperature. Ideal for individual use applications at sinks, lavatories, bathtubs, sensor faucets, and single-use fixtures where scald prevention is required. The device is designed to be installed at a single outlet and may be used to supply individual outlets when there is sufficient supply pressure.
Standards Compliance:
ASSE Listed 1070; cUPC Listed; CSA Certified B125.70; Meets the requirements of NSF/ANSI/CAN 61-9 Q≤1
Features & Benefits:
- Lead-Free Compliance: Meets NSF/ANSI/CAN 61-9 Q≤1 with 0.25% max weighted average lead content for safe potable water applications.
- Rapid Scald Protection: Extremely rapid response rate mixes hot and cold water to a safer temperature of 95-115°F, preventing scalding at point of use.
- High Flow Capacity: Delivers up to 10 GPM flow rate at 45 psi pressure loss with minimum flow rate of 0.25 GPM for versatile applications.
- Durable Construction: Low lead cast bronze body with chrome plating, stainless steel components, and Viton seals ensure long-lasting performance.
FAQ
Q: What is the maximum pressure differential allowed between hot and cold inlets?
A: The maximum pressure differential is 15 psi between hot and cold inlets for proper operation of the Wilkins 12-ZW1070XLC.
Q: Does the temperature need to be adjusted during installation?
A: Yes, the outlet temperature must be field set during installation with an accuracy of +/- 3°F within the 95-115°F range.
Q: What are the hot and cold water temperature requirements?
A: Hot supply temperature should be 120-195°F maximum, and cold supply temperature should be 39-80°F for optimal performance.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
