Wilkins 12-ZW1017XLC | Aqua-Gard Tempering Mixing Valve, 1/2" ...

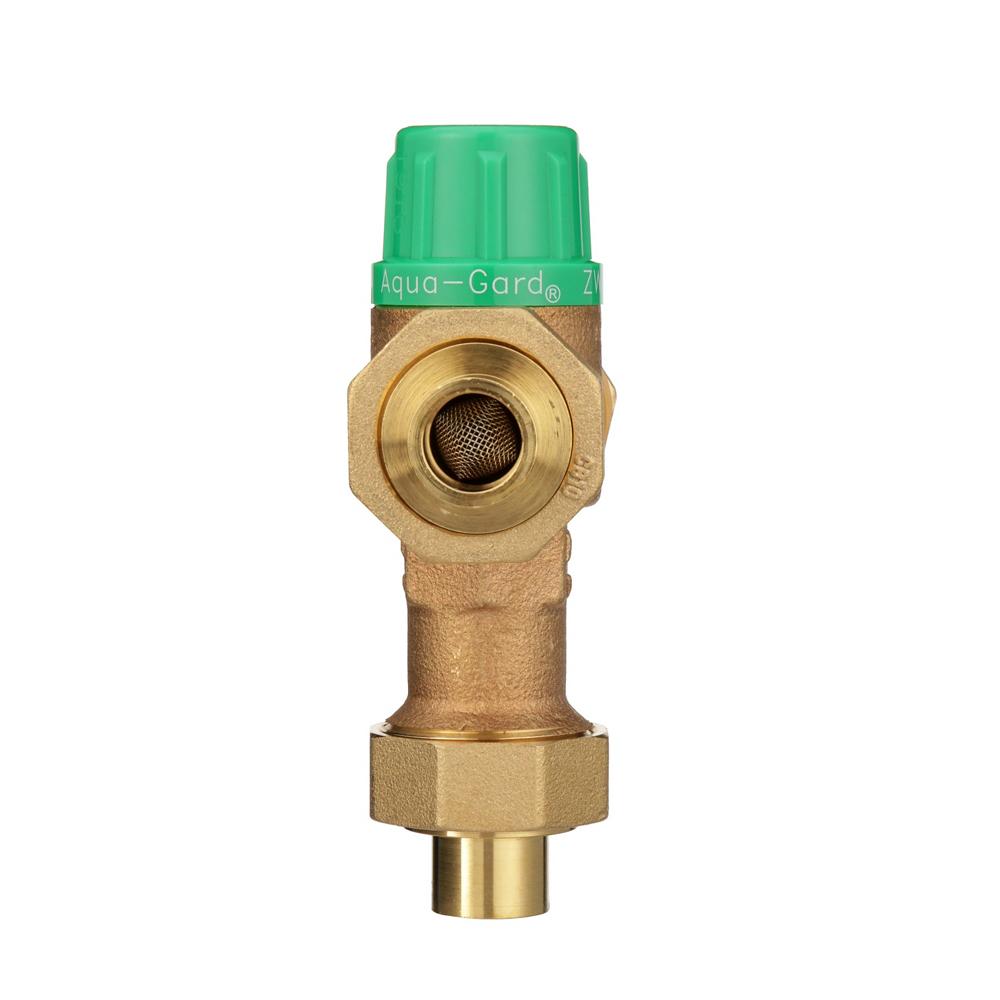

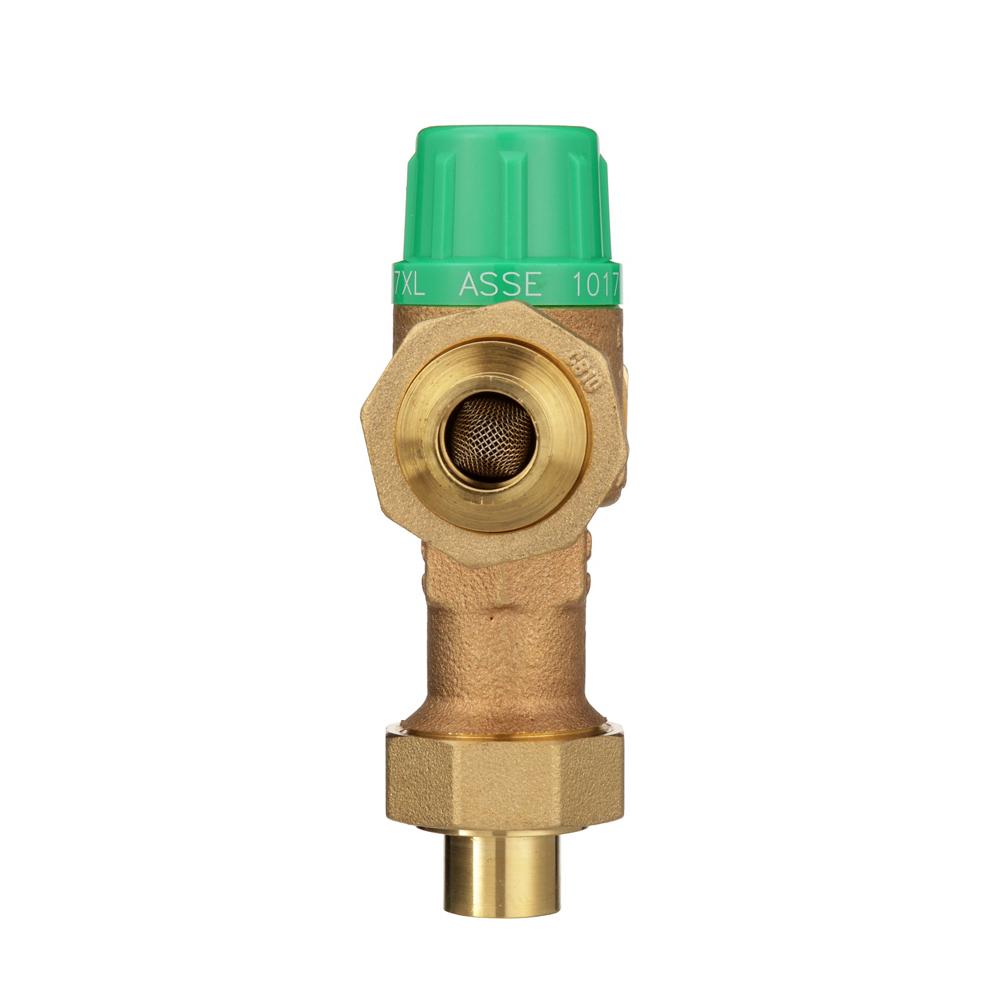

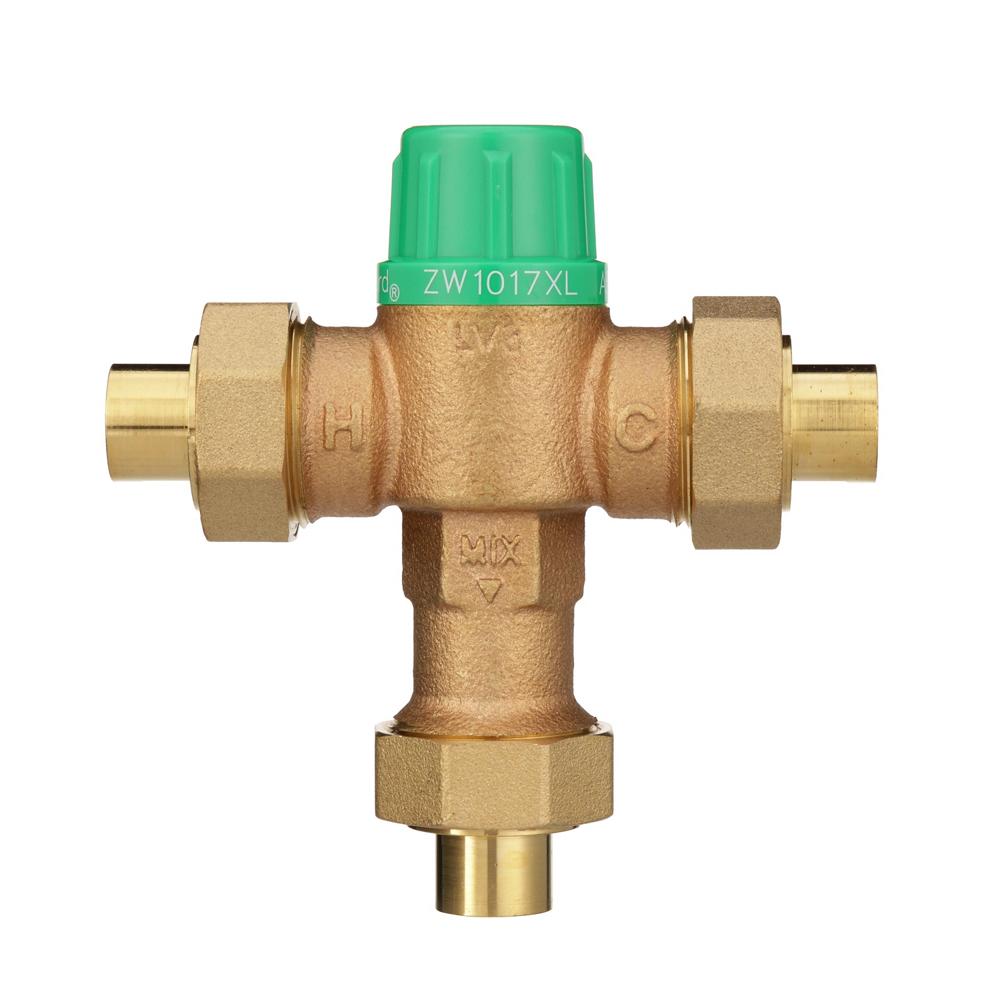

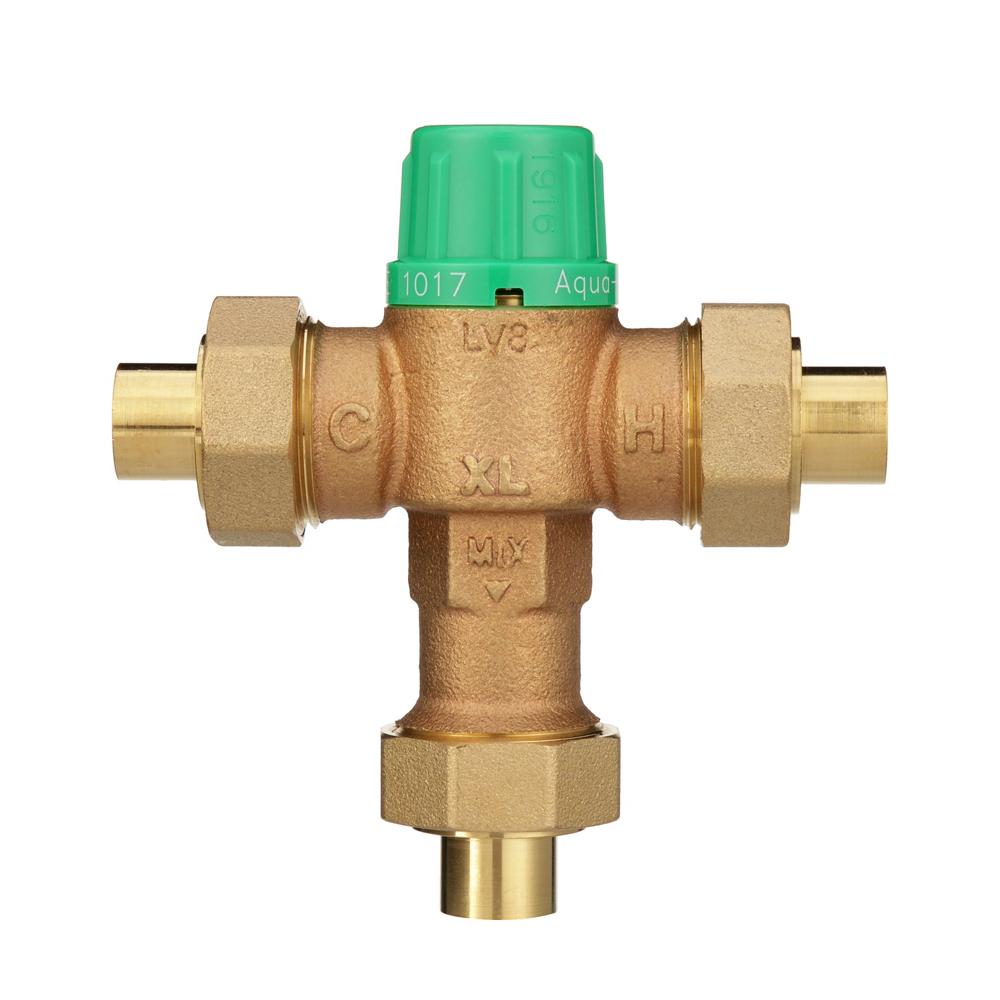

The Wilkins 12-ZW1017XLC is an Aqua-Gard® tempering mixing valve designed to mix hot and cold water at the source, delivering safe tempered water at 122°F or less for residential and light commercial applications.
Key Specifications:
- Size: 1/2 Inches
- Maximum Working Pressure: 145 psi
- Outlet Temperature Range: 95–131°F (35–55°C)
- Notable Certifications: ASSE 1017, NSF/ANSI/CAN 61-9
- Connection Type: Copper sweat connections
Other Related Variants:
- 12-ZW1017XL: 1/2 Inch FNPT threaded connection version
- 34-ZW1017XL: 3/4 Inch FNPT threaded connection version with higher system capacity
- 34-ZW1017XLC: 3/4 Inch copper sweat connection version
- 34-ZW1017XLPEX: 3/4 Inch PEX barb connection version
Materials:
- Copper sweat connections
- Brass valve body
- Stainless steel components
Typical Installation:
The Zurn 12-ZW1017XLC is ideal for residential and light commercial applications including water heater installations, point-of-use tempering applications, recirculation systems, radiant heating systems, and anywhere tempered water is required to prevent scalding while maintaining comfort and system efficiency.
Standards Compliance:
ASSE 1017; NSF/ANSI/CAN 61-9
Features & Benefits:
- Accurate Temperature Control: Maintains outlet temperature within ±4°F to ensure consistent, safe water delivery and prevent scalding injuries.
- High Flow Capacity: Delivers up to 18 gpm at 45 psi loss, providing sufficient flow for residential and light commercial demand.
- Reliable Performance: Requires minimum 0.5 gpm flow and 20°F hot-to-outlet differential for consistent operation in various applications.
- Easy Installation: Copper sweat connections provide secure, leak-resistant joints for professional installation with standard soldering techniques.
FAQ
Q: What is the outlet temperature range for the Wilkins 12-ZW1017XLC?
A: The outlet temperature range is adjustable from 95°F to 131°F (35°C to 55°C), with accurate control within ±4°F to deliver safe tempered water at 122°F or less.
Q: What is the maximum working pressure for this tempering valve?
A: The maximum working pressure is 145 psi, making it suitable for most residential and light commercial water systems.
Q: What connection types are available for the Zurn 12-ZW1017XLC series?
A: The 12-ZW1017XLC features copper sweat connections. Related models include threaded FNPT versions (12-ZW1017XL, 34-ZW1017XL) and PEX barb connections (34-ZW1017XLPEX) for different installation requirements.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
