Wilkins 1-F49BR | Fire Powerball Butterfly Valve, 1 Inches
NOTICE: Product images may vary from the actual item due to differences in size or configuration options.

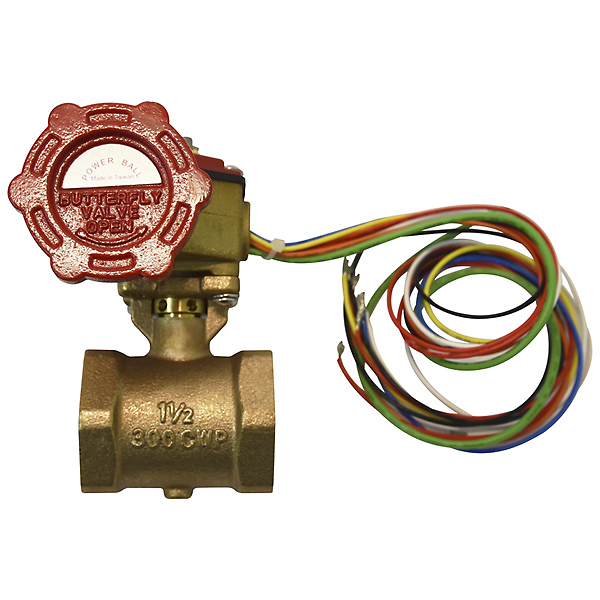

The Wilkins 1-F49BR is a fire sprinkler butterfly control valve designed to provide system shutoff for maintenance and repair while signaling valve position.
Key Specifications:
- Size: 1 Inches
- Maximum Working Pressure: 300 PSI
- Notable Certifications: UL Listed, C-UL, FM Approved
- Connection Type: Threaded NPT Ends
- Operation: 1/4 Turn Anti-Water Hammer
Other Related Variants:
- 114-F49BR: 1 1/4 Inches threaded version
- 112-F49BR: 1 1/2 Inches threaded version
- 2-F49BR: 2 Inches threaded version
- 212-F49BR: 2 1/2 Inches threaded version
Materials:
- Main Body: Bronze ASTM 584 C83600
- Disc: 304 Stainless Steel
- Handwheel: ASTM A216 WCB
- Seat: ASTM D2000 Viton
- Indicator: Powder Metal FD0205 95HT
- Gearbox Housing and Cover: Brass ASTM B16 36000
Typical Installation:
The valve can be installed in any orientation in a piping system with standard ASME B1.20.1 NPT or standard roll or cut grooved pipe. The valves are intended for use with ANSI B36.10 Schedule 40 and/or Schedule 80 pipe for fire sprinkler system applications requiring shutoff capability for maintenance and repair.
Standards Compliance:
UL Listed; C-UL Listed; FM Approved; NFPA 13; NFPA 7
Features & Benefits:
- Integrated Tamper Switches: Signals valve movement from full open position to alarm control panel and auxiliary equipment for enhanced fire safety monitoring.
- Anti-Water Hammer Design: Slow-closing 1/4 turn operation prevents water hammer damage to the sprinkler system during valve operation.
- Durable Construction: Bronze body with stainless steel disc and Viton seat ensures long-lasting performance in fire protection applications.
- Multiple Certifications: UL Listed, C-UL, and FM Approved ensuring compliance with fire safety standards and code requirements.
FAQ
Q: What is the purpose of the tamper switches on the Zurn 1-F49BR valve?
A: The tamper switches have two functions: Switch 1 connects to the supervisory circuit of a fire alarm control panel to signal valve position, while Switch 2 connects to auxiliary equipment such as indicating lights or audible alarms in the valve installation area.
Q: Can the Wilkins 1-F49BR be installed in any orientation?
A: Yes, the valve can be installed in any orientation in a piping system with standard ASME B1.20.1 NPT threaded connections, provided installation complies with NFPA 13 and NFPA 7 requirements.
Q: What pipe schedules are compatible with the Zurn 1-F49BR valve?
A: The valve is intended for use with ANSI B36.10 Schedule 40 and/or Schedule 80 pipe in 1 inch size for fire sprinkler system applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
