Wilkins 1-975XL3NS | Reduced Pressure Backflow Preventer, N-Pattern...

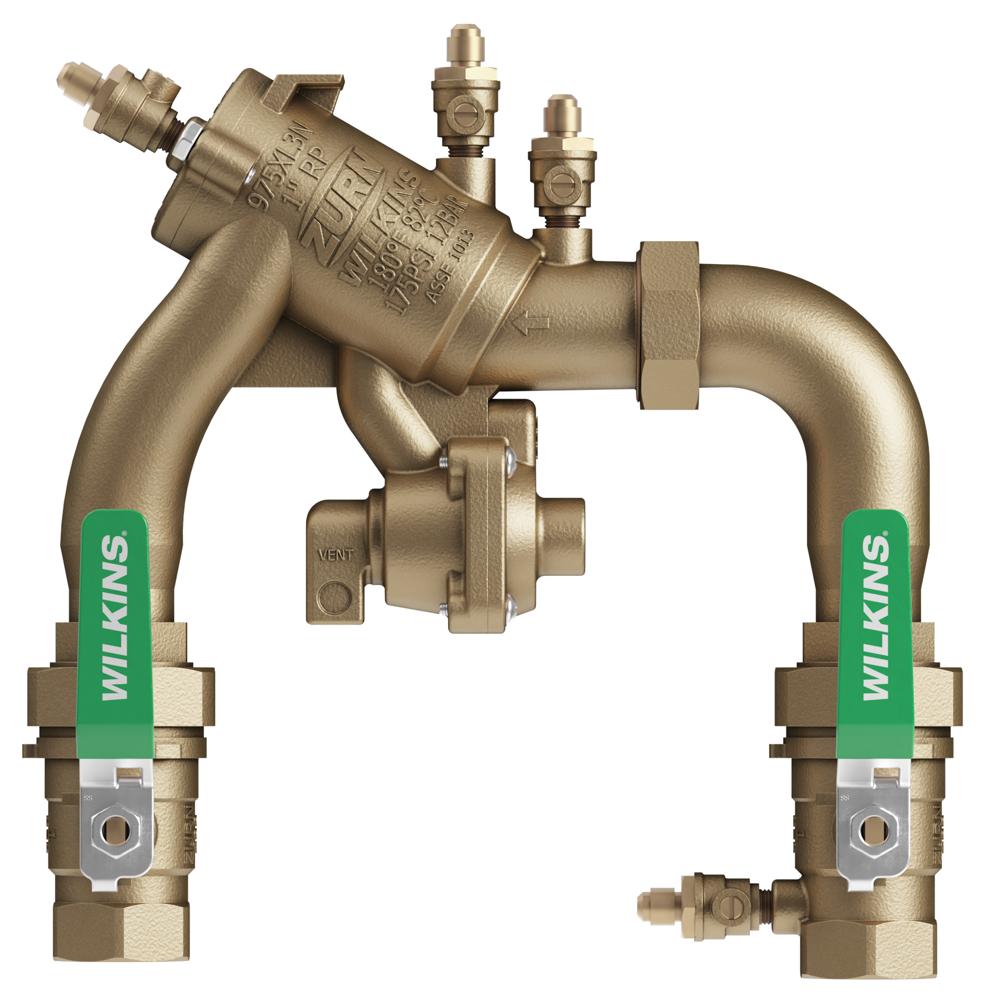

The Wilkins 1-975XL3NS is a Lead-Free Reduced Pressure Principle Backflow Preventer designed to protect potable water from contamination.
Key Specifications:
| Size | 1 Inches |
| Maximum Working Water Pressure | 175 PSI |
| Maximum Working Water Temperature | 180°F |
| Notable Certifications | ASSE 1013; NSF/ANSI/CAN 61 & 372 |
| Connection Type | Threaded FNPT Ends |
Other Related Variants:
- 112-975XL3NS: 1 1/2 Inches version
- 2-975XL3NS: 2 Inches version
- 34-975XL3NS: 3/4 Inches version
Materials:
- Access Cover(s): Low Lead Cast Bronze ASTM B584
- Ball Valve Handles: Stainless Steel
- Elastomers: Buna Nitrile (FDA approved)
- Elastomers: EPDM (FDA approved)
- Elastomers: Silicone (FDA approved)
- Fasteners: 300 series Stainless Steel
- Main Valve Body: Low Lead Cast Bronze ASTM B584
- Polymers: NORYL™
- Spring(s): 300 series Stainless Steel
Typical Installation:

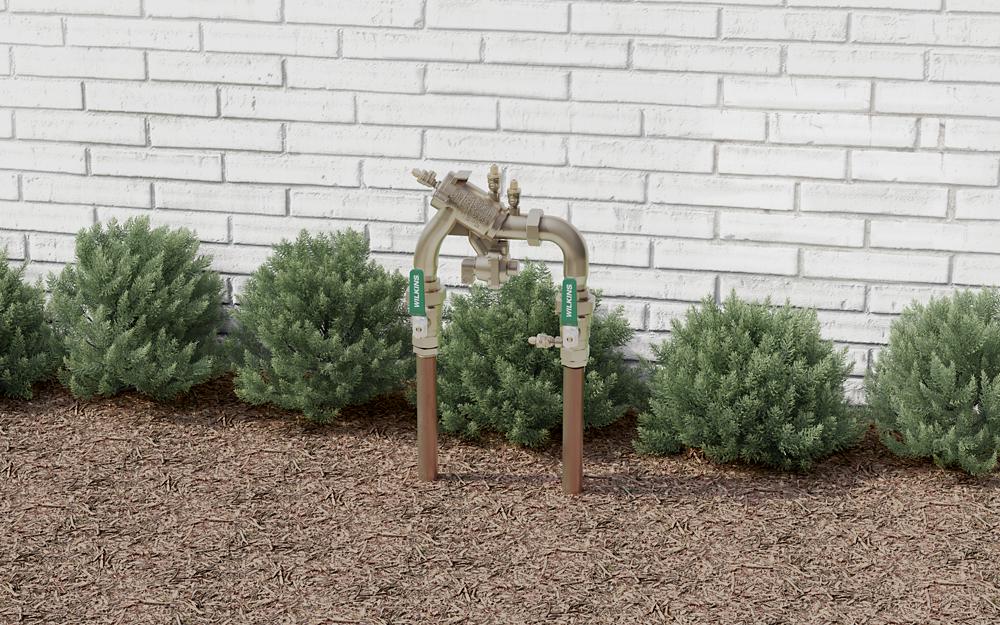

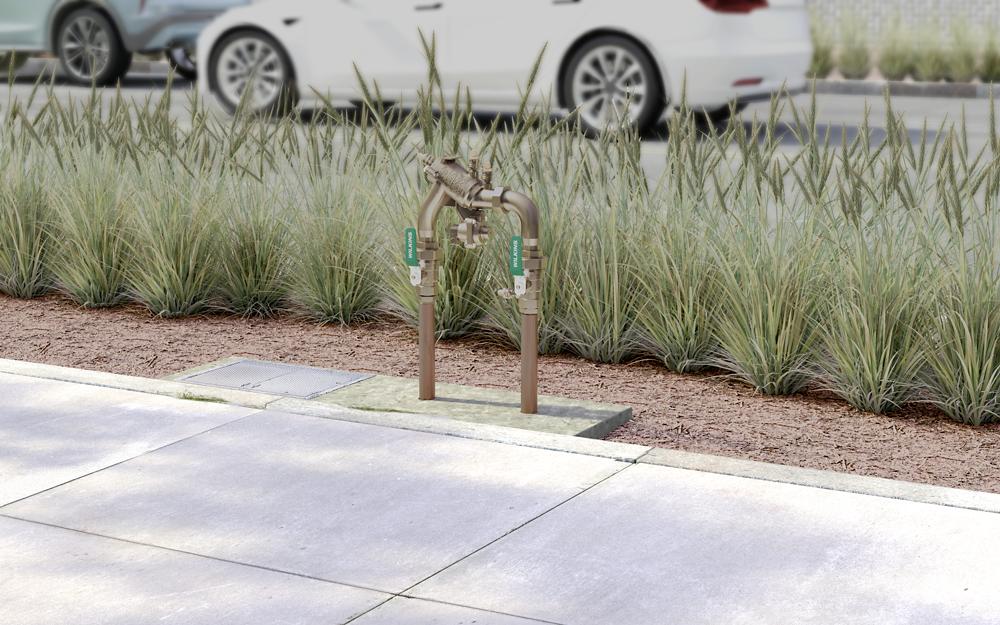

Local codes shall govern installation requirements. The Wilkins 1-975XL3NS shall be installed in accordance with the manufacturers' instructions and the latest edition of the Uniform Plumbing Code. Unless otherwise specified, the assembly shall be mounted at a minimum of 12" (305mm) and a maximum of 30" (762mm) above adequate drains with sufficient side clearance for testing and maintenance. The installation shall be made so that no part of the unit can be submerged.
Standards Compliance:
ASSE® Listed 1013; AWWA Compliant C511; CSA® Certified B64.4; cUPC® Listed; Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California; Meets the requirements of NSF/ANSI/CAN 61 & 372
Features & Benefits:
- Lead-Free Construction: The Zurn 1-975XL3NS meets strict lead-free requirements for safe potable water applications.
- Durable Bronze Body: Low Lead Cast Bronze ASTM B584 construction ensures long-lasting performance and corrosion resistance.

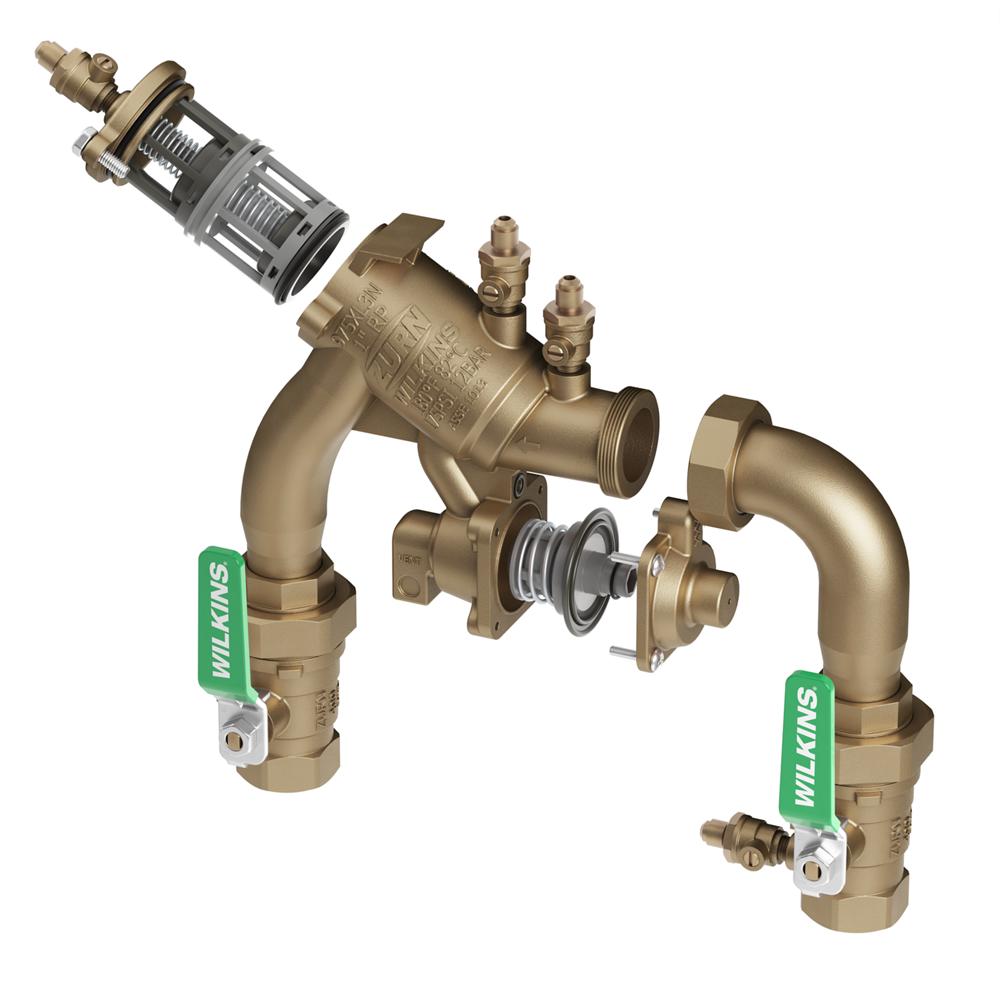

- Easy Maintenance: First and second checks are accessible for maintenance without removing the relief valve or entire device from the line.
- Integrated Strainer: Includes a Bronze "Y" type strainer to protect internal components from debris.
FAQ
Q: What sizes are available for the 975XL3NS Series?
A: The Zurn 1-975XL3NS Series is available in 3/4", 1", 1 1/2", and 2" sizes to accommodate various installation needs.
Q: What does the "S" suffix indicate on the Wilkins 1-975XL3NS?
A: The "S" suffix indicates that the unit includes a Bronze "Y" type strainer for additional filtration protection.
Q: What is the maximum operating temperature for this backflow preventer?
A: The maximum working water temperature is rated at 180°F.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
