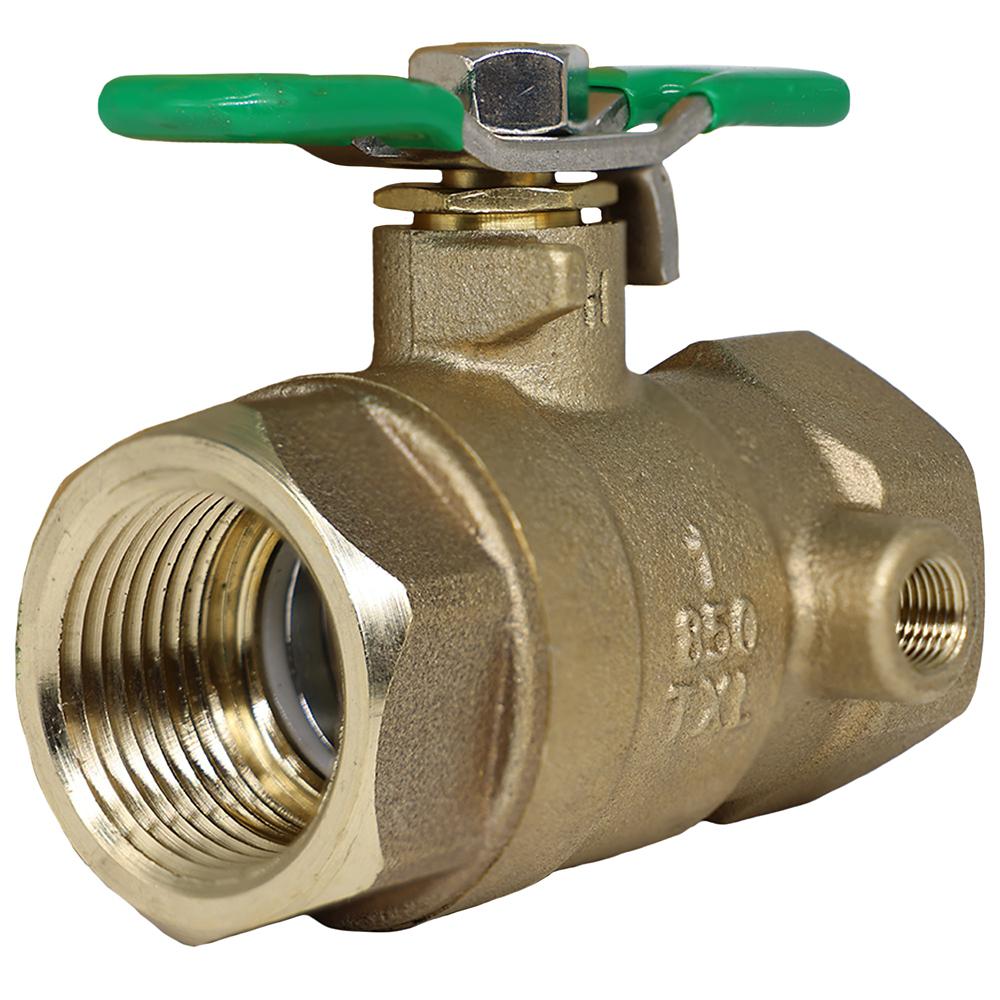

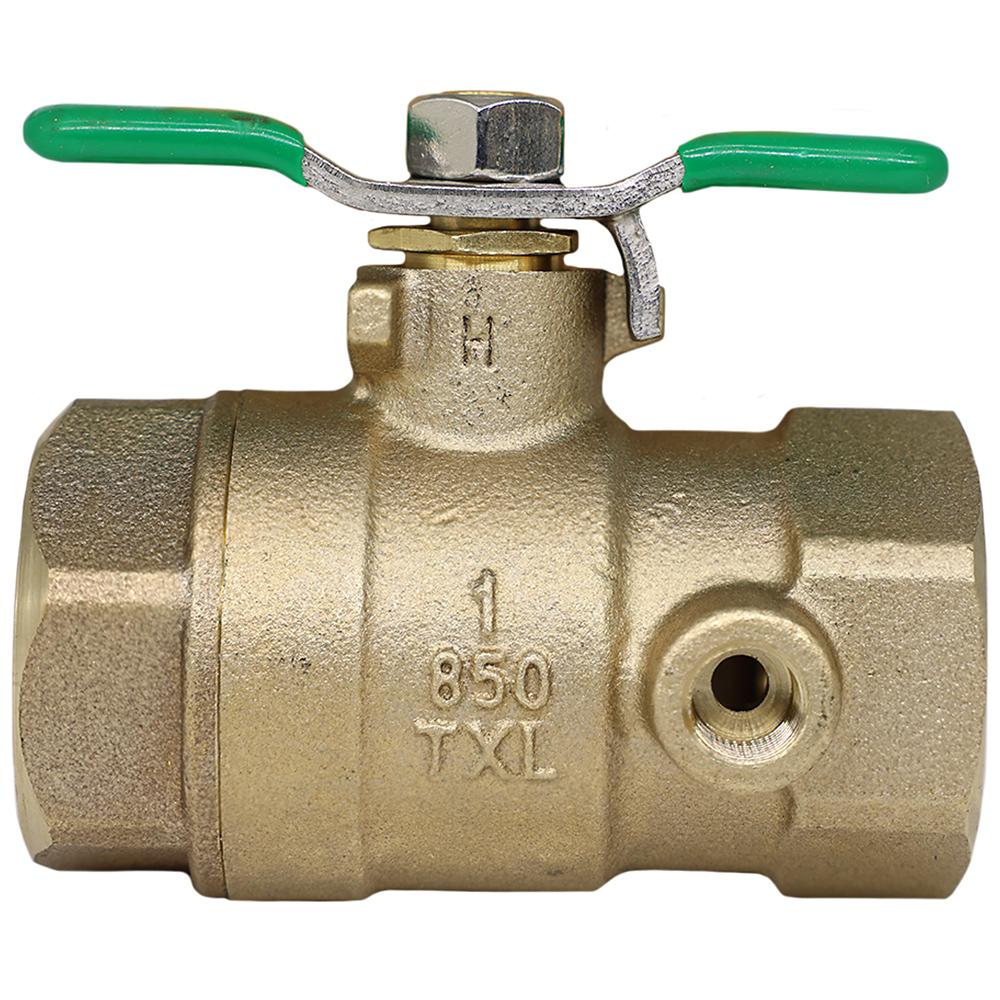

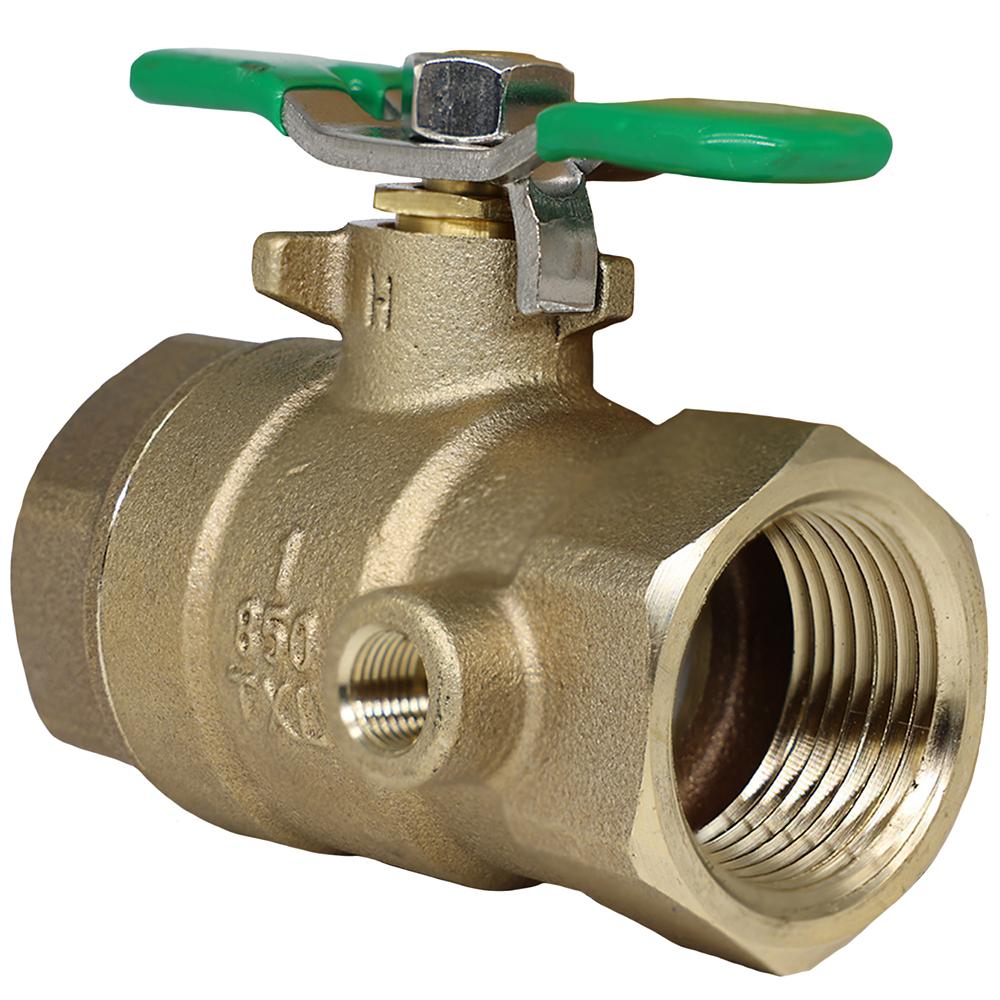

Wilkins 1-850TXL | Model 850XL Tapped Full Port Ball Valve, 1 Inches
The Wilkins 1-850TXL delivers lead-free, full-port bronze ball valve performance for precise throttling and balancing.
Key Specifications:
| Size | 1 Inches |
| Pressure Rating | 400 psi WOG |
| Temperature Rating | 33°F to 350°F @ 50 psi |
| Notable Certifications | NSF/ANSI 372, IAPMO R&T |
| Connection Type | FNPT Tapped Threaded |
Other Related Variants:
- 2-850TXL: 2 Inches version
- 12-850TXL: 1/2 Inches version
- 34-850TXL: 3/4 Inches version
- 112-850TXL: 1 1/2 Inches version
- 114-850TXL: 1 1/4 Inches version
Materials:
- Main Valve Body: Low lead Bronze ASTM B 584
- Ball: Chrome plated low lead brass
- Seats: TFE virgin teflon
- Stems: Brass ASTM B 16
- Stem Packing: TFE virgin teflon
- Thrust Washer: TFE virgin teflon
- Handle: Stainless steel
- Handle Nut: Stainless steel
Typical Installation:
The Zurn 1-850TXL is recommended for residential, commercial, and industrial applications where lead-free valves are required, and is ideal for throttling and balancing installations involving low pressure steam, air, water, and non-corrosive gas or oil.
Standards Compliance:
NSF/ANSI 372 Certified by IAPMO R&T; 0.25% Max Weighted Average Lead Content
Features & Benefits:
- Lead-Free Design: Certified to NSF/ANSI 372 for safe potable water applications.
- Durable Construction: Chrome-plated low-lead brass ball and TFE Teflon seats resist corrosion and wear.
- Full-Port Flow: Ensures minimal flow restriction for efficient throttling and balancing.
- Versatile Connections: Available in tapped, single-union, or MNPT x FNPT configurations for flexible installation.
FAQ
Q: What is the pressure rating of the Wilkins 1-850TXL?
A: The Wilkins 1-850TXL is rated for 400 psi WOG (Water, Oil, Gas).
Q: Is the Zurn 1-850TXL suitable for potable water systems?
A: Yes, the Zurn 1-850TXL is lead-free and certified to NSF/ANSI 372 by IAPMO R&T.
Q: What connection type does the 1-850TXL feature?
A: The 1-850TXL features tapped FNPT x FNPT threaded connections per ANSI B1.20.1.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
