Everpure EV943710 | High Flow CSR Quad-MC2 System | 36,000 gal, 6.7...

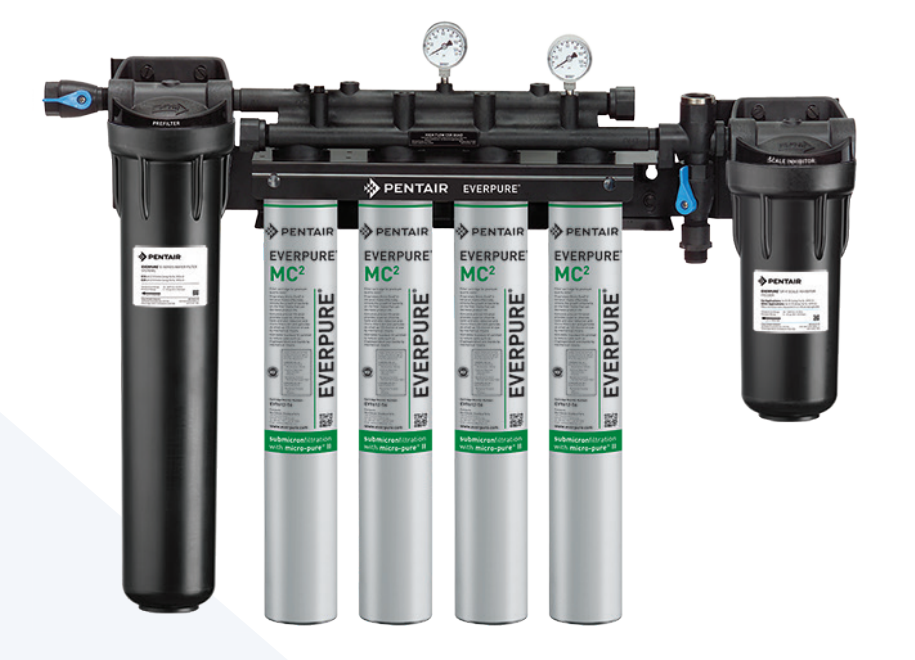

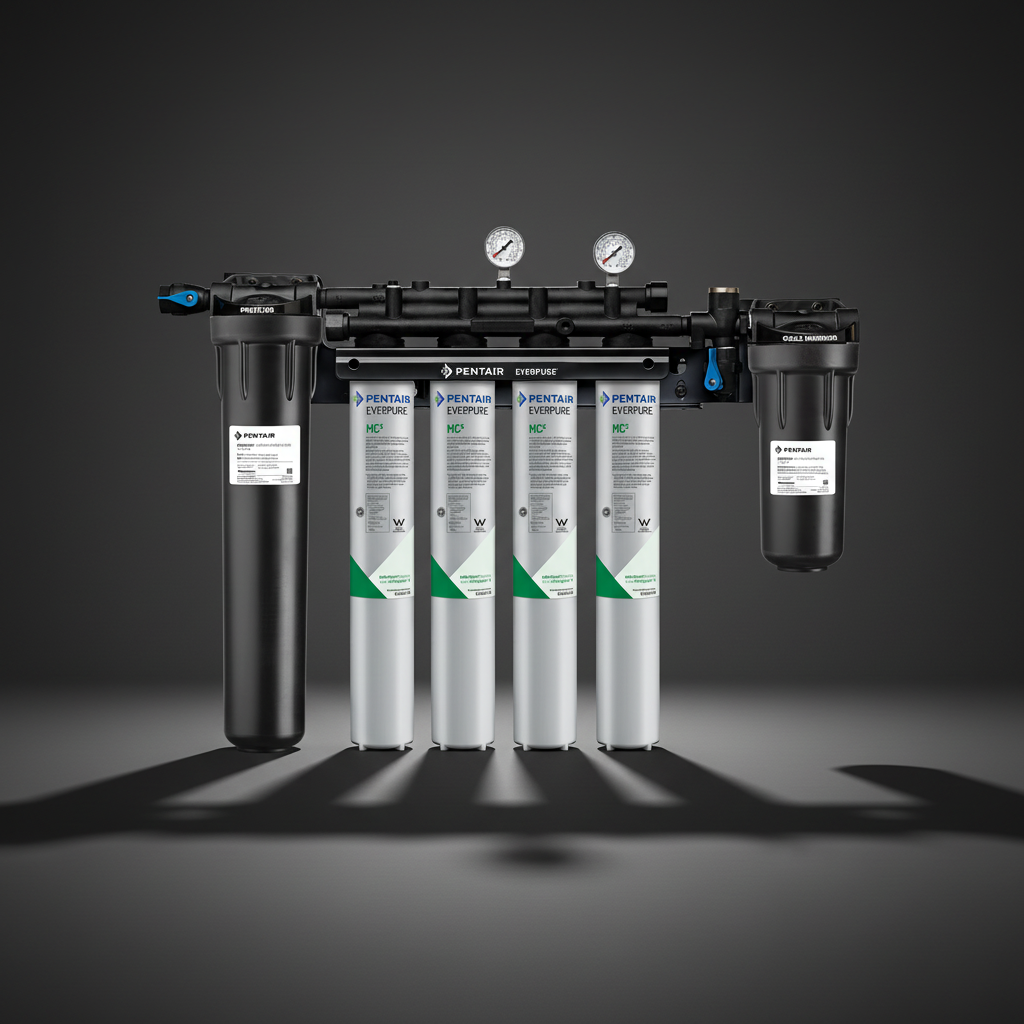

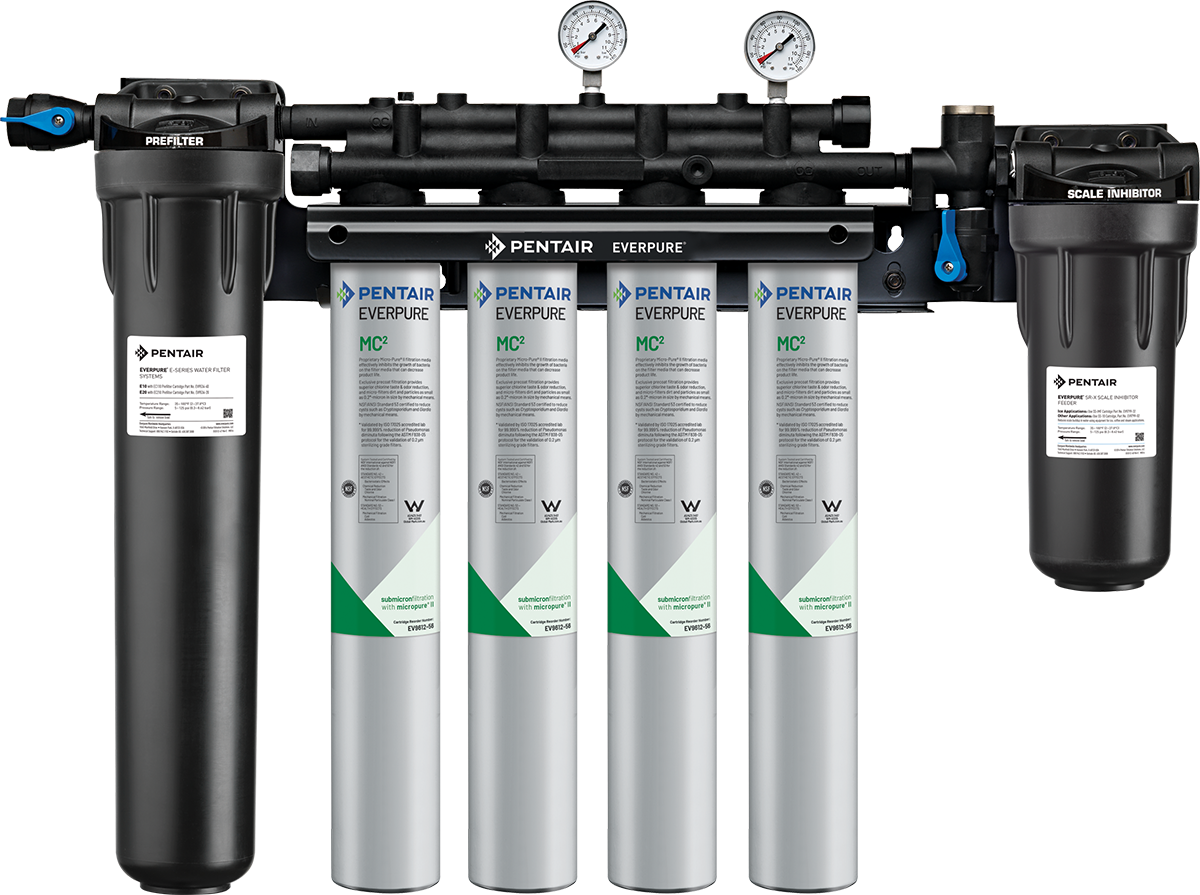

The Pentair Everpure EV943710 High Flow CSR Quad‑MC2 System is a multi‑cartridge water filtration solution designed for high‑volume foodservice applications. It delivers premium quality water to fountain, coffee, and ice machines while reducing chlorine, cysts, and particulates.
Key Specifications:
| Flow Rate | Maximum 6.7 GPM |
| Filter Capacity | 36,000 gallons |
| Compatibility | Supports up to 4 carbonators, a 4‑pot coffee brewer, and a 1,200 lb ice machine |
| Contaminants Filtered | Reduces chlorine taste & odor, cysts (Cryptosporidium, Giardia), particulates down to 0.2 micron |
| Number of Filters | Quad system (4 MC2 cartridges + prefilter + scale control cartridge) |
Features & Benefits:
- Multi‑Equipment Coverage: One system supplies fountain, coffee, and ice machines simultaneously
- Scale Control: SR‑X feeder with SS‑IMF cartridge helps inhibit scale buildup
- Sanitary Cartridge Replacement: Quick, clean changes with no exposure to internal filter parts
- Superior Filtration: Exclusive precoat filtration reduces chlorine taste & odor and cysts
- High Capacity: Rated for 36,000 gallons at 6.7 GPM service flow
What's Included:
- EV943710 High Flow CSR Quad‑MC2 System
- Four MC2 cartridges (EV961256)
- EC210 prefilter cartridge (EV953426)
- SS‑IMF scale control cartridge (EV979932)
- Installation instructions
Comparison of Everpure Systems:
| Feature | EV943710 Quad‑MC2 | EV932974 Quad‑7FC | EV943732 Endurance Quad |
|---|---|---|---|
| Capacity | 36,000 gallons | 40,000 gallons | 200,000 gallons |
| Best For | Large foodservice operations with multiple machines | High‑volume fountain and beverage service | Extended service life in very high‑demand operations |
| Key Contaminants | Chlorine taste & odor, cysts, particulates down to 0.2 micron | Chlorine taste & odor, particulates, improved flow capacity | Chlorine taste & odor, particulates, long‑life filtration |
| Key Components | 4 MC2 cartridges + prefilter + scale control | 4 7FC cartridges + prefilter + scale control | 4 Endurance cartridges, extended capacity design |
How to Replace the EV943710 Cartridges:
- Turn off the water supply using the shut‑off valve.
- Relieve pressure by opening downstream taps until water stops flowing.
- Remove old cartridges by twisting counterclockwise and pulling downward.
- Insert new cartridges (either the EV962828 Quad‑MC2 Kit or single EV961256 MC2 Cartridge) by pushing upward and twisting clockwise until secure.
- Turn the water supply back on and flush the system for at least 3 minutes to remove air and carbon fines.
FAQ
Q: What Equipment Can the EV943710 System Support?
A: It can serve up to four carbonators, a four‑pot coffee brewer, and a 1,200 lb ice machine.
Q: How Often Should the Cartridges Be Replaced?
A: Every six months or when the rated capacity of 36,000 gallons is reached.
Q: Does the System Reduce Chlorine Taste and Odor?
A: Yes. The MC2 cartridges are NSF/ANSI 42 certified for chlorine taste & odor reduction.
Q: Does the System Provide Scale Control?
A: Yes. The SR‑X feeder with SS‑IMF cartridge helps inhibit scale buildup in ice machines and coffee brewers.
Q: Can This System Be Used With Water of Unknown Quality?
A: No. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
Q: What Replacement Kit Is Recommended?
A: The EV962828 Quad‑MC2 Replacement Cartridge Kit is recommended. It includes four MC2 cartridges and should be changed every six months or when capacity is reached.
Q: Can I Replace Just a Single Cartridge Instead of All Four?
A: Yes. If only one cartridge needs replacement, you can use the EV961256 MC2 Replacement Cartridge. This single cartridge option has a 9,000‑gallon capacity, but for optimal performance in multi‑equipment setups, all four cartridges are typically changed together as part of the EV962828 kit.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Premium Water for Every Pour" BottleFillingStations.com | Contact us now
The Pentair Everpure EV943710 High Flow CSR Quad‑MC2 System delivers premium quality water for high‑volume fountain, coffee, and ice machine applications. It is designed for multiple equipment combinations, reducing chlorine taste & odor, particulates, and cysts while protecting against scale buildup.

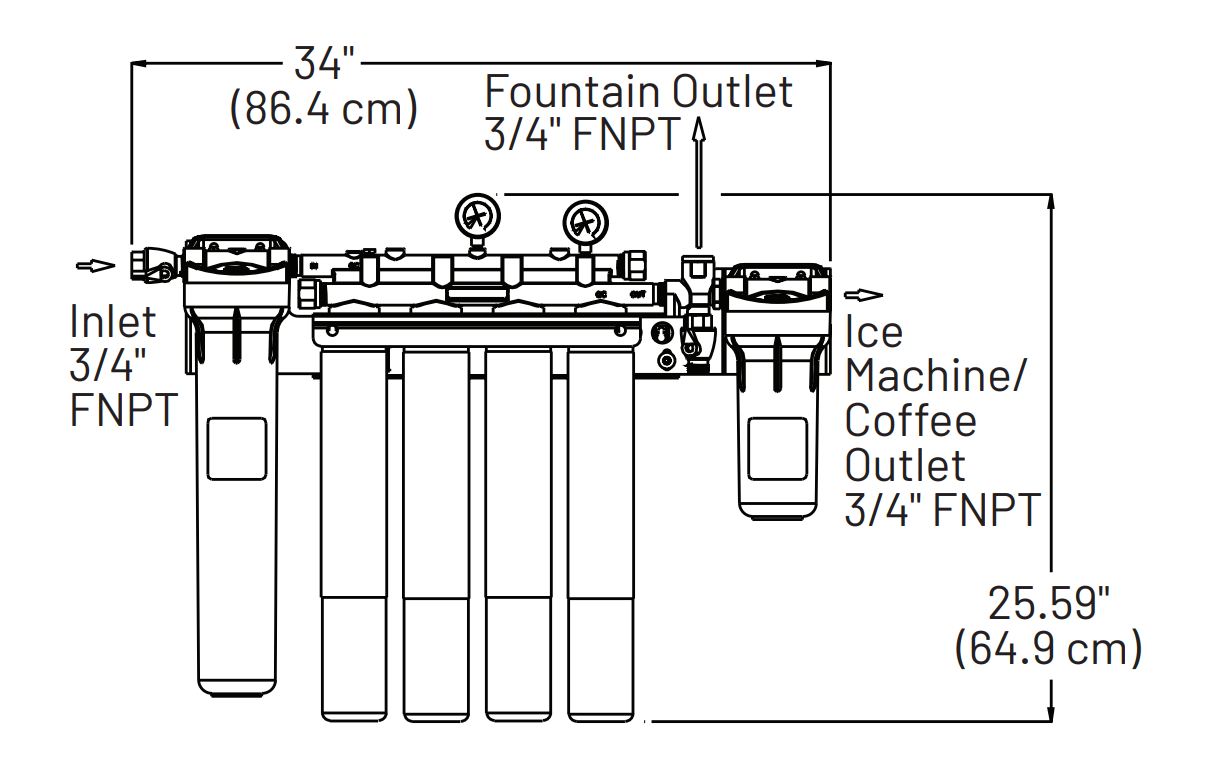

Key Installation Requirements:
- Mount system vertically with cartridges hanging down
- Allow at least 2‑1/2" clearance below cartridges for replacement
- Use 3/4" water line connections for inlet and outlet
- Choose a mounting location capable of supporting full operating weight (58 lbs)
- Connect fountain equipment before SR‑X system; connect coffee brewer and ice machine after SR‑X feeder
- Flush cartridges for 5 minutes at full flow during installation
Important Notes Before Installing:
- Do not install on hot water lines — cold water supply only
- System must be installed in compliance with local plumbing codes
- Always depressurize water line before servicing or replacing cartridges
- Replace cartridges every 6 months or sooner if flow/pressure drops
- Ensure adequate clearance and support to avoid strain on fittings
- Certified to NSF/ANSI Standards 42 & 53 — use only genuine Everpure cartridges for compliance
Basic Installation Overview:
- Mount system securely to wall using appropriate fasteners
- Connect 3/4" FNPT inlet and outlet fittings
- Connect fountain, coffee, and ice machine lines as specified
- Install prefilter cartridge (EC210) and MC2 cartridges
- Install SS‑IMF cartridge in SR‑X feeder for scale inhibition
- Flush system for 5 minutes at full flow to purge air and carbon fines
- Check all connections for leaks before placing into service
For complete step‑by‑step instructions, download the official EV943710 Specification Sheet.
