Pentair 655116-96 | F1S5-RC Sediment Filter for F3000-B2B/B2M Syste...

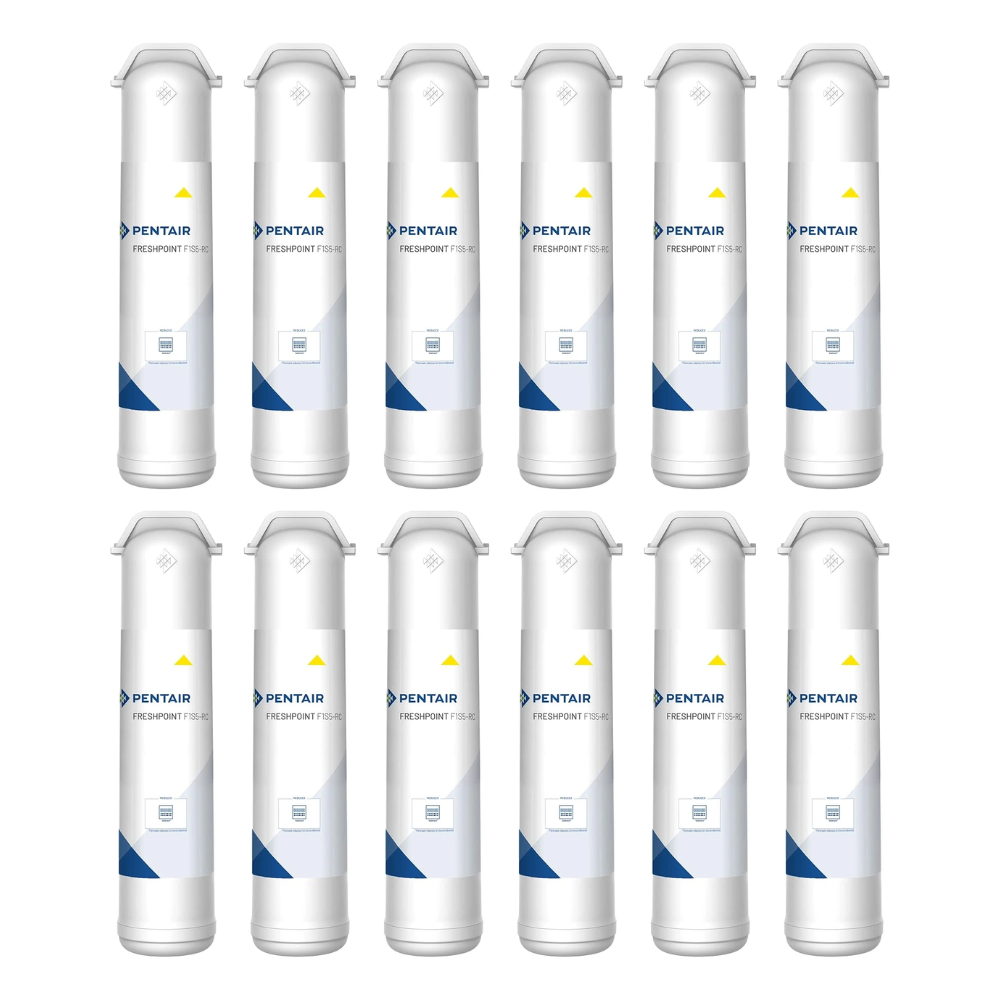

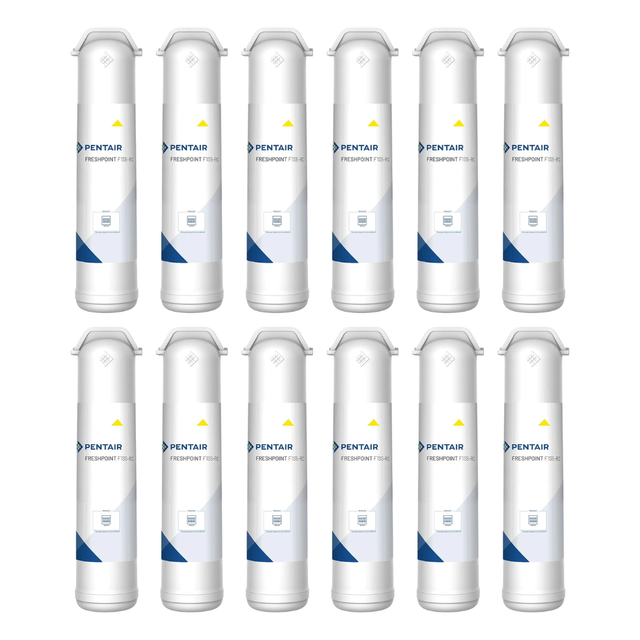

The Pentair 655116-96 (F1S5-RC) is a meltblown polypropylene sediment cartridge that captures sediment and particulates as the first-stage filter, ideal for home or office F3000 drinking water systems.
Key Specifications:
| Compatibility | F3000-B2B and F3000-B2M systems |
| Capacity | 675 gallons / 6–12 months |
| Contaminants Filtered | Sediment, particulates |
| Operating Conditions | 40–100°F, 40–100 psi |
| Number of Filters | 12-Pack (1-Pack option also available here) |
Why Choose the Pentair 655116-96 (F1S5-RC)?
- Superior Sediment Protection: The Pentair 655116-96 (F1S5-RC) captures fine particulates before they reach downstream carbon block cartridges.
- Extends System Life: By trapping sediment early, this cartridge helps prolong the performance of the entire F3000 filtration system.
- Easy Maintenance: A simple click-in design with mechanical assist and double O-ring makes cartridge swaps quick and mess-free.
- Certified Performance: Backed by NSF/ANSI standards, ensuring reliable contaminant reduction for safer drinking water.
How to Replace Pentair 655116-96 ((F1S5-RC)):
- Turn off the water supply feeding the filtration system.
- Open the faucet briefly to release residual pressure.
- Twist and remove the old F1S5-RC cartridge from the housing.
- Align the new cartridge's O-ring and click it firmly into place.
- Restore the water supply and check the connection for leaks.
Notice: For detailed, step-by-step guidance, please refer to the guide here.
FAQ
Q: How Often Should the Pentair 655116-96 (F1S5-RC) Filter Be Replaced?
A: This cartridge is rated for approximately 675 gallons or 6–12 months of use, depending on water quality and household consumption.
Q: How Can I Maximize the Filter's Lifespan?
A: Operate the system within the recommended temperature and pressure range, log each replacement date, and avoid running unsafe or unknown-quality water through the cartridge without proper disinfection.
Q: What Contaminants Does Pentair 655116-96 (F1S5-RC) Filter Remove?
A: This sediment cartridge reduces sediment and particulates, protecting the system's downstream carbon block filters that further address chlorine taste/odor, lead, atrazine, and cysts.
Q: What Certifications Does This Filter Have?
A: The F3000 system using this cartridge is certified to NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 401, and CSA B483.1 standards for contaminant reduction.
Q: Is This a Genuine Filter? Is BottleFillingStations.com an Authorized Pentair Distributor?
A: Yes, this is a genuine Pentair 655116-96 (F1S5-RC) filter so it will perform per manufacturer's standards and come included with a warranty. BottleFillingStations.com is an authorized Pentair distributor.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Pentair F1S5-RC (655116-96, 12 Pack; 4005740, 1 Pack) is the sediment pre-filter cartridge for the Pentair FreshPoint F3000-B2B and F3000-B2M 3-Stage Filtration Systems. It's a dedicated 5-micron meltblown prefilter designed for water with heavy sediment, and works alongside the F2B2-RC2 cartridge set to complete the three-stage sequence.
Step-by-Step Replacement Guide
- Relieve pressure by turning off the water supply to the system and opening the faucet until water flow stops. Place a bucket or towel under the system to catch any drips.
- Remove the decorative cover, then lift the locking bar upward until the sediment cartridge disengages from the filter head assembly.
- Pull the cartridge away from the filter head assembly, and make sure the locking bar stays fully in the up position.
- Align the posts on the new F1S5-RC cartridge with the ports on the filter head assembly, then slide the cartridge into place. This engages the locking bar, causing it to drop forward and down.
- Pull the locking bar down until it snaps securely into place, then reinstall the cover.
- Slowly turn the water supply back on and open the faucet, letting it run for 20 minutes to flush the new cartridges (discard this water — carbon fines may appear at first, keep flushing until clear). Check all fittings for leaks before finishing up.
