Murdock BF168 | Refrigerated Sensor-Activated Water Refill Station ...

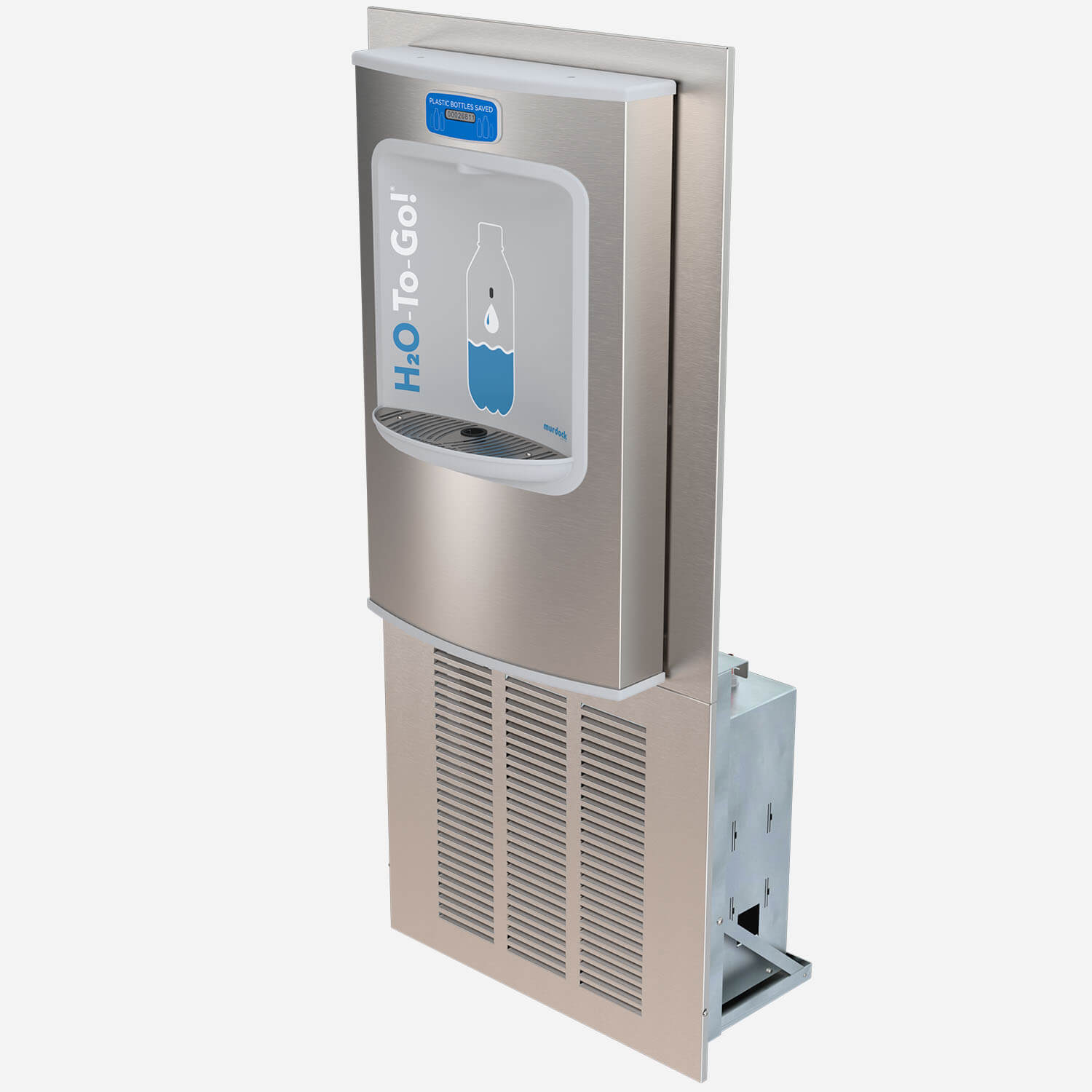

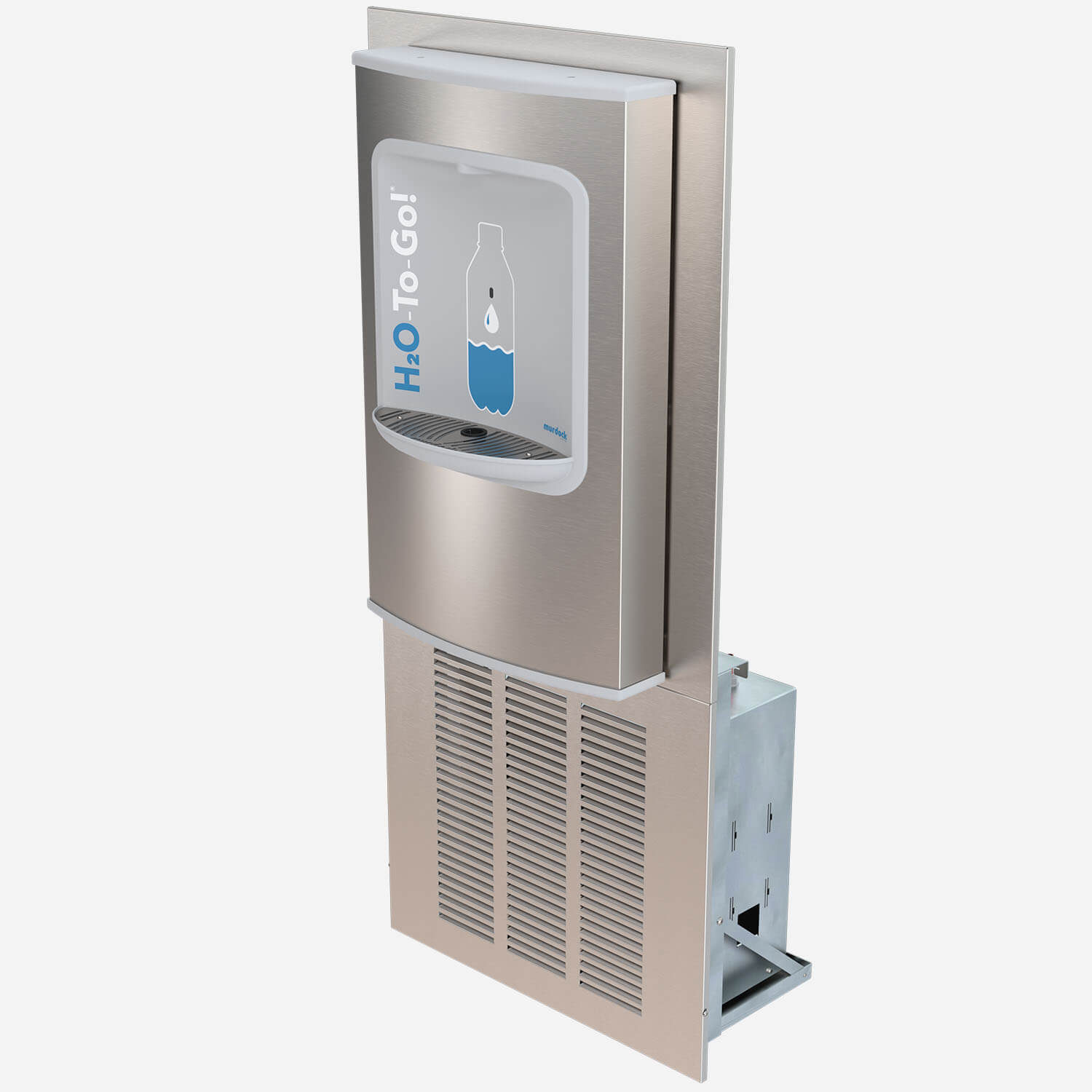

The Murdock BF168 Series is a sleek, refrigerated water refill station featuring touchless sensor operation and in-wall refrigeration technology. This H2O-to-Go! bottle filler offers a stylish, eco-friendly alternative to plastic water bottles while ensuring maximum functionality and hydration with its efficient cooling system and user-friendly design.
Key Specifications:
- Touchless Operation: Sensor-activated technology provides hygienic, hands-free water dispensing for public spaces.
- In-Wall Refrigeration: Built-in cooling system delivers up to 8 GPH (30.3 LPH) of 50°F water from 80°F inlet at 90°F ambient, while maintaining a slim profile.
- Efficient Flow Rate: 1.0 GPM laminar flow ensures quick bottle filling without unnecessary waiting.
- Optional Bottle Counter: Digital display tracks usage statistics and environmental impact of plastic bottle reduction.
Features & Benefits:
- Eco-Friendly Solution: Reduces plastic waste by encouraging reusable bottle usage in commercial and institutional settings.
- Space-Saving Design: Slim profile with fold-down housing for easy maintenance access in high-traffic areas.
- Reliable Performance: 20-second maximum run time with laminar flow water supply ensures consistent operation.
- Health-Focused: Fabricated from Type 304 stainless steel (satin finish) with antimicrobial ABS surfaces, lead-free construction, and 100-mesh inlet strainer for clean, safe water.
- Optional Filtration: Compatible with the WF3000 Filter (3000-gallon capacity), certified to reduce PFAS, lead, bacteria, chlorine, cysts, and microplastics.
Bottle Filler Option:
- BF168: Sensor powered with 120 VAC/ 9 VDC Plug-in Transformer
- BF168-BCD: Sensor powered with 120 VAC/ 9 VDC Plug-in Transformer, Display for Bottle Count of Saved Bottles and Filter Status
FAQ
Q: What are the installation requirements for the Murdock BF168 Series?
A: The BF168 Series requires standard electrical connection (120V AC) and water supply hookup. It includes a mounting frame for secure in-wall installation and requires proper ventilation.
Q: How does the refrigeration system in the BF168 Series work?
A: The BF168 features an in-wall refrigeration system that cools up to 8 gallons per hour of water using environmentally friendly R-134a refrigerant. It is designed for continuous use in commercial environments while providing consistently cold water.
Q: Is the Murdock BF168 Series easy to maintain?
A: Yes, the BF168 features a fold-down housing design that provides easy access for maintenance and optional filter replacement. The 100-mesh inlet strainer helps prevent debris from entering the system, reducing maintenance frequency.
Q: Can this model be used outdoors?
A: No, the BF168 Series is rated for indoor use only.
Detailed Features & Benefits
Advanced Sensor Technology: The BF168 Series utilizes precise infrared sensors to detect bottle placement, automatically dispensing water without requiring physical contact. This touchless operation is ideal for high-traffic areas where hygiene is paramount, reducing cross-contamination and enhancing the user experience.
Refrigeration Excellence: The in-wall refrigeration system of the Murdock BF168 delivers consistently cold water even during peak usage periods, with performance rated at 8 GPH cooled to 50°F. This feature makes it perfect for educational institutions, fitness centers, and commercial buildings where refreshing hydration is essential throughout the day.
Environmental Impact Tracking: With the optional bottle counter display, the BF168 Series helps organizations quantify their sustainability efforts by tracking the number of plastic bottles saved. This feature not only demonstrates environmental commitment but also encourages continued use of reusable containers.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
