Hoshizaki KML-500MAJ | KMEdge LCrescent Cuber (select the alternative KMD-505MAJ below)
Hoshizaki KML-500MAJ | KMEdge LCrescent Cuber (select the alternative KMD-505MAJ below) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.
Maintenance
Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.
The KML-500MAJ is discontinued - the close alternative is the KMD-505MAJ.

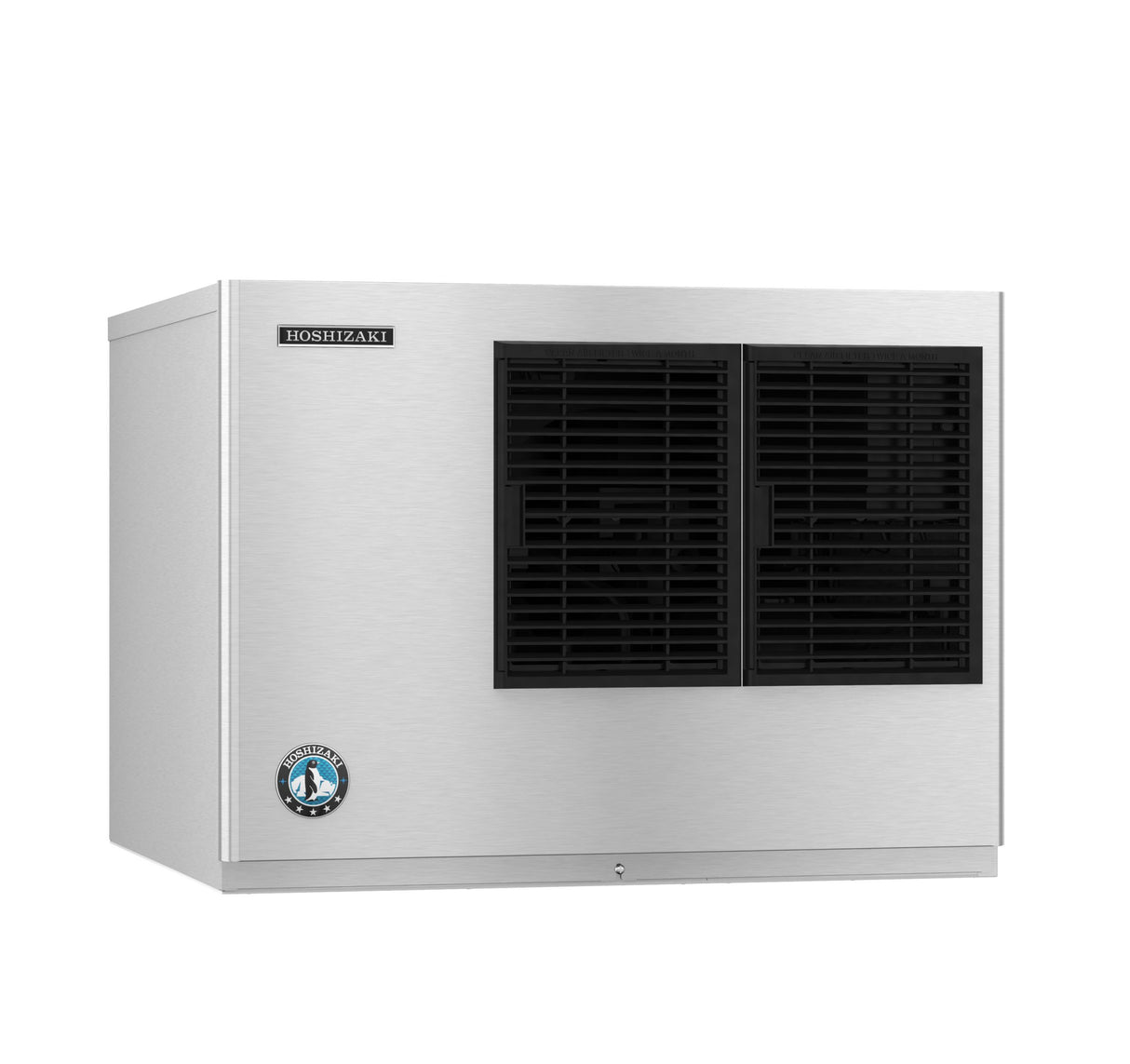

The Hoshizaki KML-500MAJ is a high-capacity, air-cooled low-profile modular crescent cuber designed for commercial spaces where every inch counts. It produces up to 543 lbs of ice per day with advanced features like CycleSaver™ technology and the EverCheck™ alert system. Its compact design and durable stainless steel build make it an excellent choice for restaurants, bars, and healthcare facilities that need consistent, high-quality ice production in tight spaces.
Key Specifications
- Ice Production Capacity: Up to 543 lbs per 24 hours at 70°F air / 50°F water; 515 lbs at 90°F air / 70°F water.
- Dimensions: Compact low-profile size of 30" W x 27⅜" D x 22" H for flexible installation.
- Electrical: 115V/60/1, max fuse size 20A, draws 9.6A under normal conditions.
- Refrigerant: R-404A with a charge of 1 lb 14.1 oz.
- Water Usage: Efficient 16.0 gallons per 100 lbs of ice produced.
Features & Benefits
- Low-Profile Design: Just 22" tall, fits where taller machines can't, increasing installation options.
- CycleSaver™ Technology: Reduces freeze/harvest cycles to boost efficiency and extend component life.
- EverCheck™ Alert System: Real-time diagnostics and alerts for proactive maintenance.
- H-GUARD Plus Antimicrobial Agent: Protects against bacterial growth for safer ice.
- Energy Efficiency: Uses only 4.33 kWh per 100 lbs of ice, balancing output with conservation.
What's Included
- KML-500MAJ Low-Profile Modular Crescent Cuber unit
- Removable air filters
- Installation and operation manual
- Warranty documentation
FAQ
Q: What are the plumbing requirements for the KML-500MAJ?
A: It requires a minimum 1/4" Nominal ID Copper Water Tubing or equivalent for the water supply line, and a minimum 3/4" Nominal ID Hard Pipe or equivalent for drainage. Water pressure should be between 10-113 PSIG, and water temperature between 45°F and 90°F.
Q: Is this ice machine compatible with different ice storage bins?

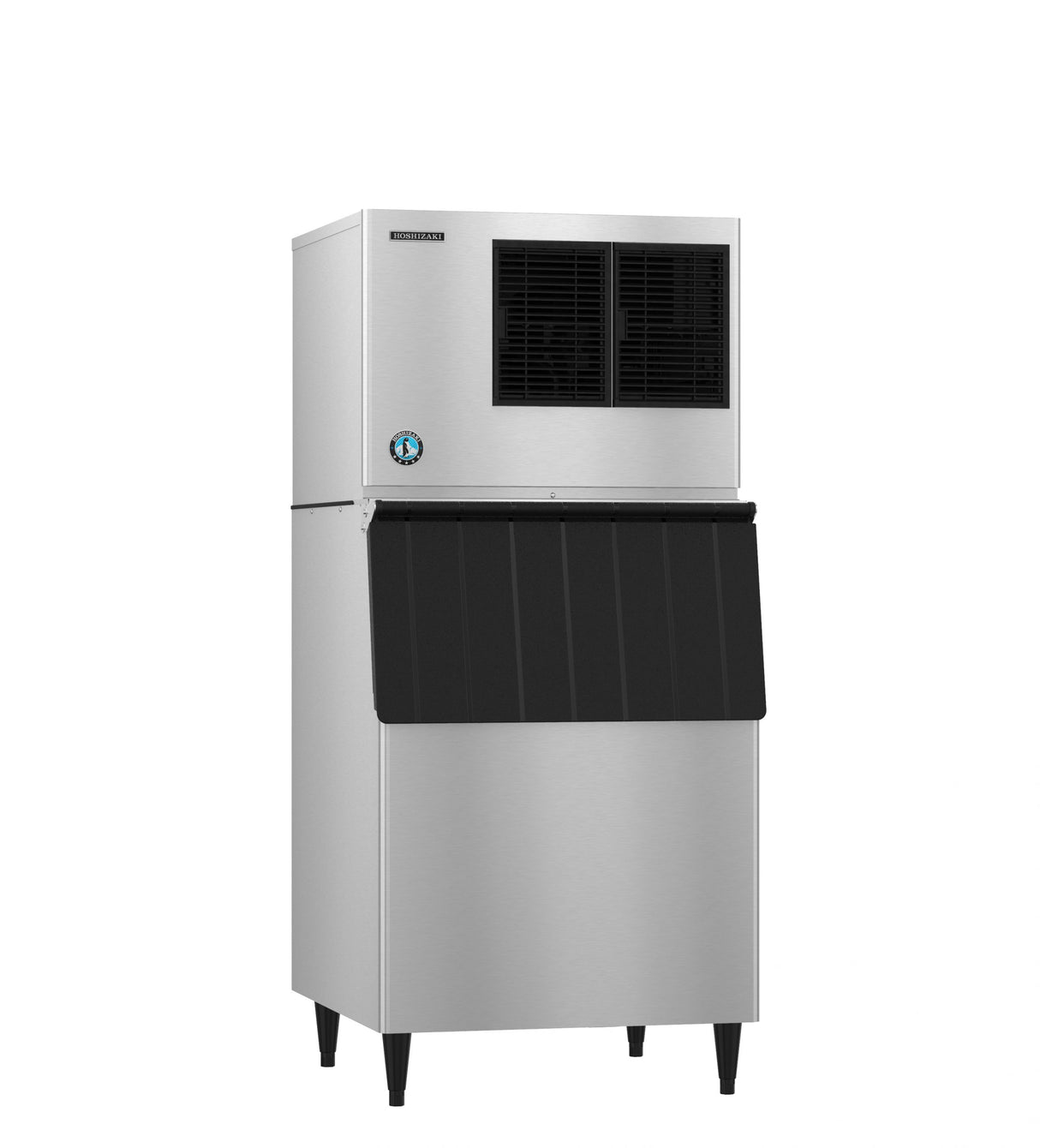

A: Yes, it works with various Hoshizaki bins including B-250SF, B-500SF, B-700SF, and larger bins like B-1500SS and B-1650SS for two-unit setups. A top kit may be needed for some bins.
Q: What warranty coverage does it have?
A: Hoshizaki offers a 3-year parts and labor warranty on the entire machine, plus 5 years parts and labor on the evaporator, and 5 years parts on the compressor and air-cooled condenser coil. Valid in the US, Canada, Puerto Rico, and US Territories.
Detailed Features & Benefits
Low-Profile Design and Installation Flexibility: At just 22" tall, the KML-500MAJ fits in tight spaces where taller machines can't go. This opens up new installation possibilities in kitchens, bars, and healthcare facilities with limited vertical clearance. Despite its compact size, it produces up to 543 lbs of ice daily, balancing space efficiency with high output.
CycleSaver™ Technology and Energy Efficiency: This technology reduces the number of freeze/harvest cycles, which cuts energy use and reduces wear on parts. The machine uses only 4.33 kWh per 100 lbs of ice, making it cost-effective to run. The EverCheck™ alert system complements this by providing real-time diagnostics to keep the machine running smoothly and help schedule maintenance before issues arise.
NOTICE: Do not use with water that is unsafe or of unknown quality without proper disinfection before or after use.
