Halsey Taylor 4430BF1L | Freestanding Tri-level Bottle Filling Station | Filterless, Non-refrigerated
Halsey Taylor 4430BF1L | Freestanding Tri-level Bottle Filling Station | Filterless, Non-refrigerated - Evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
Halsey Taylor 4430BF1L | Freestanding Tri-level Bottle Filling Stat...

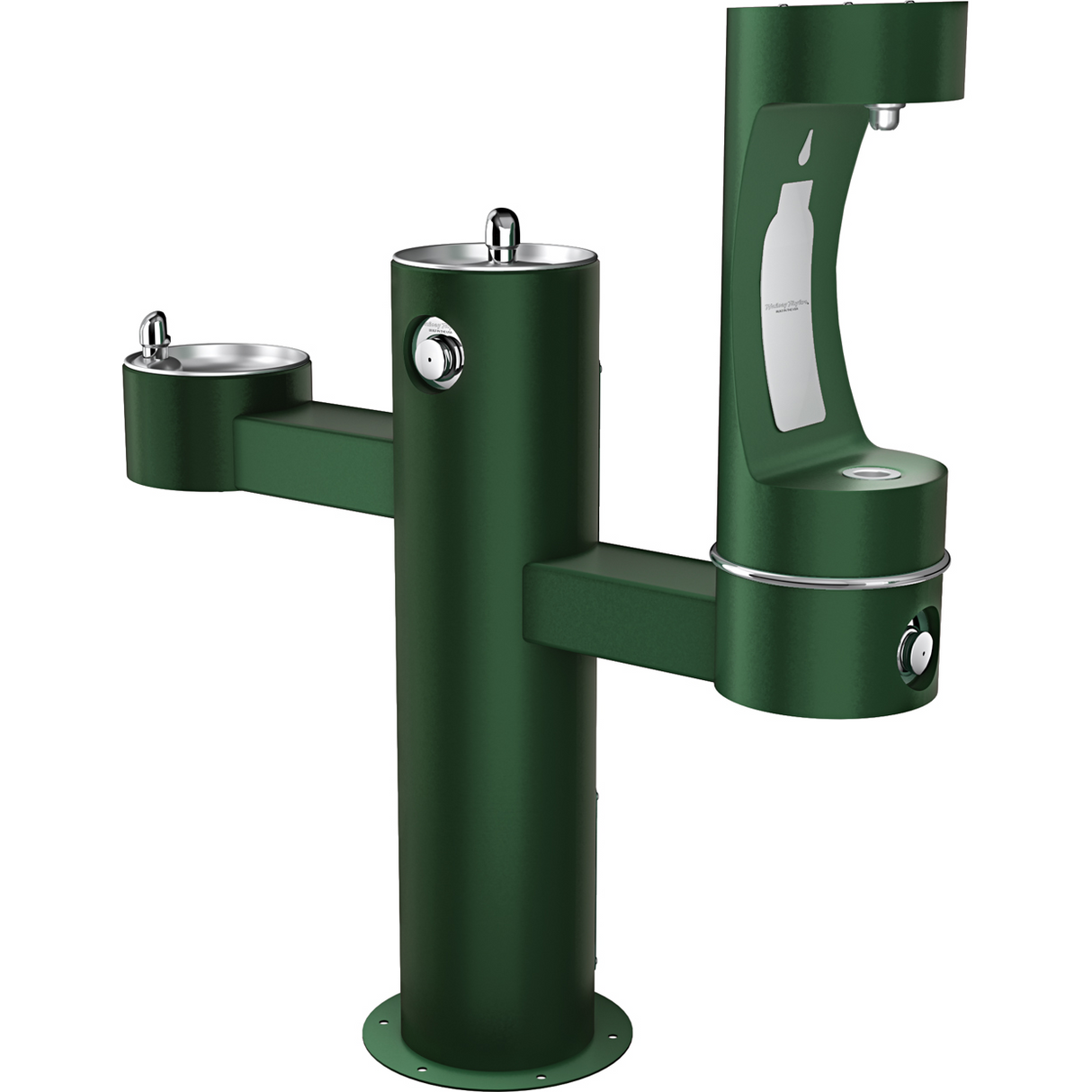

The Halsey Taylor 4430BF1L is freestanding, outdoor bottle filling station and drinking fountain combo designed for durability and accessibility with Non-Filtered and Non-Refrigerated. This tri-level pedestal unit combines two drinking fountains with a rapid bottle filler, making it an ideal solution for high-traffic outdoor areas such as educational campuses and recreational spaces.
Key Specifications:
- Tri-Level Design: Features a bottle filler and two drinking fountains at different heights, ensuring ADA compliance and accessibility for all users.
- Durable Construction: Heavy-duty steel construction with a textured powder-coat finish and E-coat immersion process for superior corrosion protection and year-round durability.
- Rapid Fill Rate: Bottle filler provides a quick fill rate of 1 gallon per minute, reducing wait times in busy areas.
- Vandal-Resistant Features: Equipped with self-closing, vandal-resistant pushbuttons and bubbler to ensure longevity and minimize maintenance.
Features & Benefits:
- Enhanced Hydration Access: Combines traditional drinking fountains with a bottle filling station, promoting increased water consumption and accommodating various user preferences.
- Environmental Impact: Encourages the use of refillable water bottles, helping to reduce plastic waste and promote sustainability in outdoor spaces.
- Weather-Resistant Design: The E-coat immersion process and powder-coated exterior provide excellent protection against various weather conditions, ensuring long-lasting performance with minimal maintenance.
- Hygienic Operation: Laminar flow technology minimizes splashing, while vandal-resistant bubblers with chrome-plated integral hood guards prevent contamination, ensuring a clean and safe drinking experience.
What's Included:
- Halsey Taylor 4430BF1L Outdoor Bottle Filling Station and Dual Drinking Fountains Unit
- Installation hardware and mounting bracket
- User manual and installation guide
- 60" of freeze-resistant tubing
- In-line strainer for trapping particles
FAQ
Q: Is the Halsey Taylor 4430BF1L suitable for cold climates?
A: Yes, the 4430BF1L is designed with freeze-resistant features. The valve is installed 18" below the frost line, and 60" of tubing is provided to ensure operation in cold climates. For areas with extreme temperatures, additional freeze-resistant options are available.
Q: Can this unit be customized with different colors?

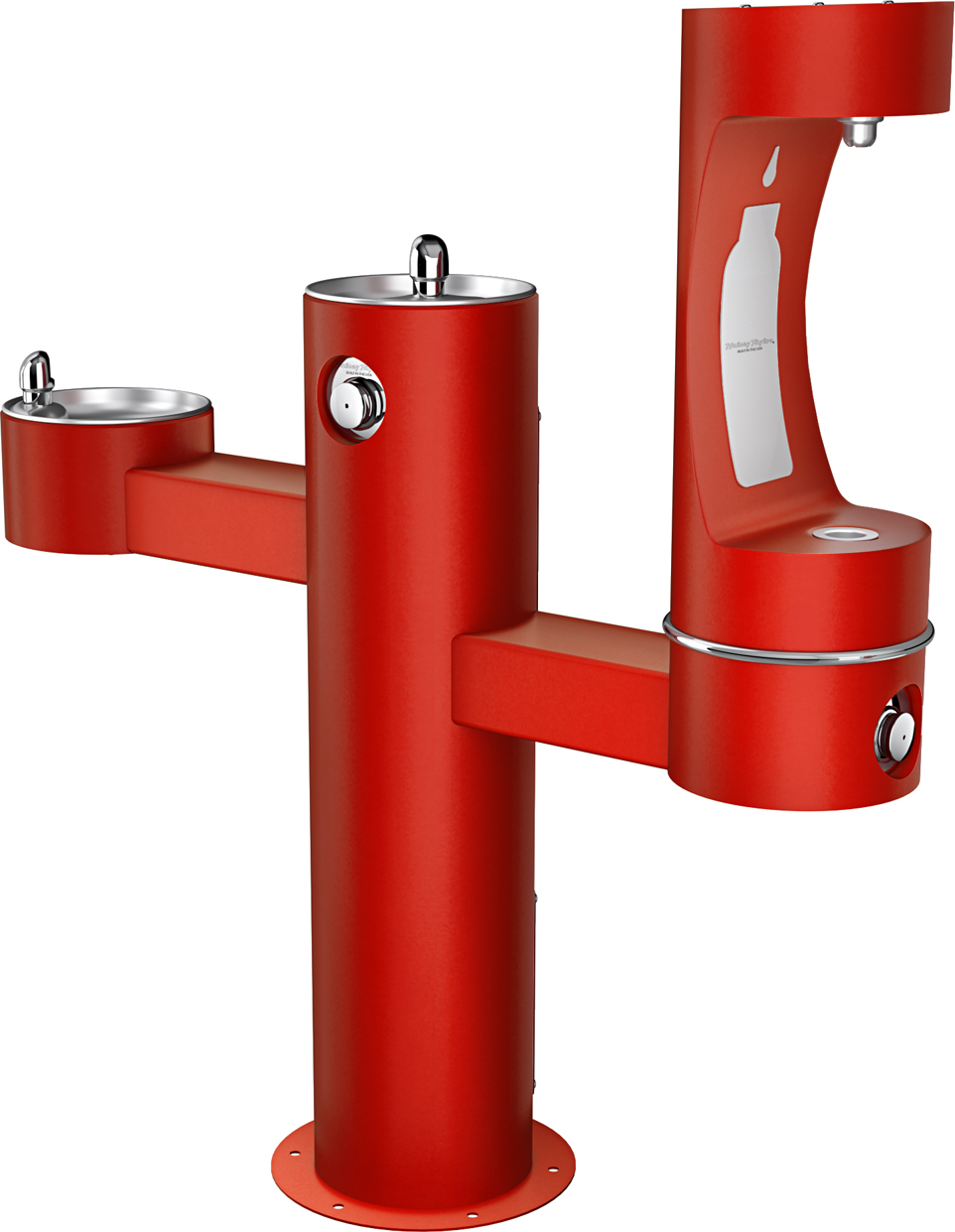

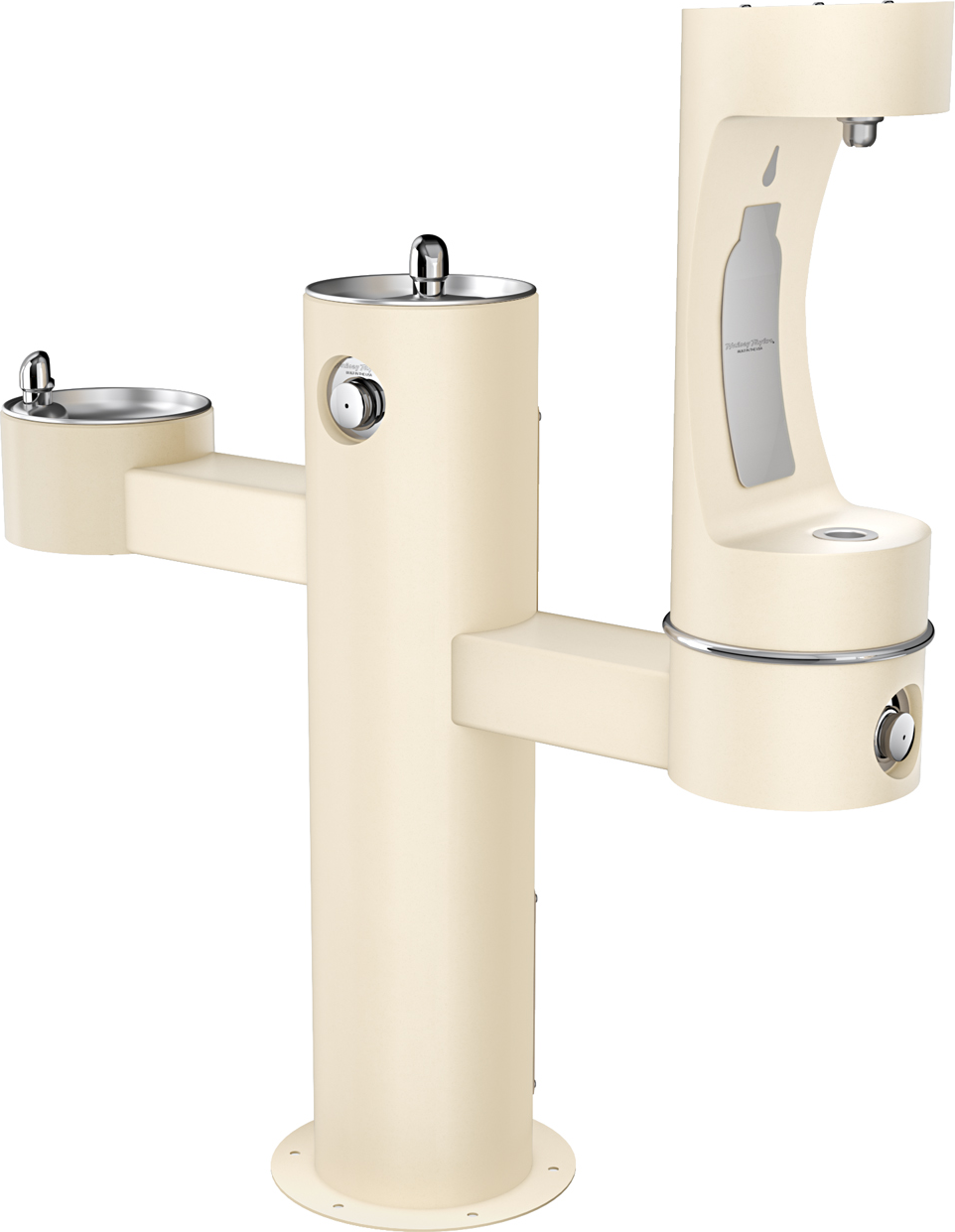

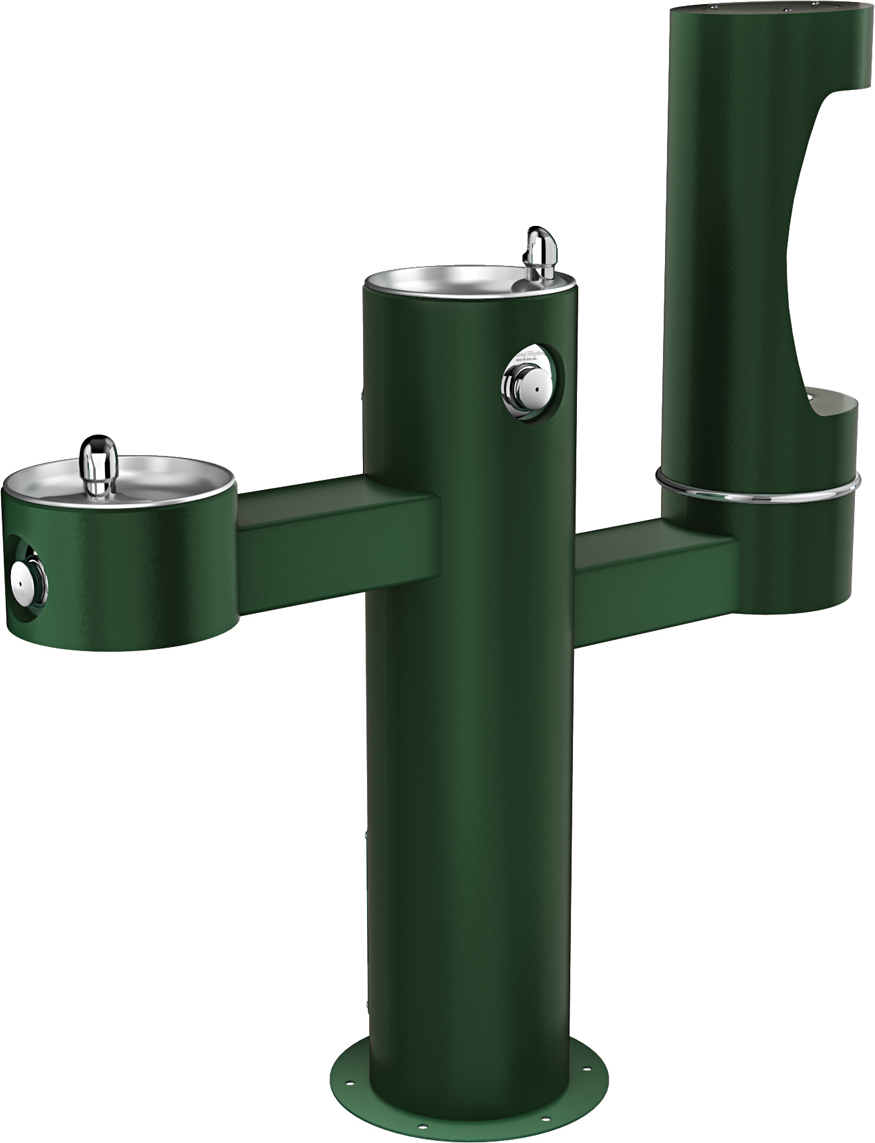

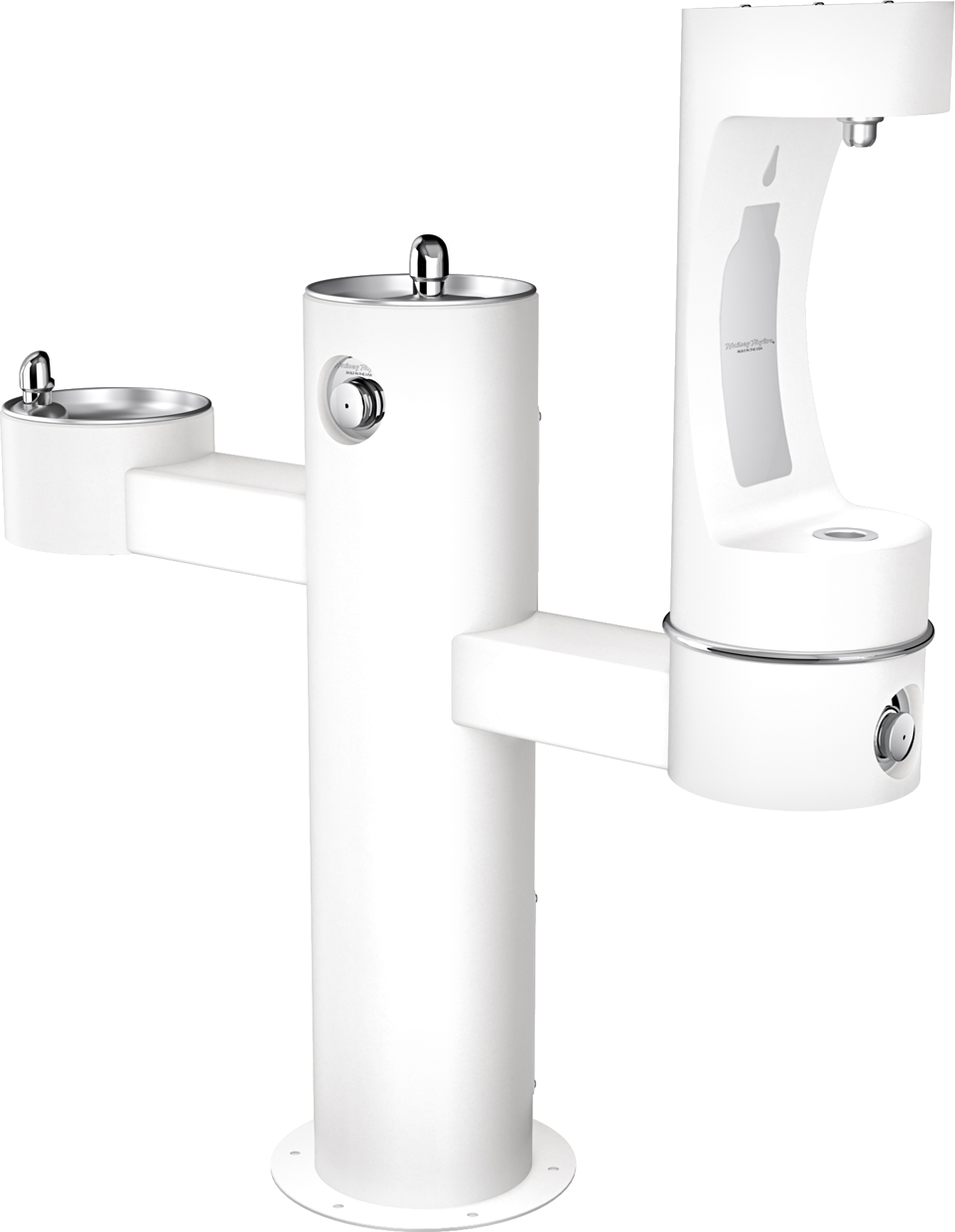

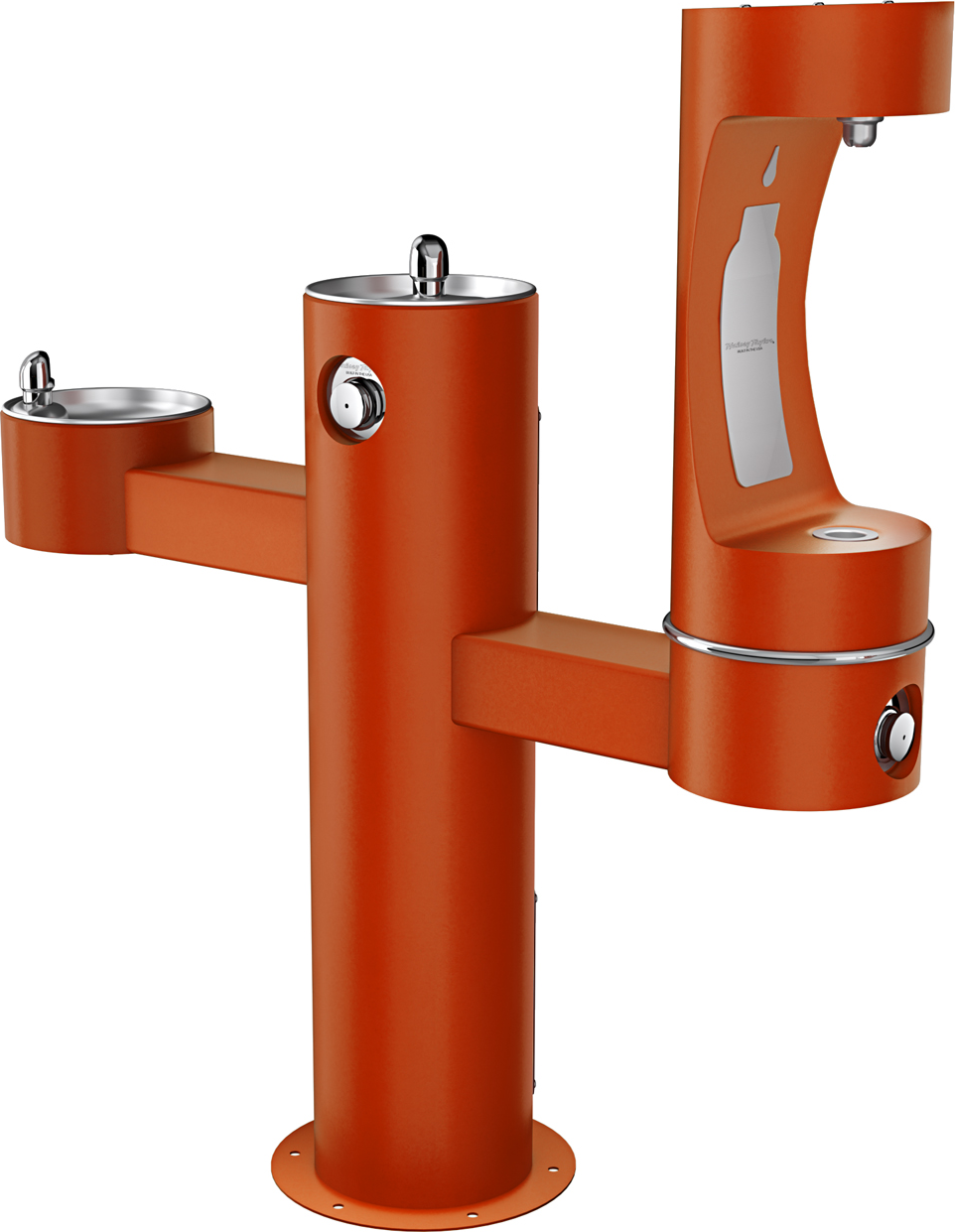

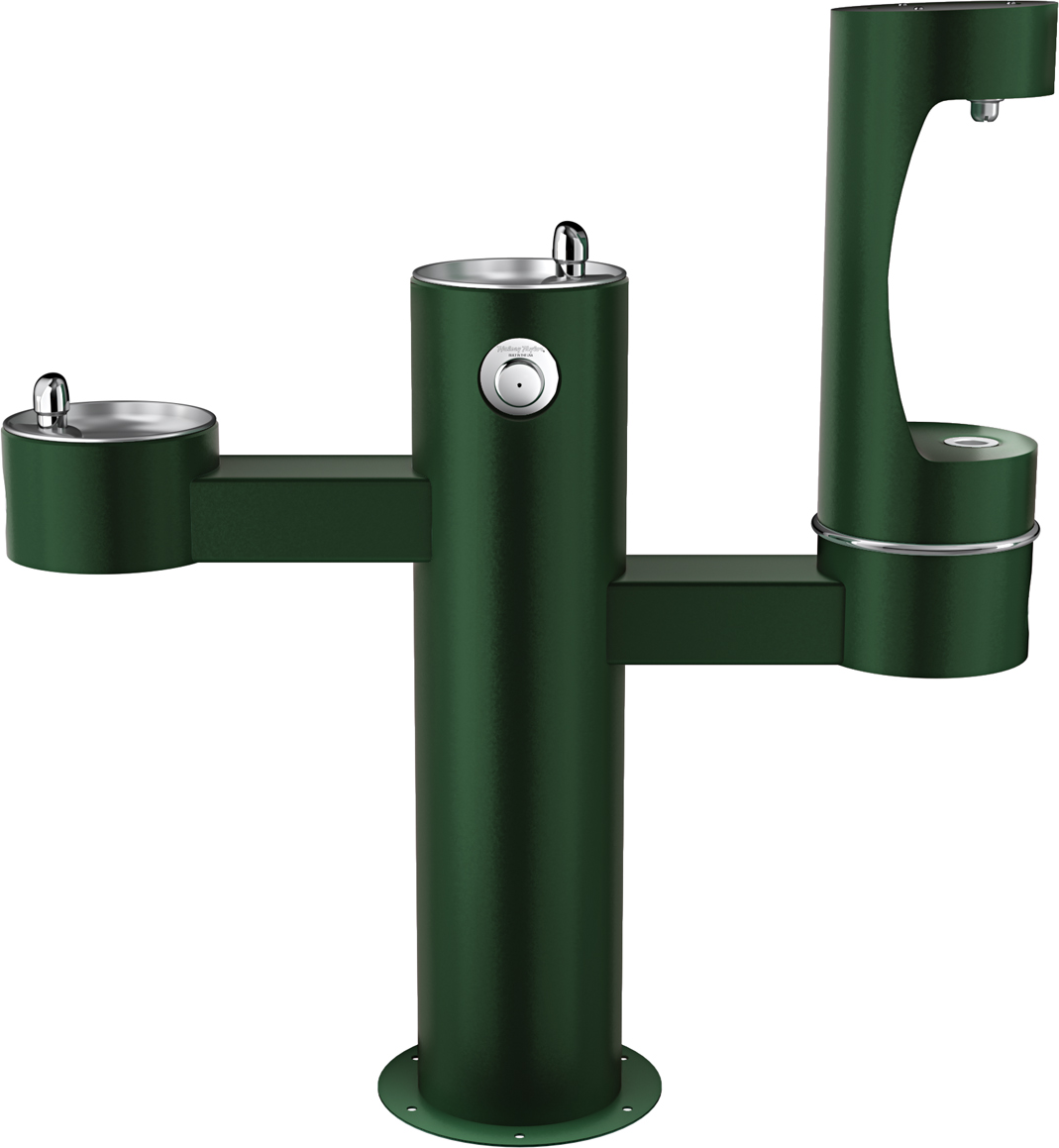

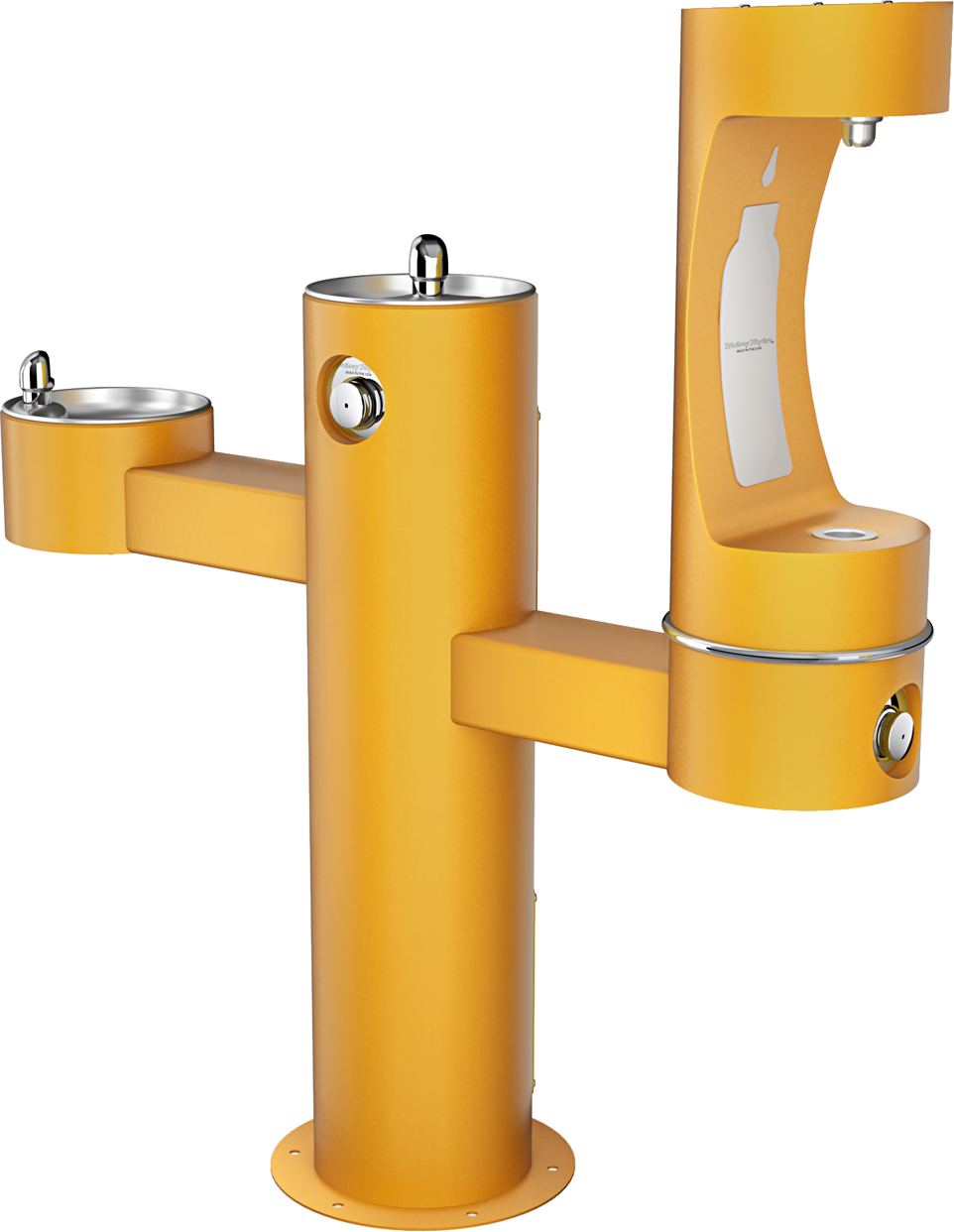

A: Absolutely! The Halsey Taylor 4430BF1L is available in 12 stunning finishes. While Evergreen is the standard color with a typical lead time of 15-20 business days, other color options are available with a lead time of approximately 20-30 business days. Please note that special color orders may have specific minimum quantity requirements and are non-returnable.
Q: Does this model come with a built-in filtration system?
A: The standard 4430BF1L model does not include a built-in filtration system. However, it's common to create inline filtration by ordering and properly installing a separate Filter Kit. If filtration is desired, a custom order can be created to meet your specific needs.
Detailed Features & Benefits
Outdoor-Optimized Design: The Halsey Taylor 4430BF1L is engineered specifically for outdoor use, addressing the unique challenges of external environments. Its heavy-gauge construction, combined with tamper-resistant screws, provides robust protection against vandalism and wear. The textured powder-coat finish not only enhances its aesthetic appeal but also resists stains and corrosion, maintaining its appearance even in harsh outdoor conditions. This thoughtful design ensures that the unit remains functional and attractive year-round, making it an excellent long-term investment for any outdoor space.
Accessibility and Compliance: The tri-level design of the 4430BF1L is a standout feature that sets it apart in the market. By incorporating a bottle filler on the upper section and drinking fountain basins at middle and lower levels, this unit ensures compliance with ADA guidelines. This thoughtful configuration makes the fountain accessible to users of all heights and abilities, including children and individuals in wheelchairs. The self-closing, vandal-resistant pushbuttons are designed for easy operation without requiring grasping or twisting, further enhancing its accessibility and ease of use for all patrons.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
