Excel 40505 | ADA Compliant Recess Kit, Brushed Stainless Steel

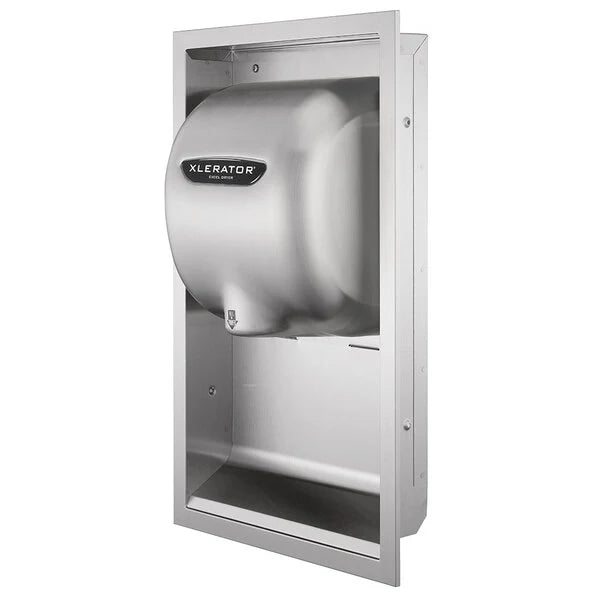

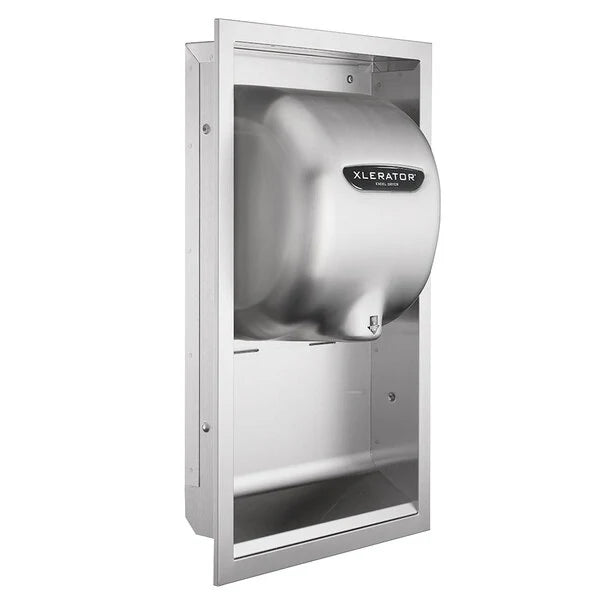

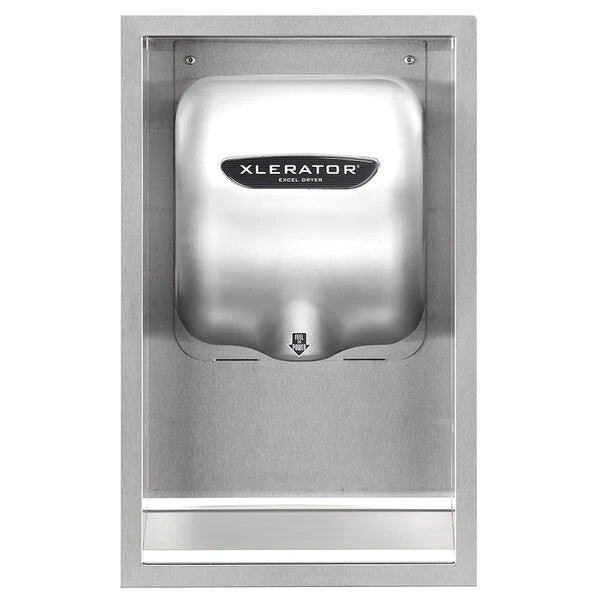

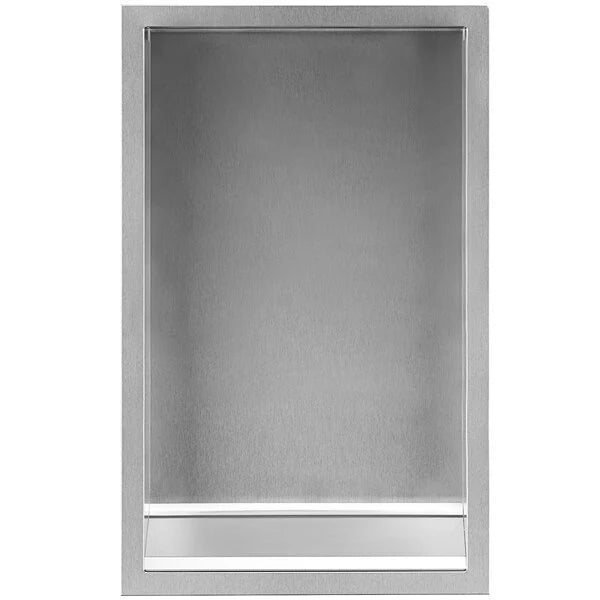

The Excel Dryer 40505 is a stainless steel recess kit engineered for XLERATOR hand dryers, built to meet ADA 4" protrusion requirements.
Key Specifications:
- Finish: Brushed Stainless Steel

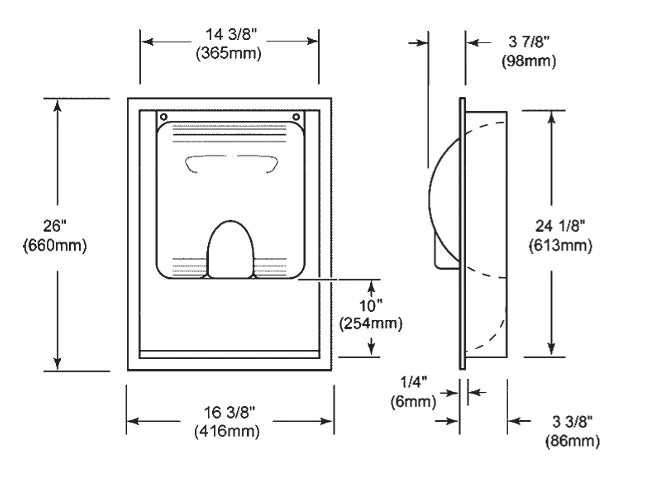

- Overall Dimensions: 16 3/8" W x 26" H x 3 3/8" D
- Rough Wall Opening: 14 1/2" W x 24 3/8" H x 4" D
- Weight: 11 lbs (4.99 kg)
- Construction: 18 gauge stainless steel, #4 satin finish
Features & Benefits:
- ADA Compliant Design: Meets the 4" protrusion requirement for accessible installations.
- Durable Build: Fully welded 18 gauge 18-8 type 304 stainless steel construction.
- Simplified Installation: Uses a longer wrench for securing the dryer, replacing the previous plate-and-chain method.
- Clean Finish: #4 satin stainless steel finish blends into commercial restroom environments.
FAQ
Q: How is the Excel 40505 different from the previous recess kit (Excel 40502)?
A: The 40505 is the factory's updated recess kit design. It eliminates the stainless steel plate and chain previously used to secure the dryer, replacing that system with a longer wrench for easier, faster installation.
Q: Does the 40505 meet ADA requirements?
A: Yes, the 40505 meets the ADA 4" (102 mm) maximum protrusion requirement when installed according to the recommended mounting heights.
Q: What tools are needed to secure the dryer in the 40505?
A: The 40505 uses a longer wrench to secure the dryer in place, rather than the plate-and-chain hardware used in earlier kits.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
- Cut wall opening to 14‑1/2" wide × 24‑3/8" high × 4" deep per rough‑in dimensions.
- Position recess kit into wall cavity and secure to studs using appropriate fasteners.
- Mount XLERATOR® hand dryer onto the stainless steel plate; ensure bottom of dryer aligns 10" above bottom of rough opening.
- Verify overall protrusion does not exceed 4" to meet ADA requirements.
- For detailed steps, consult the installation manual provided in the package or contact a licensed installer.
- Inspect stainless steel surfaces periodically; clean with mild, non‑abrasive cleaner.
- Check mounting hardware to ensure dryer and recess kit remain securely fastened.
- Confirm dryer operation after routine cleaning or servicing.
- For service or repairs, consult the manual or a licensed technician.
