Everpure EV932504 | Insurice Quad-i40002 Ice Filtration System | 48...

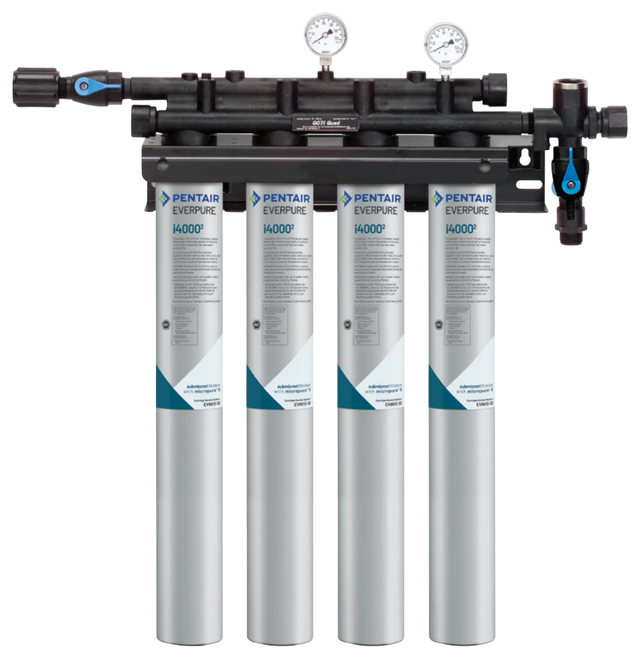

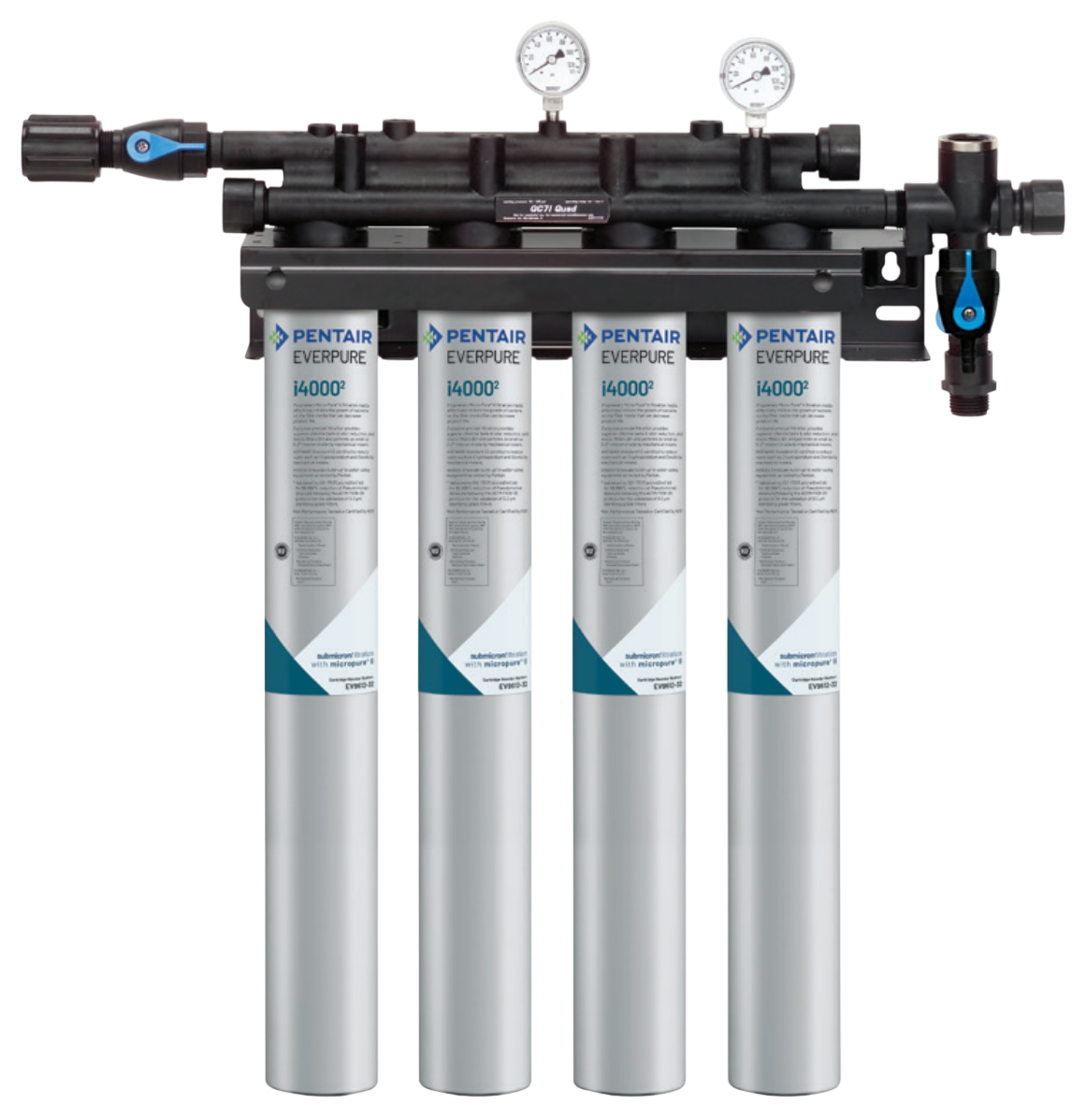

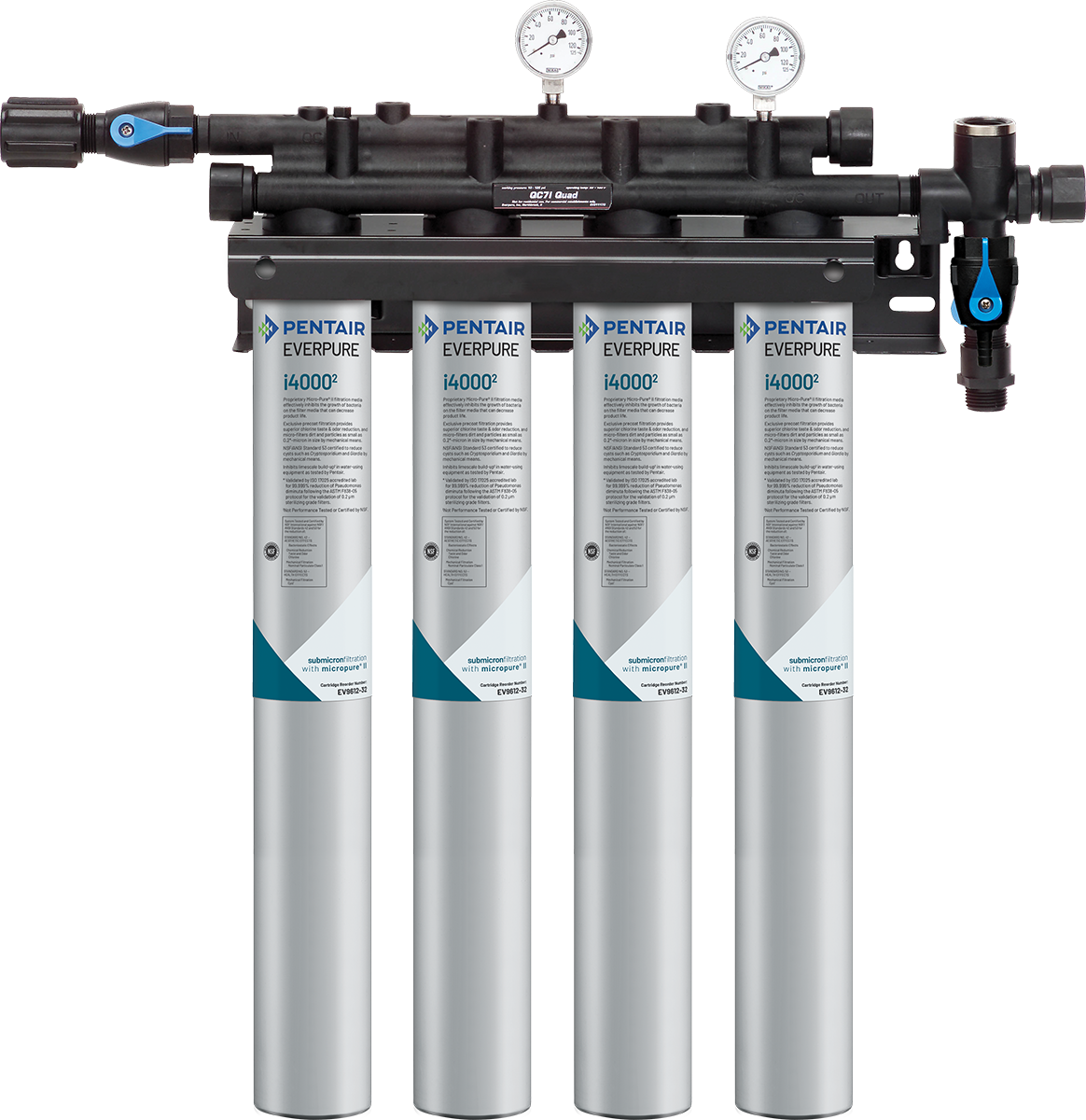

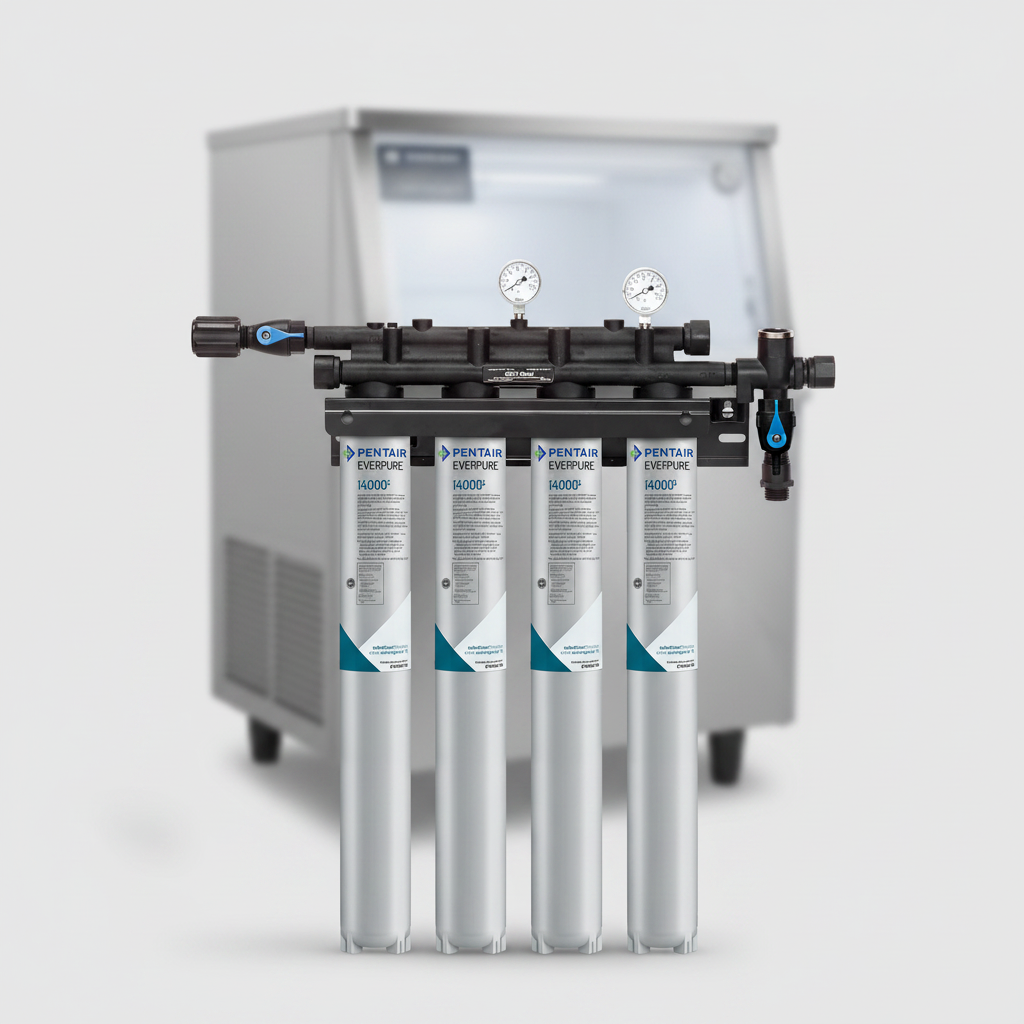

The Pentair Everpure EV932504 Insurice Quad-i40002 is a high-capacity commercial ice filtration system designed to provide cleaner, fresher ice while protecting equipment. With a 48,000-gallon capacity and 6.7 GPM flow rate, this system effectively reduces contaminants and minimizes scale buildup for consistently fresh-tasting ice.
Key Specifications:
- Flow Rate: 6.7 GPM
- Filter Capacity: 48,000 gallons
- Compatibility: Commercial ice machines (high-volume cubers and flakers)
- Contaminants Filtered: Chlorine taste & odor, cysts (Cryptosporidium & Giardia), dirt, sediment, and scale
- Number of Filters: Quad system using i40002 replacement cartridges (EV961232)
Features & Benefits:
- Exclusive Precoat Filtration: Provides chlorine taste & odor reduction and filters particles as small as 0.2 microns.
- Scale Inhibition: Self-contained feed helps prevent scale buildup in ice machine components.
- Micro-Pure® II Media: Proprietary media inhibits bacterial growth on the filter surface.
- High Capacity: 48,000-gallon rating supports large commercial ice machines.
- Manifold Design: Includes water shutoff, flushing valve, and outlet pressure gauge for easy maintenance.
Related Variants
| Item SKU's | Model | Capacity (Gal.) | Flow Rate (GPM) |
|---|---|---|---|
| EV932503 | Insurice Triple-i40002 | 36,000 | 5.0 |
| EV932504 | Insurice Quad-i40002 | 48,000 | 6.7 |
| EV932523 | Insurice Triple PF-i40002 | 36,000 | 5.0 |
FAQ
Q: What size ice machines is the Insurice Quad-i40002 designed for?
A: It is designed for high-capacity commercial ice machines, supporting cubers up to 2400 lbs/day and flakers up to 5000 lbs/day.
Q: How often should the cartridges be replaced?
A: Replace when the system reaches 48,000 gallons, flow becomes restricted, or at least every 6 months as part of preventative maintenance.
Q: What are the operating conditions?
A: Operates at 35–100°F and 10–125 psi. Service flow rate must not exceed 6.7 GPM.
Q: What cartridges does the Quad-i40002 system use?
A: It uses i40002 replacement cartridges (EV961232), each rated for 12,000 gallons.
Q: What installation requirements should be considered?

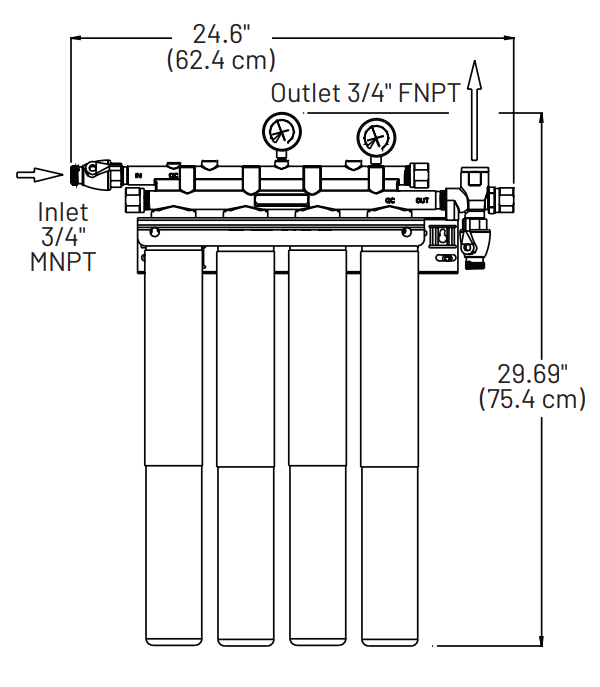

A: Install vertically with cartridges hanging down, allow 2.5" clearance below, and use a 3/4" water line connection.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
- Install cartridge vertically with filter head above and cartridge hanging down; allow clearance for replacement.
- Connect cold water supply using quick‑connect fittings or shut‑off valve as required.
- Flush new cartridge at full flow for at least 5 minutes to purge air and carbon particles.
- Ensure operating pressure is within 10–125 psi and temperature between 35–100°F.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Replace cartridge annually or when rated gallon capacity is reached, whichever comes first.
- Replace sooner if flow becomes inconveniently slow or pressure falls below 10 psi.
- Inspect fittings and tubing periodically for leaks; reseat if necessary.
- Clean exterior surfaces with mild, non‑abrasive cleaner.
- For service or repairs, consult the manual or a licensed technician.
