Elkay VRCTLDDWSK | Vandal Resistant Bottle Filling Station | Filter...

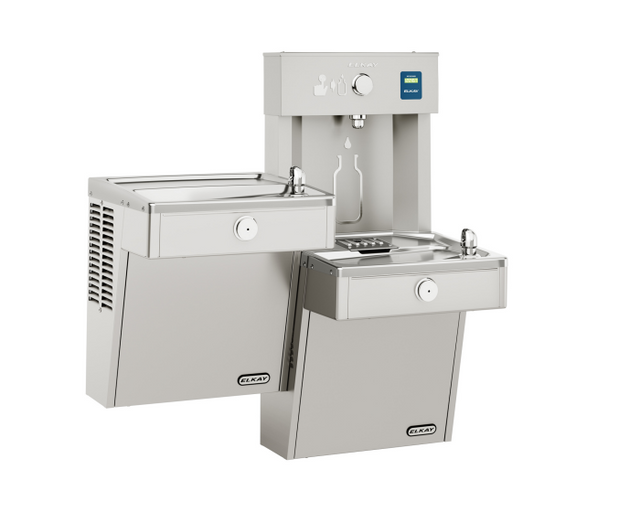

The Elkay VRCTLDDWSK ezH2O® Vandal-Resistant Bottle Filling Station & Bi-Level Cooler provides durable, non-filtered, non-refrigerated hydration in a stainless steel design. Built for indoor and outdoor use, this vandal-resistant unit features mechanical bubbler activation, electronic bottle filler button, and ADA compliance, making it ideal for schools, parks, and public facilities.
Key Specifications:
| Design | Bi-level cooler with integral bottle filler, vandal-resistant bubbler, mechanical front button activation |
| Finish | Stainless Steel |
| Filtration | Non-filtered by default. For filtered option, choose the LVRCTLDDWSK. Compatible with EWF3000 Watersentry® Plus Filter Kit. |
| Refrigeration | Non-refrigerated. For refrigerated option, choose the VRCTL8WSK. |
| Stations Served | 2 (Bi-level coolers plus bottle filler) |
Features & Benefits:
- Vandal-Resistant Design: Built for durability in high-traffic and outdoor environments.
- Green Ticker™: Displays the number of plastic bottles saved from waste.
- Laminar Flow & Real Drain: Provides a clean, splash-free fill and eliminates standing water.
- Dual Activation: Electronic bottle filler button and mechanical bubbler push button.
- ADA Accessibility: Meets ADA requirements when installed according to standards.
What's Included:
- VRCTLDDWSK Bottle Filling Station & Bi-Level Cooler
- Installation hardware
- Owner’s manual and warranty guide
Comparison of Elkay Bottle Filling Stations:
| Feature | VRCTLDDWSK | VRCTL8WSK | VRCGRNTL8WSK |
|---|---|---|---|
| Design | Bi-level cooler with vandal-resistant bubbler and electronic bottle filler button | Bi-level cooler with vandal-resistant bubbler and electronic bottle filler button | Bi-level cooler with vandal-resistant StreamSaver™ bubbler and electronic bottle filler sensor |
| Refrigeration | Non-refrigerated | Refrigerated, 8.0 GPH chilled water | Refrigerated, 8.0 GPH chilled water (high efficiency) |
| Activation | Electronic bottle filler button + mechanical bubbler button | Electronic bottle filler button + mechanical bubbler button | Electronic bottle filler sensor + mechanical bubbler button |
| Best For | Indoor/outdoor schools, parks, and public facilities needing vandal-resistant hydration without refrigeration | Indoor/outdoor facilities needing vandal-resistant refrigerated hydration | Indoor facilities requiring vandal-resistant refrigerated hydration with energy efficiency and antimicrobial protection |
FAQ
Q: Is the Elkay VRCTLDDWSK Filtered?
A: The Elkay VRCTLDDWSK is non-filtered by default. For filtered hydration, choose the LVRCTLDDWSK or retrofit with the EWF3000 Filter Kit.
Q: Is the Elkay VRCTLDDWSK ADA Compliant?
A: Yes. The Elkay VRCTLDDWSK meets ADA & ICC A117.1 accessibility requirements when installed according to standards.
Q: What Warranty Is Included with the Elkay VRCTLDDWSK?
A: Elkay provides 1-year coverage on electrical and water components. Warranty pertains to drinking water applications only.
Q: What Accessories Are Compatible with the Elkay VRCTLDDWSK?
A: Optional accessories include the EWF3000 Filtration Kit, 98324C Cane Apron, and 36292C Power Block.
Q: How Is the Elkay VRCTLDDWSK Activated?
A: The bottle filler is activated by an electronic button, while the bubbler uses a mechanical front push button.
Q: Can the Elkay VRCTLDDWSK Be Installed Outdoors?
A: Yes. The Elkay VRCTLDDWSK is suitable for indoor and outdoor use, but must be winterized or protected from extreme heat in non-temperature-controlled environments.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Elkay VRCTLDDWSK is a vandal‑resistant bi‑level bottle filling station and fountain. Designed for high‑traffic public areas, it delivers non‑filtered, non‑refrigerated water with heavy‑duty construction and ADA compliance.

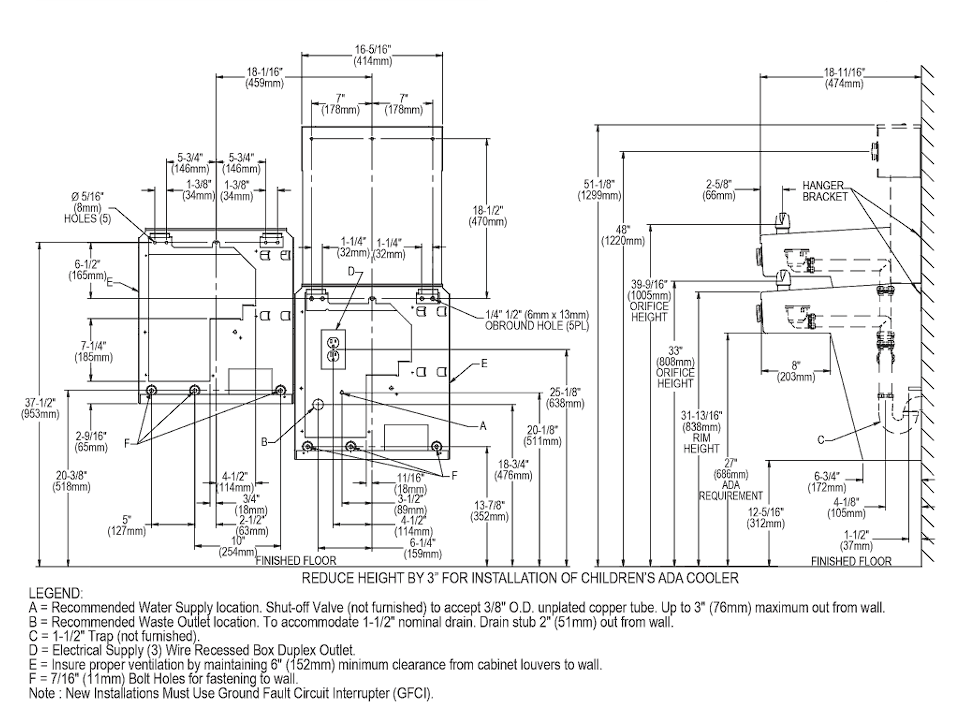

Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Supply line pressure: 20–105 PSI (regulator required if above 105 PSI)
- Drain connection required for both fountain basins and bottle filler
- No electrical connection required (mechanical activation)
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless and non‑refrigerated — delivers ambient water only
- Always depressurize water line before servicing
- Outdoor installation requires winterization or protection in extreme climates
- Ensure proper drainage to avoid water damage from spillage
- Secure fountain firmly to wall structure to meet vandal‑resistant requirements
Basic Installation Overview:
- Mount in‑wall carrier securely to support dual fountain and bottle filler weight
- Position fountain and bottle filler assembly, secure to wall structure
- Connect cold water supply line to inlet
- Connect drain lines from both basins and bottle filler to building drain system
- Pressurize system slowly and check for leaks
- Test mechanical push‑button activation for proper flow
- Install bottom cover plates and finish trim
For complete specifications and installation guidelines, download the official VRCTLDDWSK Spec Sheet and the Installation & Maintenance Manual.
