Elkay VRCSM1311 | EZH2O Vandal-Resistant Surface Mount Mechanical B...

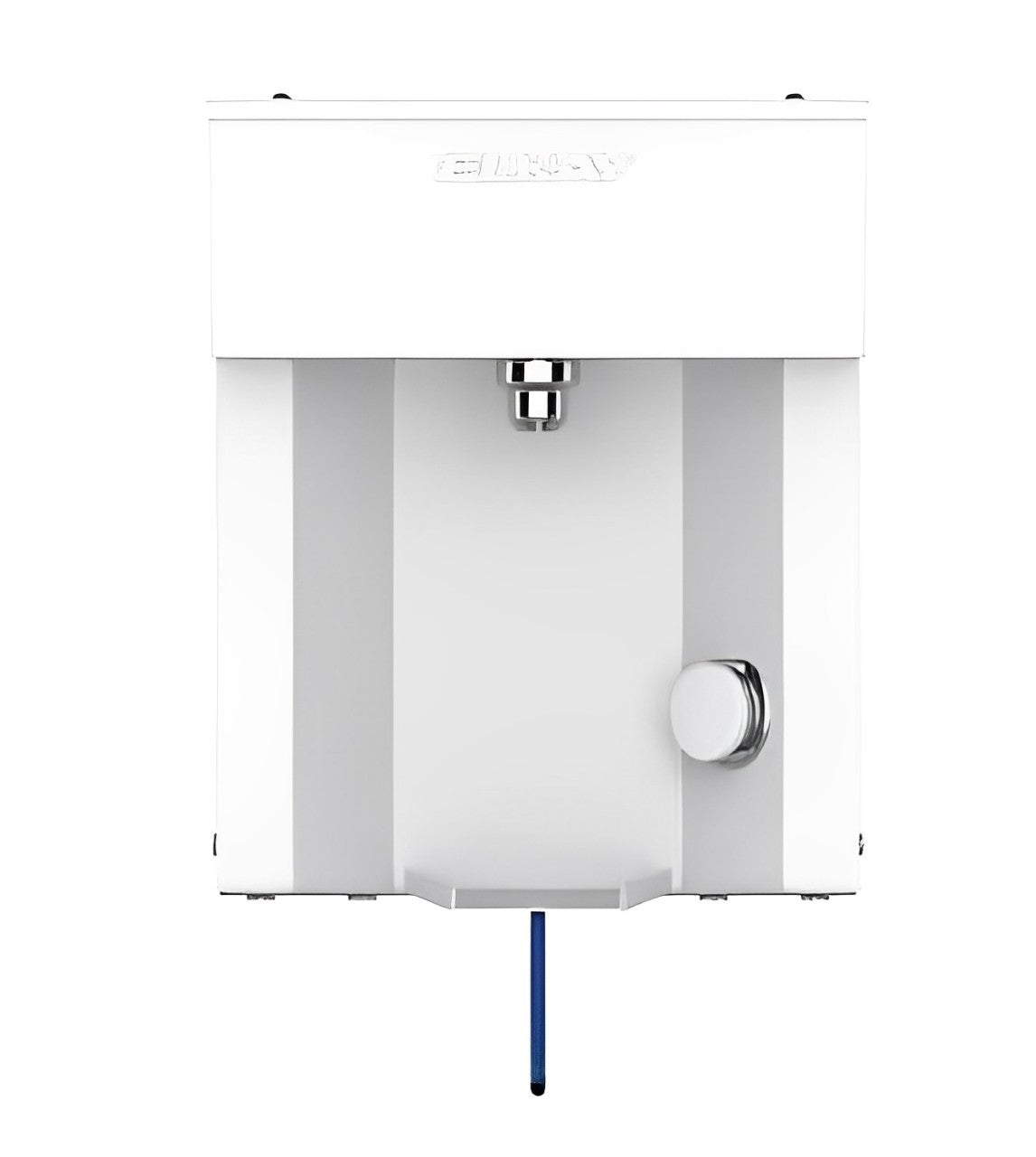

The Elkay VRCSM1311 is a vandal-resistant mechanical bottle filling station designed specifically as a retrofit for Haws® 1311 fountains. With durable construction, ADA compliance, and no electrical requirements, it provides reliable hydration in outdoor environments while upgrading existing fountain installations.
Key Specifications:
- Design: Retrofit mechanical bottle filler for Haws® 1311 fountains.
- Finish: White powder coat.
- Filtration: Non-filtered.
- Refrigeration: Non-refrigerated.
- Stations Served: 1 (Single Station)
Features & Benefits:
- Mechanical Activation: Push-button operation requires no electricity.
- Retrofit Design: Engineered to integrate directly with Haws® 1311 fountains using drain tray and back panel assemblies.
- Outdoor Durability: Vandal-resistant construction for public and campus installations.
- ADA Compliant: Meets accessibility standards when installed correctly.
- Reliable Hydration: Continues to dispense water during service disruptions.
What's Included:
- VRCSM1311 Bottle Filling Station
- Drain tray and mounting plate assembly
- Installation instructions
- 12-month warranty on water system
FAQ
Q: Is the VRCSM1311 suitable for outdoor use?
A: Yes. It is designed for outdoor environments but must be winterized or protected from extreme heat in non-temperature-controlled climates.
Q: Does the VRCSM1311 require electricity?
A: No. It is fully mechanical and operates without electrical power.
Q: Can the VRCSM1311 be installed on its own?
A: No. This model is specifically engineered as a retrofit for Haws® 1311 fountains and requires a compatible fountain for installation.
Q: What accessories are needed for installation?
A: Standard plumbing hardware such as 3/8" tee fittings and P-traps are required but not supplied. A back panel assembly may be used for secure mounting.
Q: What is the difference between VRCSM1311 and VRCSMM1311?
A: The VRCSM1311 is the retrofit version for Haws® 1311 fountains, while the VRCSMM1311 is the surface-mount model with mounting plate for standalone wall installations.
NOTICE: For outdoor installations, unit(s) must be adequately winterized and/or protected from extreme heat to prevent damage where climates dictate.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Turn off the water supply before starting.
- Remove the fountain’s cover panels and mounting plate as instructed.
- Position the retrofit kit and mark/drill mounting holes and waterline opening.
- Secure the mounting plate and drain tray to the wall using proper fasteners.
- Insert the bottle filler into the mounting slots and tighten screws carefully.
- Route the water line through the panel and connect to the fountain supply.
- Reinstall the top and bottom covers once connections are complete.
- Turn the water supply back on, check for leaks, and flush the system until water runs clear.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect the bottle filler and fountain regularly for leaks or loose fittings.
- Clean exterior surfaces with a soft cloth and mild cleaner.
- Check stream height and adjust if needed for proper flow.
- Replace filter or service components if water taste, odor, or flow issues occur.
- For service or repairs, consult the manual or a licensed technician.
