Elkay VRCGRNTL8WSK | Vandal Resistant Bi-Level Bottle Filling Stati...

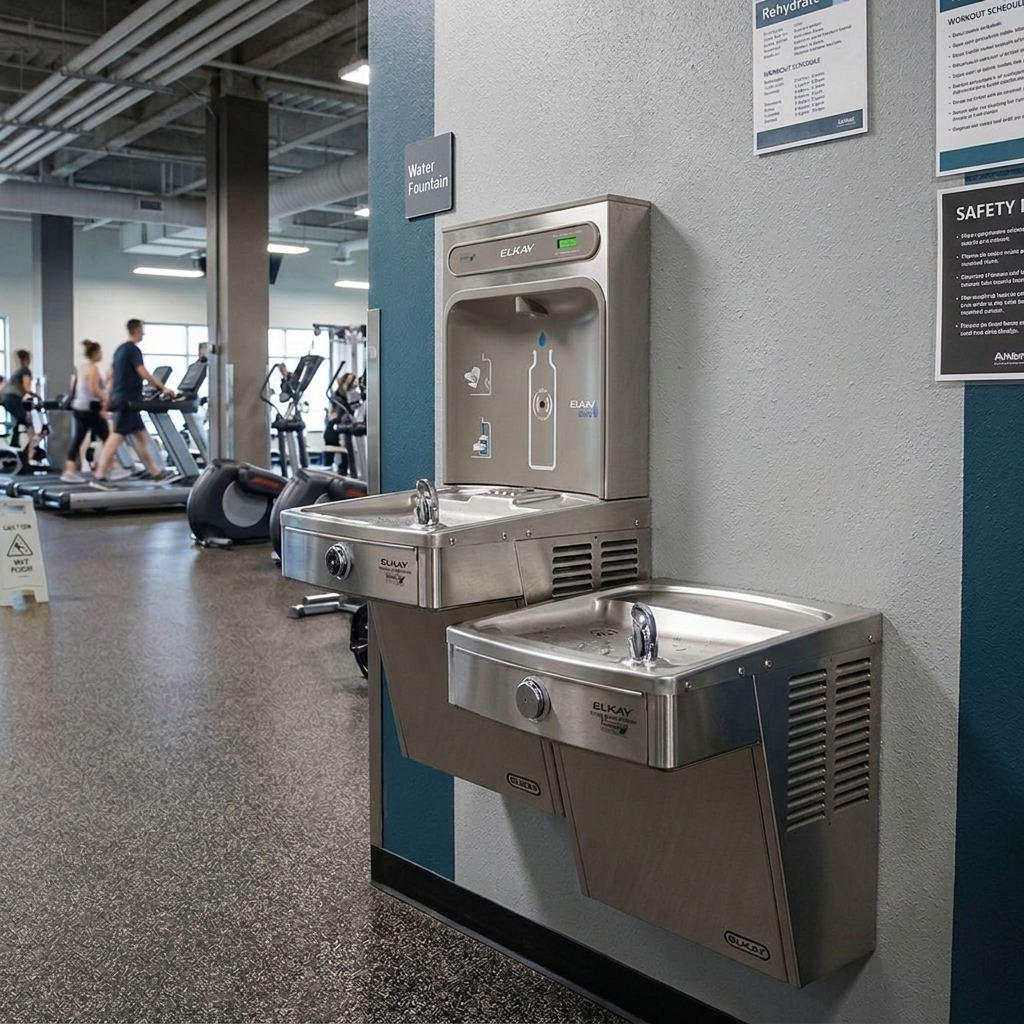

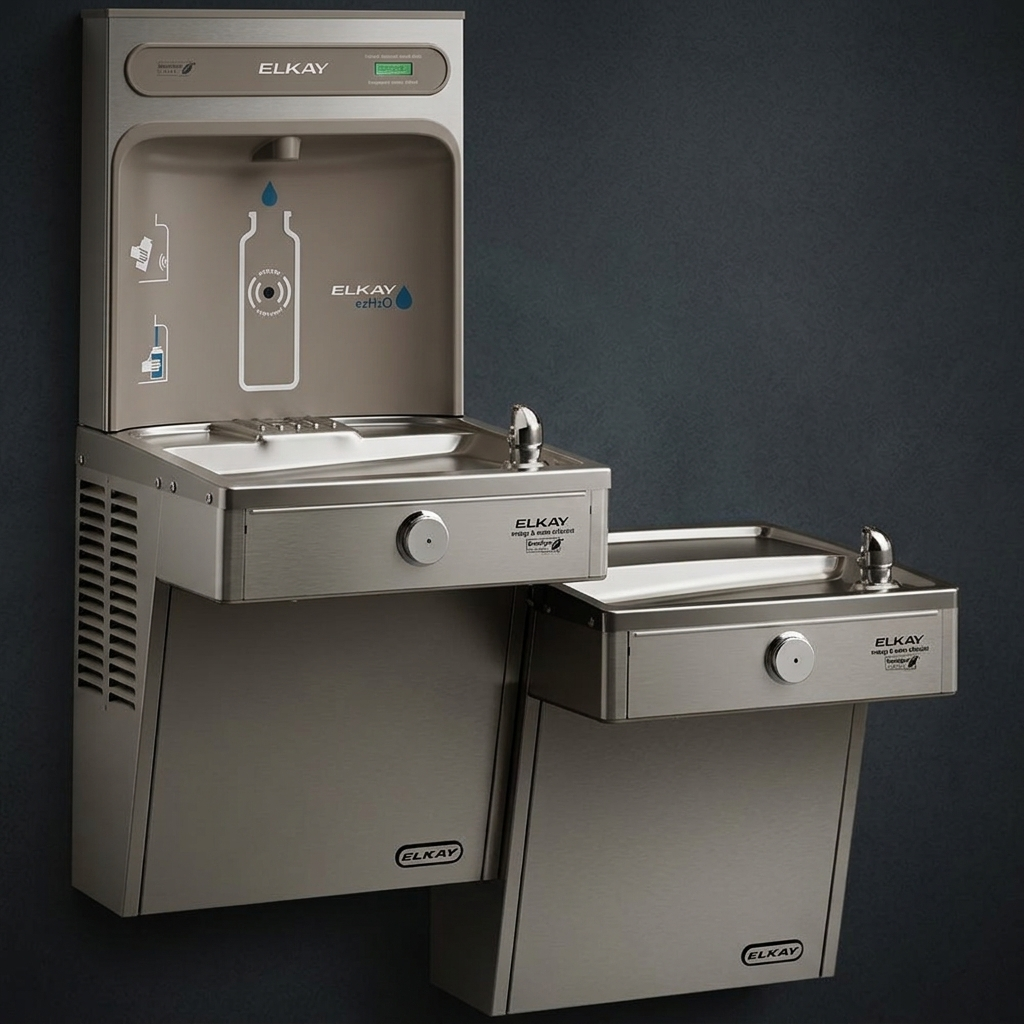

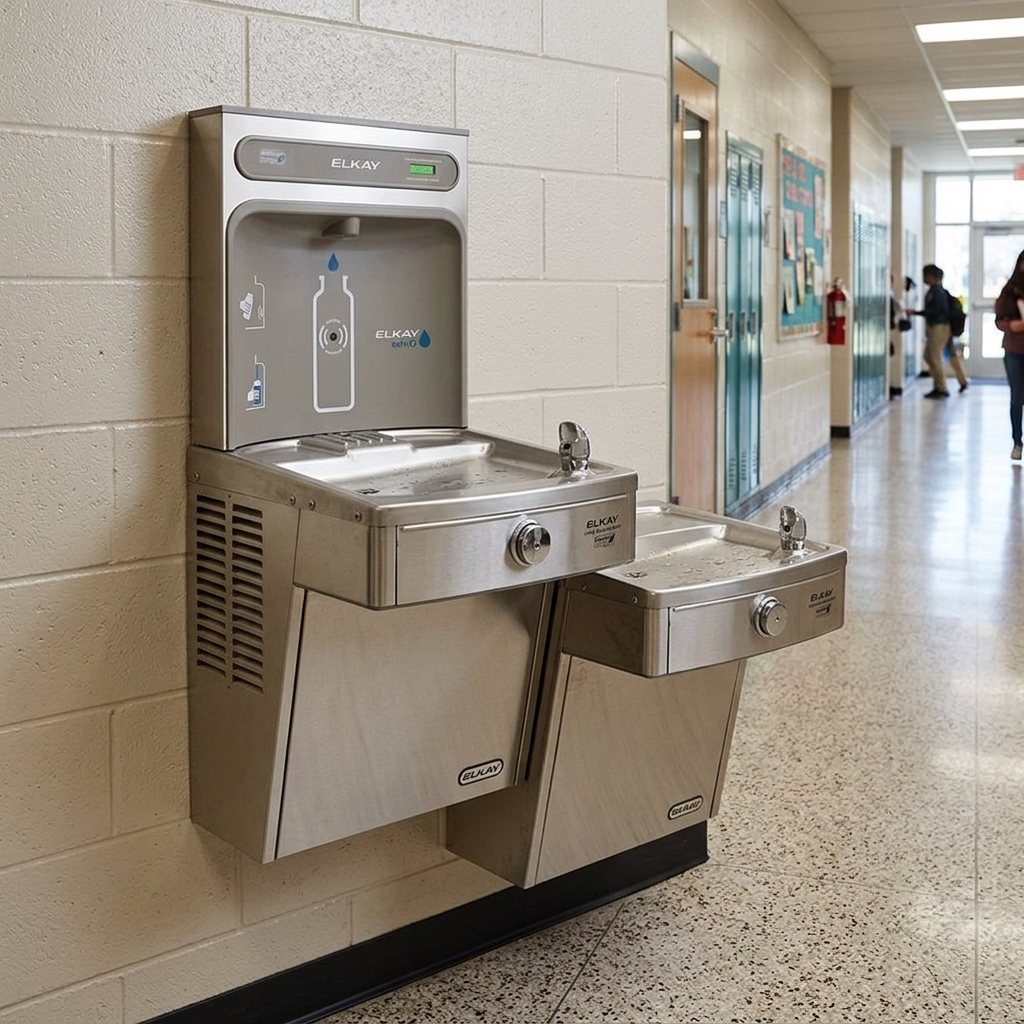

The Elkay VRCGRNTL8WSK ezH2O® Bottle Filling Station with Bi-Level Vandal-Resistant Cooler combines touchless bottle filling, refrigerated drinking water, and heavy-duty construction for high-traffic indoor environments. Featuring a vandal-resistant StreamSaver™ bubbler, Green Ticker™, and hands-free bottle filling, it provides a durable hydration solution for schools, transportation facilities, and public spaces.
Key Specifications:
| Design | ezH2O® Bottle Filling Station with Bi-Level High-Efficiency Vandal-Resistant Cooler and StreamSaver™ Bubbler |
| Finish | Stainless Steel |
| Filtration | Non-filtered model. For filtered performance, choose LVRCGRNTL8WSK. Also compatible with the EWF3000 WaterSentry® Plus Universal Filtration Kit, |
| Refrigeration | 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient conditions) |
| Stations Served | Bi-level (2 drinking fountains + bottle filler) |

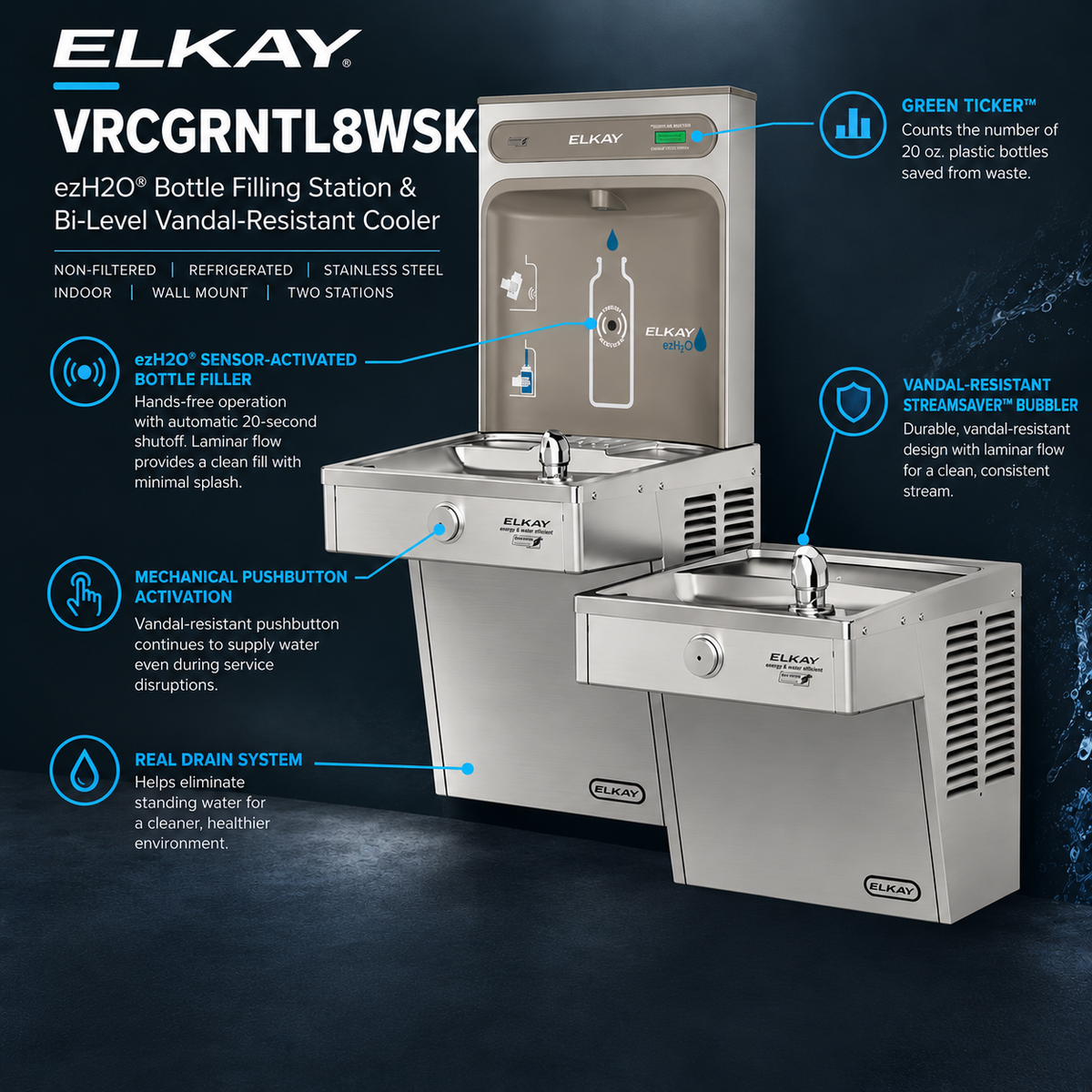

Features & Benefits:
- Hands-Free Bottle Filling: Sensor activation and laminar flow provide hygienic, splash-free bottle filling.
- Green Ticker™ Technology: Displays the number of disposable plastic bottles diverted from waste.
- High-Efficiency Cooling: High-performance compressor and insulation help reduce energy consumption.
- Antimicrobial Protection: Key plastic components incorporate antimicrobial agents to help maintain cleaner surfaces.
- Real Drain System: Eliminates standing water for improved hygiene and easier maintenance.
- Vandal-Resistant Design: StreamSaver™ bubbler and tamper-resistant construction support demanding public environments.
What's Included:
- VRCGRNTL8WSK Bottle Filling Station and Bi-Level Cooler Assembly
- Vandal-Resistant StreamSaver™ Bubbler
- Bottle Filler (EZWSR)
- Water Cooler (VRCGRNTL8WSC)
- Wall Mounting Hardware and Plate
- Installation Instructions
FAQ
Q: Is the Elkay VRCGRNTL8WSK Bottle Filling Station Filtered?
A: No. The Elkay VRCGRNTL8WSK is a non-filtered model. For a factory-filtered version, consider the LVRCGRNTL8WSK.
Q: Can Filtration Be Added to the Elkay VRCGRNTL8WSK Later?
A: Yes. Filtration can be added using the EWF3000 WaterSentry® Plus Universal Filtration Kit, which provides a 3,000-gallon filtration capacity.
Q: What Makes the Elkay VRCGRNTL8WSK Vandal Resistant?
A: The unit features a vandal-resistant StreamSaver™ bubbler, mechanical front button activation, reinforced stainless steel construction, and tamper-resistant components designed for heavy public use.
Q: Is the Elkay VRCGRNTL8WSK ADA Compliant?
A: Yes. The Elkay VRCGRNTL8WSK complies with ADA and ICC A117.1 accessibility requirements when installed according to applicable standards. For enhanced accessibility, the 98324C Cane Apron is available.
Q: What Is the Chilling Capacity of the Elkay VRCGRNTL8WSK?
A: The refrigeration system delivers 8.0 gallons per hour of 50°F drinking water based on 80°F inlet water and 90°F ambient conditions.
Q: What Optional Accessories Are Available for the Elkay VRCGRNTL8WSK?
A: Available accessories include the EWF3000 Universal Filtration Kit, 98324C Cane Apron, and STLBFUP Universal Back Panel Assembly Kit.
Q: What Warranty Coverage Is Included with the Elkay VRCGRNTL8WSK?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system for drinking water applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay VRCGRNTL8WSK is a bi‑level, vandal‑resistant bottle filling station with integrated coolers designed for demanding public environments. Featuring a GreenSpec® powder-coated finish, touchless bottle filling, and durable construction, it provides chilled drinking water in schools, transit facilities, parks, and other high‑traffic locations.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Provide adequate clearance for servicing refrigeration components
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless and delivers chilled water only
- Always depressurize water line before servicing
- Ensure sensor area remains unobstructed for reliable bottle filler activation
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to maintain vandal‑resistant performance
Basic Installation Overview:
- Install in‑wall carrier securely to support the cooler and bottle filler assembly
- Connect cold water supply line and flush plumbing thoroughly
- Connect drain lines from both basins to the building drainage system
- Mount cooler and bottle filler assembly to the carrier
- Connect electrical supply to a grounded outlet
- Pressurize system and inspect all connections for leaks
- Test bottle filler sensor activation and bubbler stream performance
- Install access panels and complete final adjustments
For complete specifications and installation guidelines, download the official VRCGRNTL8WSK Spec Sheet.
