Elkay VRCDMWSK | Mechanical Bottle Filling Station with Fountain | ...
The Elkay VRCDMWSK is an ezH2O® vandal-resistant mechanical bottle filling station with a single water fountain, delivering fast, clean water bottle fills to reduce reliance on disposable plastic bottles. Built with durable stainless steel and mechanical push-button activation, it's ideal for high-traffic environments including commercial settings, public spaces, and detention centers where electricity may not be available.
Key Specifications:
- Design: Vandal-resistant mechanical bottle filling station with single water fountain
- Finish: Stainless Steel
- Filtration: Not included. For filtered option, choose the LVRCDWSK. For retrofit filtration, see the EWF3000 WaterSentry® Plus Filter Kit
- Refrigeration: Non-refrigerated. For chilled option, select the VRC8WSK
- Stations Served: 1 (bottle filler + fountain)
Features & Benefits:

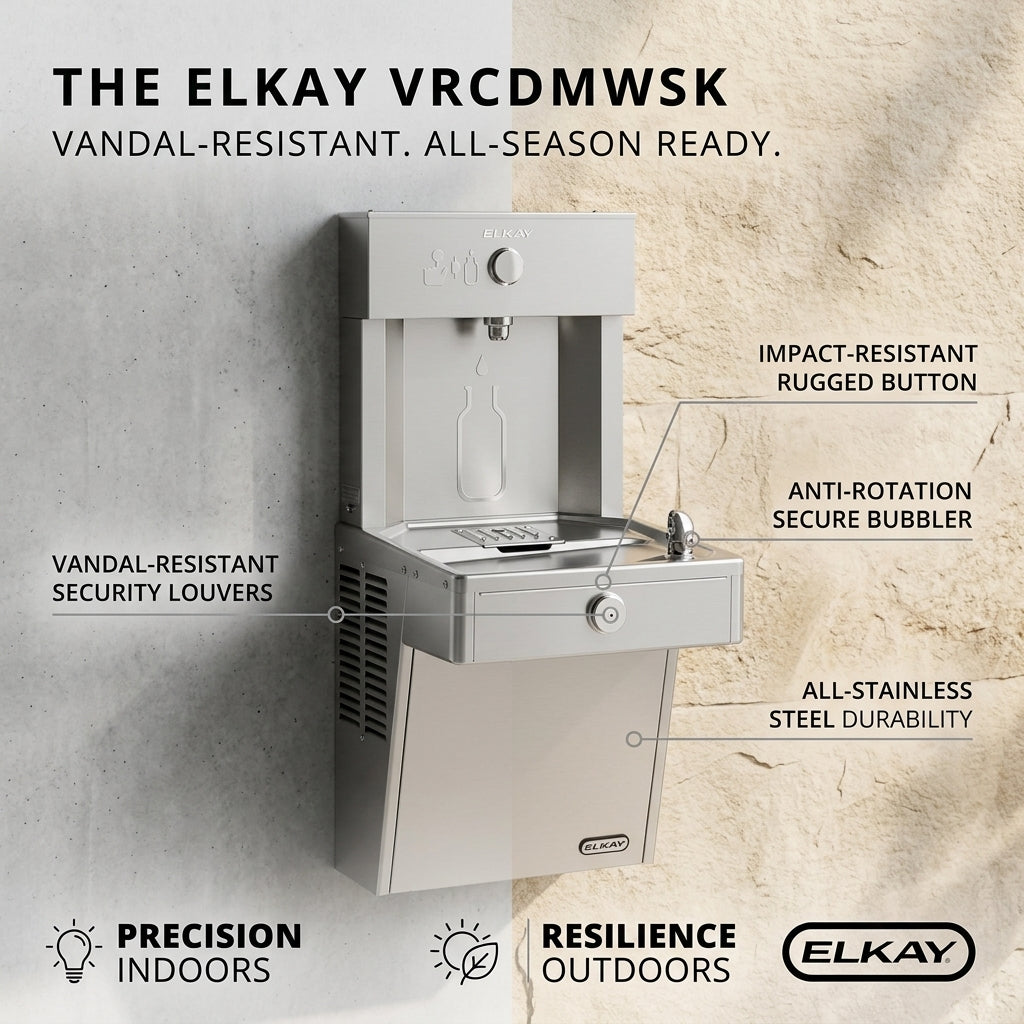

- Vandal Resistance: Tamper-resistant fasteners, reinforced materials, and vandal-resistant bubbler with hood guard deter damage and protect against abuse
- Mechanical Reliability: Push-button activation ensures operation without electricity, even during service disruptions
- Laminar Flow: Provides clean, splash-free bottle filling
- Real Drain System: Eliminates standing water for improved hygiene
- Indoor/Outdoor Versatility: Rated for both indoor and outdoor use with proper winterization in extreme climates
What's Included:
- VRCDWS Water Cooler
- VRCMWS Bottle Filler
FAQ
Q: Does The Elkay VRCDMWSK Require Electricity To Operate?
A: No. The VRCDMWSK uses mechanical push-button activation, making it ideal for locations without electrical access.
Q: Can The Elkay VRCDMWSK Be Installed Outdoors?
A: Yes. It is rated for indoor and outdoor installation. In non-temperature controlled environments, freeze protection and protection from extreme heat are required.
Q: Does This Model Include Filtration?
A: No. The VRCDMWSK is a non-filtered model. For filtration, choose the LVRCDWSK or retrofit with the EWF3000 WaterSentry® Plus Filter Kit.
Q: Does The VRCDMWSK Provide Refrigerated Water?
A: No. It is non-refrigerated. For chilled water, select the VRC8WSK.
Q: What Accessories Are Available For This Unit?
A: Accessories include the 98324C Cane Apron for ADA compliance, accessible heights, and added protection.
Q: How Difficult Is Installation?
A: Installation is straightforward with secure mounting hardware included. A licensed plumber is recommended to ensure proper water and drain connections, compliance with ADA guidelines, and appropriate installation types for your facility.
Q: How Do I Maintain The VRCDMWSK?
A: Routine cleaning includes maintaining the stainless steel surfaces with mild soap and water, checking the drain system to prevent standing water, and periodic inspection of mechanical push buttons for smooth operation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
- Turn off the water supply before starting.
- Secure the wall mounting plate and hanger bracket according to the rough‑in diagram.
- Mount the fountain body to the bracket and connect the drain and water inlet.
- Place the bottle filler on the fountain basin, feed the water line through the opening, and seat it on the gasket.
- Tighten the mounting screws on each side of the bottle filler and install the top cover.
- Connect the bottle filler water line inside the fountain to the tee at the water outlet.
- For TL models, connect the regulator tubing and filter cartridge as directed.
- Turn on the water supply and check all connections for leaks.
- Test the push button on the bottle filler to confirm proper dispensing.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect the unit regularly for leaks or loose fittings.
- Clean stainless steel and basin surfaces with mild soap and water; avoid abrasive cleaners.
- Replace the filter cartridge every 12 months or sooner if flow slows down.
- Check the aerator and nozzle periodically; replace with genuine Elkay kits if worn.
- For servicing, the bottle filler can be removed by loosening the side screws and lifting it off the fountain.
- For service or repairs, consult the manual or a licensed technician.
