Elkay LVRC8WSK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, VRC-style fountain, Fully Vandal-resistant
Elkay LVRC8WSK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, VRC-style fountain, Fully Vandal-resistant is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LVRC8WSK | Wall-mount Bottle Filling Station | Filtered, Refr...

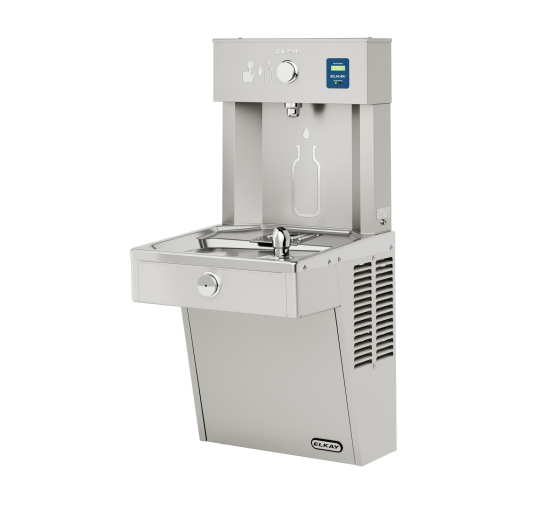

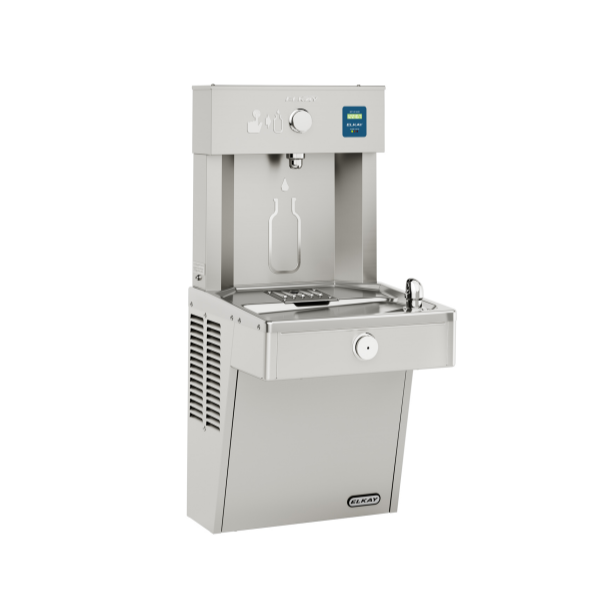

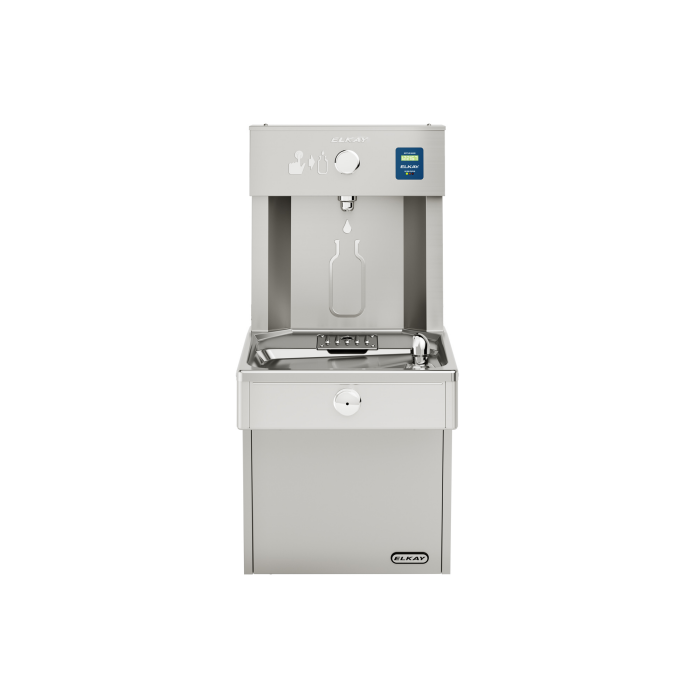

One of the most popular wall refrigerated solutions, the Elkay LVRC8WSK Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.
The LVRC8WSK is a wall-mounted, refrigerated unit that includes a bottle filler and a drinking fountain. This in-wall fountain and bottle filler have a Stainless Steel color finish.
The LVRC8WSK is a heavy-duty, vandal-resistant unit that features a chrome-plated bubbler, push-button, and fountain basin as well as a bulkier, all stainless steel design perfect for heavy usage and for educational and indoor recreational facilities.

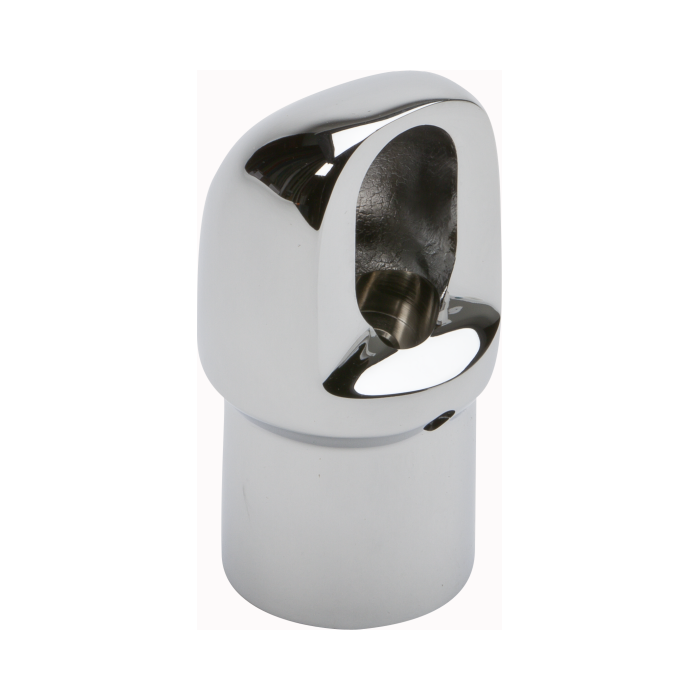

The LVRC8WSK’s chrome-plated bubblers are protected by an integral hood guard to prevent contamination from other users, airborne deposits and tampering.
-
ADA compliant design
- Vandal resistant push-button design for bottle filler, with automatic 20 second shut off
- Quick fill rate of 1.1 Gallons Per Minute
- Green Ticker™ tracks number of plastic bottles saved from waste.
- Filtered - 3000 gallon capacity WaterSentry® Plus filtration with visual LED Filter Monitor to indicate when replacement is necessary
Elkay LVRC8WSK resources:
- Elkay LVRC8WSK Spec sheet
- Elkay LVRC8WSK installation manual
- Elkay LVRC8WSK CAD symbols: FRONT - TOP - SIDE
- Elkay LVRC8WSK BIM file (RFA)
|
FILTERED? |
Yes |
|
COOLER CABINET FINISH |
Stainless Steel |
|
POWER |
115V/60Hz |
|
BUBBLER OPTION |
Vandal Resistant |
|
MOUNTING DETAILS |
Wall Mount (On-Wall) |
|
CHILLING DETAILS |
8 GPH |
|
INSTALLATION LOCATION |
INDOOR |
|
NUMBER OF STATIONS |
Single Station |
|
DIMENSIONS |
D: 18" W: 18-5/8" H: 38-13/16" |
|
SHIPPING WEIGHT |
88 lbs |
|
PRODUCT COMPLIANCE |
|
Warranty
Refrigeration System (IF APPLICABLE)
Elkay LVRC8WSK refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Elkay LVRC8WSK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor whichever date falls first. View more warranty details here.
Installation Notes
- Elkay LVRC8WSK requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
- View detailed Elkay LVRC8WSK MANUAL.
Maintenance
Cleaning
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
Filter Replacement (IF APPLICABLE)
When filter status light turns to red, the filter needs to be changed. Follow these steps:
1) Remove the bottom access panel.
2) Unplug unit
3) Unscrew old filter
4) Install new WaterSentry Plus filter.
5) Reset filter light back to green by removing top cover and pressing the black reset button. Select reset filter. The light should appear as green. Detailed instructions on filter light reset are included in produce package.
View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.
FAQ
Q: Why is this Bottle Filling Station considered Vandal Resistant?
A: This Water Bottle Filling Station is considered Vandal Resistant due to the following Made in the U.S.A. construction specs:
- Vandal-resistant pushbutton
- Stainless steel construction bottle filler
- Stainless steel cooler panel
- Stainless steel constructed Cooler cabinet
- Heavy-duty, one-piece, Chrome plated bubble
Q: Do the Vandal Resistant Bottle Fillers include the Bottle Counter?
A: Yes.
Q: Do the Vandal Resistant Bottle Fillers include the sensor-activated, automatic bottle fill feature?
A: No. The Vandal Resistant Bottle Fillers offer a vandal-resistant pushbutton activation as opposed to sensor activation.
*MADE IN THE UNITED STATES.
