Elkay VRCDS | Wall-mount VRC-style Drinking Fountain | Filterless,...

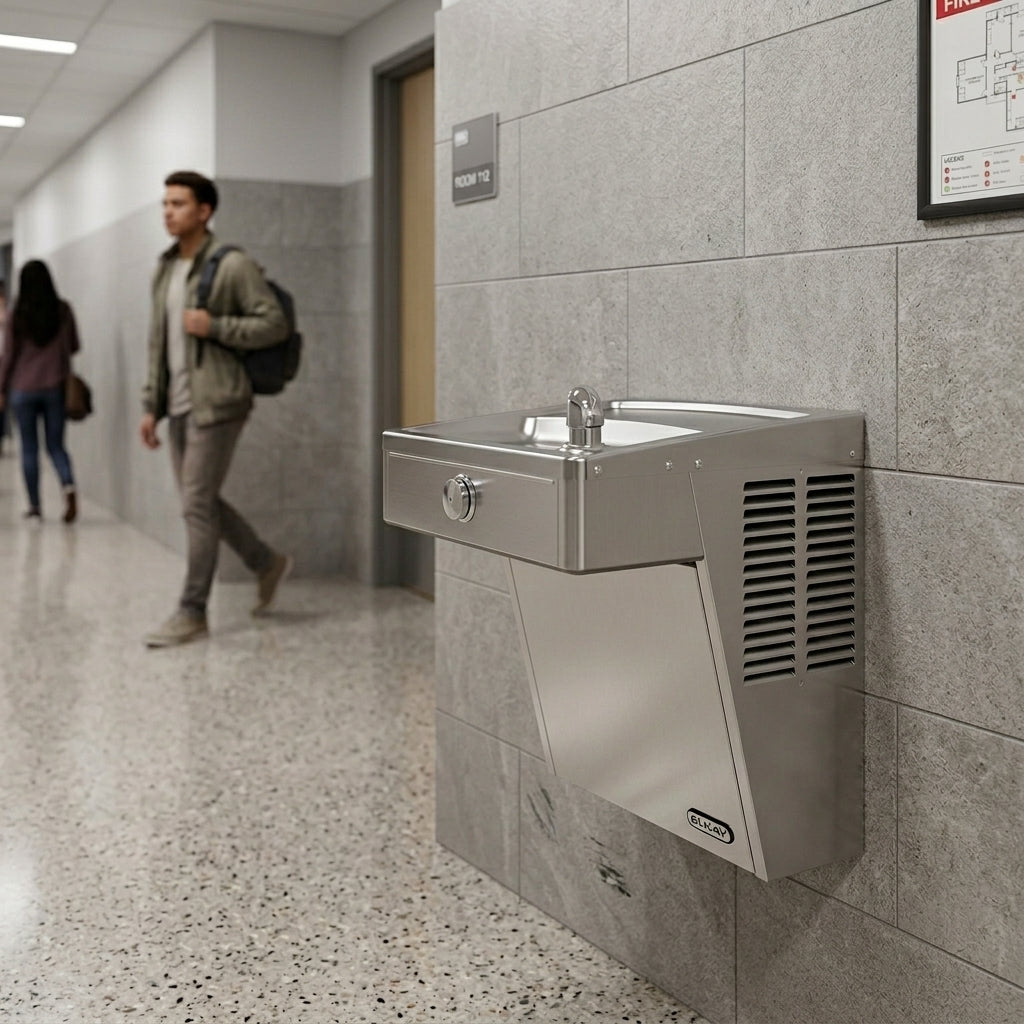

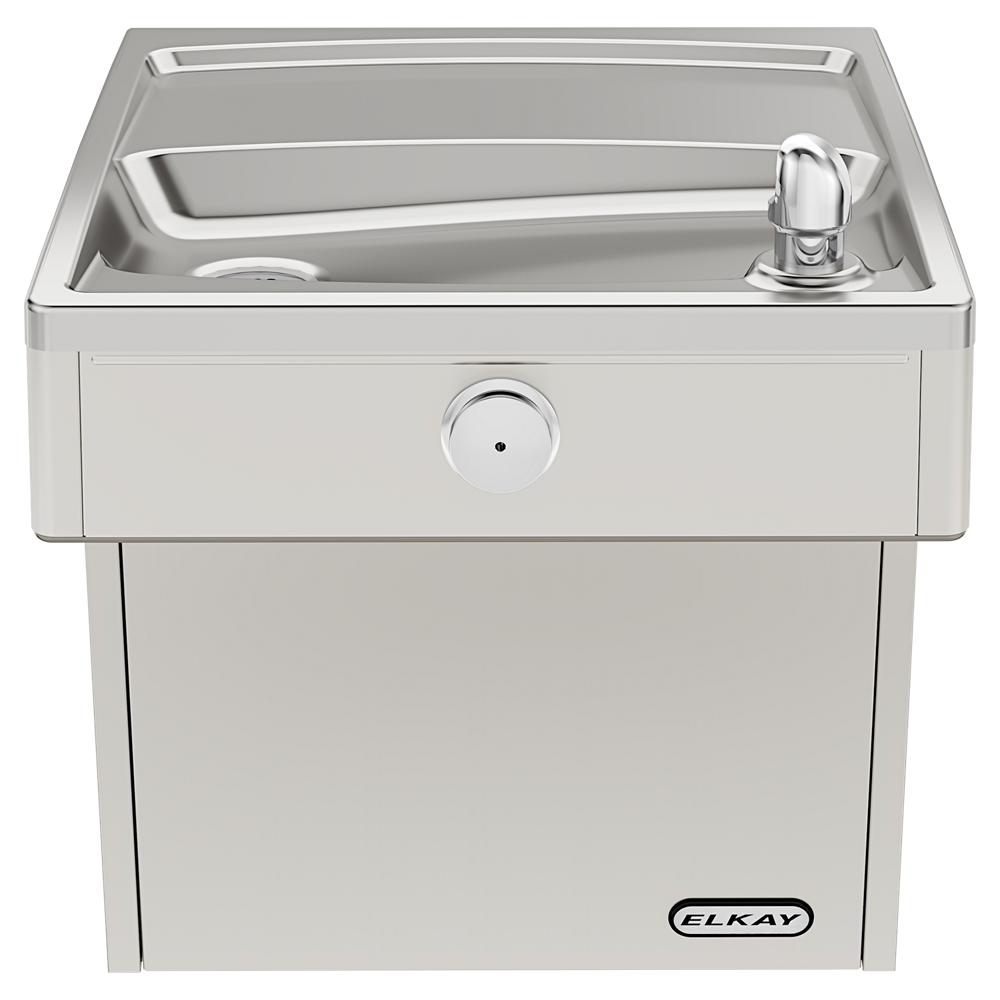

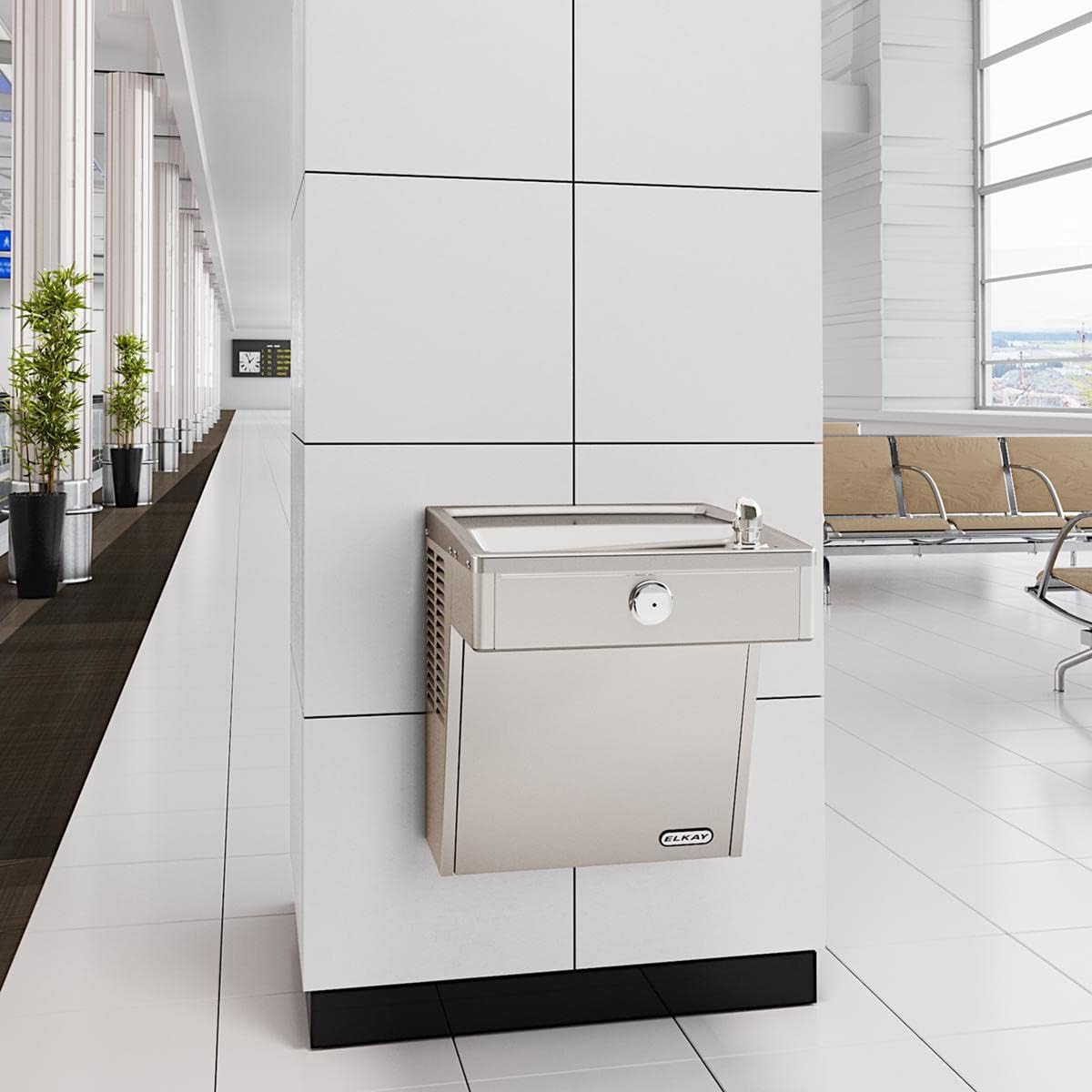

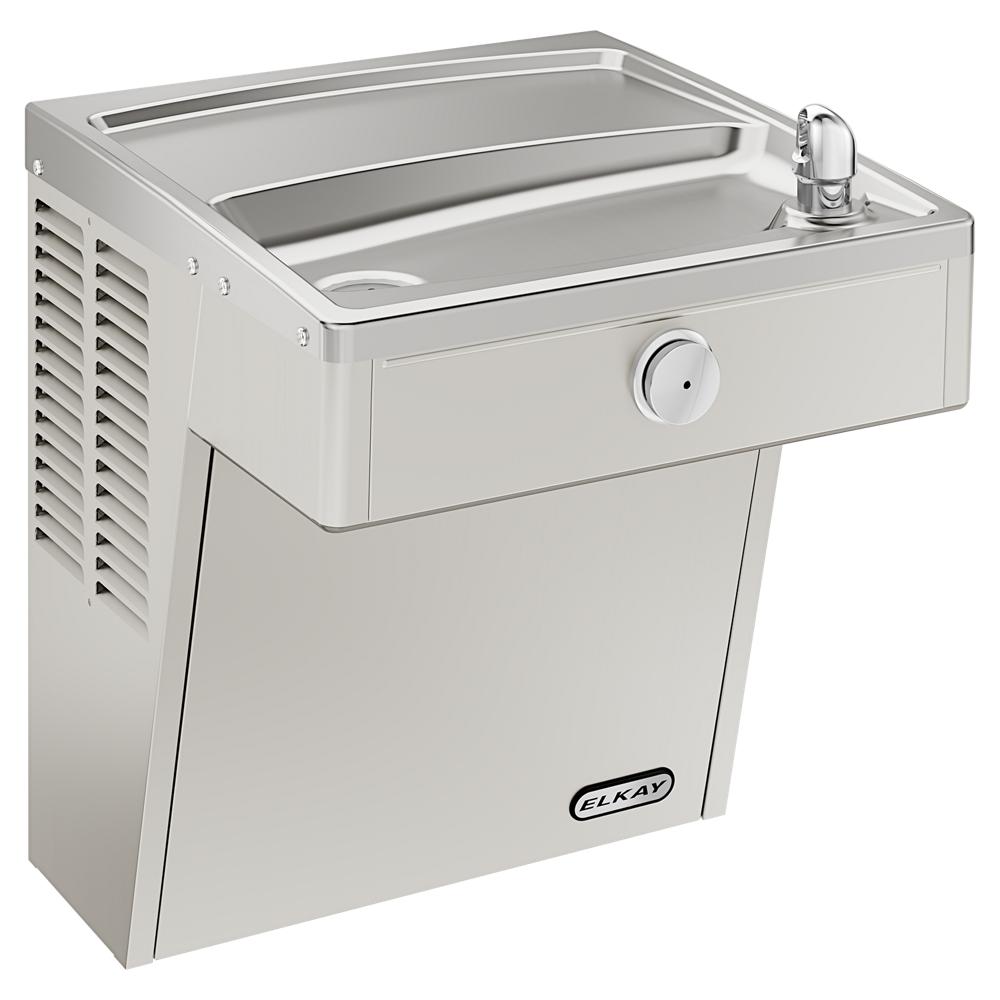

The Elkay VRCDS Wall Mount Vandal‑Resistant ADA Cooler is a stainless steel, non‑filtered, non‑refrigerated unit designed for both indoor and outdoor use. It features a vandal‑resistant bubbler and mechanical front push button activation, delivering durability and accessibility in high‑traffic environments.
Key Specifications:
- Design: Wall mount vandal‑resistant ADA cooler with mechanical front bubbler button activation.
- Finish: Stainless Steel (S).
- Filtration: Non‑filtered. For filtered bi‑level options, see Elkay LVRC8S.
- Refrigeration: Non‑refrigerated (ambient water).
- Stations Served: 1 (Single Station)
Features & Benefits:
- Vandal‑resistant bubbler and construction for secure use in public spaces.
- ADA compliant design ensures accessibility for all users.
- Mechanical activation provides reliable operation without electrical power.
- Indoor and outdoor installation capability with proper winterization in extreme climates.
What's Included:
- Elkay VRCDS Vandal‑Resistant ADA Cooler
FAQ
Q: Does the VRCDS include filtration?
A: No. It is a non‑filtered model. For filtered bi‑level options, see LVRC8S.
Q: What accessories are available?
A: Compatible accessories include the MLP100 in‑wall carrier, 98324C cane apron, and 98481C water‑efficient vandal‑resistant bubbler kit.
Q: Is the unit ADA compliant?
A: Yes. The VRCDS meets ADA and ICC A117.1 accessibility requirements when installed correctly.
Q: Can this cooler be installed outdoors?
A: Yes. It is suitable for outdoor use, but must be adequately winterized and protected from extreme heat in non‑temperature‑controlled environments.
Q: What water pressure is required?
A: The cooler is designed to operate on 20–105 PSI supply line pressure. If pressure exceeds 105 PSI, a regulator must be installed.
NOTICE: The cooler must be connected to the water supply using a dielectric coupling. Installer‑provided drain traps should be plastic to isolate the cooler from building plumbing systems.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

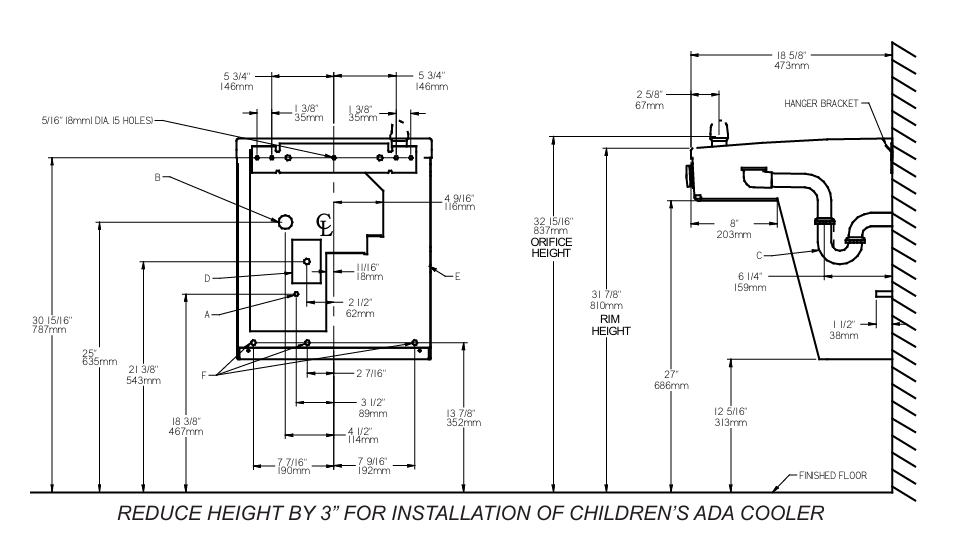

- Prepare wall framing and hanger bracket per rough‑in dimensions provided in the package manual.
- Mount hanger bracket securely using all designated holes; add support carrier if wall will not provide adequate support.
- Hang cooler on bracket, ensuring proper engagement with slots on the back panel.
- Remove front panel to access connections; connect water inlet line and install trap on waste outlet.
- If available, connect filter assembly and ensure proper orientation.
- If available, connect refrigeration components and verify ventilation clearance.
- Reconnect panel after plumbing is complete and check for leaks.
- Adjust bubbler stream height as needed; factory set at 45–50 psi.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect bubbler orifice and regulator periodically; clean or adjust if flow is irregular.
- Check quick‑connect fittings and tubing for leaks; reseat if necessary.
- Clean basin and exterior surfaces with mild, non‑abrasive cleaner.
- If available, replace filter at recommended intervals.
- If available, service refrigeration components as required.
- For service or repairs, consult the manual or a licensed technician.
