Elkay VRCGRN8WSK | Wall-mount Bottle Filling Station | Filterless, High-efficiency chiller, VRC-style Fountains, Vandal-resistant Fountains
Elkay VRCGRN8WSK | Wall-mount Bottle Filling Station | Filterless, High-efficiency chiller, VRC-style Fountains, Vandal-resistant Fountains is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay VRCGRN8WSK | Wall-mount Bottle Filling Station | Filterless, ...
In stock and available for immediate shipment.

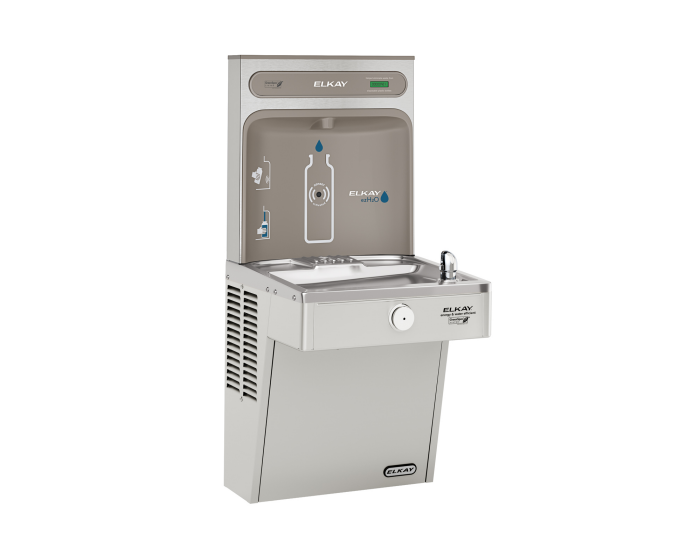

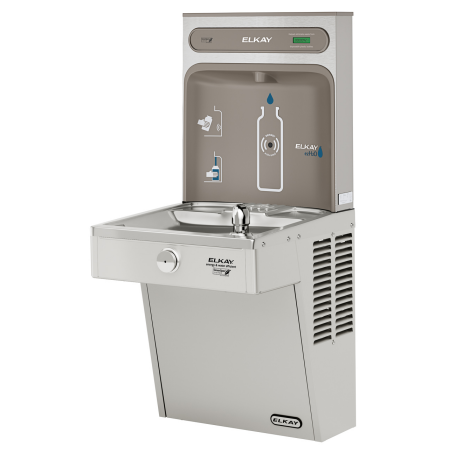

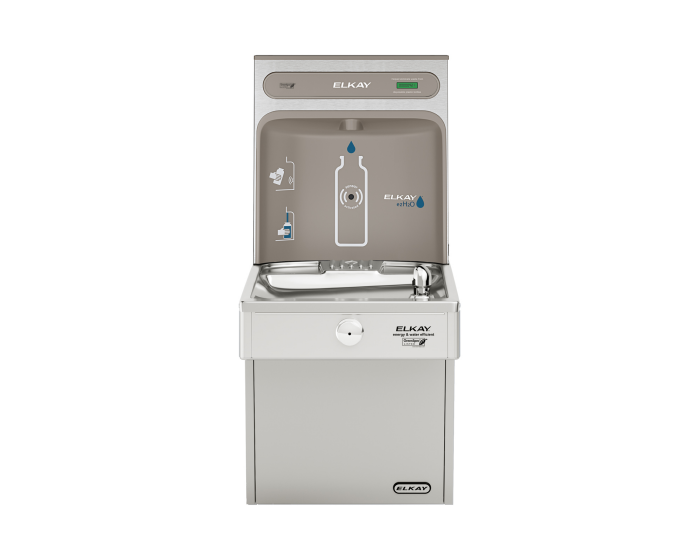

The Elkay VRCGRN8WSK ezH2O® Bottle Filling Station with Single High Efficiency Vandal-Resistant Cooler delivers chilled, sustainable hydration in a durable stainless steel finish. Designed for indoor wall-mount installation, it combines hands-free bottle filling with a vandal-resistant bubbler, making it ideal for schools, offices, and public facilities.
Key Specifications:
- Design: Wall-mounted bottle filling station with single vandal-resistant cooler, serving 1 station.
- Finish: Stainless Steel.
- Chilling Capacity: 8.0 GPH of 50°F drinking water (ASHRAE 18 tested, based on 80°F inlet and 90°F ambient).
- Activation: Electronic bottle filler sensor with mechanical front bubbler button.

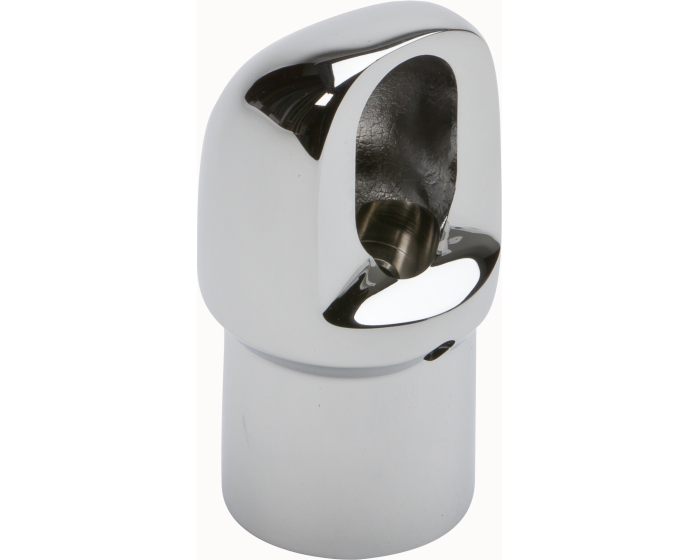

- Bubbler Style: Vandal Resistant StreamSaver™ bubbler.
- Power: 115V/60Hz, 260W, 6 full load amps.
- Refrigeration: Hermetically-sealed compressor with fan-cooled condenser and EPS foam insulation, using R-134a refrigerant.
- Filtration: This model is non-filtered. For the filtered option, see the LVRCGRN8WSK.
Features & Benefits:
- Hands-Free Bottle Filling: Electronic sensor activation provides hygienic, touchless operation.
- Vandal-Resistant Bubbler: StreamSaver™ bubbler resists tampering and delivers efficient water flow.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste.
- Laminar Flow: Provides a clean, splash-free fill.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- Real Drain System: Eliminates standing water for improved hygiene.
- High Efficiency Cooling: Hermetically-sealed compressor and EPS foam insulation reduce energy consumption.
What's Included:
- VRCGRN8WSK Bottle Filling Station & Cooler
- Vandal Resistant StreamSaver™ bubbler
- Mounting hardware
- Installation instructions
- Owner’s manual and warranty guide
FAQ
Q: What is the difference between the Cooler Combo and the Green model series?
A: According to CSA 815-99, the Green Bottle Filling Station series exceeds average Energy Efficiency market performance by 35%.
Q: Why is this Bottle Filling Station considered Vandal Resistant?
A: This Water Bottle Filling Station is considered Vandal Resistant due to the following Made in the U.S.A. construction specs:
- Vandal-resistant pushbutton
- Stainless steel construction bottle filler
- Stainless steel cooler panel
- Stainless steel constructed cooler cabinet
- Heavy-duty, one-piece, chrome plated bubbler
Q: Do the Vandal Resistant Bottle Fillers include the Bottle Counter?
A: Yes.
Q: Do the Vandal Resistant Bottle Fillers include the sensor-activated, automatic bottle fill feature?
A: No. The Vandal Resistant Bottle Fillers offer a vandal-resistant pushbutton activation as opposed to sensor activation.
Q: Is this unit ADA compliant?
A: Yes, when installed according to ADA & ICC A117.1 standards, the cooler and bottle filler meet accessibility requirements.
Q: What warranty is included?
A: The refrigeration system is covered by a 5-year limited warranty, while electrical components and water system are warranted for 12 months.
Detailed Features & Benefits
Performance: The VRCGRN8WSK delivers 8.0 gallons per hour of chilled water at 50°F, ensuring reliable hydration even in busy environments. Its hermetically-sealed compressor and fan-cooled condenser provide consistent cooling with reduced energy consumption.
Hands-Free Operation: The electronic sensor allows users to fill bottles without touching the unit, improving hygiene and convenience. This touchless design is especially valuable in schools, healthcare facilities, and public spaces.

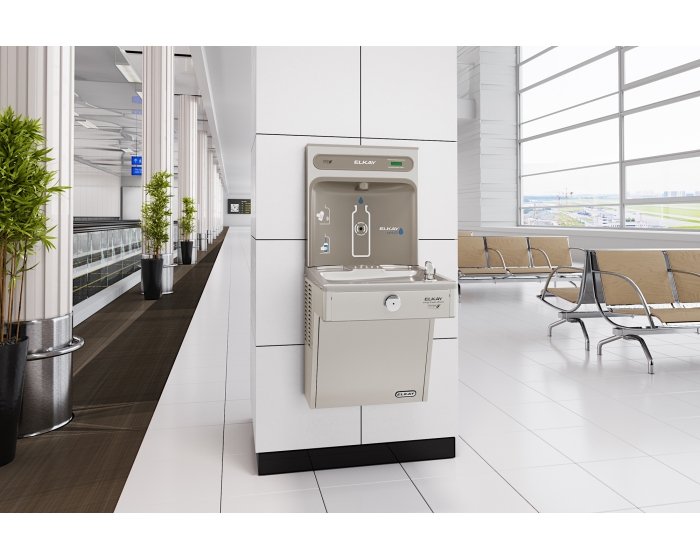

Vandal Resistance: The StreamSaver™ bubbler and stainless steel panels are engineered to withstand tampering and heavy use. This makes the unit ideal for stadiums, transit hubs, and other high-traffic locations.
Sustainability: The Green Ticker™ tracks the number of plastic bottles saved, promoting environmental awareness. Combined with laminar flow and real drain technology, the unit reduces waste and prevents standing water issues.
Antimicrobial Protection: Key plastic components are infused with silver ion antimicrobial agents to resist stains and odors. This helps maintain a cleaner, more hygienic surface over time.
Installation: Designed for wall-mount installation, the unit includes a hanger bracket and clear rough-in dimensions. Proper ventilation clearance and GFCI protection are required for safe operation.
Warranty: Elkay backs the VRCGRN8WSK with a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components. This ensures long-term reliability and peace of mind for facility managers.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
