Elkay  |  SKU: LZS8WSSK

Elkay LZS8WSSK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, EZ-style fountain, Stainless Steel

$ 1,593.99
Shipping calculated at checkout.
_____________________________________
_____________________________________

Product Care Information

Installation


  • Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

ezH2O Installation Video:


Maintenance


It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.

ezH2O Maintenance Video:


Filter Replacement


When filter status light turns to red, the filter needs to be changed.  Here are some detailed instructions.

ezH20 Filter Change Video:

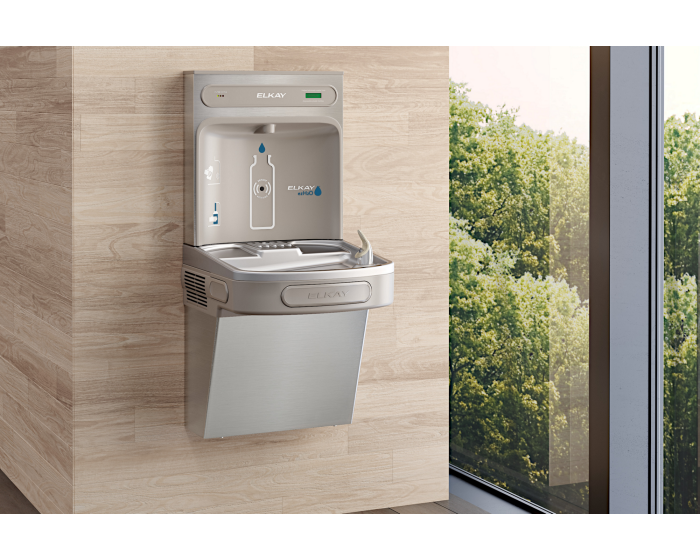

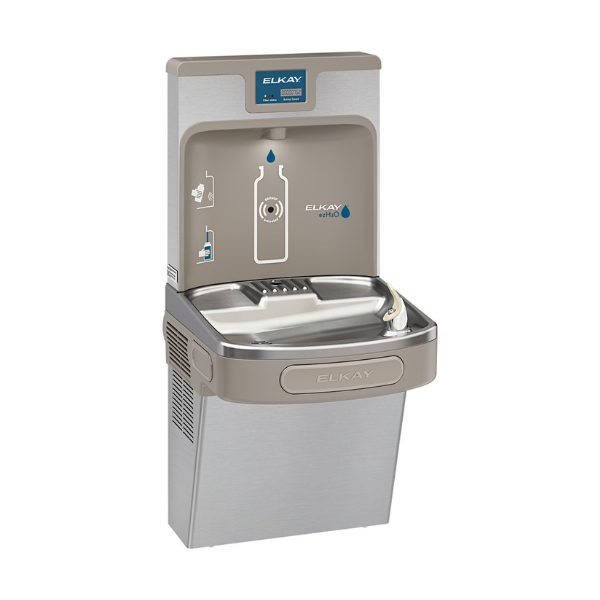

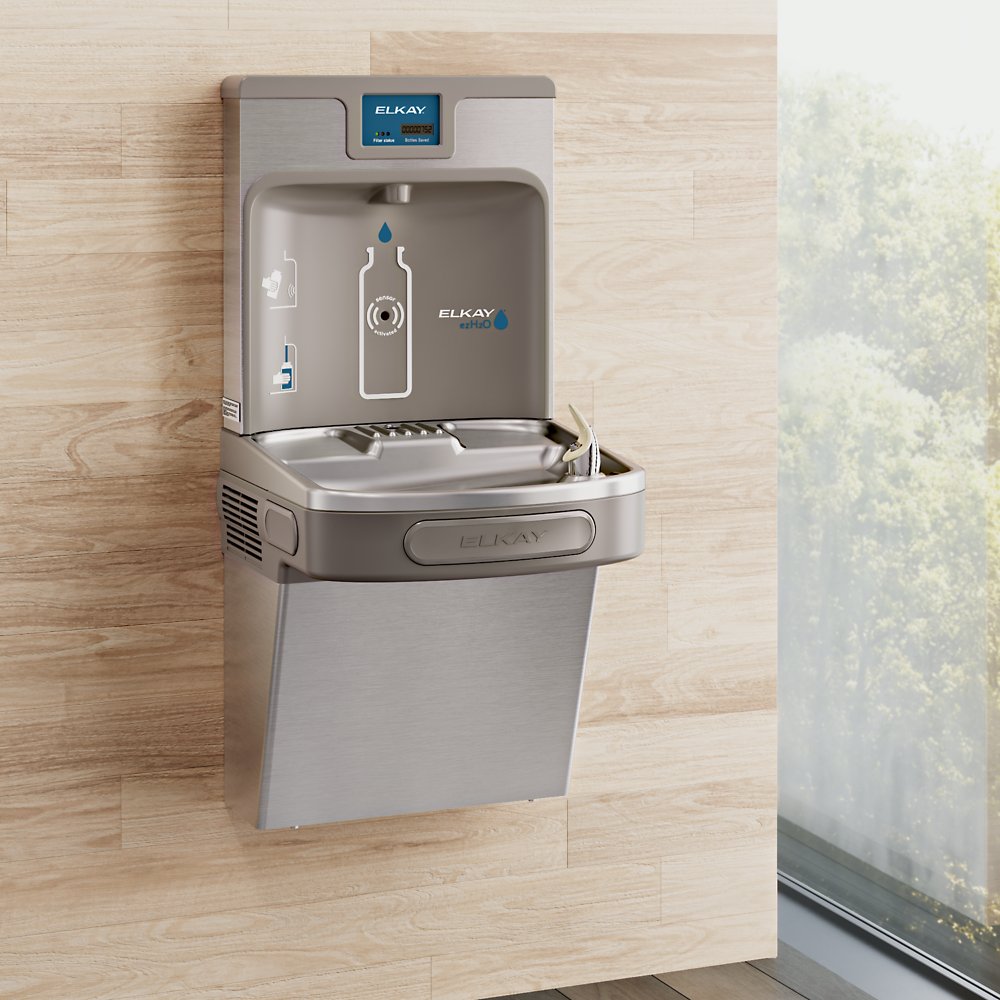

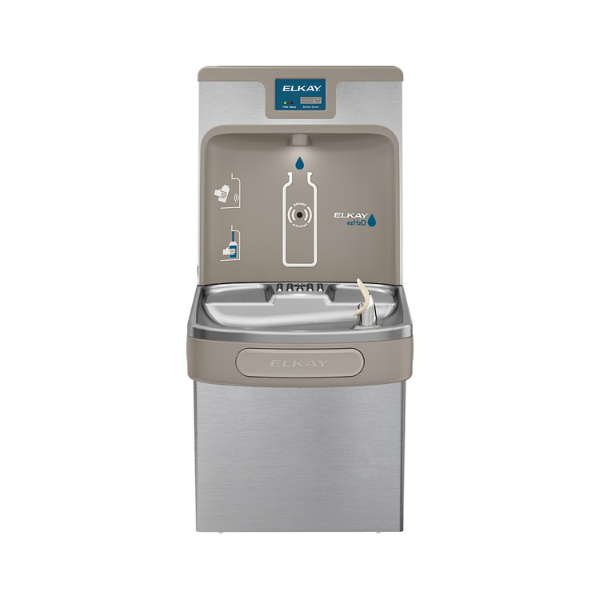

The Elkay LZS8WSSK is a wall-mounted, refrigerated unit that includes a bottle filler and a drinking fountain. This model has a Stainless Steel color finish.

One of the most popular models, the Elkay LZS8WSSK Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

The Elkay LZS8WSSK drinking fountain features a Flexi-Guard bubbler protected by a flexible antimicrobial mouth guard that helps to protect against injury and microorganisms.

  • ADA compliant design.
  • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
  • Features 3000 gallon capacity WaterSentry® Plus filtration with visual LED Filter Monitor to indicate when replacement is necessary
  • Quick fill rate of 1.1 Gallons Per Minute
  • Green Ticker™ tracks number of plastic bottles saved from waste.



Elkay LZS8WSSK resources:



Elkay LZS8WSSK Videos:

Elkay EZH2o Installation:

Elkay EZH2o Filter change:

 Elkay EZH2o Care & Cleaning:



FILTERED?

Yes

COOLER CABINET FINISH

Stainless Steel

POWER

115V/60Hz

BUBBLER OPTION

FlexiGuard

MOUNTING DETAILS

Wall Mount (On-Wall)

CHILLING DETAILS

8 GPH

Elkay LZS8WSSK

INSTALLATION LOCATION

INDOOR

NUMBER OF FOUNTAINS

One fountain

DIMENSIONS

L: 18-3/8"

W: 19"

H: 39-1/16"

SHIPPING WEIGHT

71 lbs

Elkay LZS8WSSK

PRODUCT COMPLIANCE
  • GreenSpec
  • ADA Compliant
  • CAN/CSA 22.2 120
  • ASME A112.19.3/CSA B45.4
  • Buy American Act
  • UL 399
  • NSF 61
  • NSF 53
  • NSF 42
  • NSF 372 (no lead)

Elkay LZS8WSSK Includes

  • Water Cooler
  • Water Bottle Filling Station
  • Water Sentry Filter

Warranty

Refrigeration System (IF APPLICABLE)

Elkay LZS8WSSK refrigeration system includes 5 year limited warranty.

Electrical Parts & Water System

Elkay LZS8WSSK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. View more warranty details here

Installation Notes

  • Elkay LZS8WSSK requires installation from licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Elkay LZS8WSSK MANUAL.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

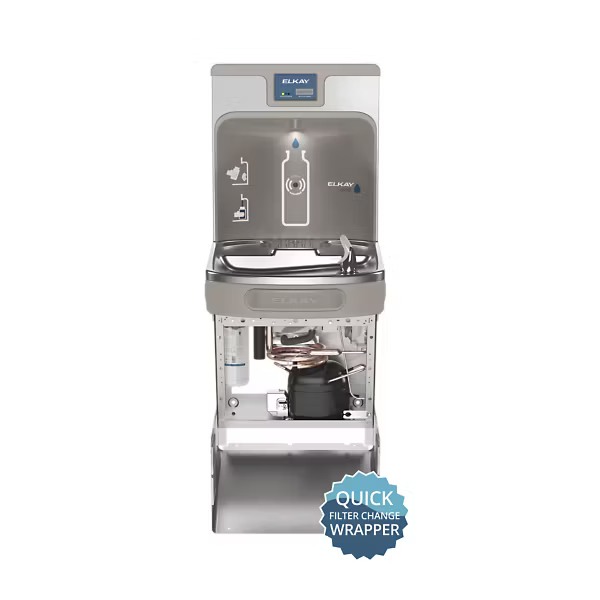

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: What is included in the Cooler Combo?

A: The Cooler Combo Bottle Filling Stations includes both the Bottle Filler and Water Cooler, which will be delivered in two separate boxes.

Q: Does the shipment include everything for the installation? Does plumber need anything else?

A:  Does not include:

  • Shut-off Valve (not furnished)
  • 1-1/4” Trap (not furnished).

Q: Does this product come with a Mounting Frame?

A: Cooler Combos come with Hanger Brackets, which are adequate for almost every setup. If more structural integrity is needed, the In-Wall Carrier Mounting Frame (MLP100) can be ordered separately. Please find further details on Spec Sheet and/or Installation Instructions.

Q: Is there a better, more updated model series available?

A: Yes, the latest model series is the Enhanced line, which includes improvements such as easier maintenance. View the Enhanced line HERE.

Q: Does the Cooler Combo come with filter?

A: Yes, each Cooler Combo comes with one (1) 51300C Replacement Filter, which has a capacity of 3000 Gallons.

Q: Is this unit available in 220V/50-60Hz?

A: Yes, please contact us for a custom quote for 220v unit(s).



*MADE IN THE UNITED STATES.
