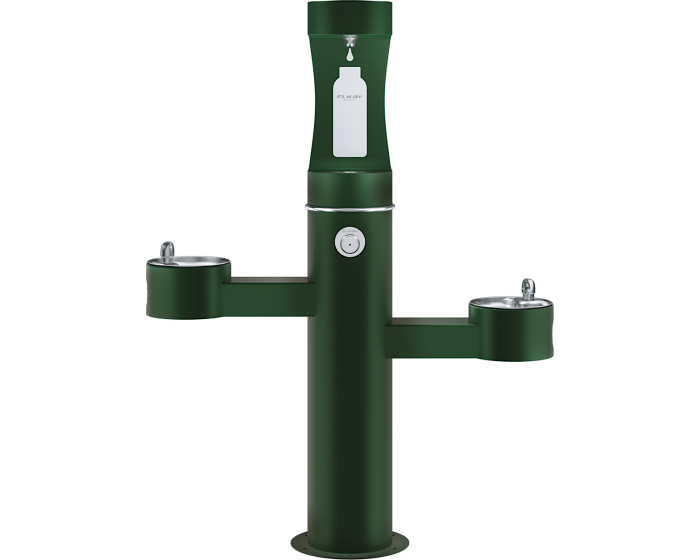

Elkay LK4430BF1U | Freestanding Tri-level Bottle Filling Station | Filterless, Non-refrigerated
Elkay LK4430BF1U | Freestanding Tri-level Bottle Filling Station | Filterless, Non-refrigerated - Evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
The LK4430BF1U is freestanding cutting-edge hydration solution with tri-level pedestal unit that combines durability, functionality, and eco-friendliness. Making it an ideal choice for outdoor environments. With its corrosion-resistant construction and vandal-resistant features, the LK4430BF1U ensures long-lasting performance while promoting sustainable hydration practices.
Key Specifications:
- Construction: Heavy Duty Vandal Resistant, 300 Series stainless steel base for ultimate protection against the elements.
- Dimensions: 14" L x 48" W x 64" H, perfect for accommodating users of various heights.
- Capacity: Serves 3 stations - 1 Upper Bottle Filler and 2 Mid-Low Bubbler Stations.
- Installation: Floor Mount/Freestanding design for versatile placement options.
- Compliance: ADA compliant, ensuring accessibility for all users.
Features & Benefits:
- Outdoor Durability: Corrosion-resistant base material and E-coat immersion process provide superior protection against harsh weather conditions.
- Vandal-Resistant Design: Tamper-resistant screws and chrome-plated integral hood guards on bubblers prevent contamination and tampering.
- Laminar Flow Technology: Ensures a clean, splash-free fill for a more hygienic and enjoyable user experience.
- Customizable Aesthetics: Available in multiple color options to complement various outdoor settings.
- Eco-Friendly Solution: Encourages the use of reusable water bottles, reducing plastic waste and promoting sustainability.
What's Included:
- LK4430BF1U Outdoor ezH2O Upper Bottle Filling Station
- Installation hardware and instructions
- Outdoor Bottle Filler component
FAQ
Q: Is this bottle filling station compatible with existing plumbing systems?
A: Yes, the LK4430BF1U is designed for easy integration with standard plumbing systems. It requires a 3/8" O.D. unplated copper tube water inlet and a 1-1/2" IPS drain connection. Professional installation is recommended to ensure proper setup and compliance with local codes.
Q: Can this unit be used in freezing temperatures?
A: While the standard model is not freeze-resistant, Elkay offers freeze-resistant options for colder climates. It's important to choose the appropriate model based on your specific environmental conditions.
Q: Is filtration available for this outdoor bottle filling station?
A: The LK4430BF1U does not come with built-in filtration. However, it's possible to add inline filtration by installing a separate WaterSentry Plus Filter Kit. Contact the manufacturer or a professional installer for custom filtration solutions.
Detailed Features & Benefits
Outdoor Durability & Low Maintenance: The LK4430BF1U is engineered to withstand the rigors of outdoor use. Its 300 Series stainless steel base, combined with a powder-coated exterior and E-coat immersion process, provides exceptional resistance to corrosion, staining, and wear. This robust construction ensures the unit remains functional and aesthetically pleasing with minimal maintenance, making it an ideal long-term investment for high-traffic outdoor areas.
User-Friendly Design & Accessibility: With its tri-level design, the LK4430BF1U caters to users of all heights and abilities. The upper bottle filling station features a user-friendly interface for quick and easy refills, while the two lower bubbler stations offer traditional drinking fountain functionality. The unit's ADA compliance ensures that it's accessible to everyone, promoting inclusivity in public spaces.
Hygiene & Safety Features: The LK4430BF1U prioritizes user health and safety. Its laminar flow technology provides a clean, steady stream of water that minimizes splashing and reduces the risk of cross-contamination. The vandal-resistant bubblers feature chrome-plated integral hood guards that protect against airborne contaminants and tampering, ensuring a hygienic drinking experience for all users.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
