Elkay LK4420BF1LDBFRK | Freestanding Bottle Filling Station | Filterless, Non-refrigerated, Freeze-resistant, Includes a Dog-bowl / Pet fountain
Elkay LK4420BF1LDBFRK | Freestanding Bottle Filling Station | Filterless, Non-refrigerated, Freeze-resistant, Includes a Dog-bowl / Pet fountain - Evergreen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).
- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
Elkay LK4420BF1LDBFRK | Freestanding Bottle Filling Station | Filte...
*PLEASE NOTE: Colors besides Evergreen, Black, Blue, & Gray require a minimum order quantity of 10 units. Contact us for more details.

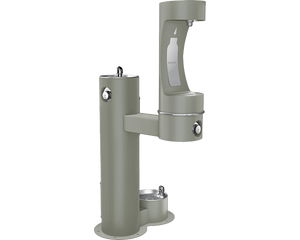

The Elkay LK4420BF1LDBFRK is a versatile outdoor ezH2O® Lower Bottle Filling Station with a bi-level pedestal and pet station, designed for durability and year-round use. This non-filtered, non-refrigerated unit stands out with its freeze-resistant technology, vandal-resistant construction, and inclusive design that caters to both humans and pets, making it an ideal solution for parks, campuses, and other outdoor public spaces.
Key Specifications:
- Freeze-Resistant Technology: Features a sealed freeze-resistant valve system designed for ground installation below the frost line, ensuring year-round functionality.
- Durable Construction: Built with heavy-duty, vandal-resistant 300 Series stainless steel for long-lasting performance in outdoor environments.
- Multi-Level Design: Includes a lower bottle filling station, an upper bubbler, and a pet fountain, accommodating users of all heights and our furry friends.
- Dimensions: Measures 26" x 31" x 64" (L x W x H), with a shipping weight of approximately 184 lbs.
- Activation: Uses a mechanical button for reliable operation without electrical requirements.
Features & Benefits:
- All-Weather Accessibility: Provides a reliable water source in outdoor spaces throughout the year, thanks to its freeze-resistant design.
- Inclusive Hydration: Serves a wide range of users with its bi-level design and pet fountain, promoting hydration for all.
- Eco-Friendly Solution: Encourages the use of refillable water bottles, helping to reduce plastic waste in public spaces.
- Low Maintenance: Non-filtered and non-refrigerated design minimizes upkeep requirements while still delivering clean, fresh water.
- Vandal Resistance: Heavy-duty construction and vandal-resistant features ensure longevity and reliability in high-traffic areas.
What's Included:
- Outdoor Bottle Filler
- Freeze Resistant Valve
FAQ
Q: What colors are available for the Outdoor Bottle Filling Stations?
A: Outdoor Bottle Filling Stations come standard in Evergreen, which typically has a lead time of 15-20 business days. See other color options below, which have a lead time of ~ 20-30 business days.
Q: Are filtered versions of Outdoor Bottle Filling Stations available?
A: Unlike Indoor EZH2O Bottle Filling Stations, Outdoor Bottle Fillers don’t come with a filtered option. However, it is quite common to create inline filtration by ordering and properly installing a separate WaterSentry Plus Filter Kit. If this is desired, we will need to create a custom order.
Contact us at support@bottlefillingstations.com or (855) 558-9600.
Q: Are refrigerated versions of Outdoor Bottle Filling Stations available?
A: No Outdoor Bottle Fillers come with chillers because of the risk presented from outdoor elements, especially in the cold. However, if installed with proper shelter and temperature, a remote chiller can be hooked up to the Bottle Filler, which can especially be beneficial in warmer climates. Please contact us for further details.
Q: Are Outdoor Bottle Filling Stations durable?
A: Yes, Elkay Bottle Filling Stations are very durable. They are made with heavy-duty steel with textured powder-coat finish and E-coat immersion for year-round protection with minimum maintenance.
Detailed Features & Benefits
Freeze-Resistant Technology: The LK4420BF1LDBFRK's sealed freeze-resistant valve system is a game-changer for outdoor water access. This innovative design allows for ground installation below the frost line, minimizing the chance of ground water contamination and preventing drain water from mixing with fresh water. This feature ensures that the unit can operate effectively year-round, even in colder climates, providing a reliable water source for communities regardless of seasonal changes. The freeze-resistant technology not only extends the usability of the unit but also reduces maintenance costs associated with winterization and potential freeze damage.
Inclusive Multi-Level Design: The bi-level design of the LK4420BF1LDBFRK, combined with its pet fountain, sets a new standard for inclusive hydration solutions. The lower bottle filling station accommodates wheelchair users and children, while the upper bubbler serves taller individuals. The addition of a pet fountain with slow drainage for easy drinking demonstrates Elkay's commitment to comprehensive hydration solutions. This thoughtful design promotes accessibility and encourages hydration for all members of the community, including our four-legged friends, making public spaces more welcoming and functional for everyone.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
