Elkay LZSTL8WSSP-PF | Enhanced ezH2O Bottle Filling Station, Bi-Level, Filtered, Refrigerated, Stainless
Elkay LZSTL8WSSP-PF | Enhanced ezH2O Bottle Filling Station, Bi-Level, Filtered, Refrigerated, Stainless is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
INSTALLATION.
- During a plumbing circuit inspection, be aware that the line might be grounded at a location away from the installation site, which could be outside the building or the area where the unit is being installed.
- It is essential to consult local plumbing codes before beginning installation.
MAINTENANCE
- Clean the entire unit, including the basin and bottle filler.
- Clean the condenser and louvers if the unit is refrigerated.
- Replace the filter if the unit is equipped with one.
- If the bubbler orifice is scaly, clean it carefully to ensure proper water flow.
- Inspect the height of the bubbler stream and adjust if needed. This task should be performed after changing the filter and cleaning the orifice.
- Ensure the refrigeration system is cycling correctly by verifying that both the compressor and the fan activate and deactivate as intended.
- Testing the activation of the bottle filler is essential to ensure it responds promptly and accurately when a bottle is placed for filling.
- Testing the 20-second timeout feature of the bottle filler is essential.
- Ensure that the water flow from the bottle filler is laminar, and clean, repair, or replace the nozzle as needed.
Elkay LZSTL8WSSP-PF | Enhanced ezH2O Bottle Filling Station, Bi-Lev...

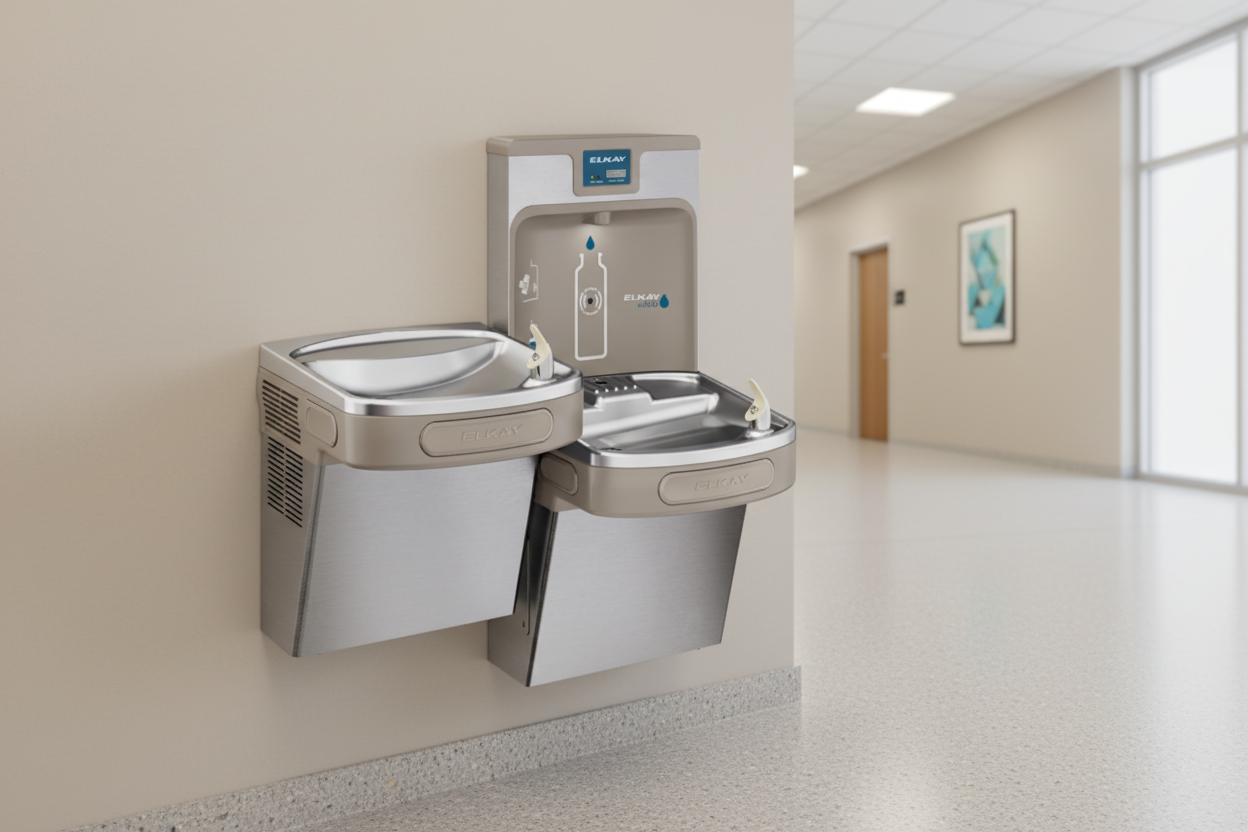

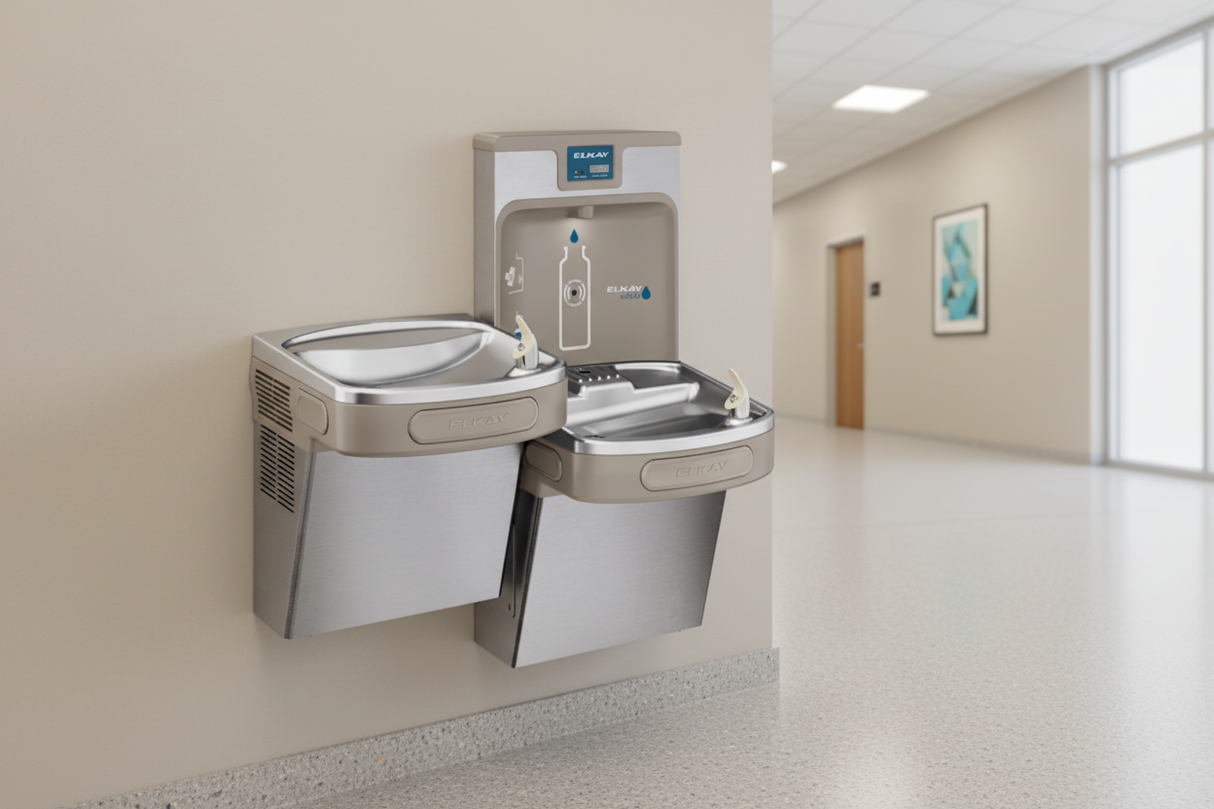

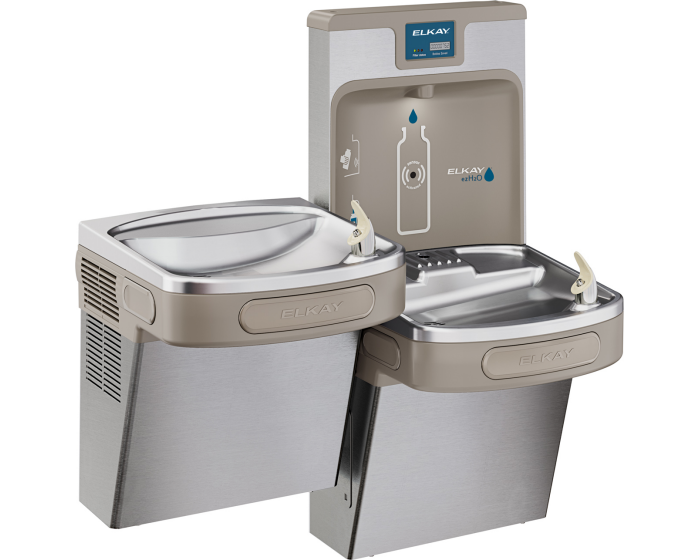

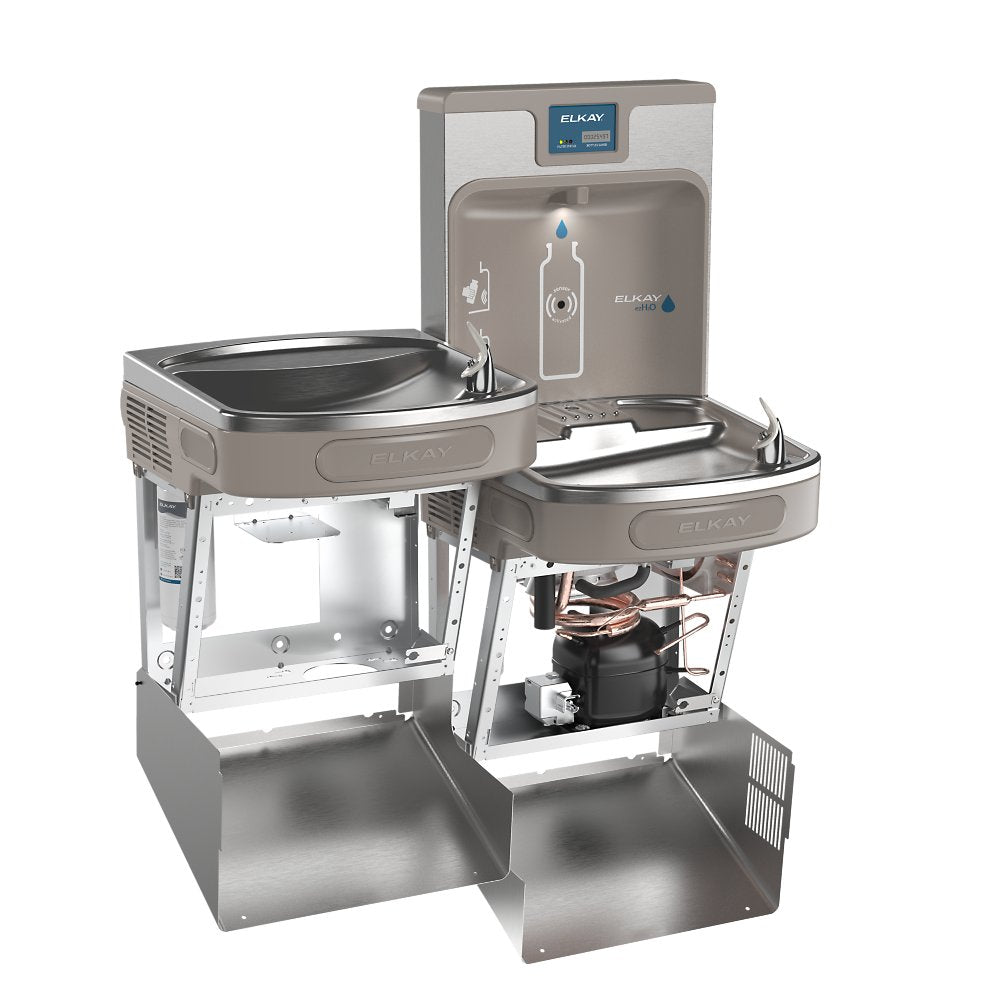

The Elkay LZSTL8WSSP-PF Enhanced ezH2O® Bottle Filling Station with Versatile Bi-Level ADA Cooler provides advanced hydration with PFOA/PFOS reduction, quick filter change access, and energy-saving technology. Designed for indoor wall-mount installation, this stainless steel unit combines touchless bottle filling with ADA-compliant bi-level fountains, making it ideal for schools, healthcare facilities, offices, and public spaces.
Key Specifications:
- Design: Versatile bi-level ADA cooler with integral bottle filling station, serving 2 stations.
- Finish: Stainless Steel.
- Chilling Capacity: 8.0 GPH of 50°F drinking water (ASHRAE 18 tested, based on 80°F inlet and 90°F ambient).
- Activation: Electronic bottle filler sensor with electronic front and side bubbler pushbar.
- Bubbler Style: Flexi-Guard® Safety Bubbler.
- Power: 115V/60Hz, 370W, 5 full load amps.

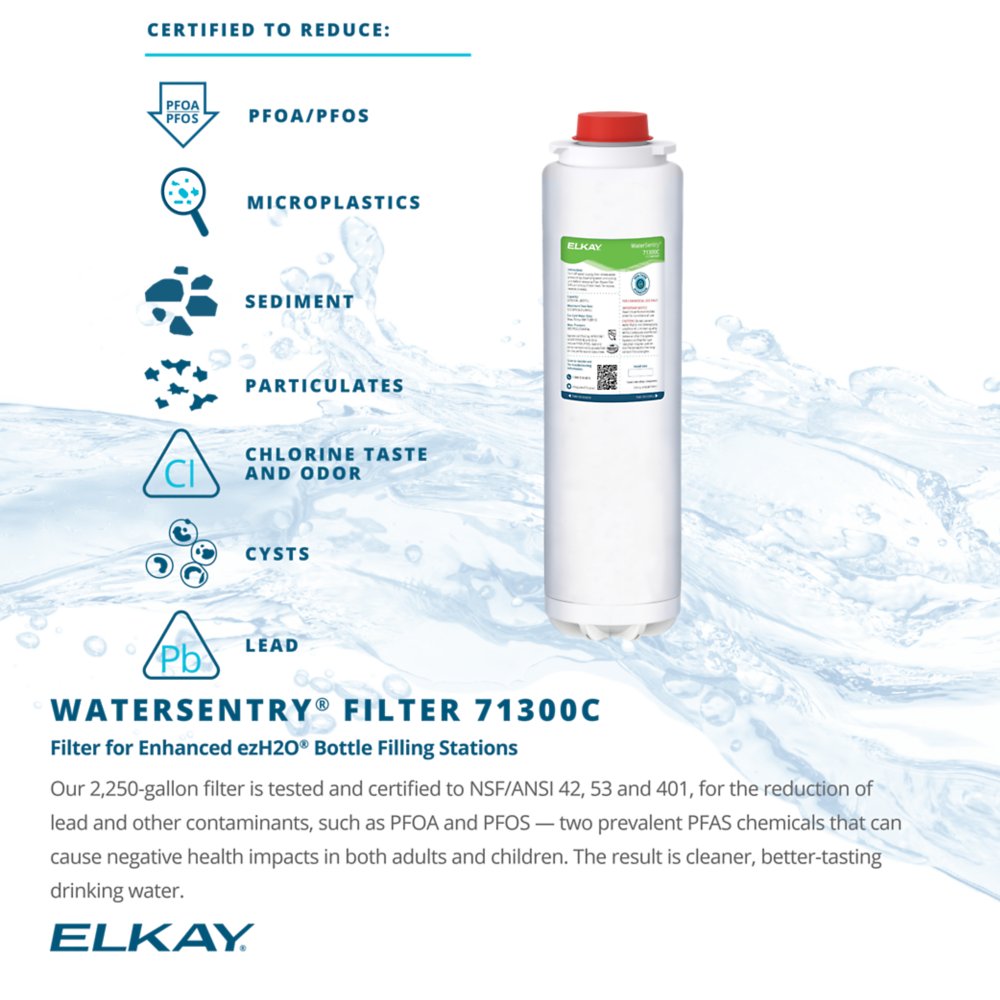

- Filtration: Includes a 2,250-gallon WaterSentry® Plus filter tested and certified to NSF/ANSI 42 & 53 for PFAS (PFOA/PFOS), lead, particulates, chlorine taste and odor. Replacement filter: Elkay 71300C WaterSentry® PFAS Replacement Filter.
Features & Benefits:
- PFAS Reduction: Certified filter reduces PFOA/PFOS, lead, chlorine, and particulates, ensuring safer drinking water.

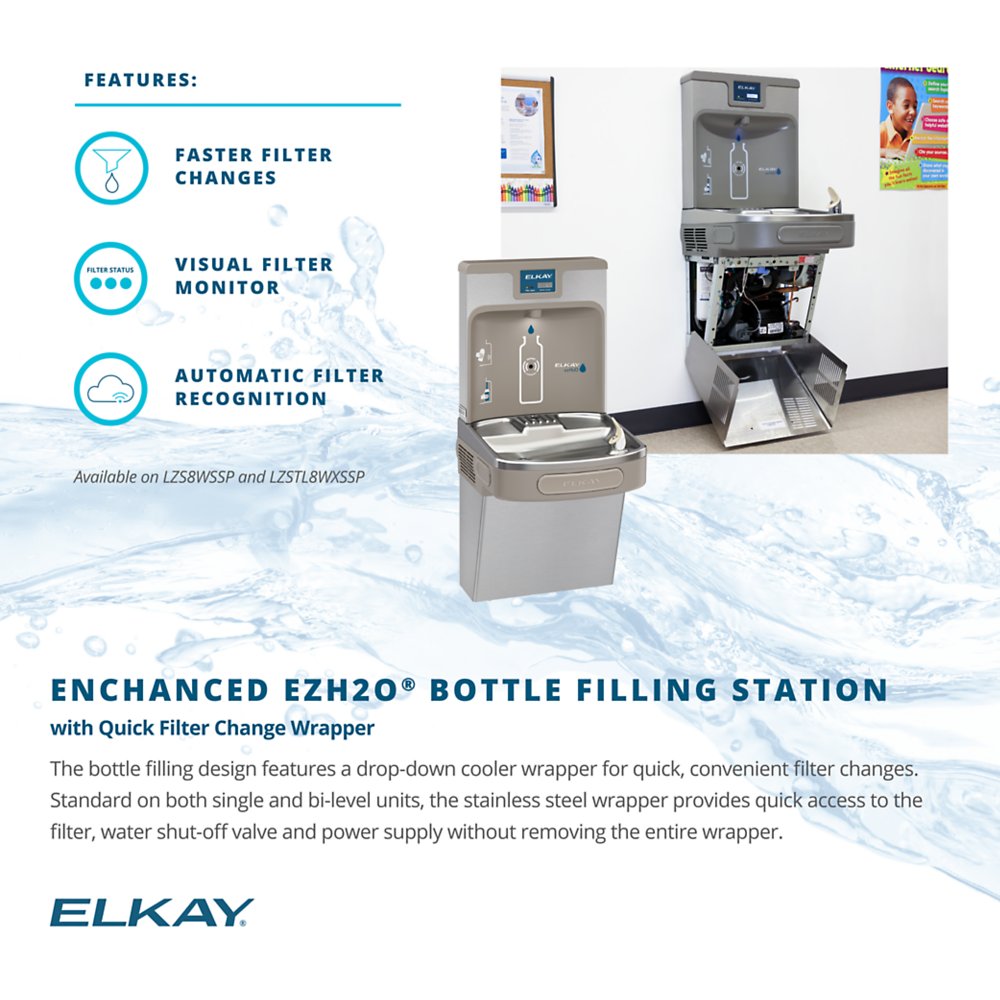

- Quick Filter Change: Front-access wrapper design allows filter replacement in under a minute.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is needed.
- Automatic Filter Recognition: FillSafe™ technology resets filter status automatically when a new filter is installed.
- Hands-Free Bottle Filling: Electronic sensor activation provides hygienic, touchless operation.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste.
- Energy Savings Mode: Reduces energy consumption during periods of non-use.
- Laminar Flow & Real Drain: Provides a clean, splash-free fill and eliminates standing water.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- ADA Accessibility: Bi-level design meets ADA requirements, providing inclusive access for all users.
What's Included:
- LZSTL8WSSP-PF Bottle Filling Station & Bi-Level Cooler
- WaterSentry® Plus PFAS Reduction Filter (2,250-gallon capacity)
- Installation hardware
- Owner’s manual and warranty guide
FAQ
Q: How often should the filter be replaced?
A: The included WaterSentry® Plus filter should be replaced every 2,250 gallons or 12 months. Use the Elkay 71300C Replacement Filter for continued PFAS reduction performance.
Q: Is this unit ADA compliant?
A: Yes, the LZSTL8WSSP-PF meets ADA & ICC A117.1 accessibility requirements when installed according to standards.
Q: What makes this part of the Elkay Enhanced collection?
A: The LZSTL8WSSP-PF is part of the Elkay Enhanced ezH2O® Collection, which features advanced filtration, quick filter change access, energy-saving technology, and LED filter monitoring compared to standard ezH2O® models.
Q: What warranty is included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components.
Detailed Features & Benefits
Advanced Filtration: The LZSTL8WSSP-PF includes a WaterSentry® Plus filter certified to reduce PFAS (PFOA/PFOS), lead, chlorine, particulates, and odors. This ensures cleaner, safer hydration for high-traffic environments.

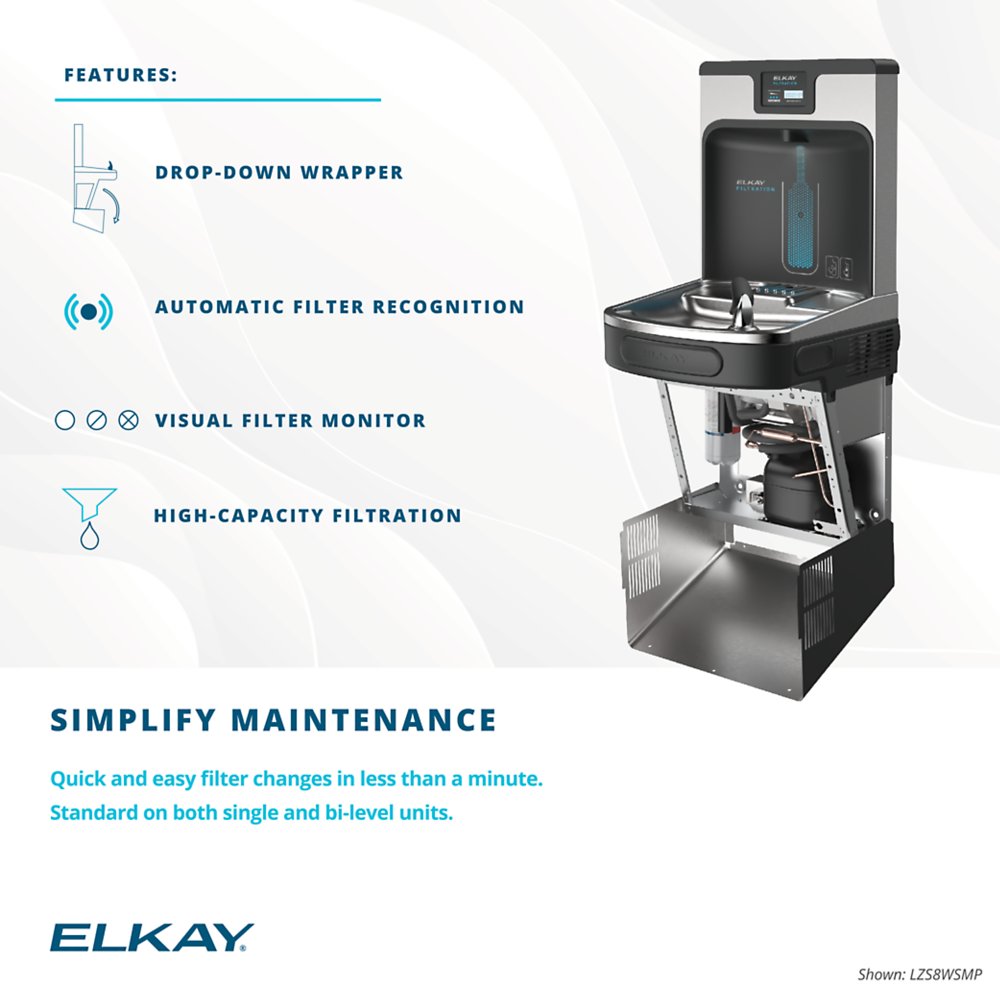

Quick Filter Change: The enhanced wrapper design allows filters to be replaced in under a minute, minimizing downtime and simplifying maintenance.
Energy Efficiency: Built-in energy-savings mode reduces power consumption during periods of non-use, lowering operating costs and supporting sustainability goals.
Inclusive Design: The versatile bi-level ADA cooler provides accessible hydration for all users, meeting ADA requirements when installed correctly.
Durability: Stainless steel construction and Flexi-Guard® safety bubblers ensure long-lasting performance in demanding environments such as schools, hospitals, and public facilities.
Enhanced User Experience: LED lighting illuminates the bottle filler area, assisting with filling in low-light conditions and encouraging use.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
