Elkay LZS8WSSPRO Series | Pro Filtration Bottle Filling Station &am...

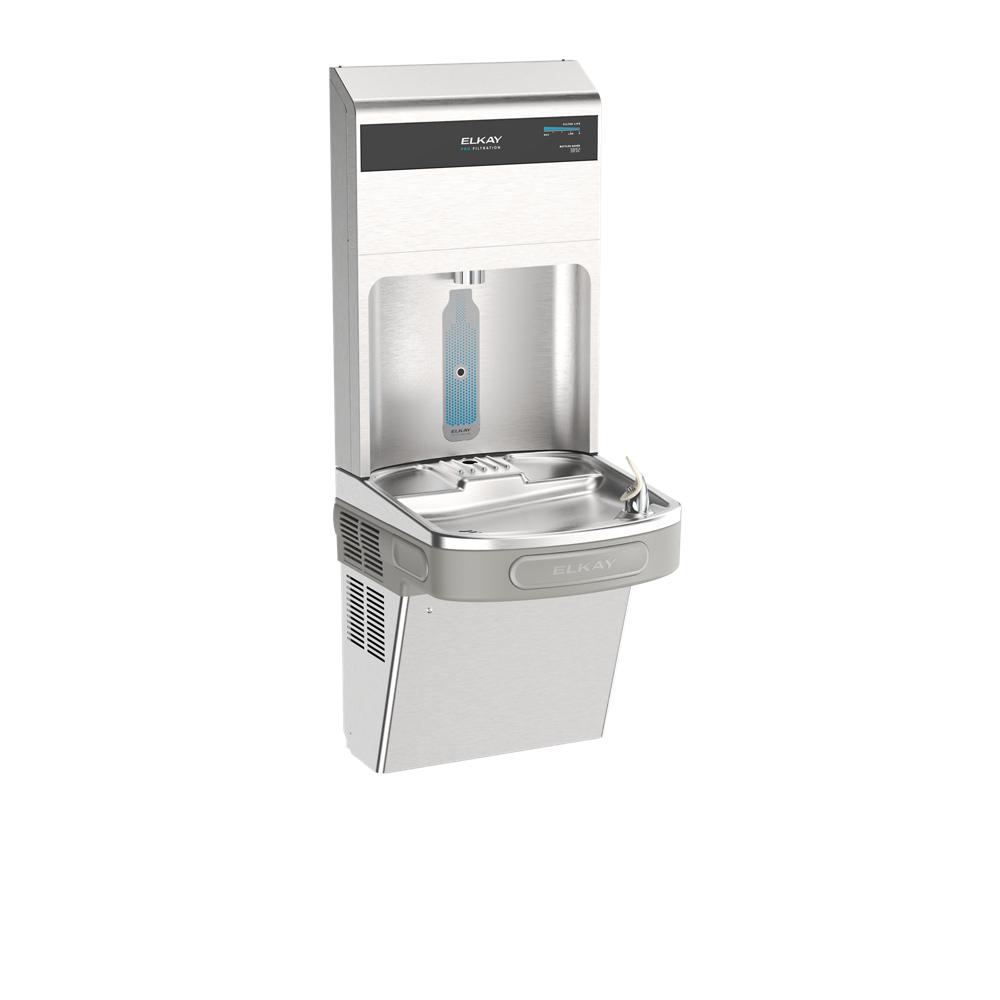

The Elkay LZS8WSSPRO Series combines a bottle filling station with a single cooler, delivering filtered, chilled water with smart connectivity for high-traffic spaces.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel Gray
- Filter Performance: Varies by Filter Option Selected (see Filter Option section below)
- Filter Capacity: Varies by Filter Option Selected
- Refrigeration: Integrated Water Cooler Included
- Power: 115V/60Hz, 5A Full Load
Filter Option:
- LZS8WSSPRO: (1) FL10 Ultra-Capacity Filter (10,000 Gal.)
- LZS8WSSPRO-2FL10: (2) FL10 Ultra-Capacity Filter (20,000 Gal. if Combined)
- LZS8WSSPRO-2FLP4: (2) FLP4 Total PFAS and Lead Filter (8,000 Gal. if Combined)
- LZS8WSSPRO-FLP4: (1) FLP4 Total PFAS and Lead Filter (4,000 Gal.)
- LZS8WSSPRO-FSR5: (1) FL10 Ultra-Capacity Filter with (1) FSR5 Sediment Prefilter
- LZS8WSSPRO-FLP4-UV: (1) FLP4 Total PFAS + Lead Filter with built-in UV Protection
- LZS8WSSPRO-FLP4-FSR5: (1) FLP4 Total PFAS and Lead Filter with (1) FSR5 Sediment Prefilter
- LZS8WSSPRO-UV: (1) FL10 Ultra-Capacity Filter with built-in UV Protection
Features & Benefits:
- Smart Filter Monitoring: Blue LCD display shows remaining filter life and bottles saved via Green Ticker™ technology.

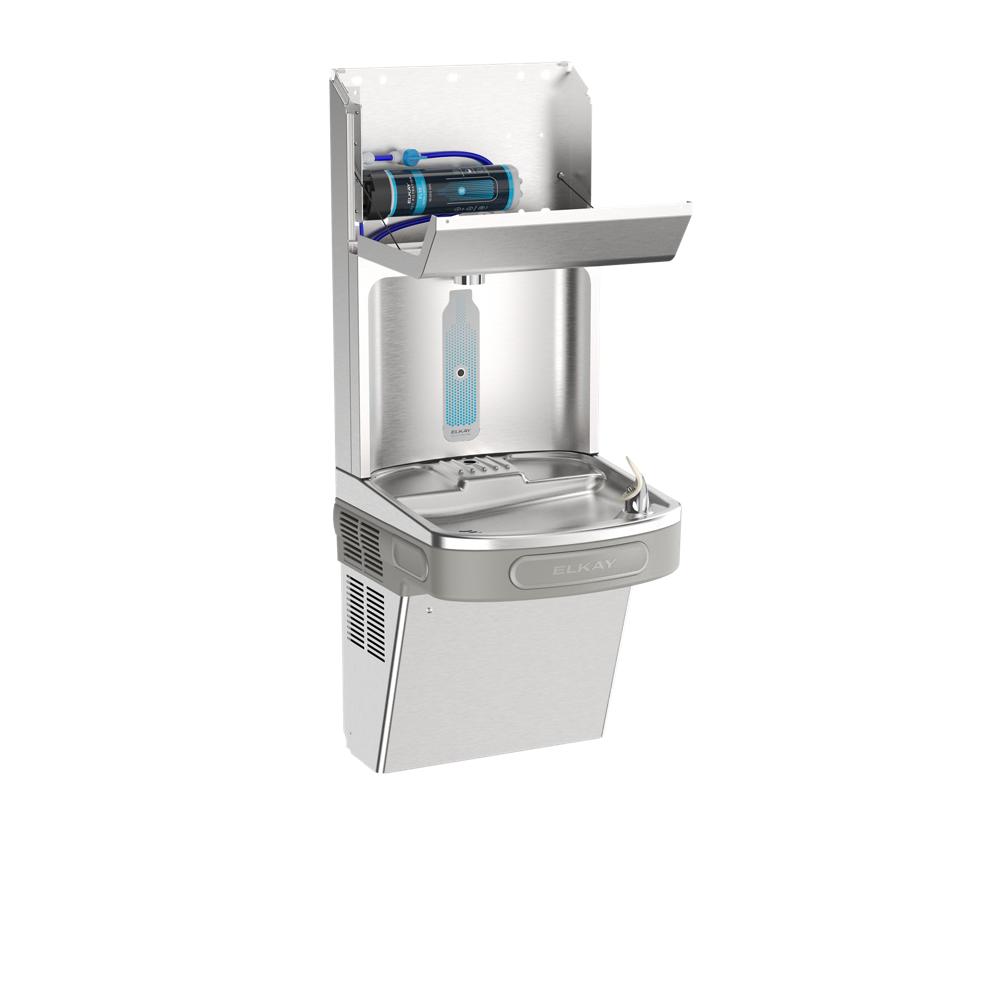

- Effortless Maintenance: Top-mount quick filter change design allows fast replacement with minimal disruption.
- Hands-Free Hygiene: Electronic bottle filler sensor and pushbar activation reduce contact points for cleaner use.
- Remote Connectivity: Smart Connected feature allows remote tracking of filter status, maintenance scheduling, and sustainability data.
FAQ
Q: Does this unit require a drain connection?
A: Yes, it includes a real drain and should be connected to a wall drain during installation.
Q: Can the filter status be monitored remotely?
A: Yes, the Smart Connected feature allows remote tracking of filter life, maintenance, and sustainability metrics.
Q: What certifications does this product meet?
A: It is certified under ASME A112.19.3, NSF/ANSI 42, 53, 61, 372, 401, and UL 399 among others.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation

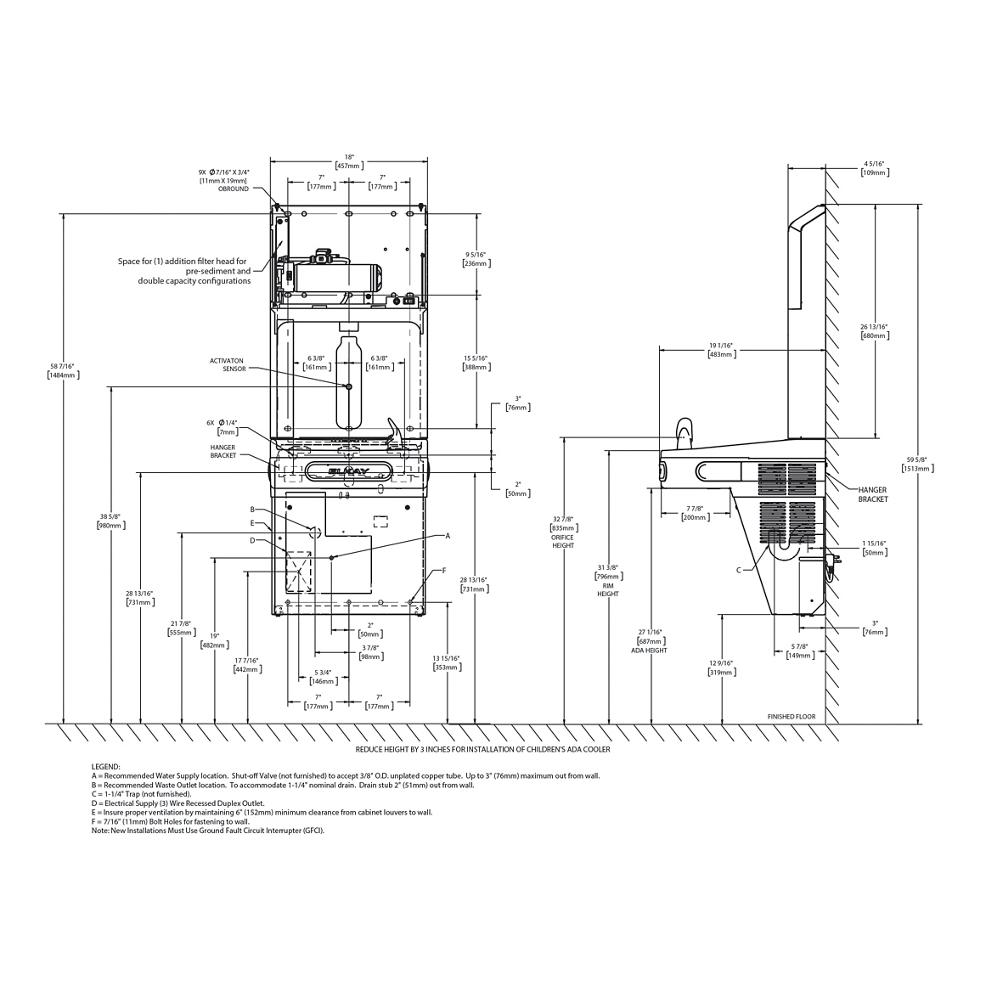

To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
