Elkay LZS8WSBPRO Series | Pro Filtration Bottle Filler & Cooler...

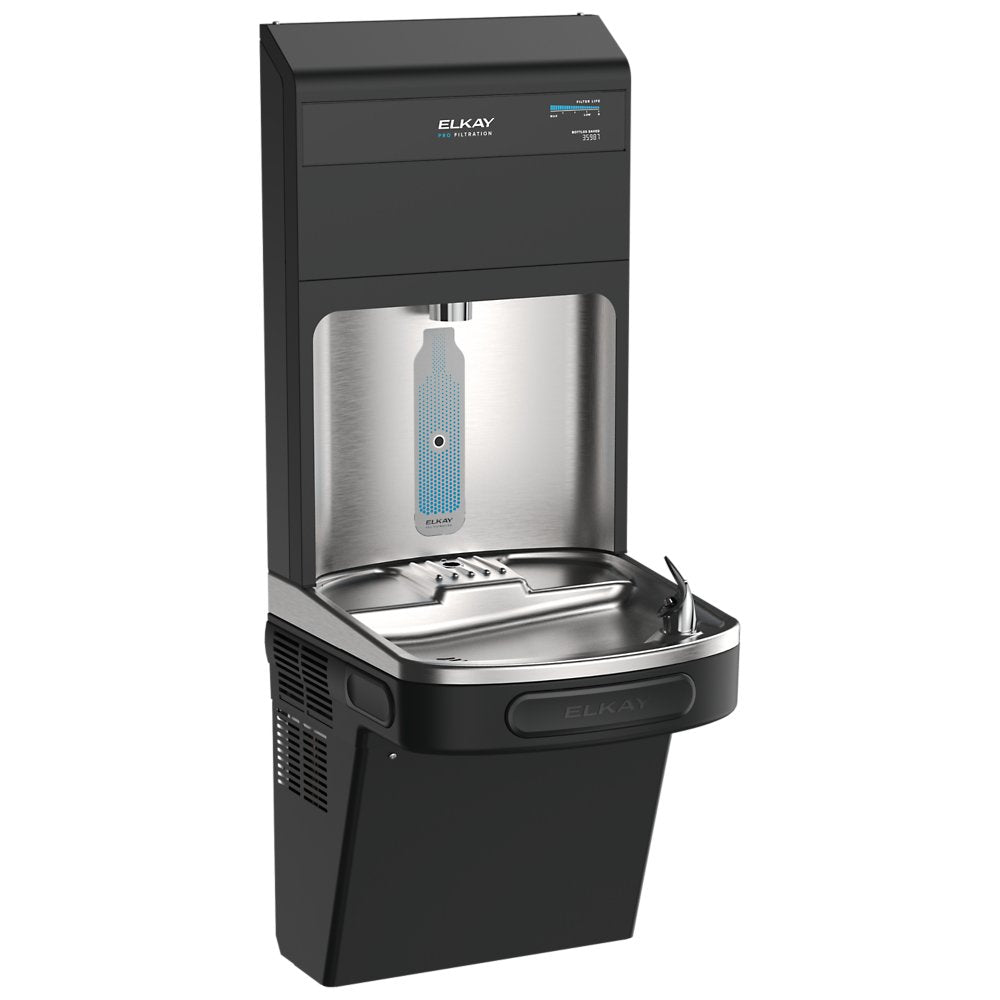

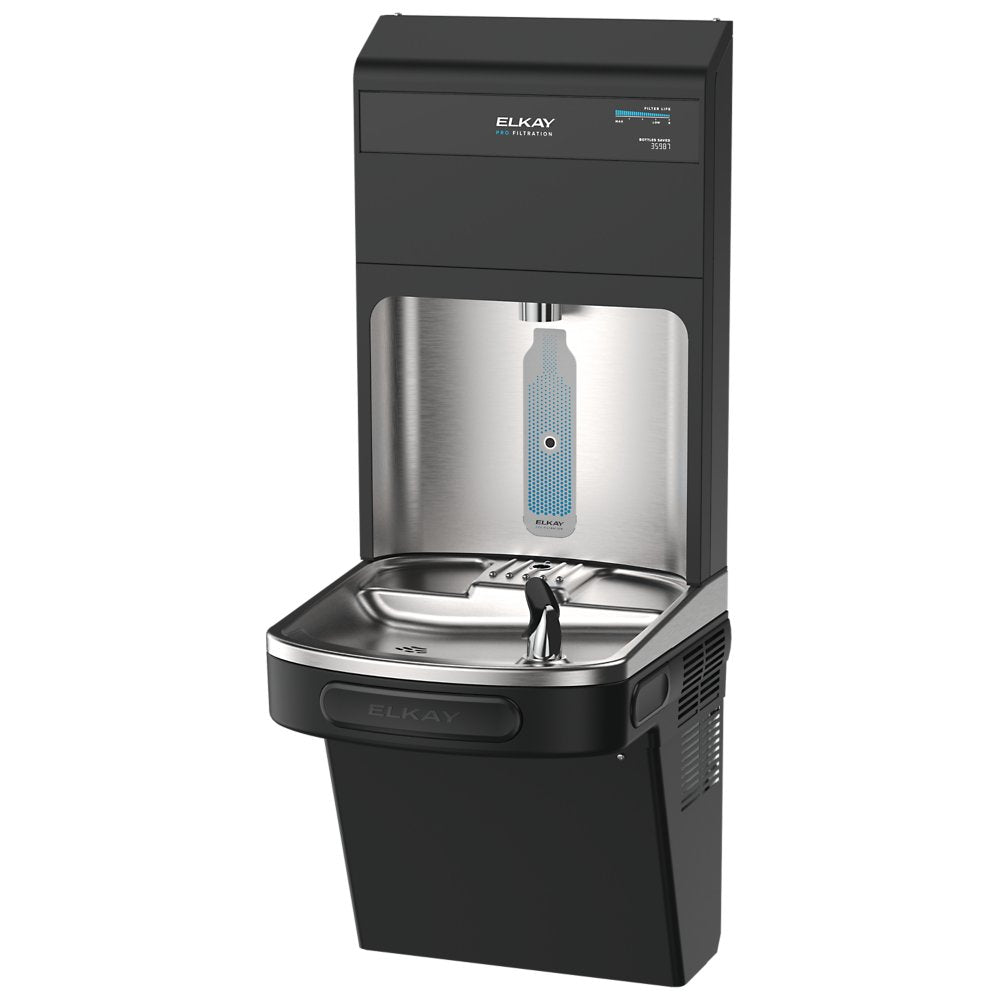

The Elkay LZS8WSBPRO Series is a refrigerated bottle filling station with advanced Pro Filtration™, delivering 8.0 GPH chilled water and supporting multiple filter capacities depending on the chosen variant. Designed for high-traffic environments, it combines smart filtration, touchless hygiene, and sustainable hydration.
Key Specifications:
- Design: Refrigerated bottle filling station with single ADA cooler, wall-mount installation
- Finish: Black Stainless
- Filter Capacity: Ranges from 4,000 to 10,000 gallons — see Variant Options for details
- Filter Performance: NSF/ANSI 42, 53, 401 certified; reduces lead, microplastics, chlorine taste & odor, cysts, and PFAS — see Variant Options for details
- Refrigeration: 8.0 GPH chilling capacity (50°F water output, based on 80°F inlet and 90°F ambient)
Variant Options:
- LZS8WSBPRO: 10,000-gallon Ultra-Capacity filter
- LZS8WSBPRO-2FL10: Dual 10,000-gallon filters for extended capacity
- LZS8WSBPRO-FLP4: PFAS + Lead filter (4,000-gallon capacity)
- LZS8WSBPRO-2FLP4: Dual PFAS + Lead filters for enhanced PFAS reduction

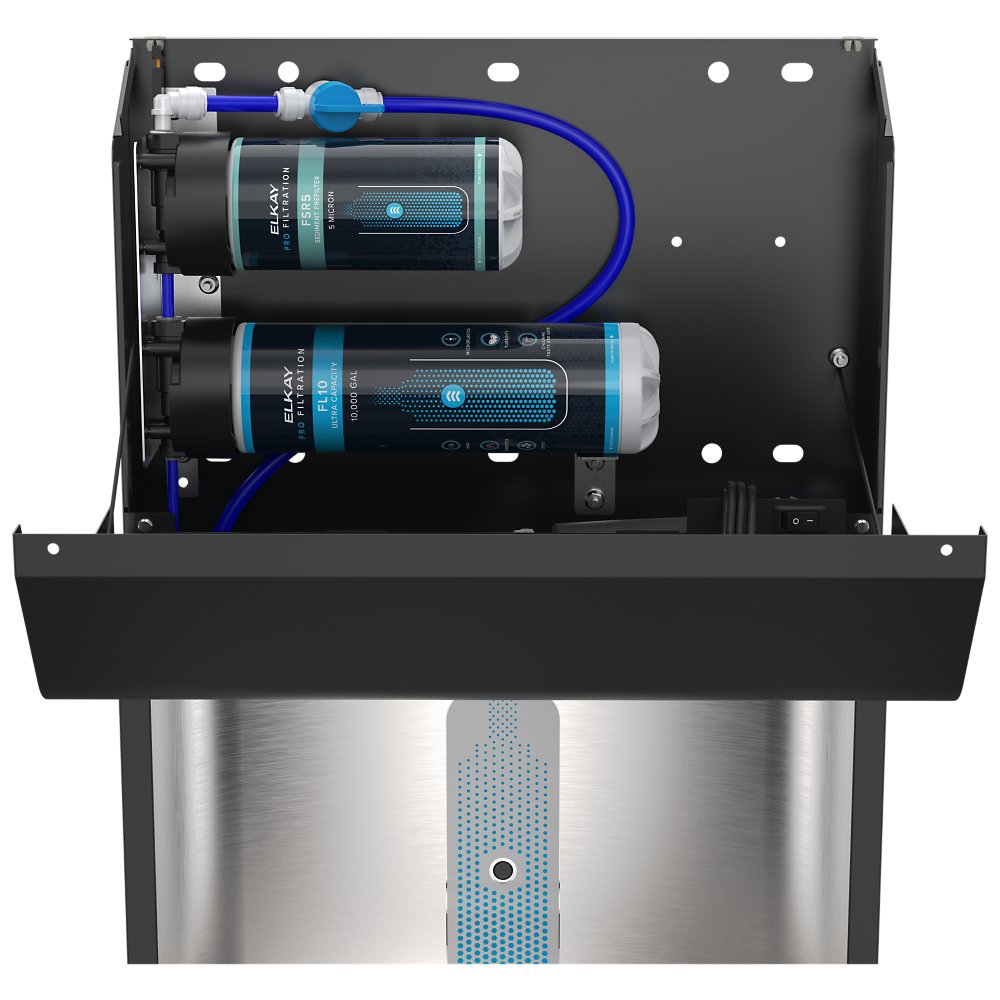

- LZS8WSBPRO-FSR5: Two-stage filtration with sediment prefilter
- LZS8WSBPRO-UV: 10,000-gallon filters with UV protection

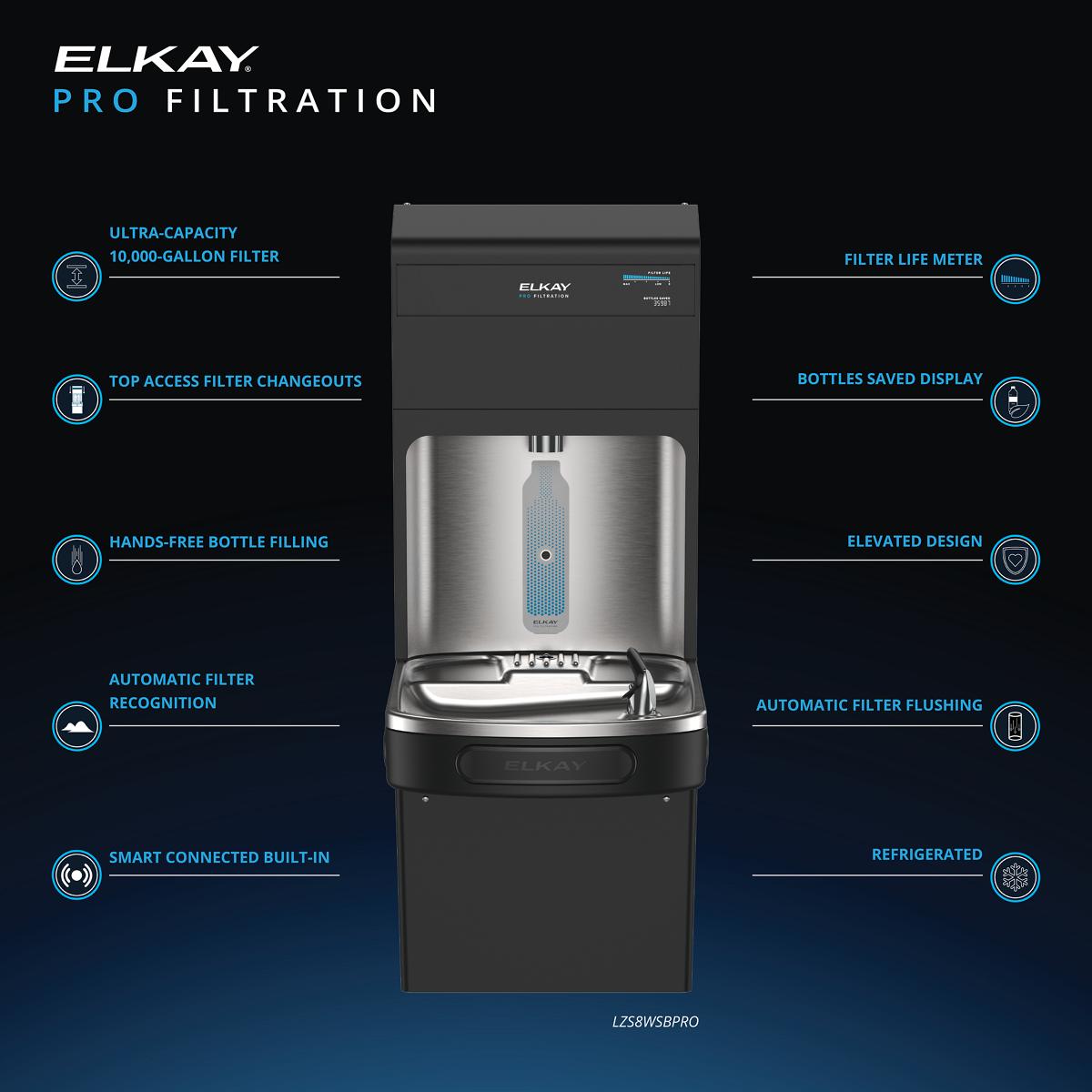

Features & Benefits:
- Advanced Filtration Technology: Certified to reduce lead, microplastics, chlorine taste & odor, cysts, and PFAS (depending on filter variant)

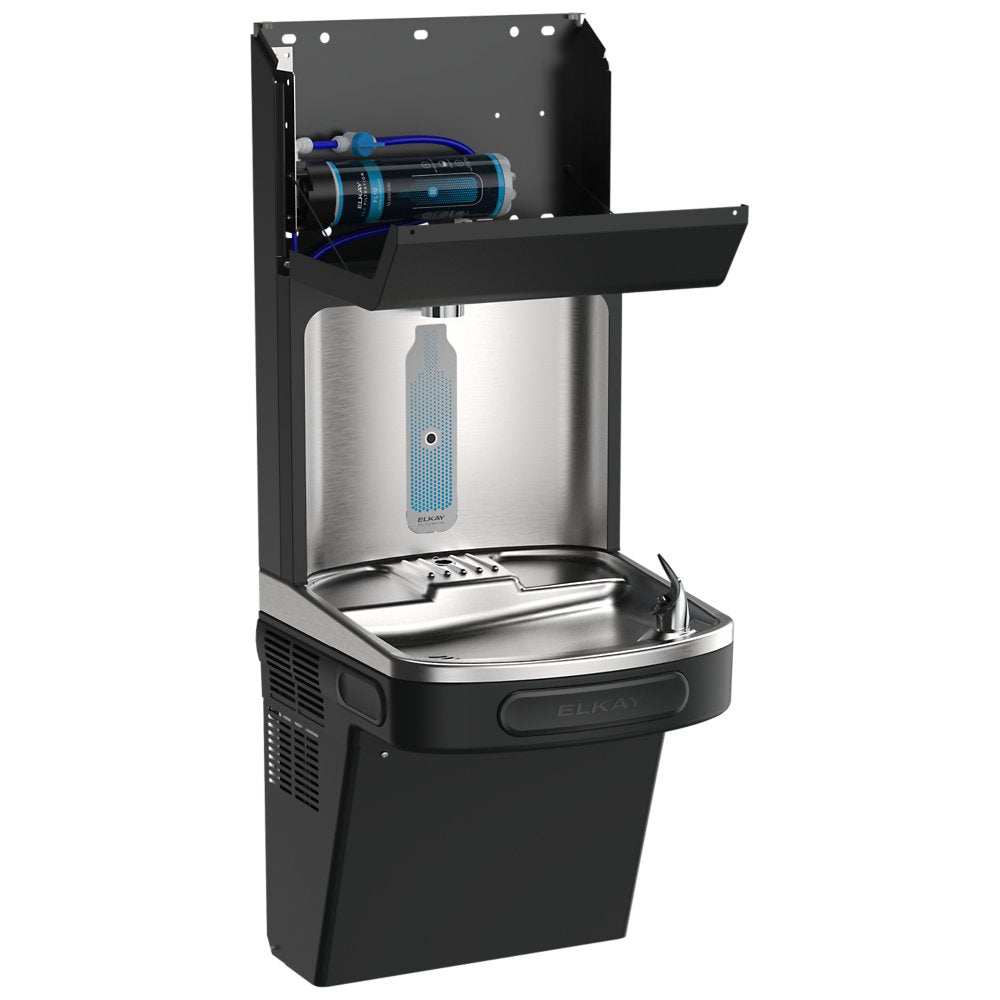

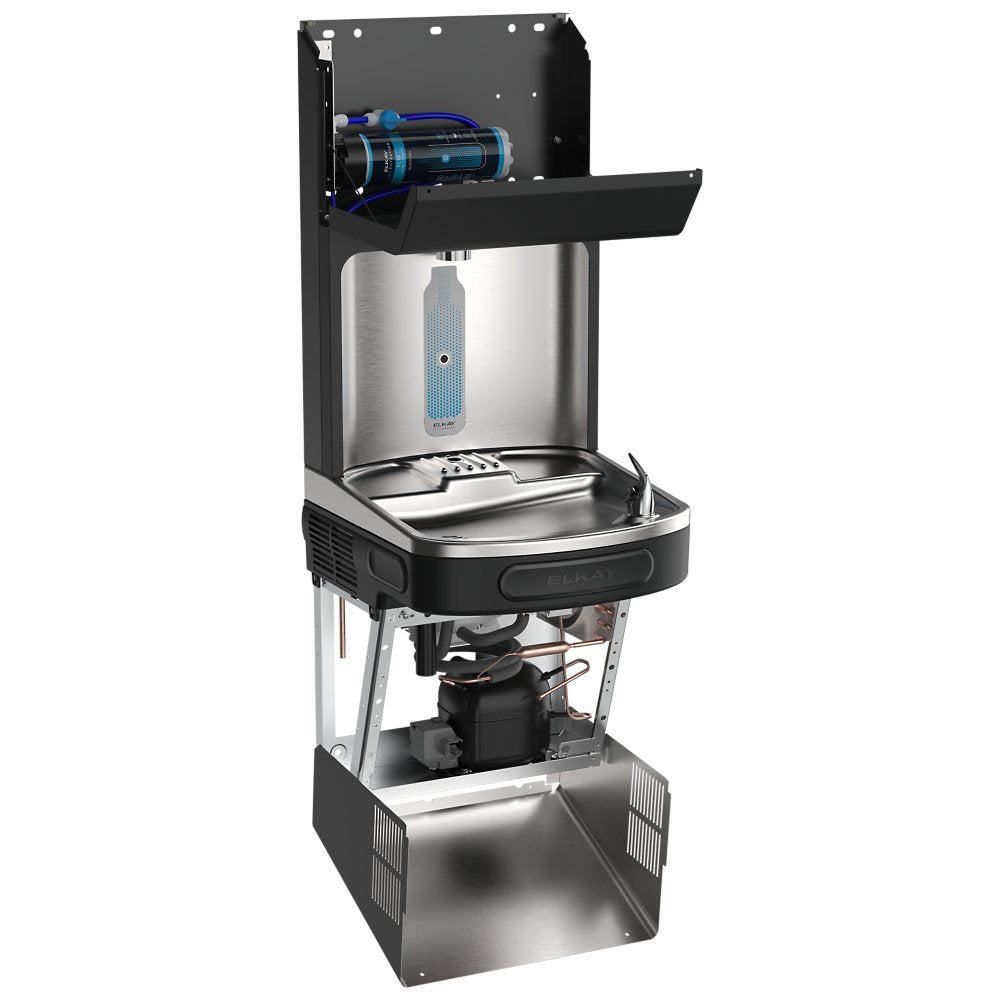

- Smart Maintenance System: Automatic filter recognition/reset, top-mount quick filter access, and LED indicators simplify service
- Touchless Hygiene: Sensor-activated bottle filling with laminar flow for splash-free, hands-free operation
- Sustainable Impact: Green Ticker™ displays plastic bottles saved, encouraging sustainable hydration practices
FAQ
Q: How often does the filter need to be replaced?
A: Depends on the filter option. For example, the Ultra-Capacity filter lasts up to 10,000 gallons. The LED filter life gauge shows remaining capacity, and the system alerts when replacement is needed.
Q: What contaminants does the filtration system remove?
A: Certified to NSF/ANSI 42, 53, and 401 standards to reduce lead, chlorine taste & odor, cysts, microplastics, and PFAS (with FLP4 variants).
Q: Can this unit connect to building management systems for remote monitoring?
A: Yes. Compatible with the Zurn Gateway (ZGW-LORA-W1-LTE) for remote monitoring, performance tracking, and maintenance alerts.
Q: Are multiple filter options available?
A: Yes. Options include Ultra-Capacity 10,000-gallon filters, PFAS + Lead 4,000-gallon filters, dual filter configurations, sediment prefilters, and UV protection.
Q: What accessories are recommended?
A: Compatible accessories include the MLP100 In-Wall Carrier for secure installation support.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

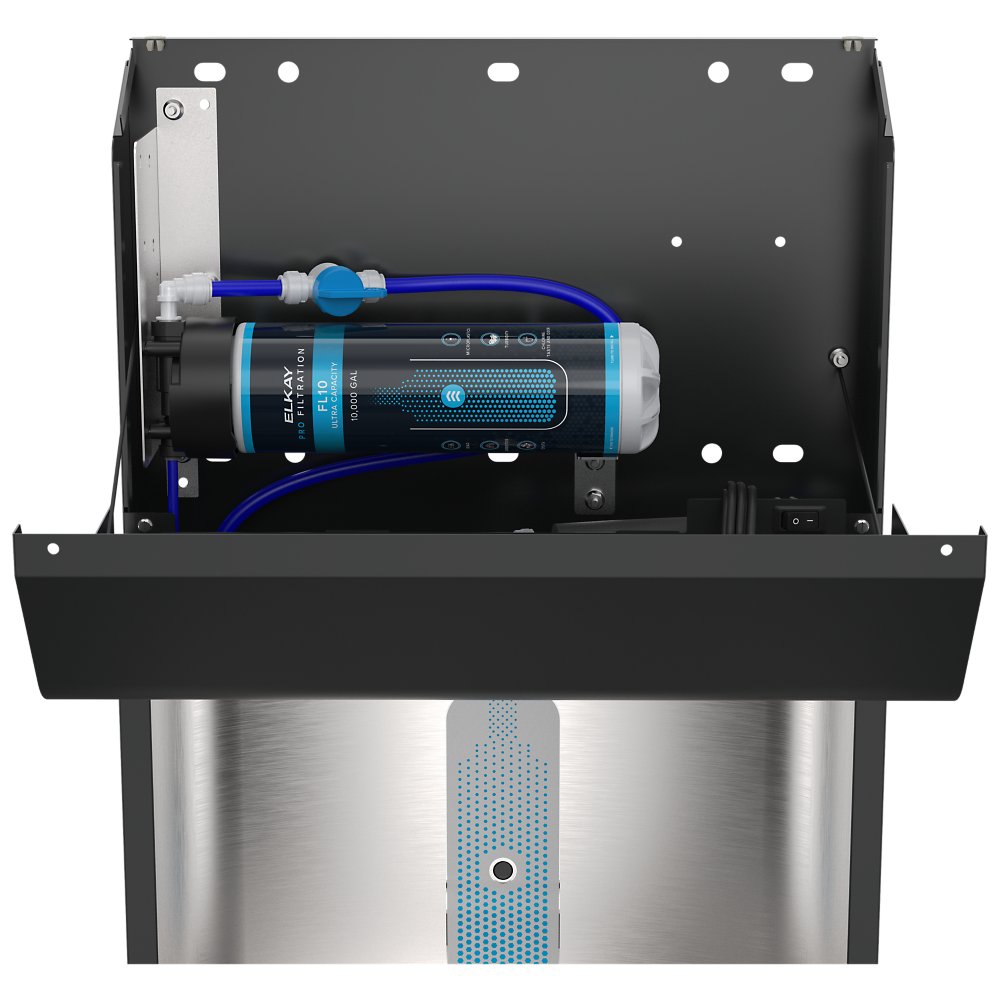

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
