Elkay LVRCTL8WSPRO | Pro Filtration Bi-Level Bottle Filler & Co...
Notice: This product will be coming soon

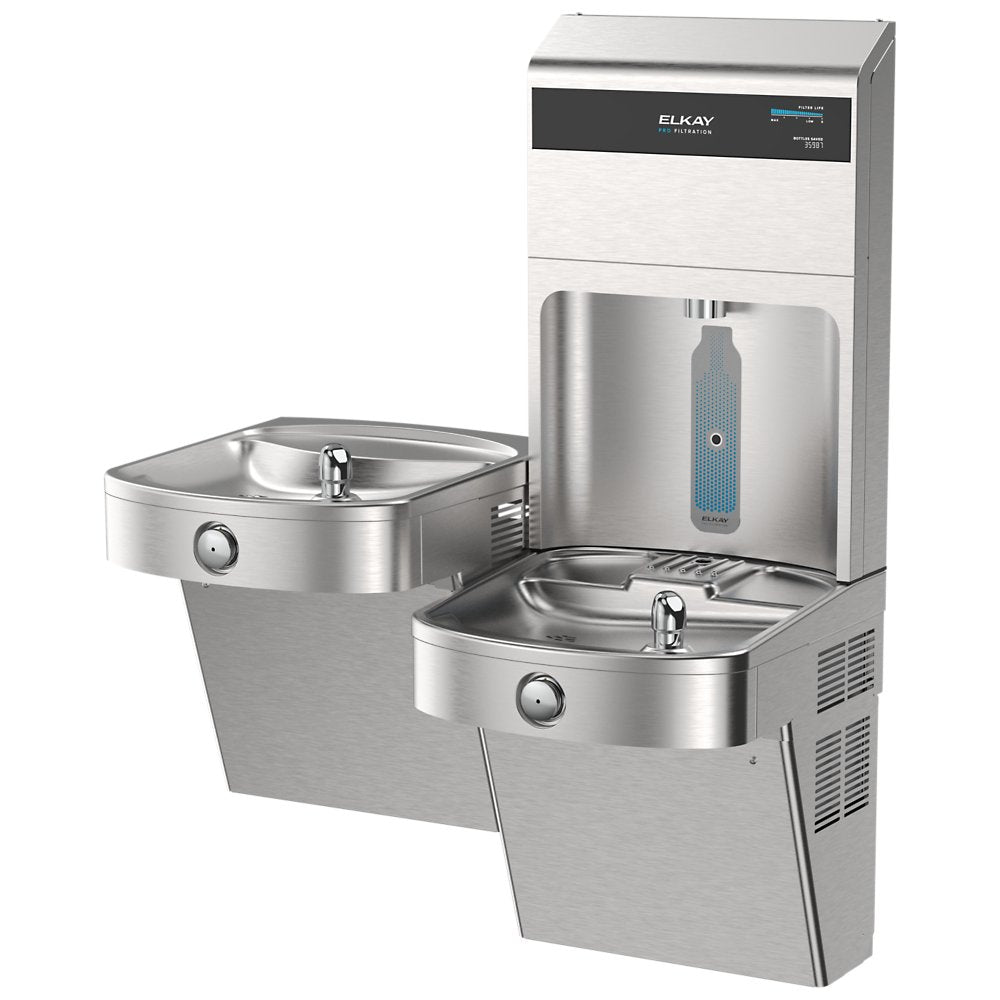

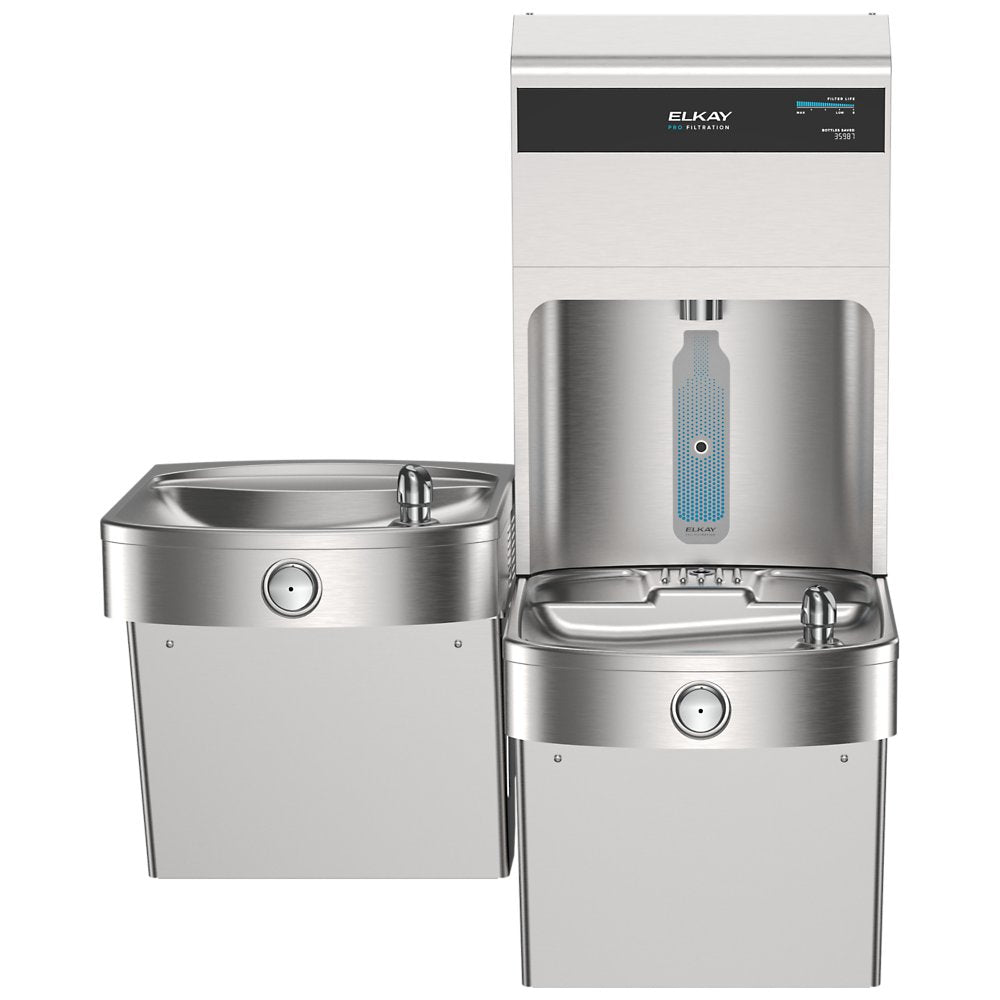

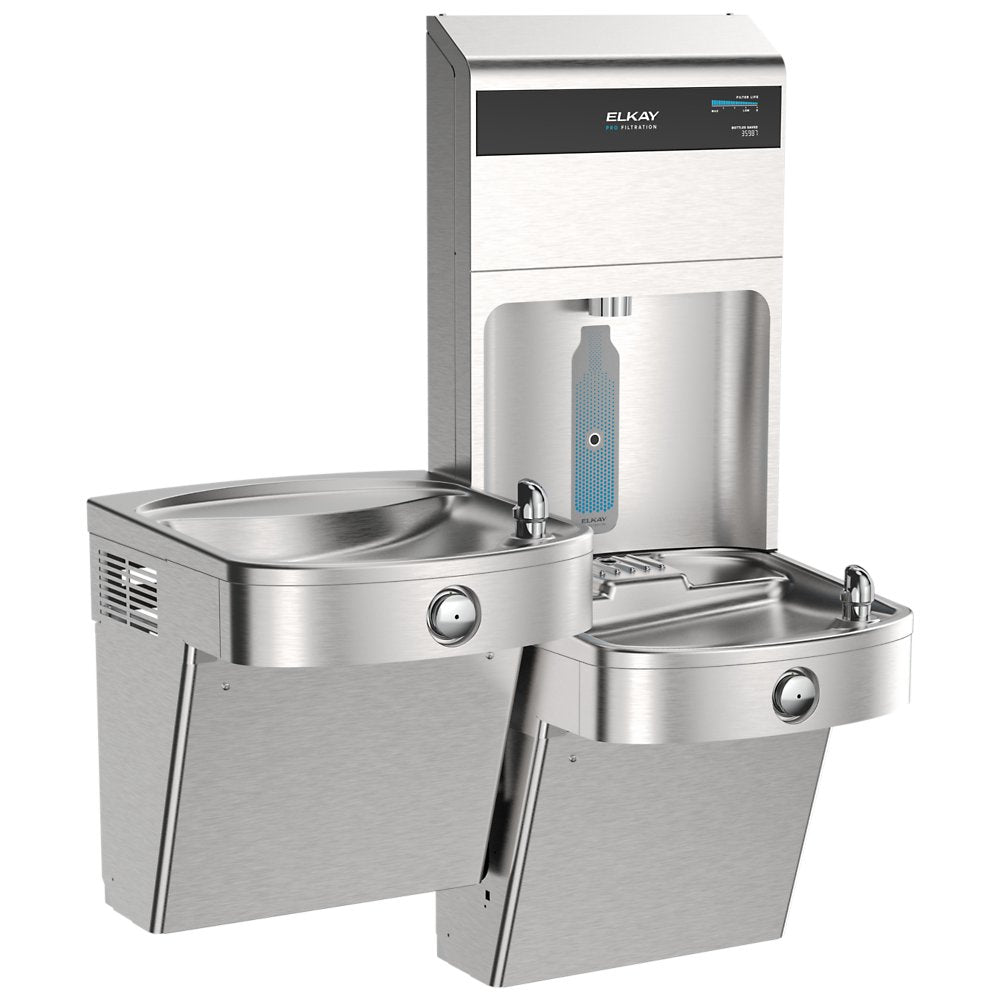

The Elkay LVRCTL8WSPRO is a vandal-resistant, cloud-connected bottle filling station with bi-level water cooler, 8.0 GPH chilling capacity, and ultra-capacity filtration for high-traffic areas.
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Chlorine Taste & Odor, Cysts, Sediment
- Filter Capacity: 10,000 Gal. Ultra-Capacity
- Refrigeration: 8.0 GPH Water Chiller Included
- Power: 115V/60Hz
Other Related Variants:

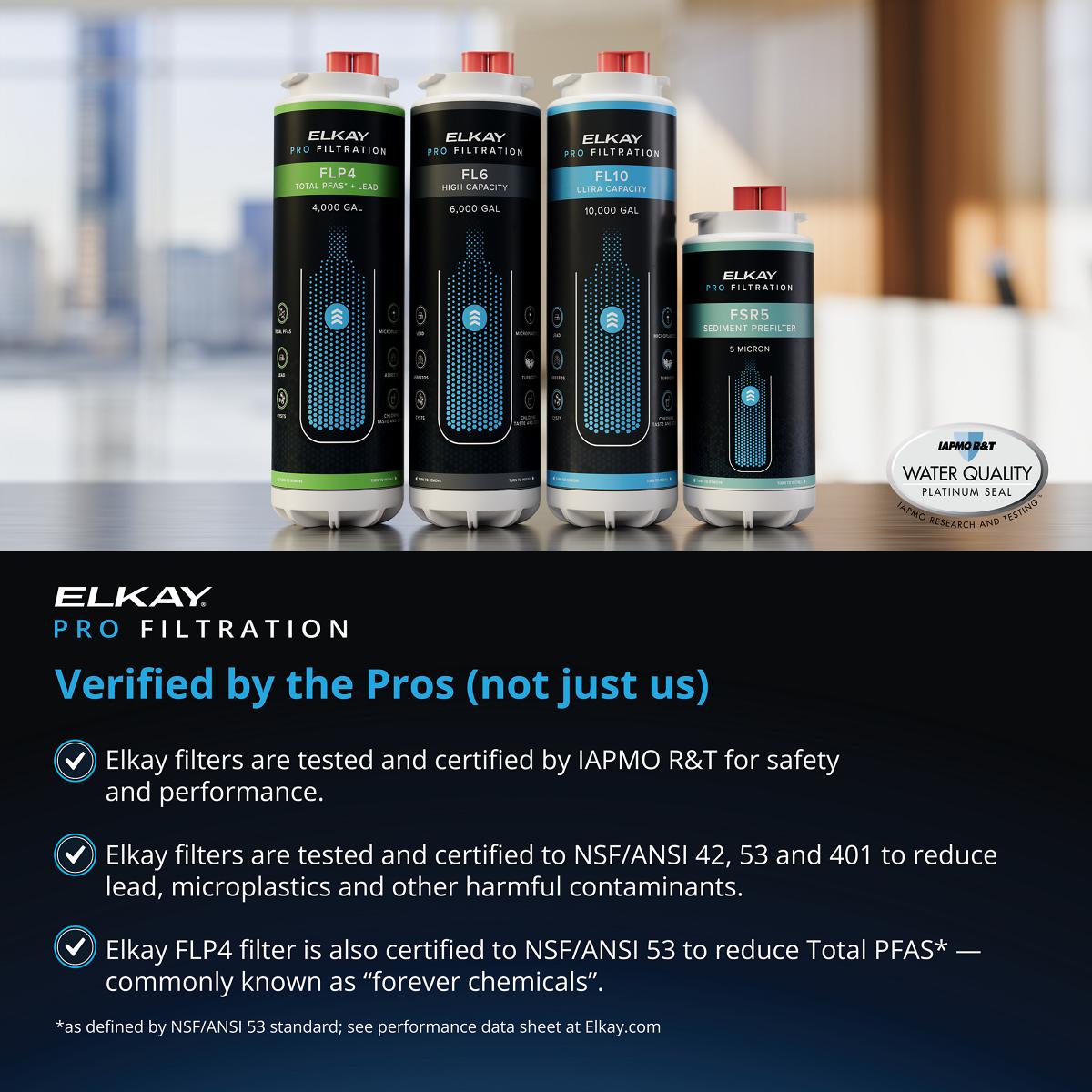

- LVRCTL8WSPRO-2FL10: Dual 10,000-gallon filters for extended capacity
- LVRCTL8WSPRO-FLP4: Single PFAS + Lead filter (4,000-gallon capacity)
- LVRCTL8WSPRO-2FLP4: Dual PFAS + Lead filters for enhanced PFAS reduction
- LVRCTL8WSPRO-FSR5: Two-stage filtration with sediment prefilter
-
LVRCTL8WSPRO-UV: UV protection with filtration for additional disinfection

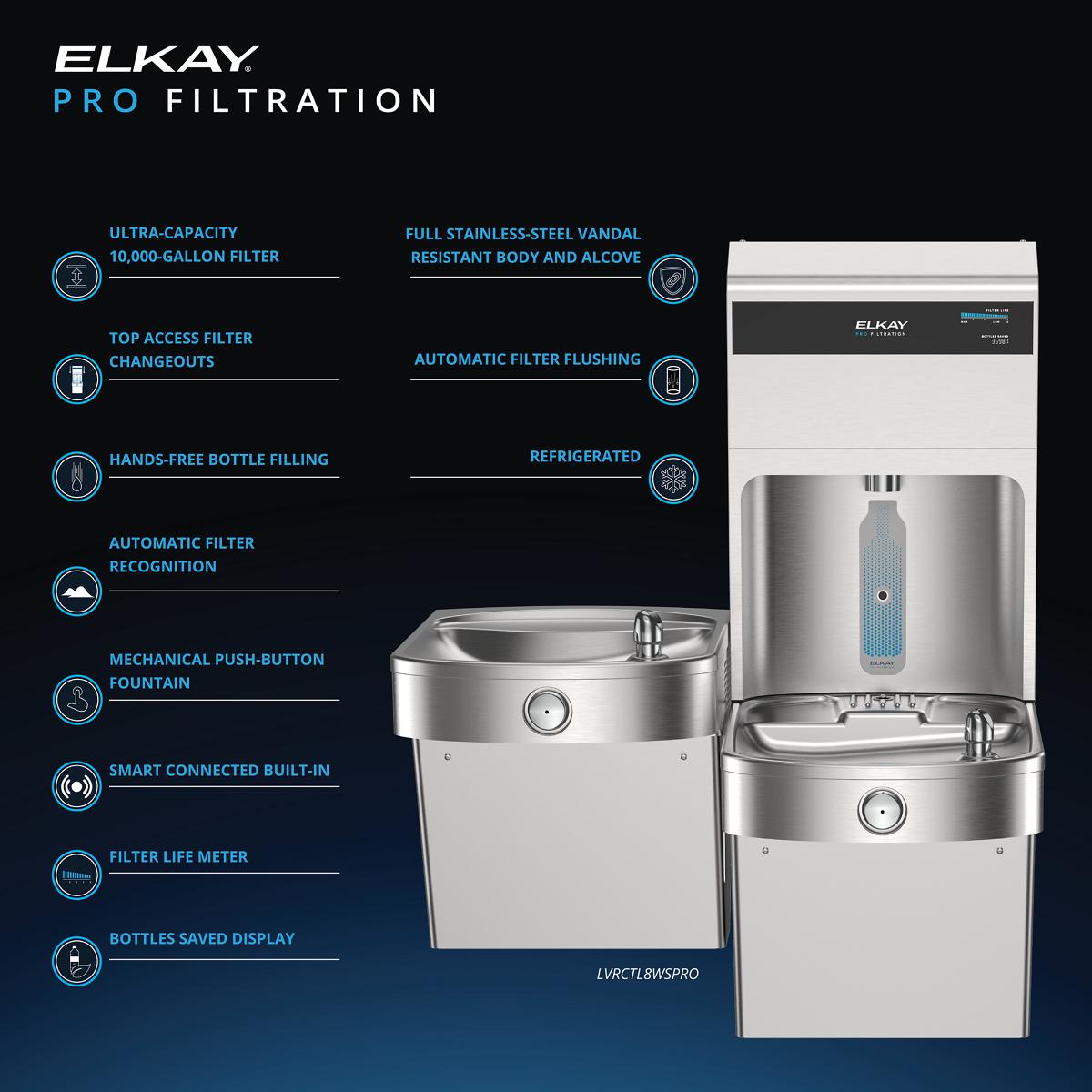

Features & Benefits:
- Smart Remote Monitoring: Cloud-connected technology allows facility managers to track filter status, monitor performance, and flush the system remotely, saving time and maintenance resources.
- Environmental Impact Tracking: The Green Ticker™ display shows the number of 20-ounce plastic bottles saved from waste, promoting sustainability and encouraging eco-conscious hydration choices.

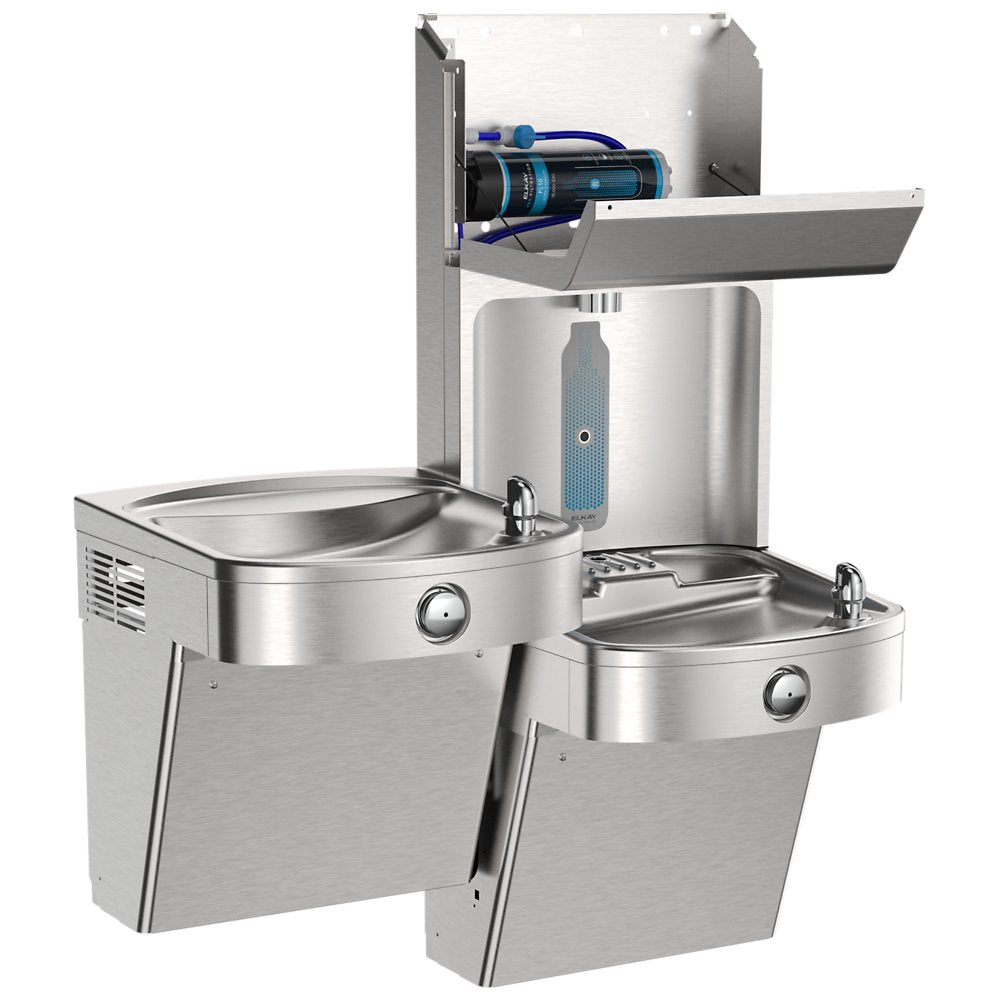

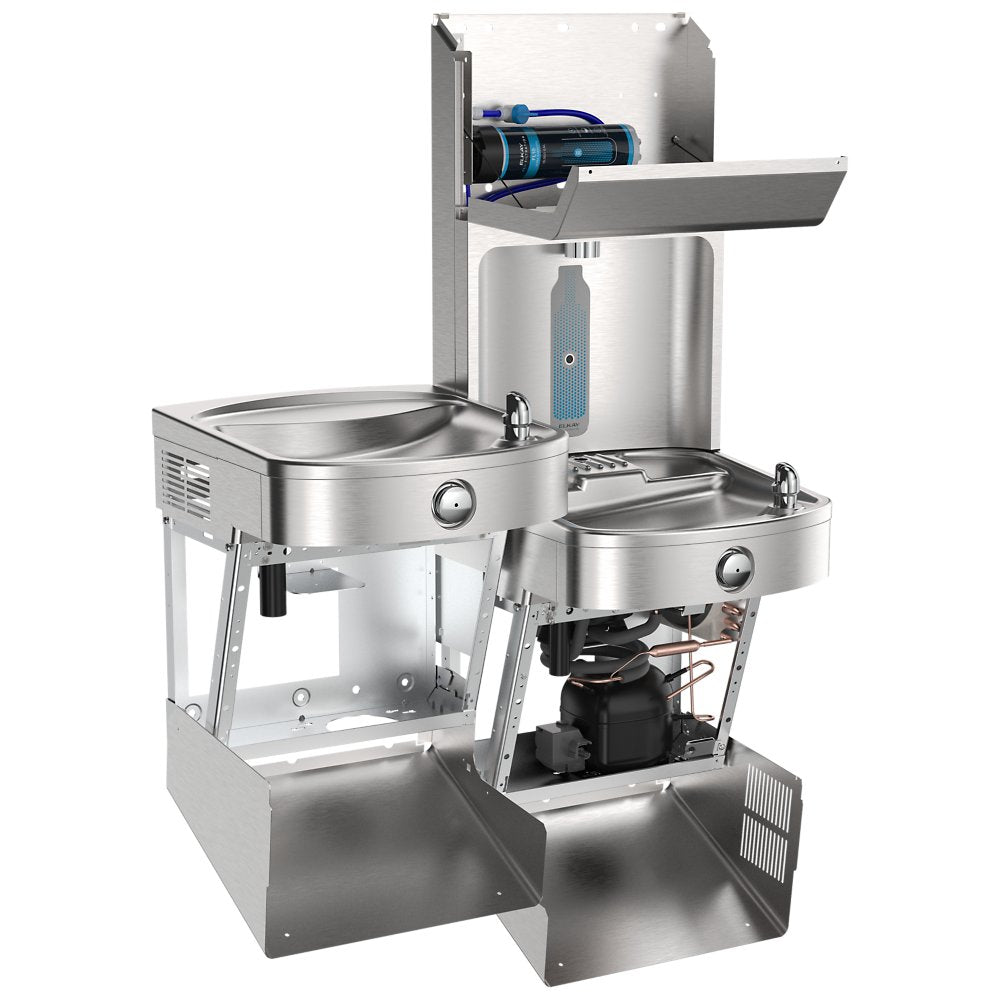

- Simplified Maintenance: Top-mount quick filter change system houses both stage 1 sediment prefilter and main contaminant filter at the unit's top for fast, efficient replacement without tools.
- Enhanced Durability: Vandal-resistant construction features stainless steel alcove, tempered glass display cover, and mechanical push button backup to withstand demanding high-traffic environments.
FAQ
Q: What contaminants does the Elkay LVRCTL8WSPRO filter remove?
A: The included ultra-capacity filter is NSF/ANSI 42, 53, and 401 certified to reduce lead, microplastics, cysts, chlorine taste and odor, and other contaminants for up to 10,000 gallons.
Q: Does the LVRCTL8WSPRO require a separate gateway for cloud connectivity?
A: Yes, cloud-connected features require a plumbSMART Gateway (sold separately) and an active account to access remote monitoring, filter tracking, and system flushing capabilities.
Q: How often do filters need to be replaced on this unit?
A: The ultra-capacity filter lasts up to 10,000 gallons. The visual filter monitor and automatic filter recognition system alert users when replacement is needed, with actual timing dependent on water quality and usage.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
