Elkay LVRCTL8WSPRO-UV | Pro Filtration Bi-Level Bottle Filler &...
Notice: This product will be coming soon

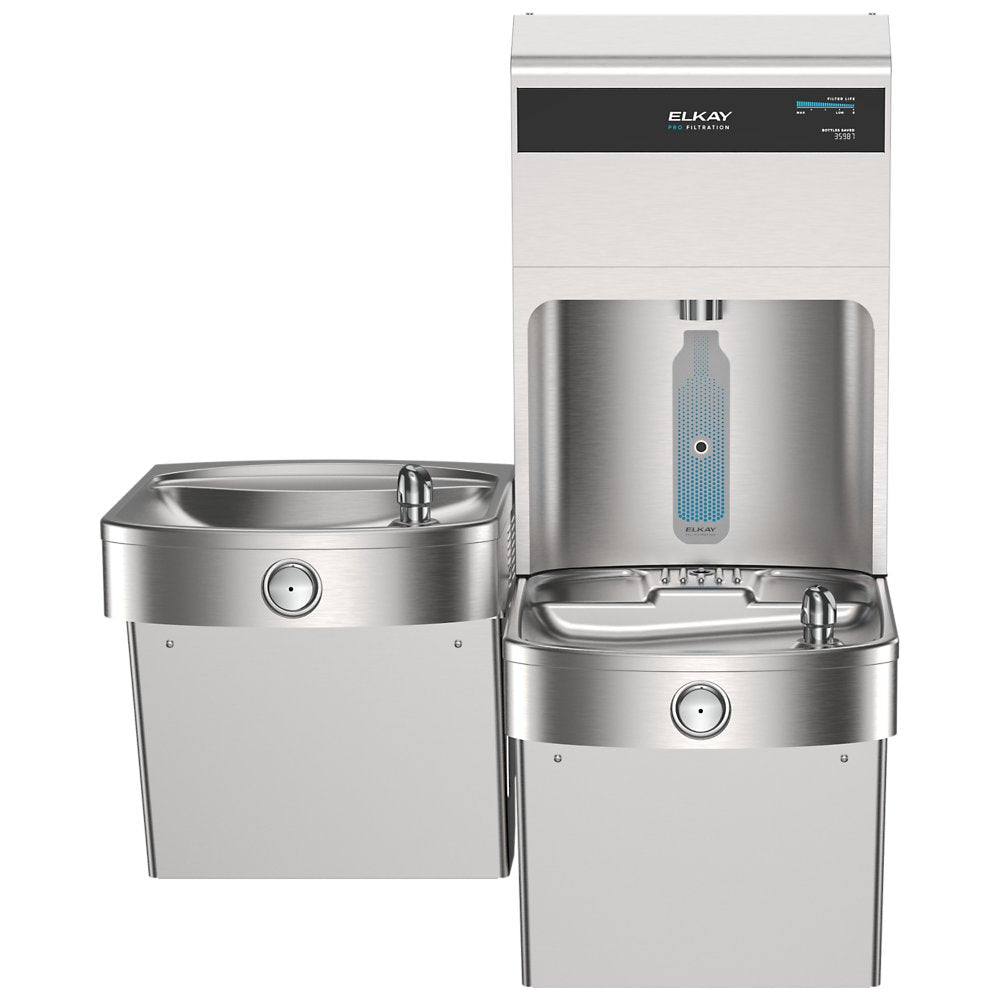

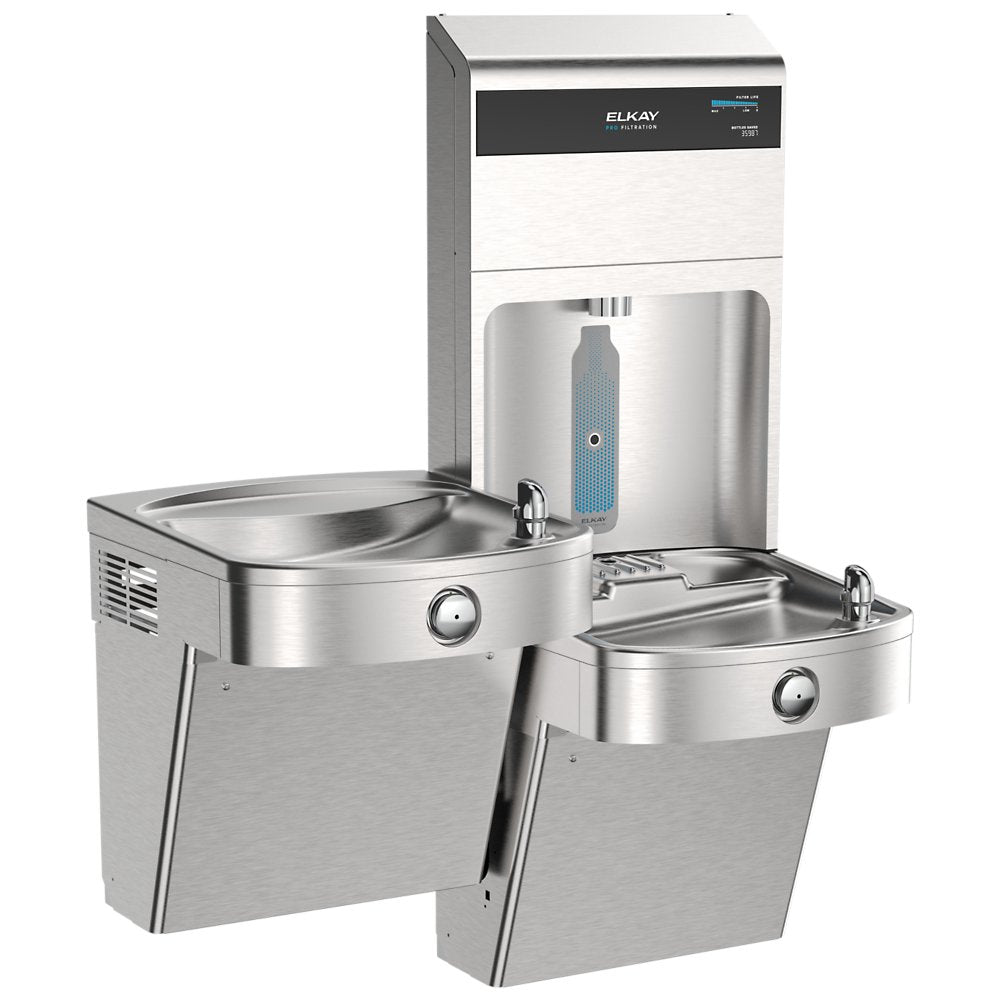

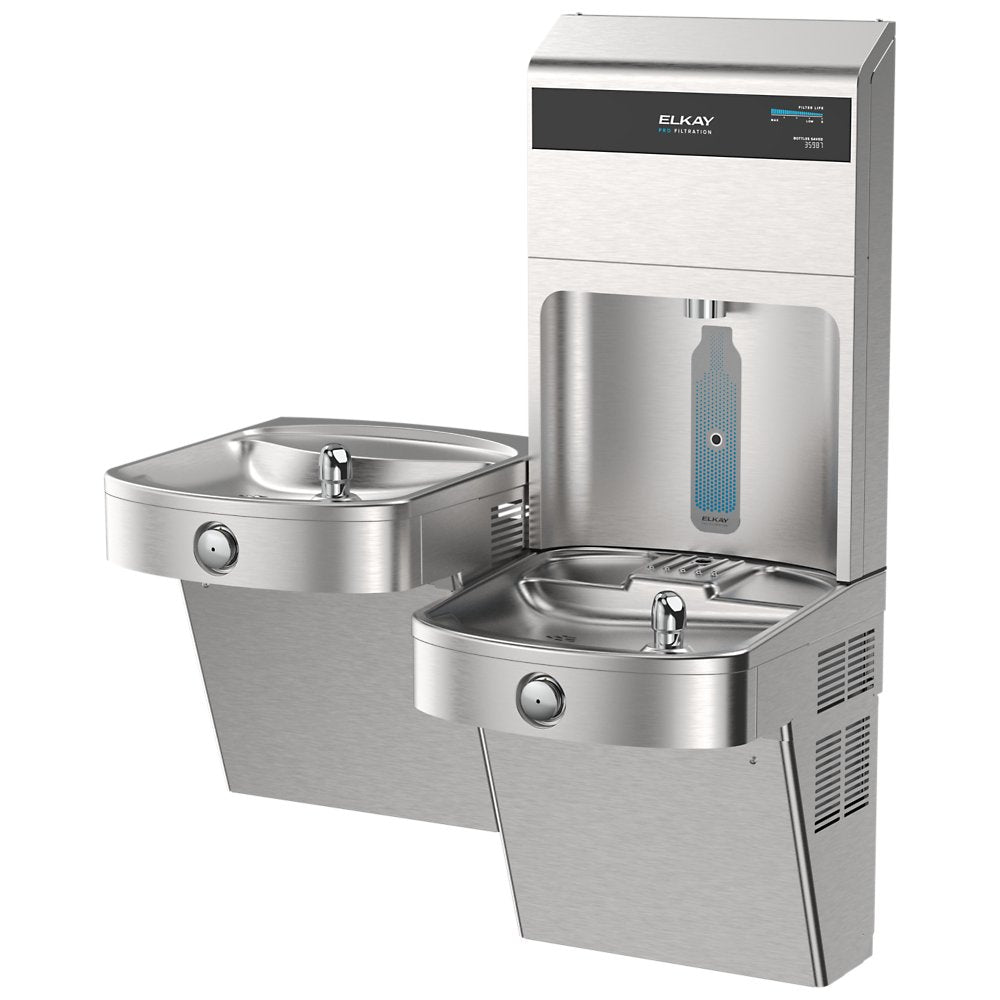

The Elkay LVRCTL8WSPRO-UV Series is a vandal-resistant, cloud-connected bottle filling station and bi-level refrigerated water cooler with UV protection.
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Chlorine Taste & Odor, Cysts
- Filter Capacity: 10,000 Gal. Ultra-Capacity Filter (NSF/ANSI 42, 53 & 401 certified)
- Refrigeration: 8.0 GPH Water Chiller Included
- Power: 115V/60Hz electrical connection required
Other Related Variants:
- LVRCTL8WSPRO: Standard model with Ultra-Capacity 10,000-gallon filter
- LVRCTL8WSPRO-2FL10: Dual 10,000-gallon filters for extended capacity
- LVRCTL8WSPRO-FLP4: Single PFAS + Lead filter (4,000-gallon capacity)
- LVRCTL8WSPRO-2FLP4: Dual PFAS + Lead filters for enhanced PFAS reduction
-
LVRCTL8WSPRO-FSR5: Two-stage filtration with sediment prefilter

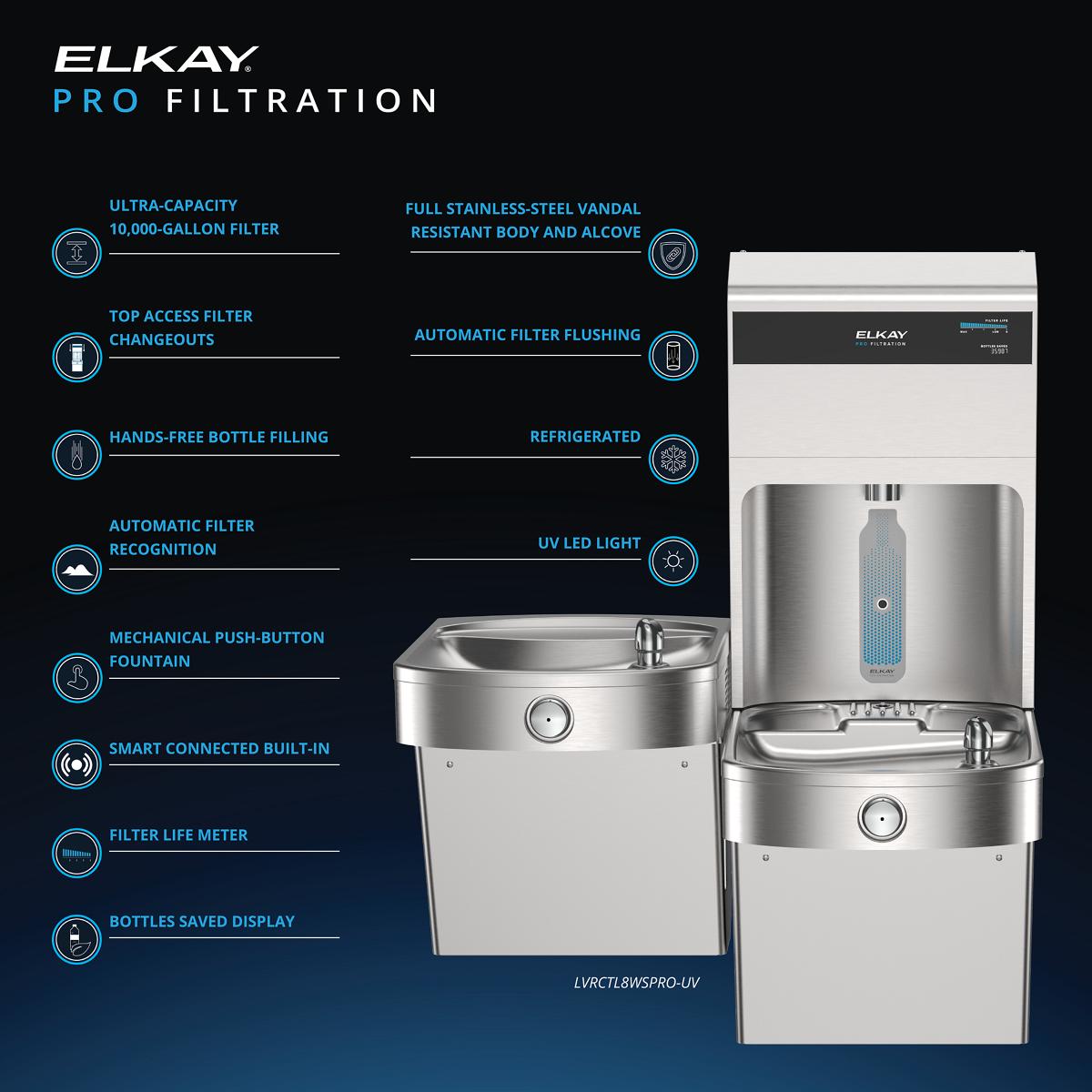

Features & Benefits:

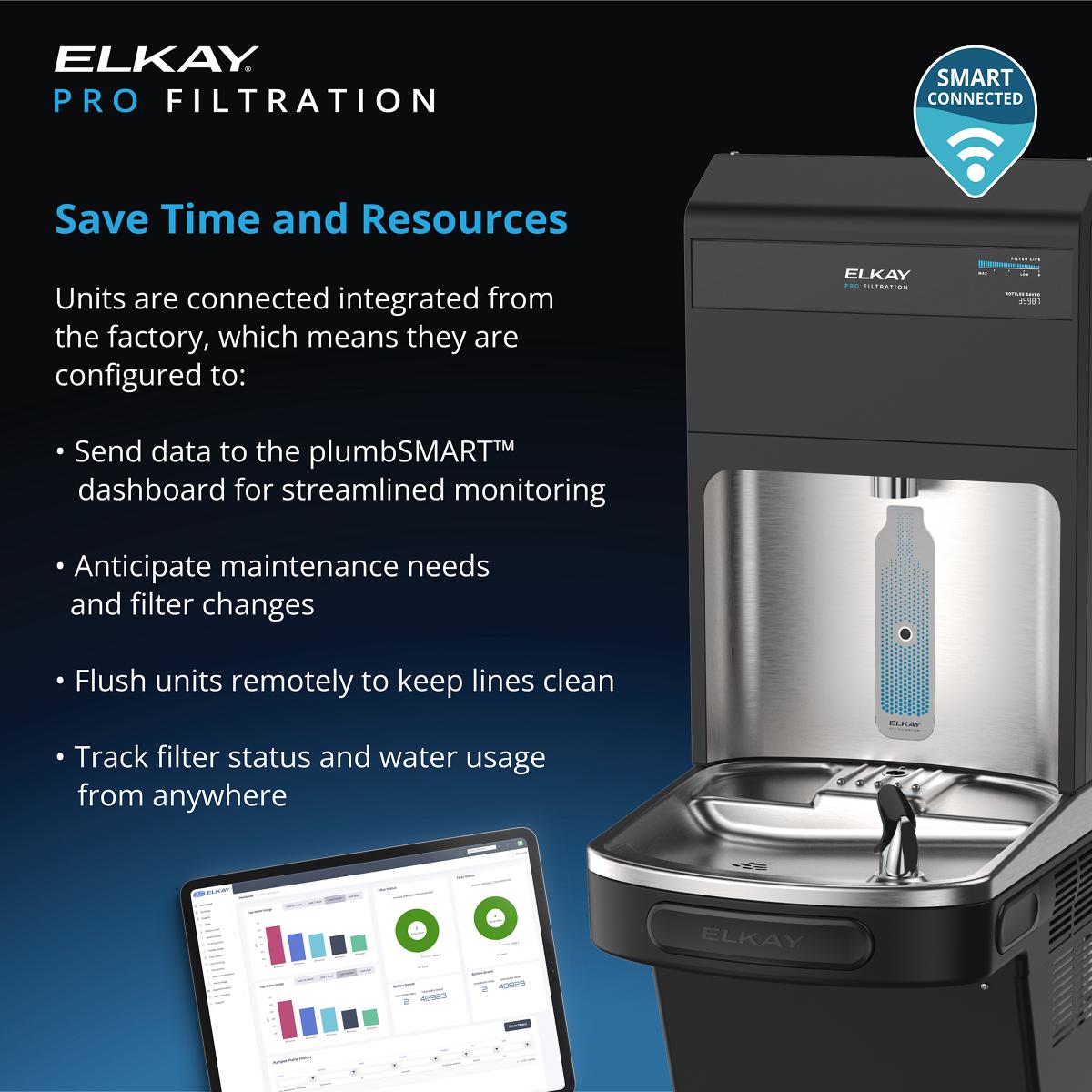

- Cloud-Connected Monitoring: The LVRCTL8WSPRO-UV Series features plumbSMART technology that enables remote monitoring of filter status, water usage, and performance metrics, allowing facility managers to anticipate maintenance needs and reduce downtime.
- Enhanced Water Safety: Combines advanced filtration certified to NSF/ANSI 42, 53 & 401 standards with UV protection, providing an additional layer of microbial defense for cleaner, safer drinking water in high-traffic environments.
- Reduced Plastic Waste: The integrated Green Ticker™ display tracks and shows the number of 20-ounce plastic bottles saved from landfills, promoting sustainability and encouraging environmentally conscious hydration habits.

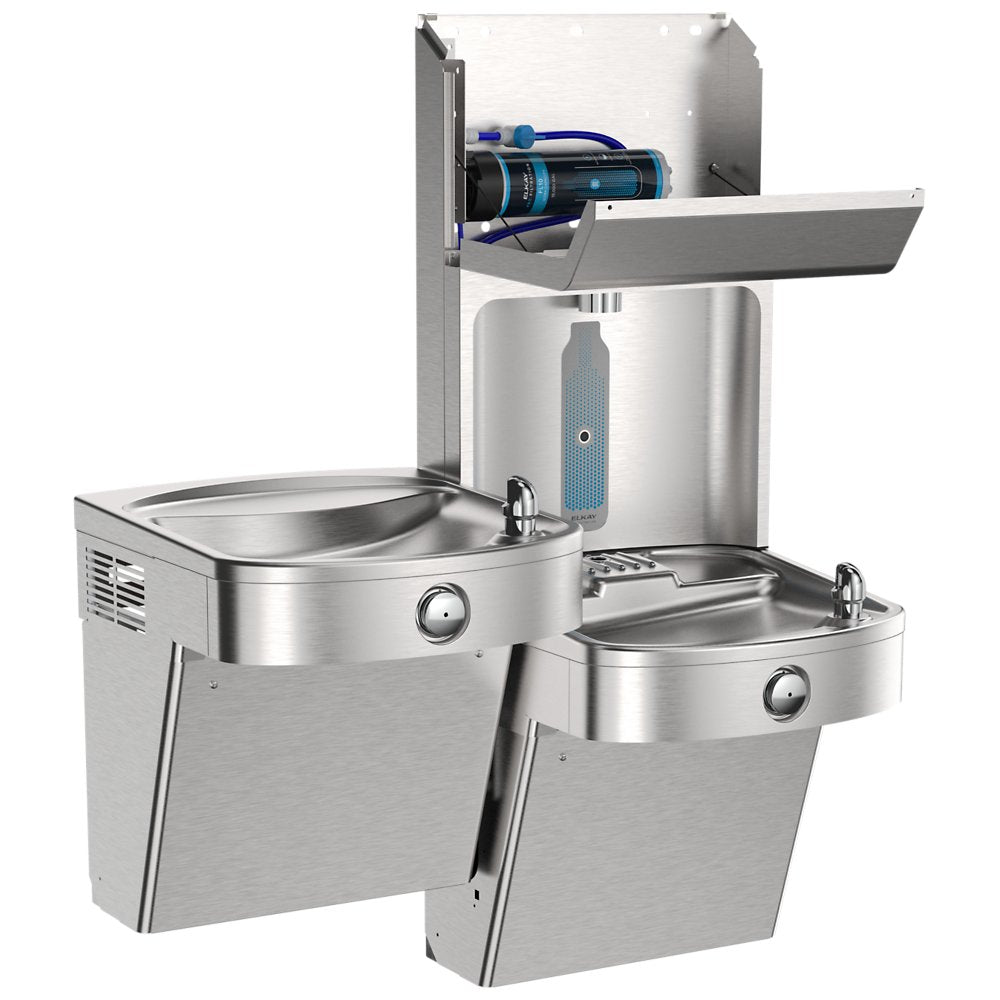

- Simplified Maintenance: Top-mount quick filter change design with automatic filter recognition and flushing capabilities streamline installation and replacement procedures, saving valuable maintenance time and labor costs.
FAQ
Q: What is required to enable the cloud-connected features on this unit?
A: The LVRCTL8WSPRO-UV Series requires a plumbSMART Gateway and account (sold separately, model ZGW-LORA-W1-LTE) to access cloud connectivity features for remote monitoring and system flushing.
Q: How often does the 10,000-gallon filter need to be replaced?
A: Filter replacement depends on water quality and usage volume. The visual filter monitor and connected technology track remaining capacity in real-time. At typical usage rates, the 10,000-gallon Ultra-Capacity Filter provides extended service life ideal for high-traffic facilities.
Q: Can this unit be installed in outdoor locations?
A: No, the LVRCTL8WSPRO-UV Series is designed for indoor installation only. The unit requires wall mounting with proper electrical and plumbing connections in climate-controlled environments.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

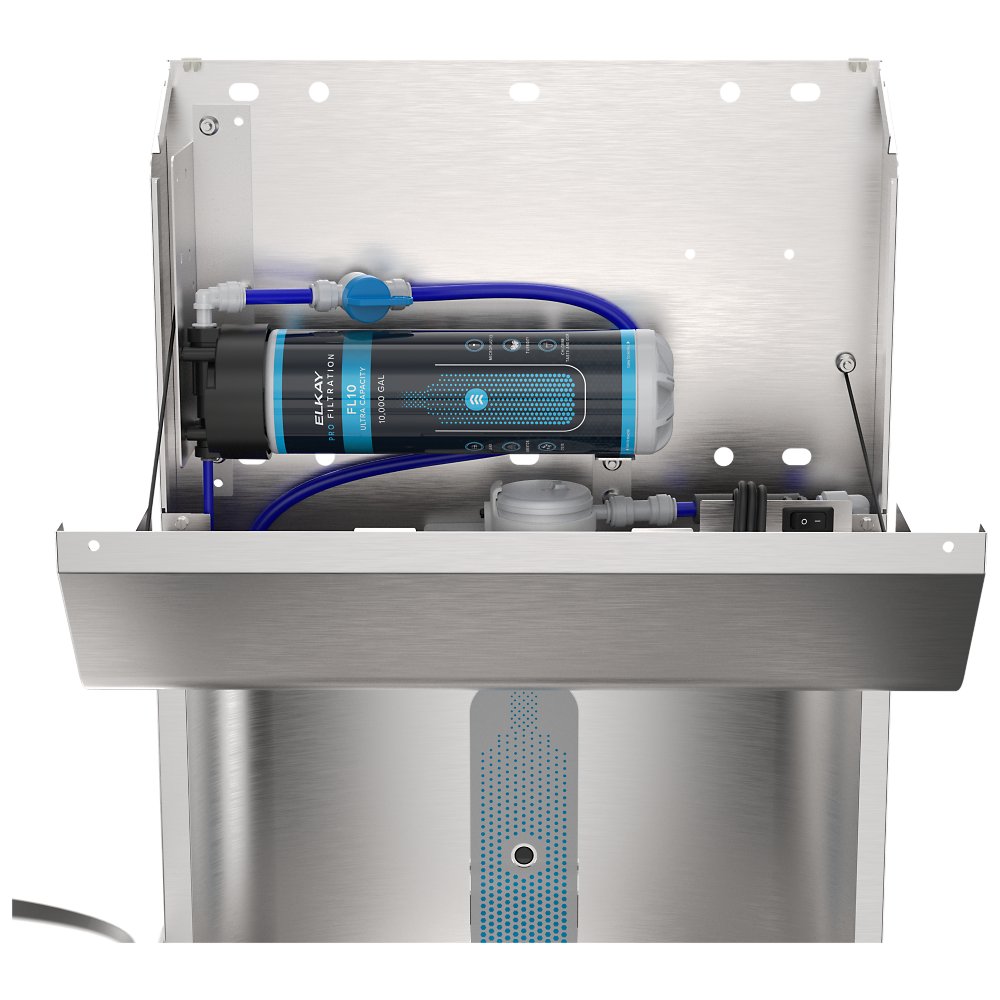

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
