Elkay LVRCTL8WSPRO-FLP4-UV | Pro Filtration VR Bottle Filling Stati...

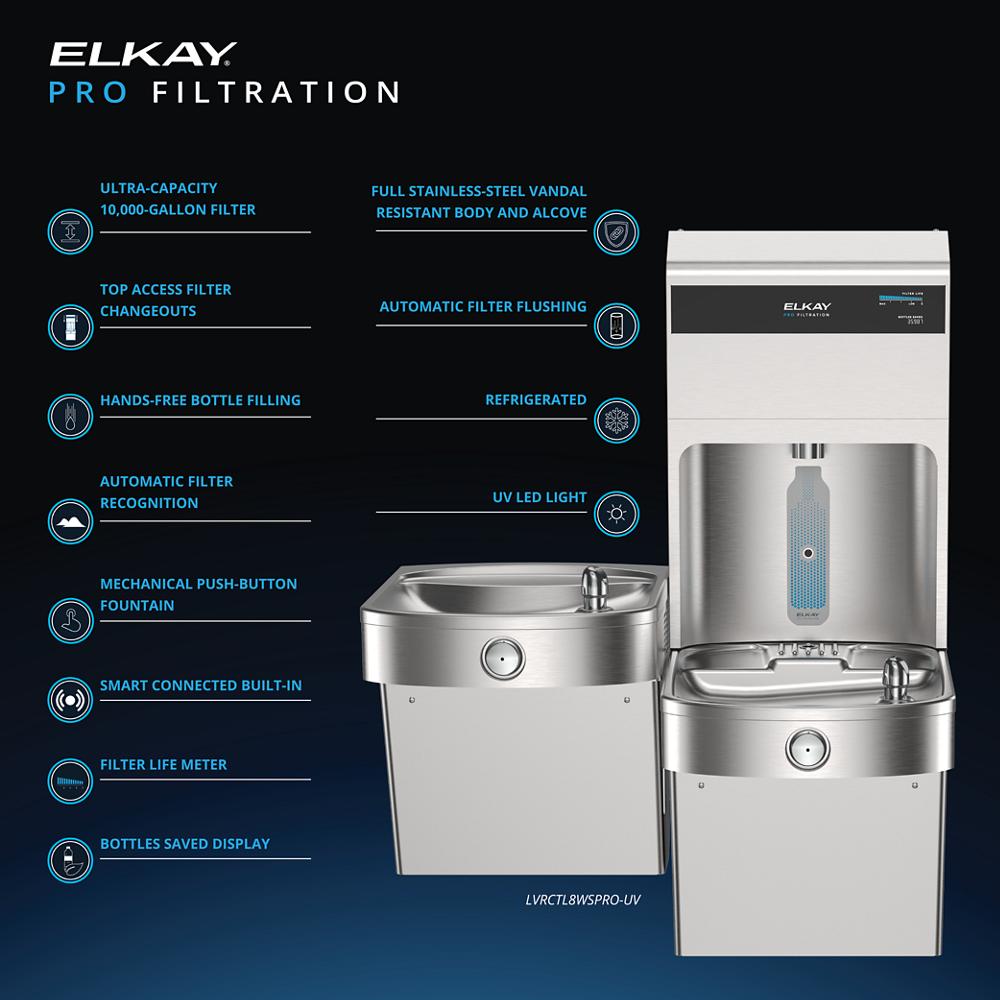

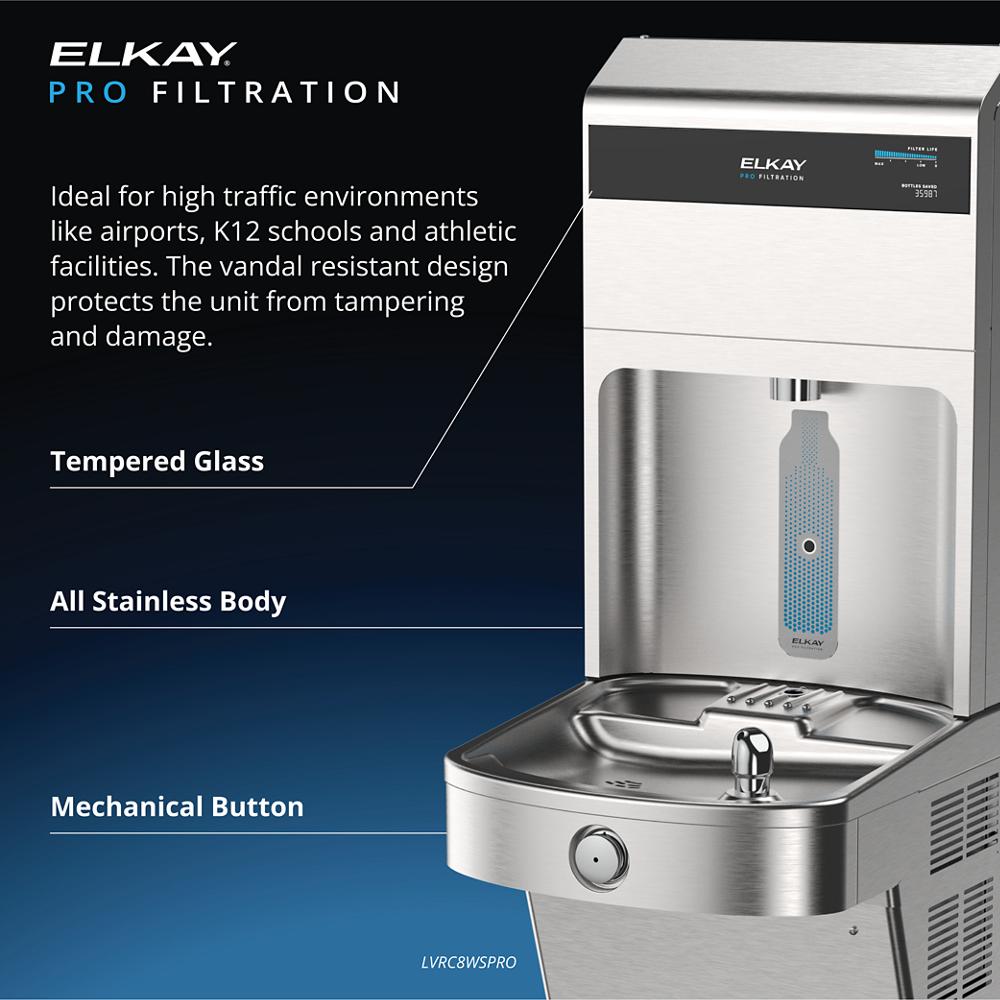

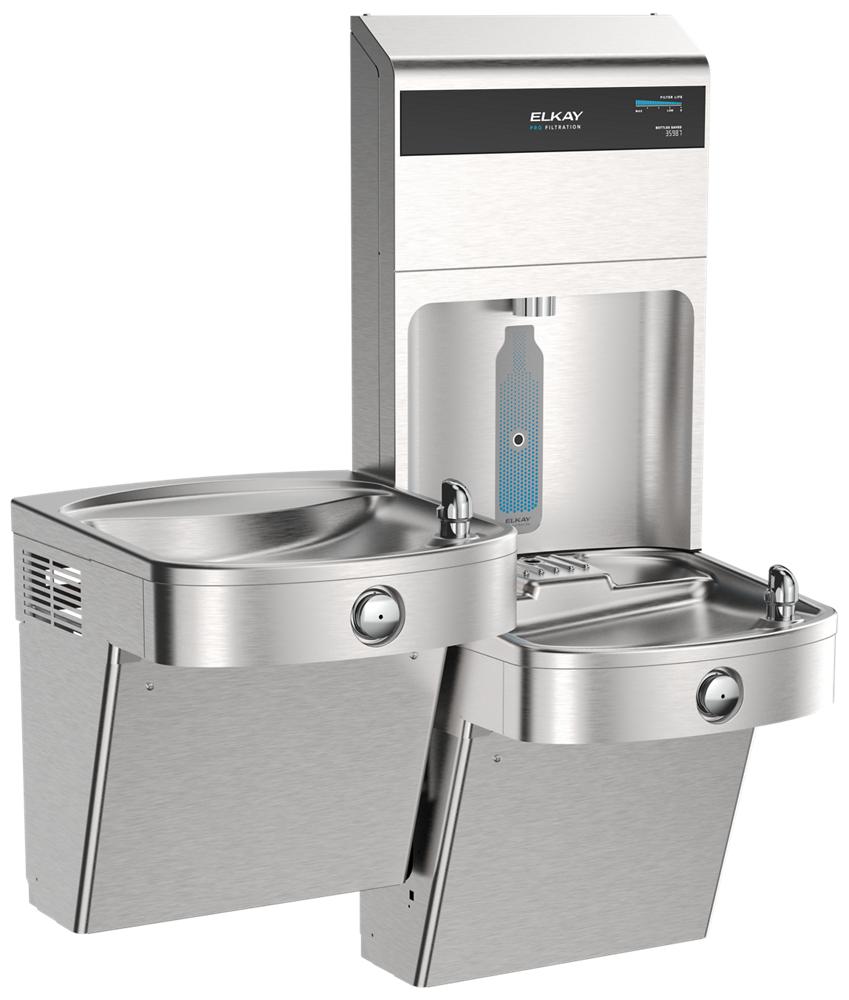

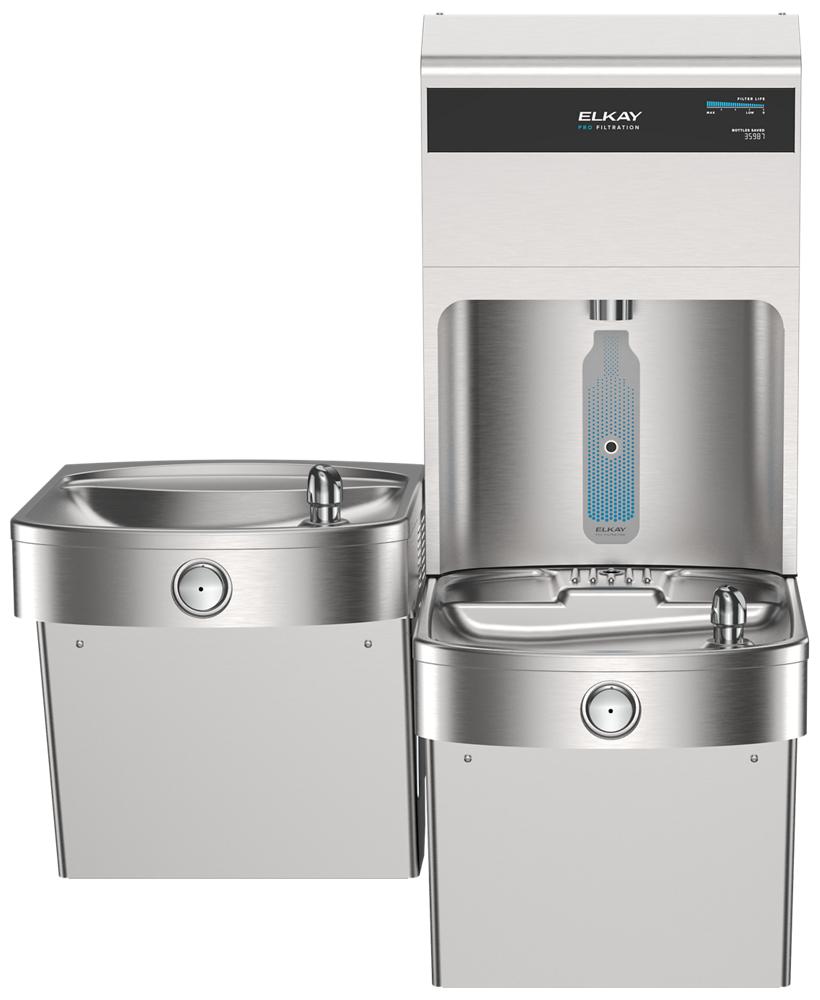

The Elkay LVRCTL8WSPRO-FLP4-UV is a vandal-resistant bi-level bottle filling station and water cooler with Total PFAS filtration and built-in UVC-LED purification.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Total PFAS, Lead, Microplastics, Cysts, Chlorine Taste & Odor

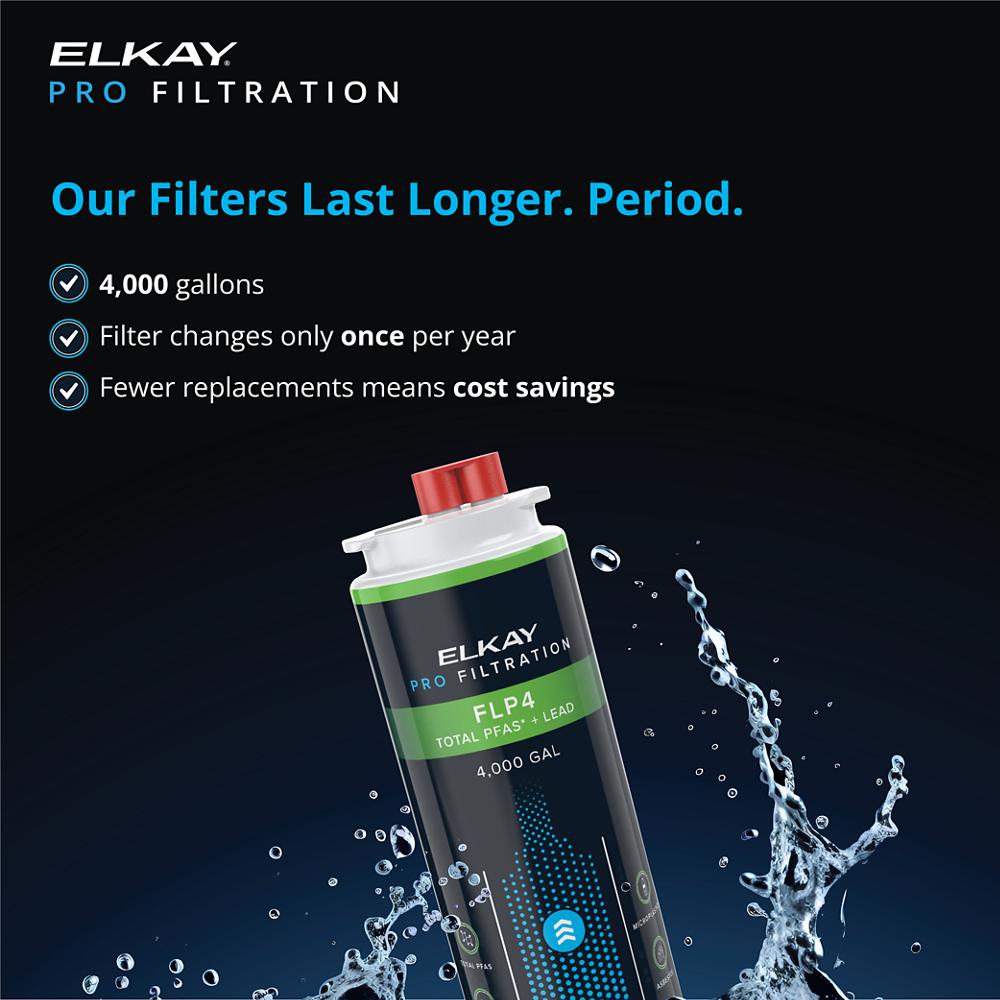

- Filter Capacity: 4,000 Gal. (FLP4 Total PFAS Filter Included)
- Refrigeration: Water Cooler Included
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Total PFAS + UV Purification: The Elkay LVRCTL8WSPRO-FLP4-UV combines a 4,000-gallon FLP4 filter certified to NSF/ANSI 42, 53 & 401 with a built-in UVC-LED at the dispense point, delivering an extra layer of purification for cleaner, safer drinking water.
- Smart Cloud Connectivity: Via plumbSMART, facility managers can remotely monitor filter status, receive maintenance alerts, and initiate unit flushing — reducing downtime and keeping the unit operating at peak performance.
- Top-Mount Quick Filter Change: Filters are accessible from the top of the unit, allowing fast, minimal-disruption replacements without taking the station out of service for extended periods.
- Sustainability Tracking: The blue LCD interactive display shows real-time remaining filter capacity and the number of 20 oz. bottles saved, helping organizations demonstrate their environmental commitment and reduce single-use plastic waste.
FAQ
Q: What contaminants does the Elkay LVRCTL8WSPRO-FLP4-UV filter remove?
A: The included FLP4 filter is certified to NSF/ANSI 42, 53 & 401 and is designed to reduce Total PFAS (as defined by NSF/ANSI 53), lead, microplastics, cysts, chlorine taste and odor, and more. The built-in UVC-LED at the dispense point provides additional purification.
Q: Is an internet gateway required for the smart features to work?
A: Yes. Cloud connectivity features — including remote filter status tracking, maintenance alerts, and unit flushing — require a plumbSMART Gateway and an active plumbSMART account, sold separately (ZGW-LORA-W1-LTE).
Q: Can the bottle filler be installed on the left side of the unit?
A: Yes, however the VERSATILEPRO cable extension accessory is required to reposition the bottle filler to the left side. This accessory is available separately.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

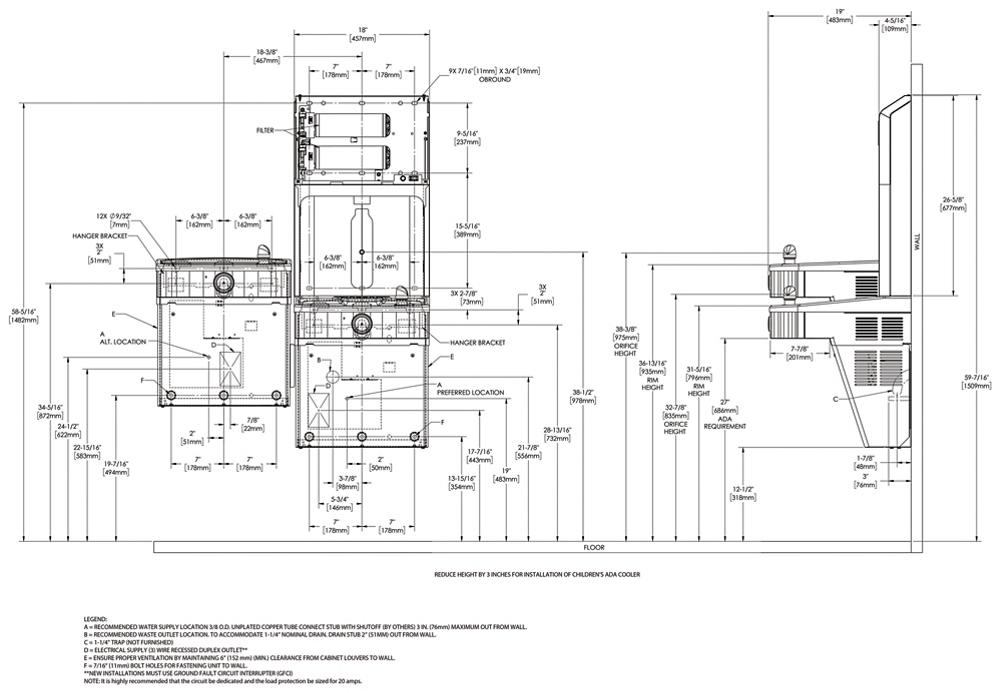

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
