Elkay LVRCTL8WSPRO-FLP4-FSR5 | Pro Filtration VR Bottle Filling Sta...

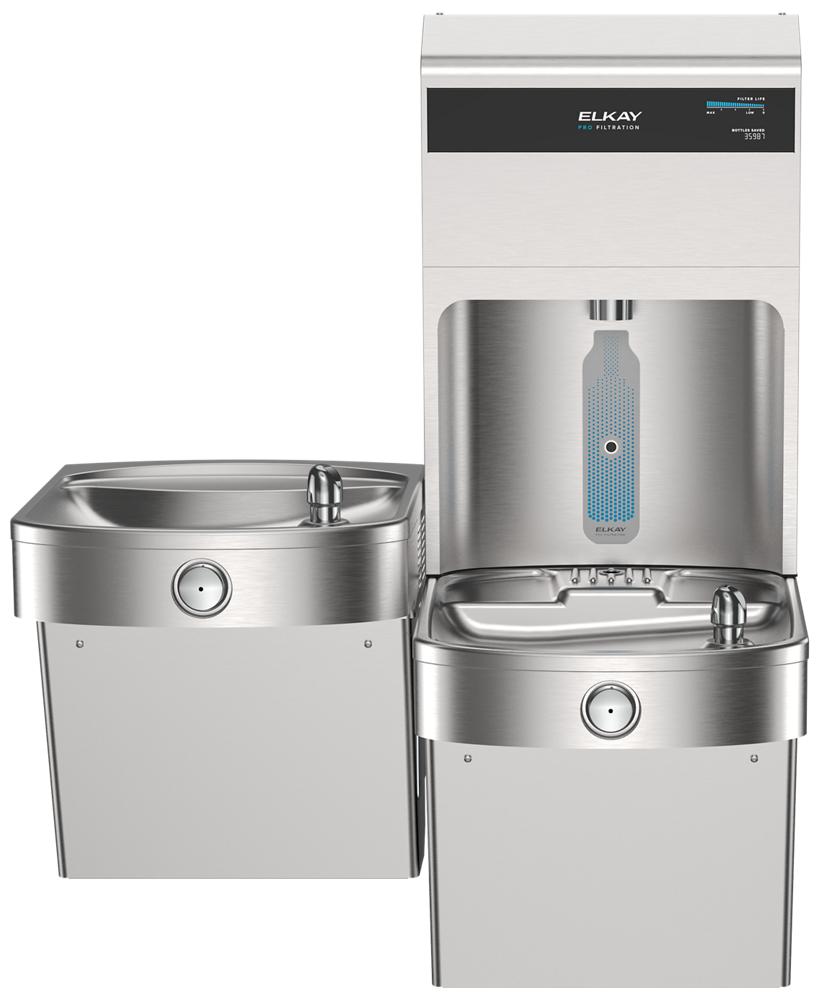

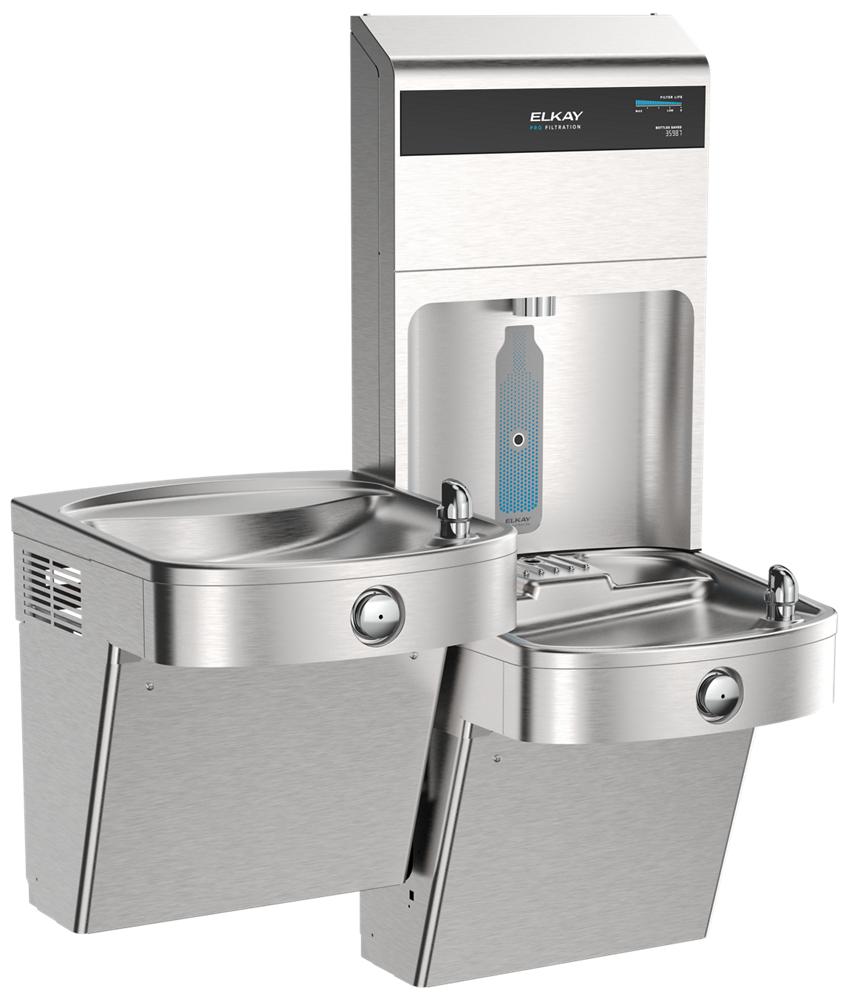

The Elkay LVRCTL8WSPRO-FLP4-FSR5 is a wall-mount bi-level bottle filling station and water cooler with Total PFAS filtration, hands-free sensor, and cloud connectivity.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Total PFAS, Lead, Microplastics, Cysts, Asbestos, Turbidity, Chlorine, Taste & Odor
- Filter Capacity: 4,000 Gal. (FLP4) + Sediment Prefilter (FSR5)
- Refrigeration: Included
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Total PFAS & Advanced Contaminant Reduction: The LVRCTL8WSPRO-FLP4-FSR5 is certified to NSF/ANSI 42, 53 & 401, reducing Total PFAS, lead, microplastics, cysts, asbestos, turbidity, and chlorine taste & odor for cleaner, safer drinking water.
- Smart Cloud Connectivity via plumbSMART: Remotely track filter status, receive maintenance alerts, and monitor bottle savings through the plumbSMART platform — reducing unplanned downtime and keeping facilities proactive (Gateway & Account required).
- Top-Access Quick Filter Replacement: Filters are replaced in seconds from the top of the unit, minimizing maintenance disruption and keeping the station operational with minimal effort.
- Sustainable Hydration Tracking: The blue LCD interactive display shows remaining filter capacity and 20oz bottles saved, helping users and facility managers visualize the environmental impact of choosing tap over single-use plastic.
FAQ
Q: What filtration is included with the Elkay LVRCTL8WSPRO-FLP4-FSR5, and what contaminants does it reduce?
A: It includes the FLP4 Total PFAS Filter (4,000 Gal.) and FSR5 Sediment Prefilter. The system is certified to NSF/ANSI 42, 53 & 401, reducing Total PFAS, lead, microplastics, cysts, asbestos, turbidity, chlorine, and taste & odor.
Q: Is cloud connectivity available out of the box?
A: The LVRCTL8WSPRO-FLP4-FSR5 is cloud-connected via plumbSMART; however, a separate plumbSMART Gateway and Account are required to enable remote filter status tracking and maintenance alerts.
Q: Can the bottle filler be repositioned to the left side?
A: Yes, the bottle filler can be moved to the left side, but the VERSATILEPRO accessory (cable extension kit) is required to do so and is sold separately.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

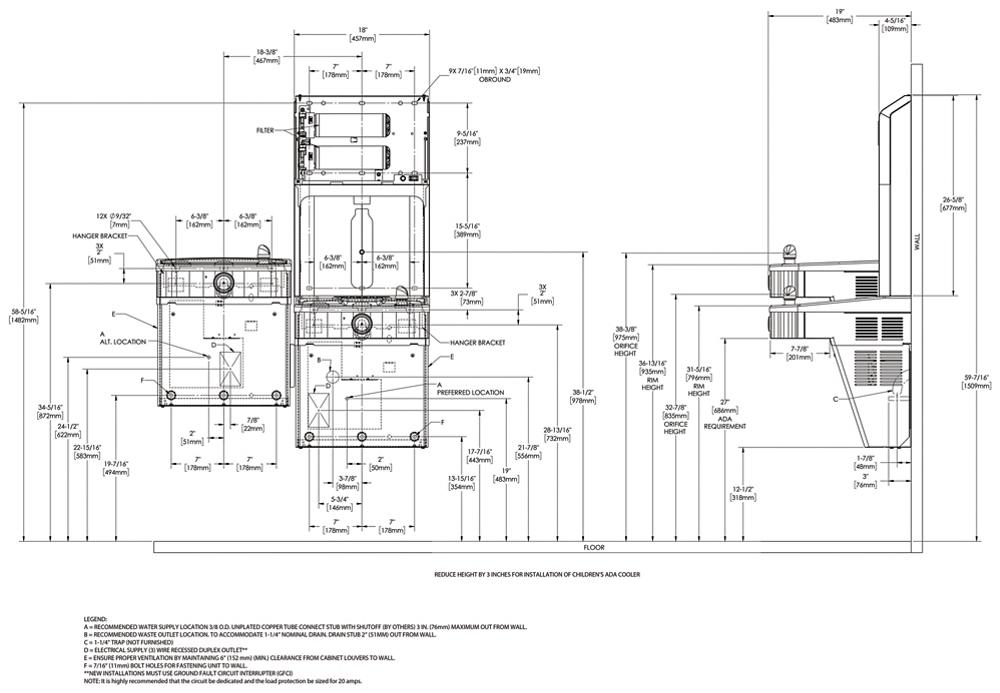

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
