Elkay LVRCDWSPRO-2FLP4 | Pro Filtration VR Bottle Filling Station |...

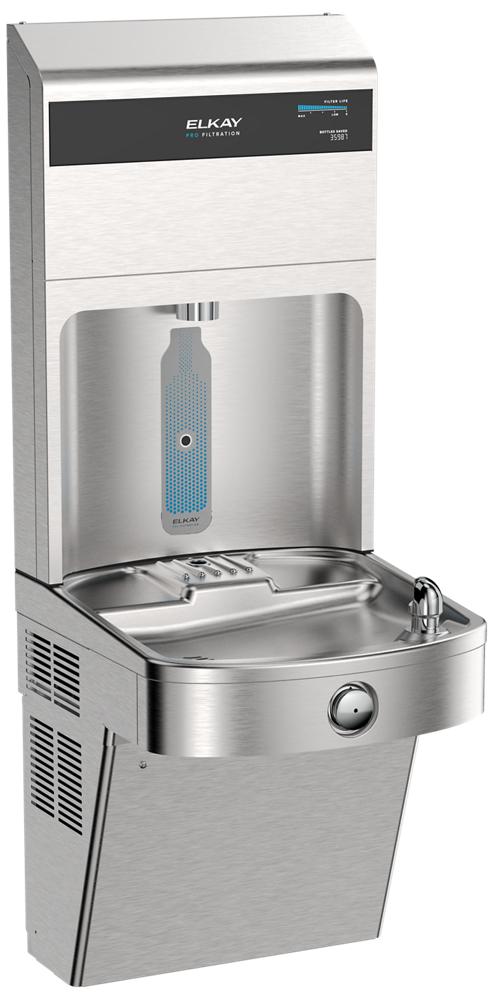

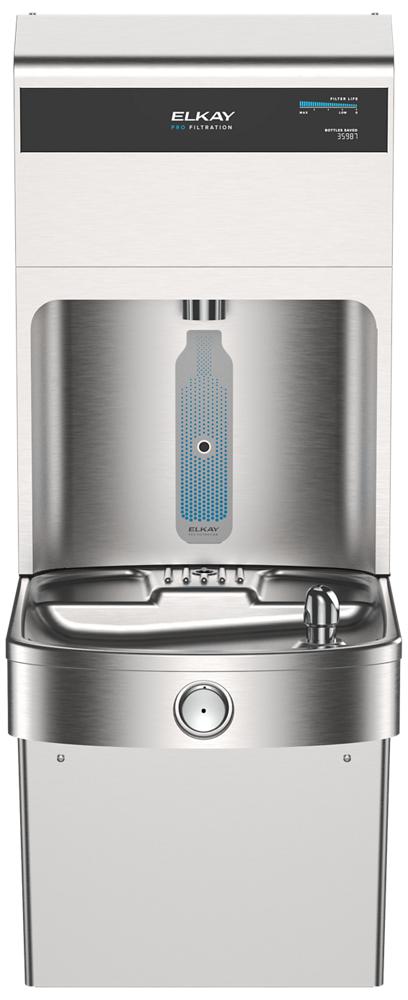

The Elkay LVRCDWSPRO-2FLP4 is a wall-mount Pro Filtration bottle filling station and water fountain in stainless steel with dual Total PFAS filters.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Total PFAS, Lead, Microplastics, Cysts, Chlorine Taste & Odor, Asbestos, Turbidity
- Filter Capacity: Dual 4,000 Gal. FLP4 Filters (2 x FLP4 Included)
- Refrigeration: Non-refrigerated, refers to LVRC8WSPRO series for refrigerated option
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Total PFAS & Multi-Contaminant Filtration: The Elkay LVRCDWSPRO-2FLP4 comes equipped with dual FLP4 filters certified to NSF/ANSI 42, 53 & 401, reducing Total PFAS, lead, microplastics, chlorine taste & odor, and more — delivering cleaner, safer water with every fill.

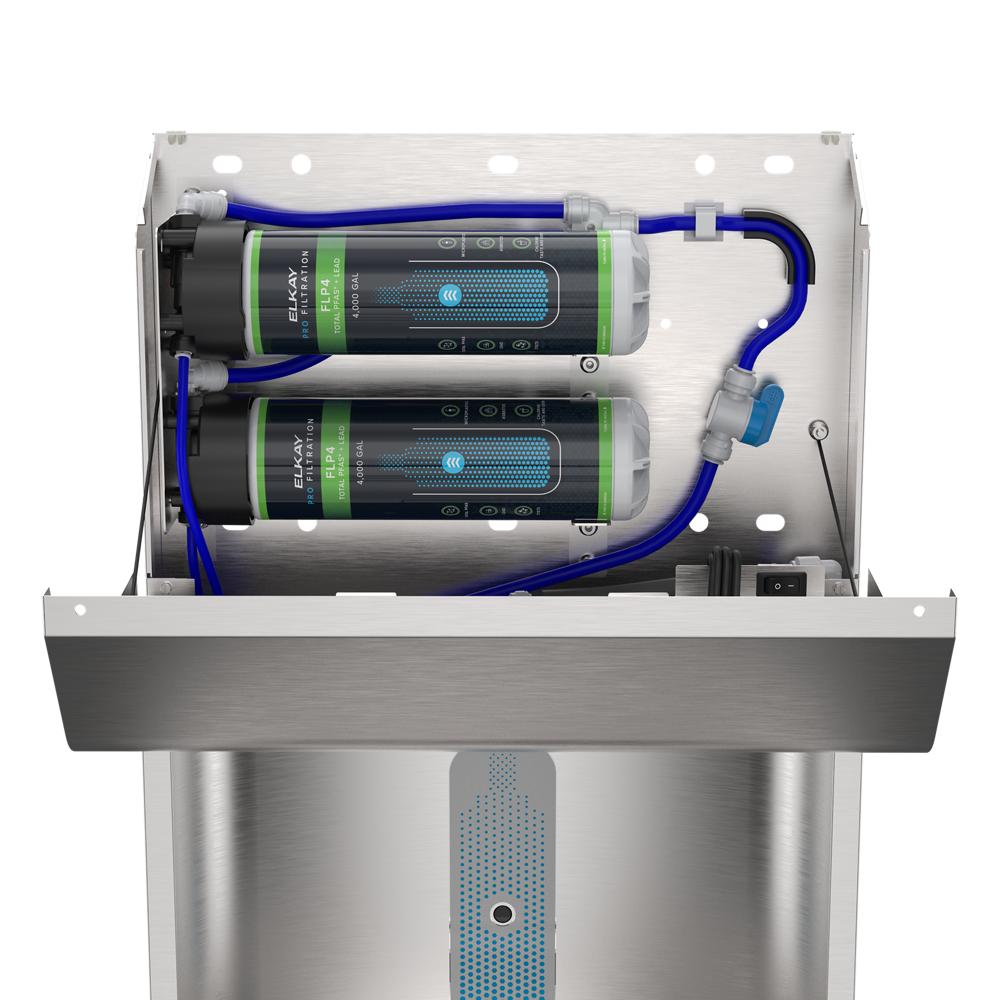

- Top-Access Quick Filter Change: Filters can be replaced from the top in seconds, minimizing maintenance downtime and keeping the unit operational in high-traffic environments without disruption.
- Cloud-Connected Smart Monitoring: Via plumbSMART (Gateway and Account required), facility managers can remotely track filter status, flush the unit, and monitor bottles saved — enabling proactive maintenance and sustainability tracking.
- Vandal-Resistant Stainless Steel Build: Engineered for durability in demanding public environments, the LVRCDWSPRO-2FLP4 features a stainless steel alcove, vandal-resistant bubbler, and tempered glass display cover for long-lasting performance.
FAQ
Q: What contaminants do the included FLP4 filters reduce?
A: The dual FLP4 filters are certified to NSF/ANSI 42, 53 & 401 and reduce Total PFAS (as defined by NSF/ANSI 53), lead, microplastics, chlorine taste & odor, cysts, asbestos, turbidity, and particulate class 1.
Q: Is a special account or device required to use the cloud-connected features?
A: Yes. The LVRCDWSPRO-2FLP4's cloud connectivity via plumbSMART requires a separate Gateway device (ZGW-LORA-W1-LTE) and a plumbSMART account to remotely monitor filter status, flush the unit, and track sustainability data.
Q: How is the Elkay LVRCDWSPRO-2FLP4 activated?
A: The bottle filler is activated via an electronic hands-free sensor, while the water cooler is operated using a mechanical front bubbler button — offering flexible, hygienic activation options for all users.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation

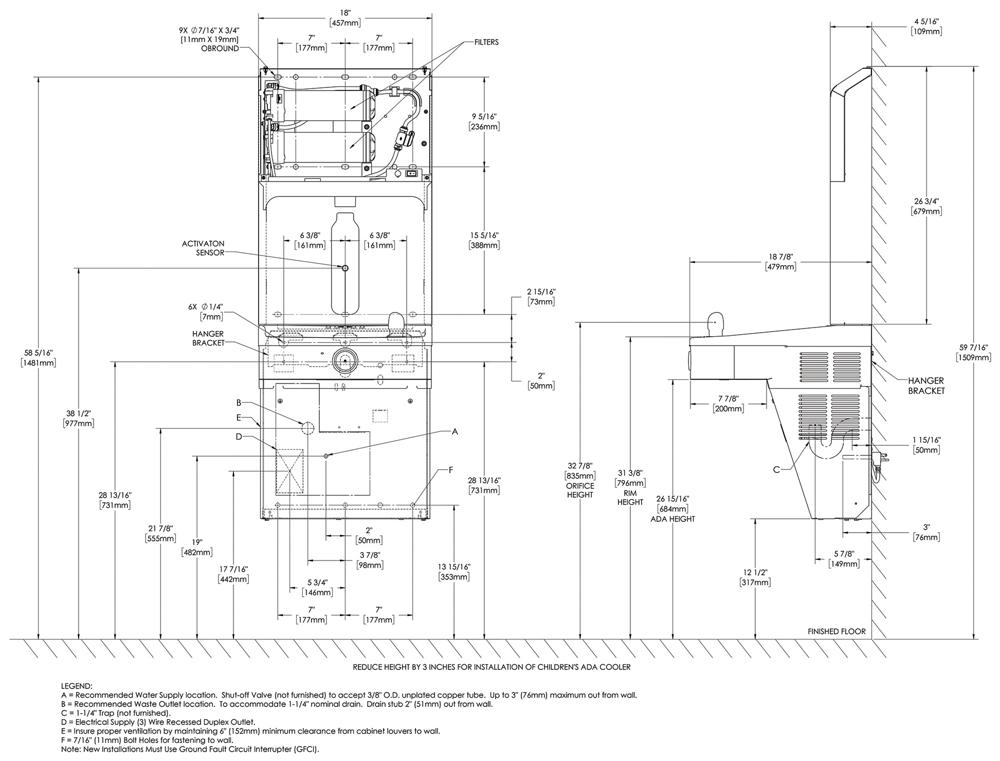

To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
