Elkay LVRCDWSPRO-2FL10 | Pro Filtration VR Bottle Filling Station |...

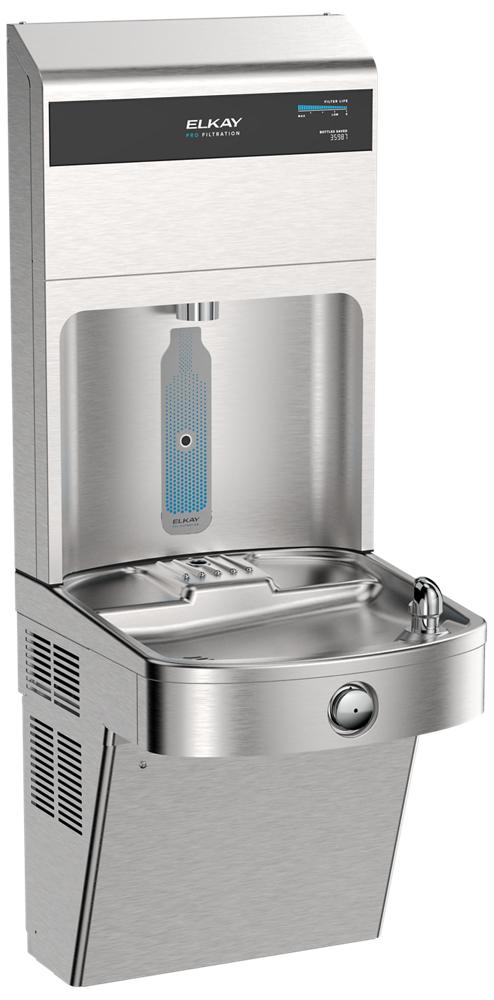

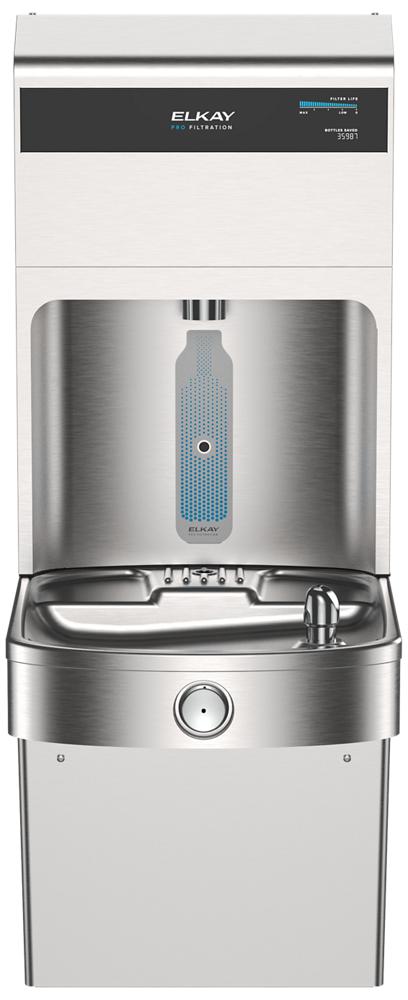

The Elkay LVRCDWSPRO-2FL10 is a vandal-resistant, cloud-connected bottle filling station and water fountain with dual 10,000-gallon ultra-capacity filters.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Cysts, Asbestos, Turbidity, Chlorine, Taste & Odor
- Filter Capacity: Dual 10,000 Gal. Ultra-Capacity Filters (2x FL10)
- Refrigeration: Non-refrigerated, refers to LVRC8WSPRO series for refrigerated option
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Pro Filtration with Top-Access Quick Change: The LVRCDWSPRO-2FL10 features a top-access filter design that allows filters to be replaced in seconds, minimizing maintenance time and reducing system disruption in busy facilities.
- Cloud-Connected Smart Monitoring (plumbSMART): Remotely track filter status, receive maintenance alerts, trigger automatic filter flushes, and monitor sustainability metrics — all through the plumbSMART platform (Gateway & Account required).
- Vandal-Resistant Construction for High-Traffic Environments: Built with a stainless steel alcove and tempered glass display cover, the Elkay LVRCDWSPRO-2FL10 is engineered to withstand demanding, high-traffic locations while maintaining a clean, modern aesthetic.
- Green Ticker™ Sustainability Display: The blue LCD interactive display shows remaining filter capacity and the number of 20oz plastic bottles saved, helping facilities track their environmental impact in real time.
FAQ
Q: Does the Elkay LVRCDWSPRO-2FL10 require any special equipment for cloud connectivity?
A: Yes, the cloud-connected features via plumbSMART require a plumbSMART Gateway and a registered plumbSMART Account to enable remote filter monitoring, maintenance alerts, and automatic flush functions.
Q: What contaminants do the included FL10 filters reduce?
A: The dual FL10 Ultra-Capacity Filters are certified to NSF/ANSI 42, 53 & 401 and reduce lead, microplastics, cysts, asbestos, turbidity, chlorine, and taste & odor, each with a 10,000-gallon capacity.
Q: Is the LVRCDWSPRO-2FL10 suitable for outdoor installation?
A: No, the Elkay LVRCDWSPRO-2FL10 is designed for indoor wall-mount installation only and is not rated for outdoor use.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

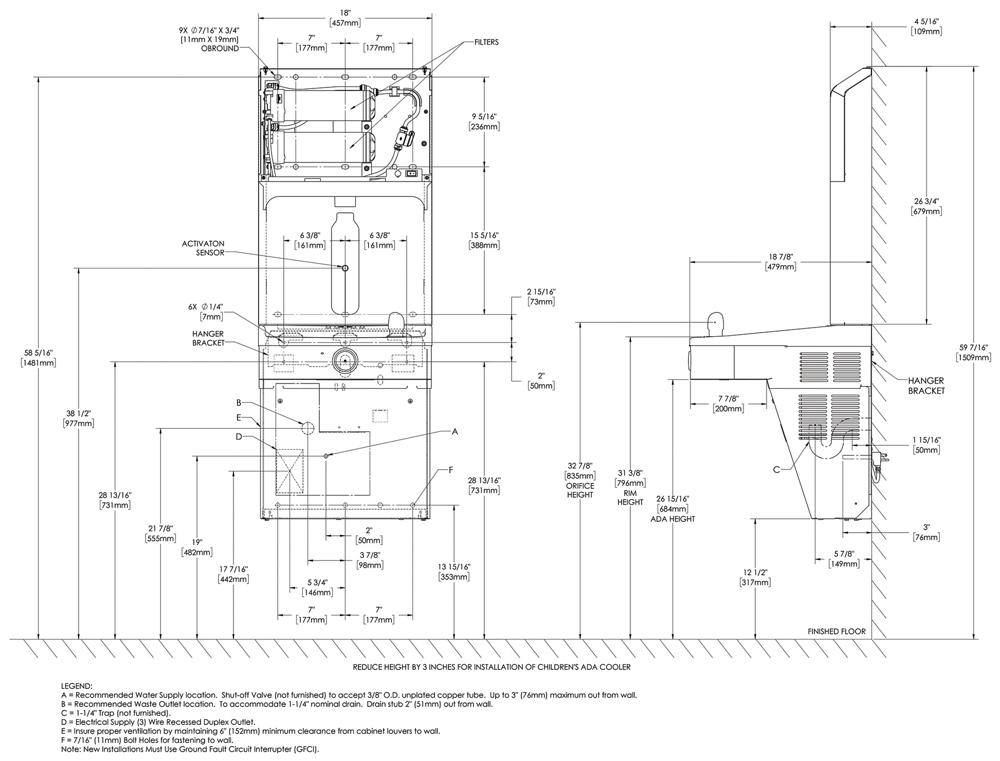

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
