Elkay LVRCDWSPRO | Pro Filtration VR Bottle Filling Station | 10,00...

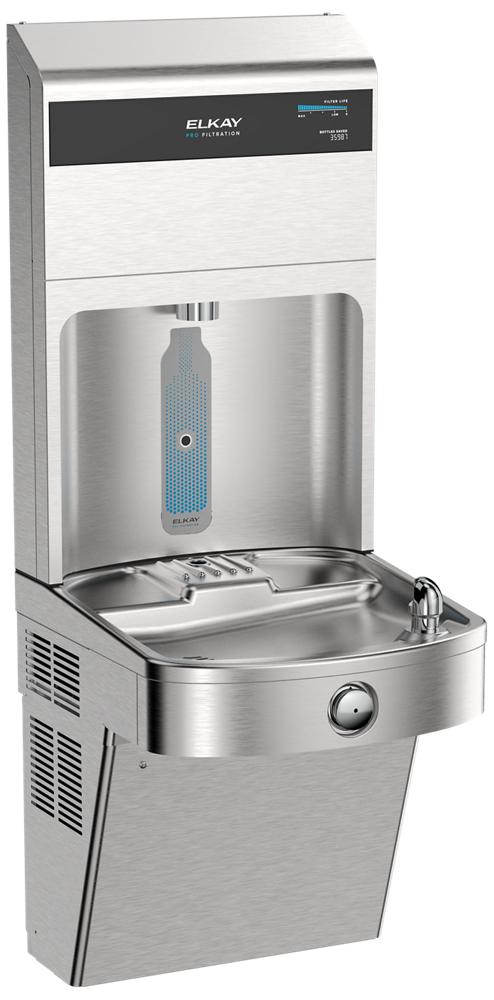

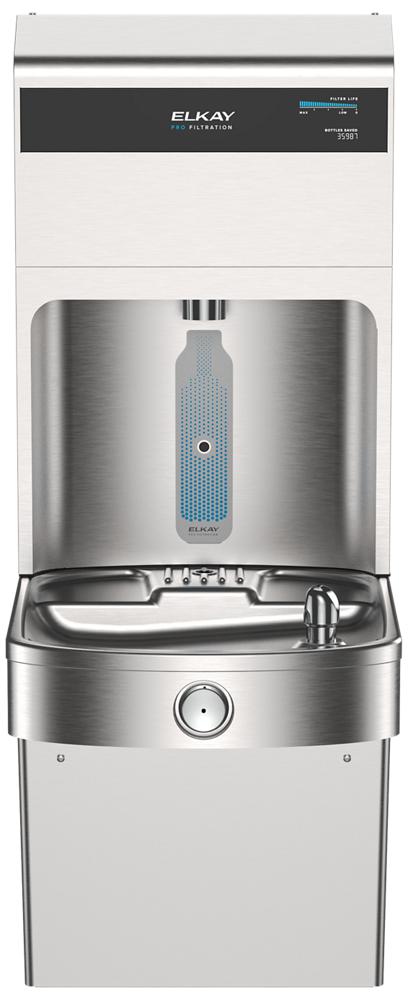

The Elkay LVRCDWSPRO Series is a vandal-resistant, cloud-connected bottle filling station and water fountain with Pro Filtration up to 10,000 gallons.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Cysts, Asbestos, Turbidity, Chlorine, Taste & Odor, PFAS (optional)
- Filter Capacity: 10,000 Gal. (Ultra-Capacity FL10 included)
- Refrigeration: Non-refrigerated, refers to LVRC8WSPRO series for refrigerated option
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Pro Filtration with NSF Certification: The Elkay LVRCDWSPRO Series is certified by IAPMO R&T to NSF/ANSI 42, 53, and 401, reducing lead, microplastics, cysts, asbestos, turbidity, chlorine, and taste & odor for consistently cleaner, safer drinking water.
- Cloud-Connected Smart Monitoring: The LVRCDWSPRO Series features built-in plumbSMART connectivity, enabling remote filter status tracking, automated filter flushing, and bottle savings monitoring — reducing maintenance surprises and improving operational efficiency.

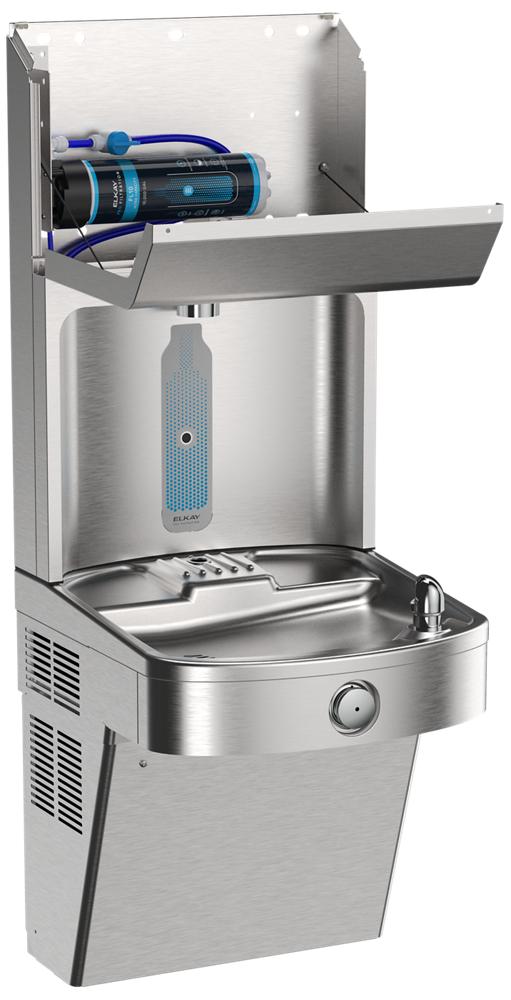

- Top-Mount Quick Filter Change: Filters are accessible from the top of the unit, allowing fast, hassle-free replacements with minimal disruption to the surrounding environment or users.
- Vandal-Resistant Durability: Engineered with a stainless steel alcove and vandal-resistant bubbler, the Elkay LVRCDWSPRO Series is built to withstand high-traffic environments while maintaining a modern, professional appearance.
FAQ
Q: What filtration options are available for the LVRCDWSPRO Series?
A: The LVRCDWSPRO Series supports multiple filtration configurations including the Ultra-Capacity FL10 (10,000 gal.), Total PFAS FLP4 (4,000 gal.), Sediment Prefilter FSR5, UV (UVC-LED), and dual-filter combinations — making it adaptable to a wide range of water quality needs.
Q: Is a cloud connection required to operate the LVRCDWSPRO Series?
A: No. The unit operates fully without a cloud connection. However, a plumbSMART Gateway and Account are required to access remote features such as filter status tracking and remote flushing.
Q: How difficult is it to replace the filter on the LVRCDWSPRO Series?
A: Filter replacement is designed to be quick and straightforward. The top-mount access design allows the filter to be changed in seconds from the top of the unit, minimizing maintenance time and minimizing disruption to users.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation

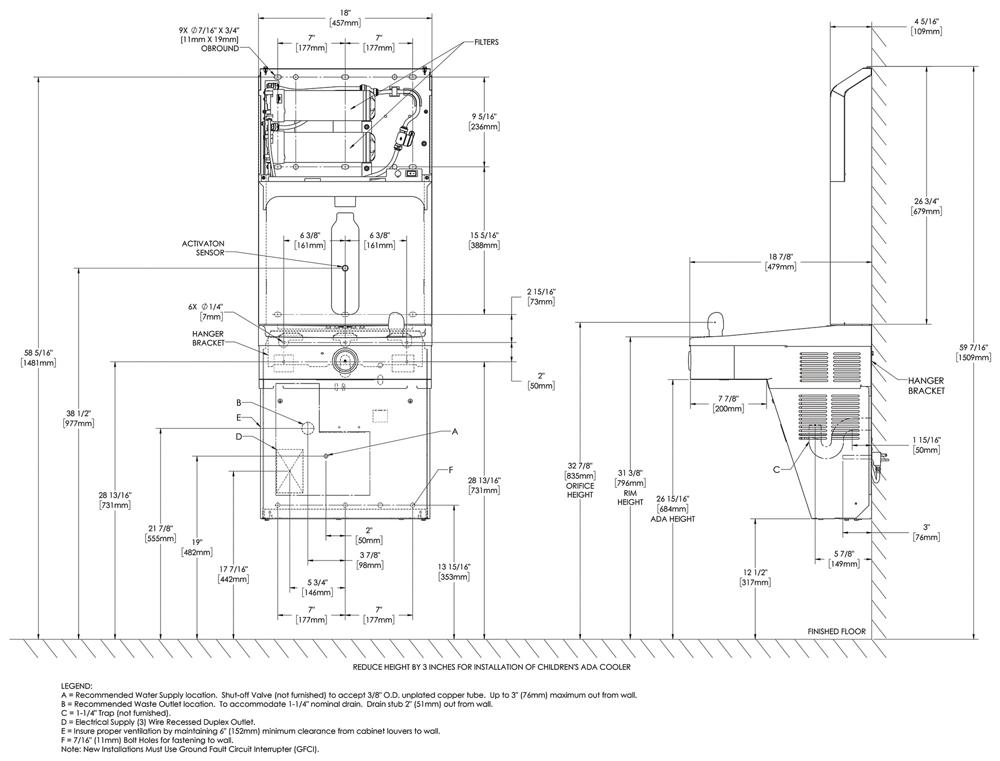

To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
