Elkay LVRC8WSPRO Series | Pro Filtration Bottle Filler & Cooler...

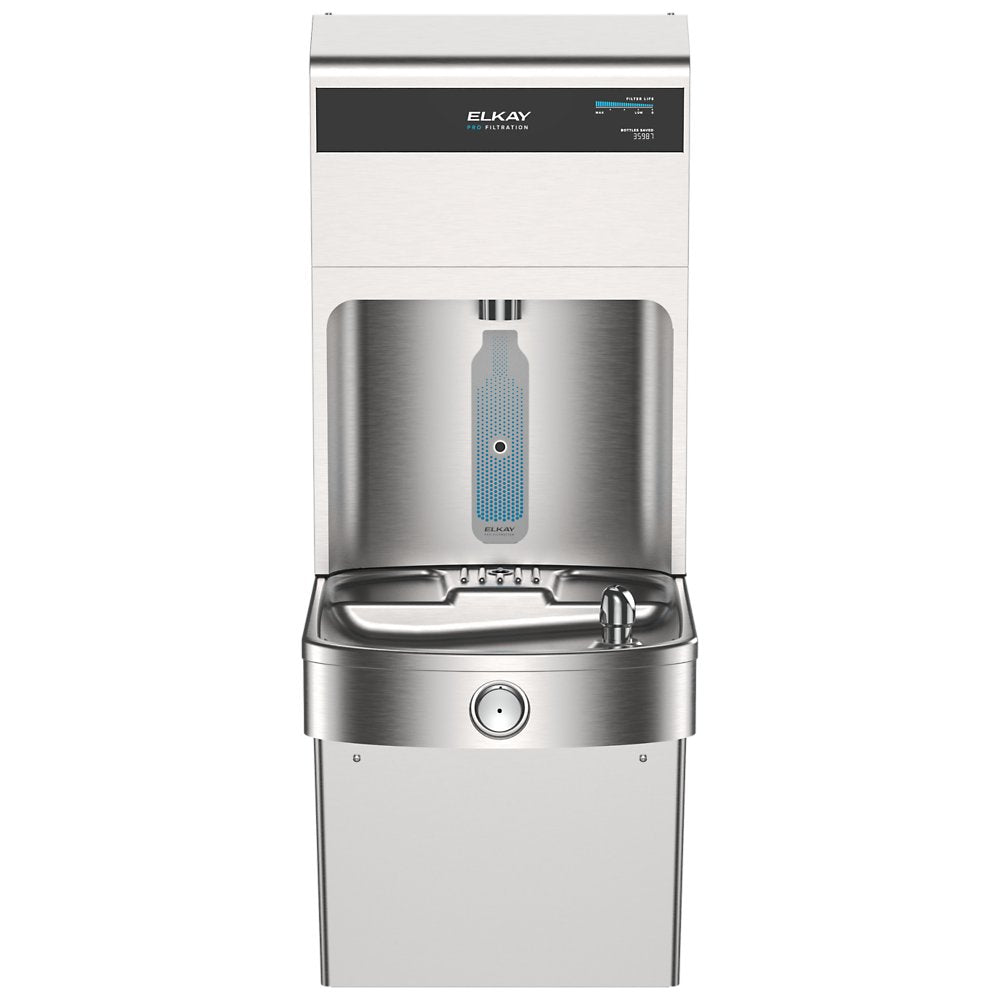

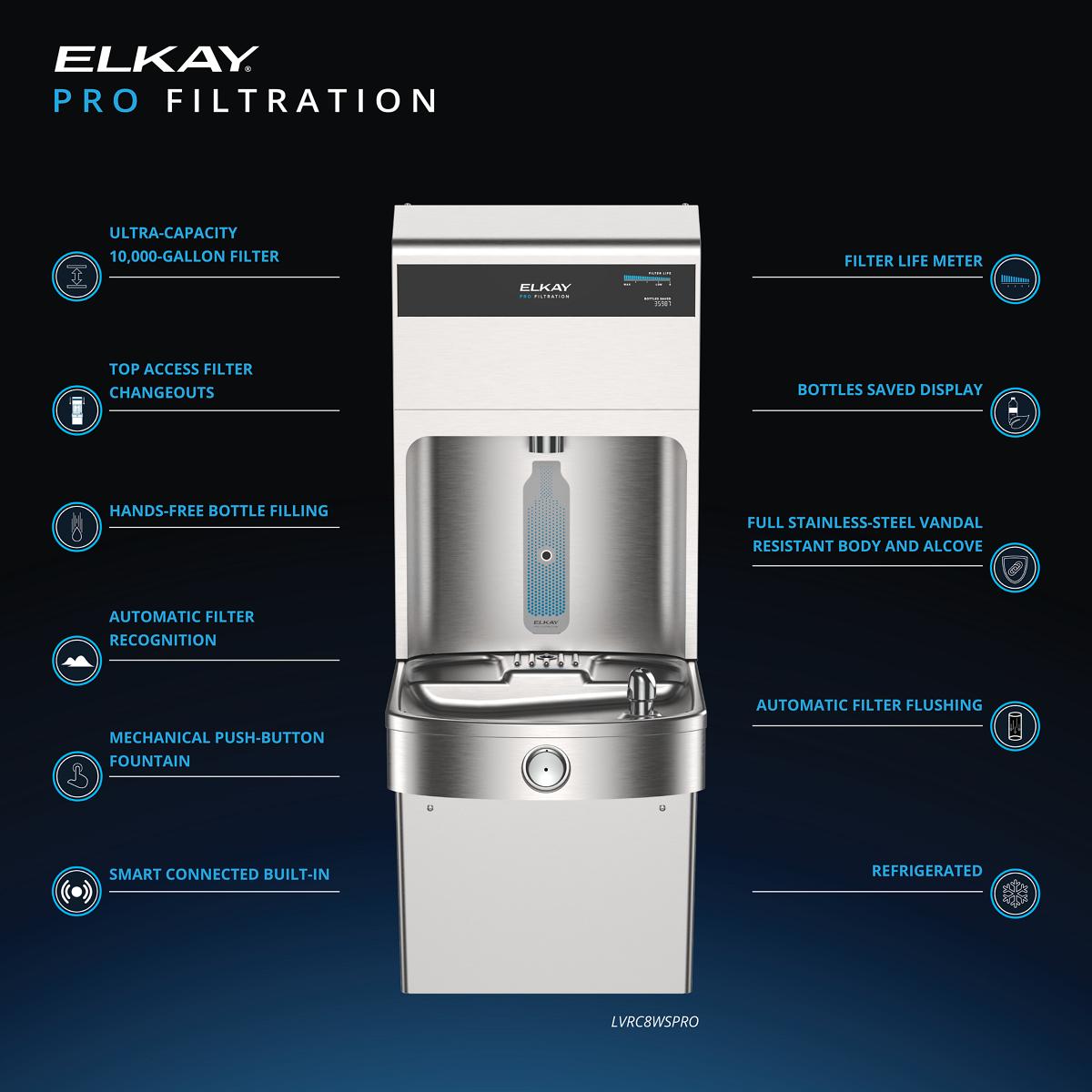

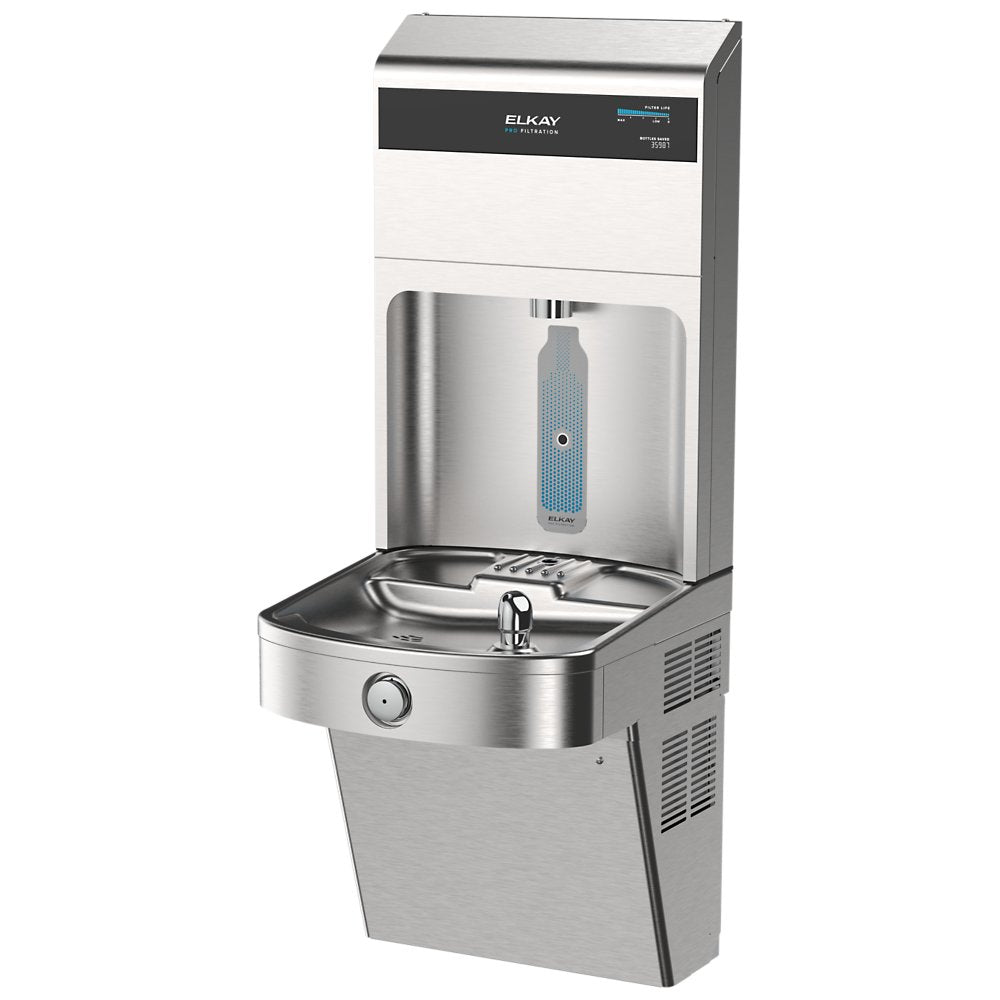

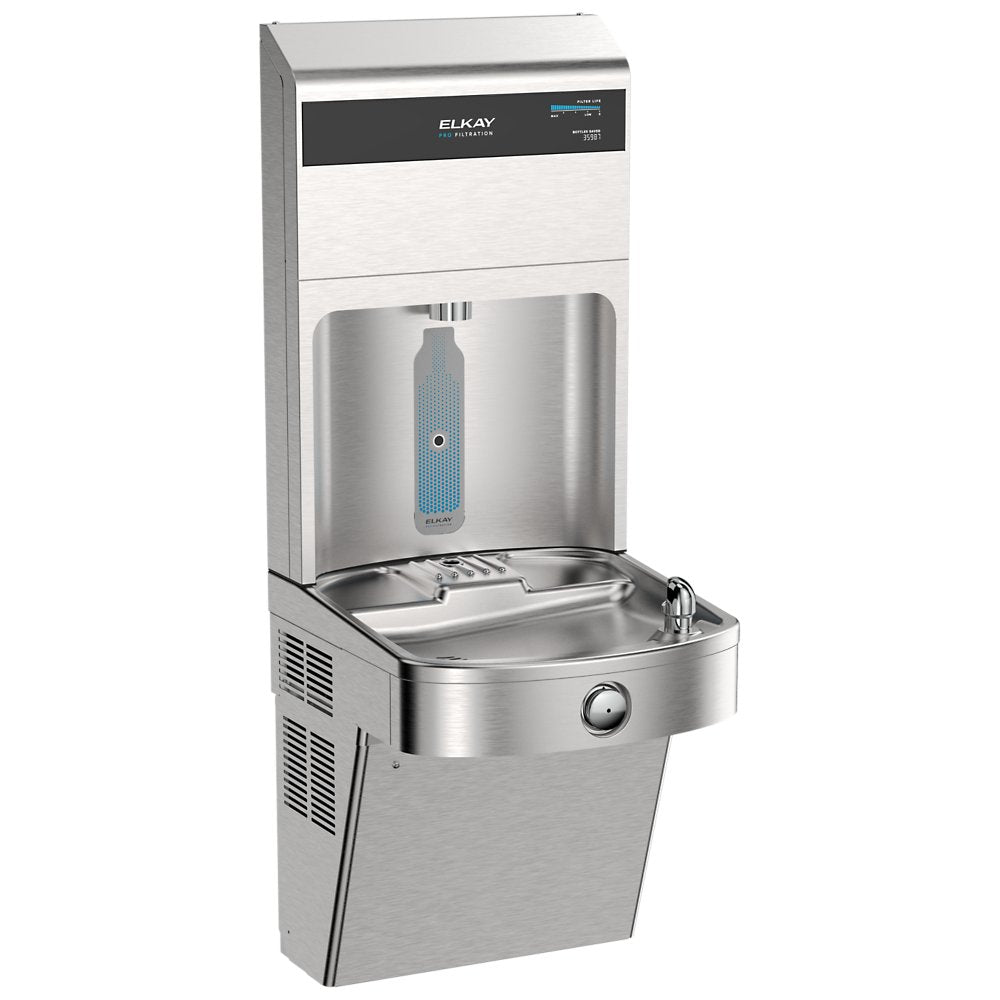

Elkay Pro Filtration™ Vandal-Resistant Connected Bottle Filling Station with integrated water cooler combines smart filtration technology with touchless dispensing and remote monitoring capabilities.
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Depends on the filter options
-
Filter Capacity: Depends on the filter options
- Refrigeration: 8.0 GPH Chilling Capacity (50°F output)
- Power: 115V/60Hz, 5 Full Load Amps
Variant Options:
- LVRC8WSPRO: Standard model with Ultra-Capacity 10,000-gallon filter

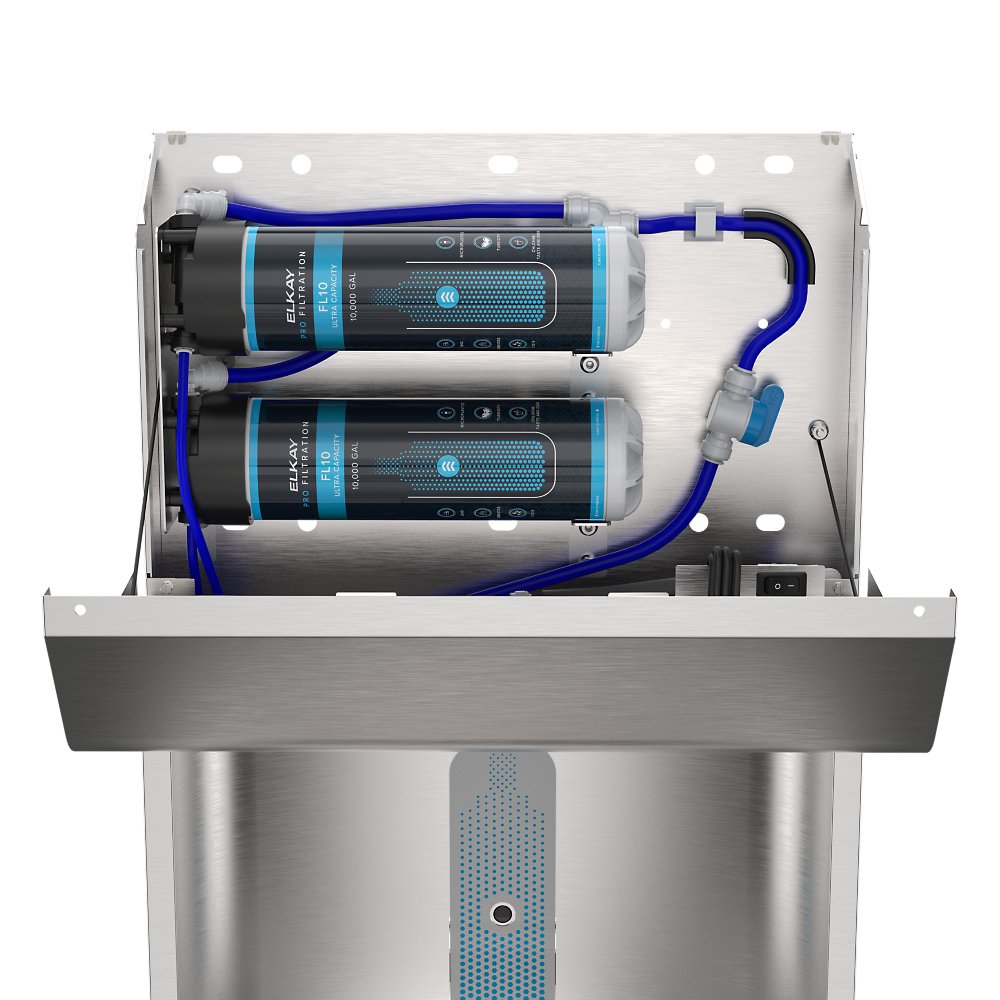

- LVRC8WSPRO-2FL10: Dual 10,000-gallon filtration system

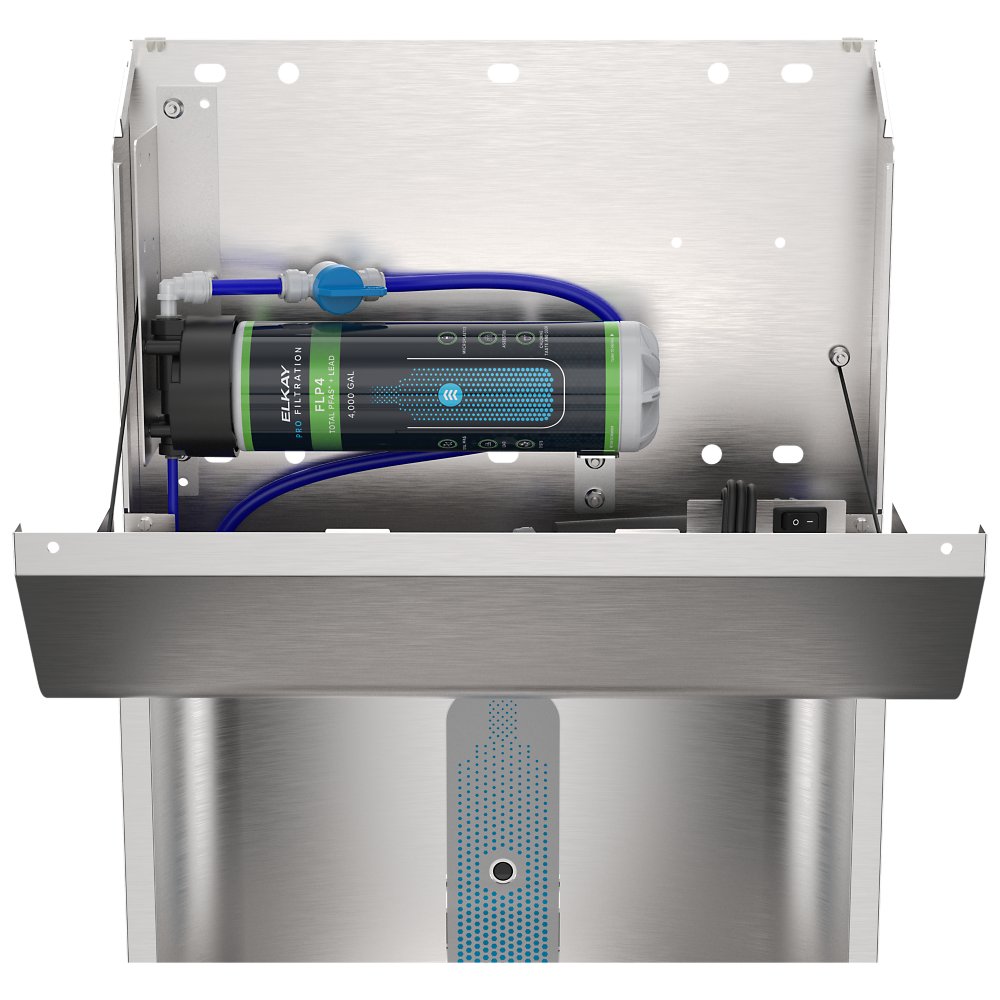

- LVRC8WSPRO-FLP4: Single Total PFAS + Lead filter (4,000-gallon capacity)
- LVRC8WSPRO-2FLP4: Dual PFAS + Lead filtration system

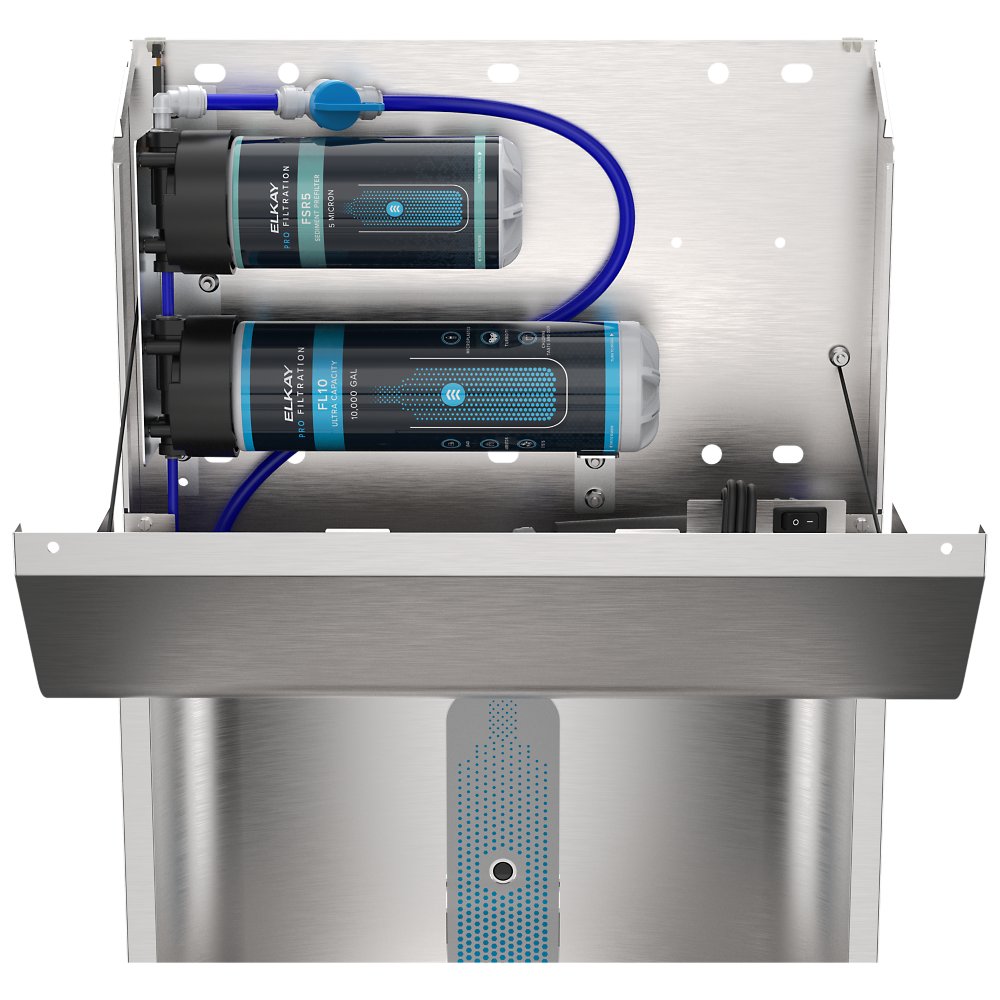

- LVRC8WSPRO-FSR5: Two-stage filtration with sediment prefilter
- LVRC8WSPRO-UV: UV protection with advanced filtration
Features & Benefits:
- Smart Connected Technology: Cloud-enabled monitoring allows facility managers to track filter status, monitor performance, and flush the system remotely via plumbSMART Gateway, reducing maintenance time and ensuring optimal water quality.
- Automatic Filter Management: The Elkay LVRC8WSPRO features automatic filter recognition and flushing, which instantly resets filter status upon installation and cleans debris from waterways, significantly reducing installation time and maintenance effort.

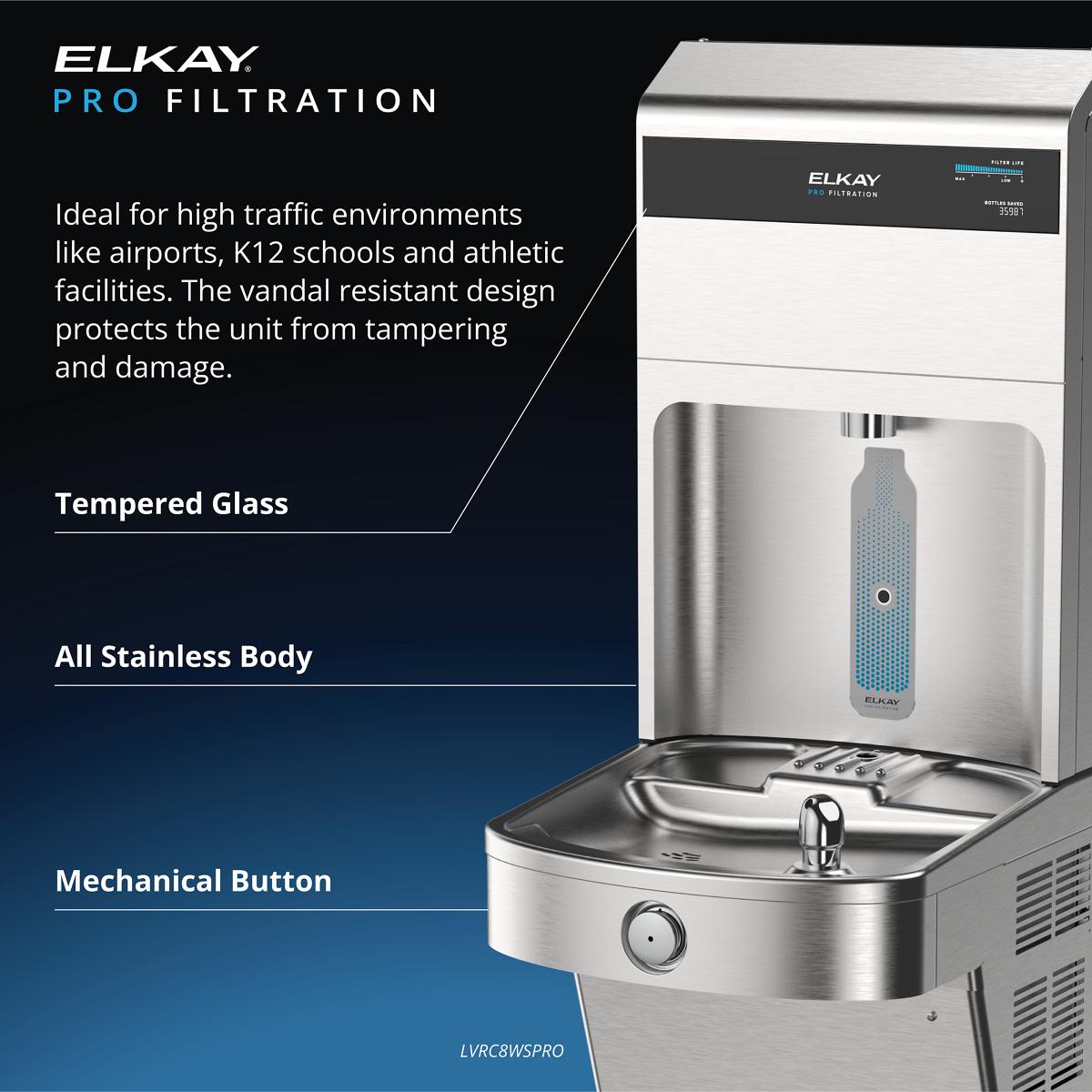

- Superior Vandal Resistance: Constructed with a stainless steel alcove, tempered glass display cover, and mechanical push button backup, the unit withstands heavy use in high-traffic environments while maintaining sleek aesthetics.
- Touchless Hygiene & Quick Fill: Sensor-activated bottle filling delivers 1.0 GPM flow rate with laminar stream technology for a fast, splash-free fill, promoting hands-free operation and improved sanitation in public spaces.
FAQ
Q: What contaminants does the included filter remove?
A: Depends on the filter option, for example the Ultra-Capacity is a 10,000-gallon filter with NSF/ANSI 42, 53, and 401 certified to reduce lead, microplastics, chlorine taste and odor, cysts, and other common contaminants, providing safer drinking water for high-traffic facilities.
Q: How does the cloud connectivity work and what is required?
A: The unit connects to the cloud via a plumbSMART Gateway (sold separately) and requires an active account. Once connected, administrators can remotely monitor filter life, track usage statistics, receive maintenance alerts, and perform system flushes from any location.
Q: Can filters be changed without shutting down the entire system?

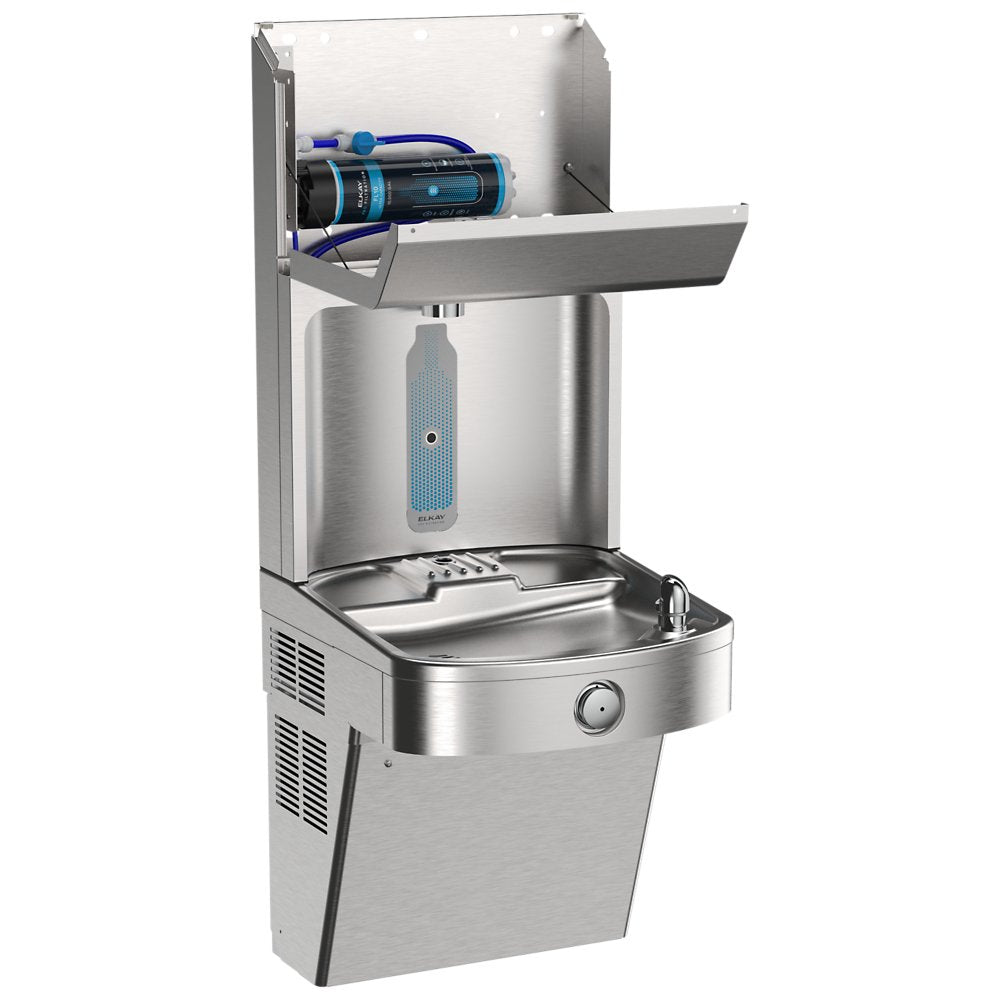

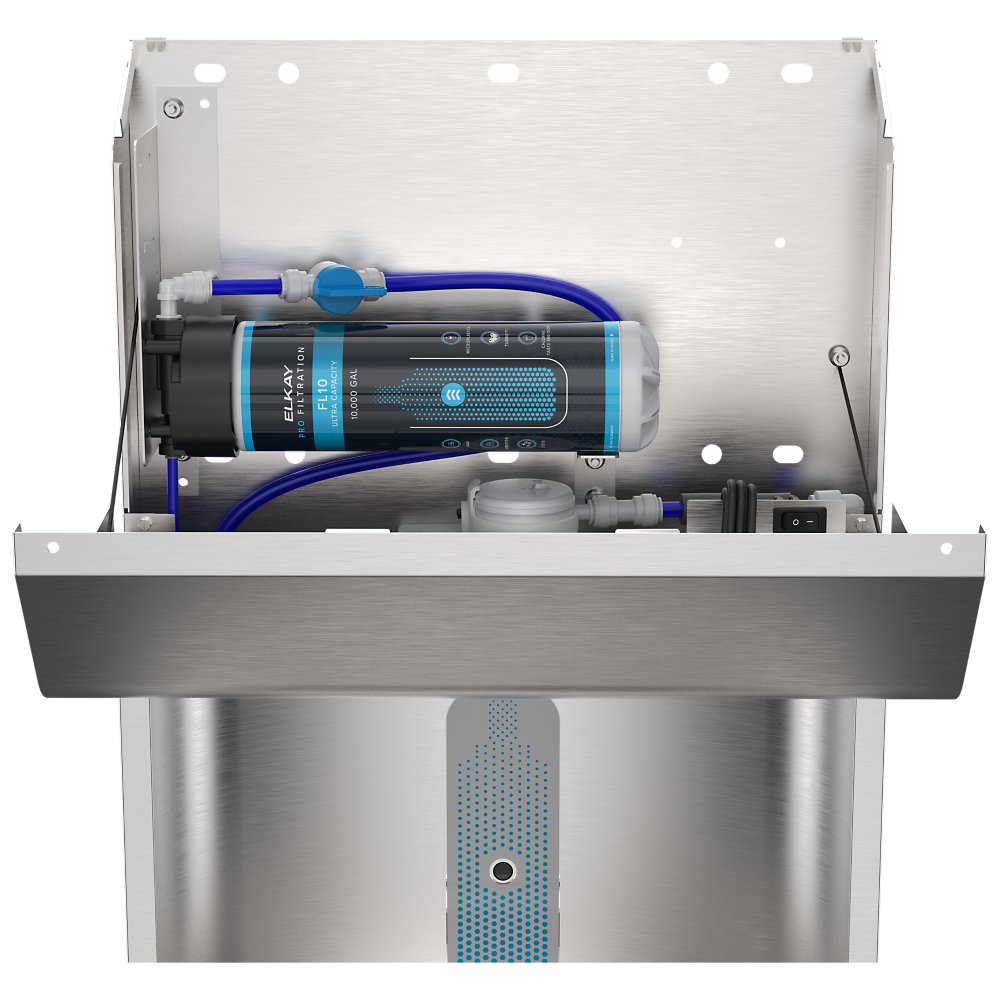

A: Yes, the top-mount quick filter change design allows for fast and efficient filter replacement from the top of the unit. The system automatically recognizes new filters, resets status indicators, and initiates an automatic flush sequence to minimize downtime.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
