Elkay LVRCDWSPRO-FSR5 | Pro Filtration VR Bottle Filling Station | ...

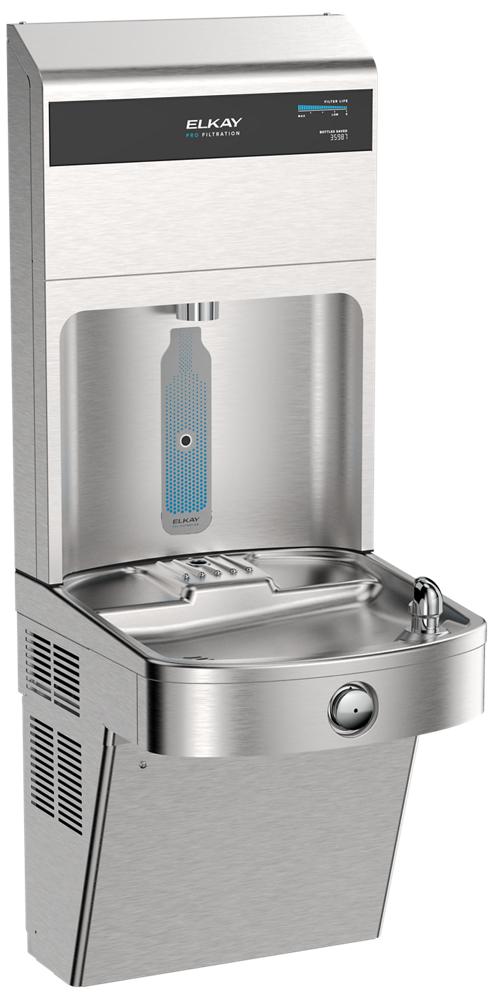

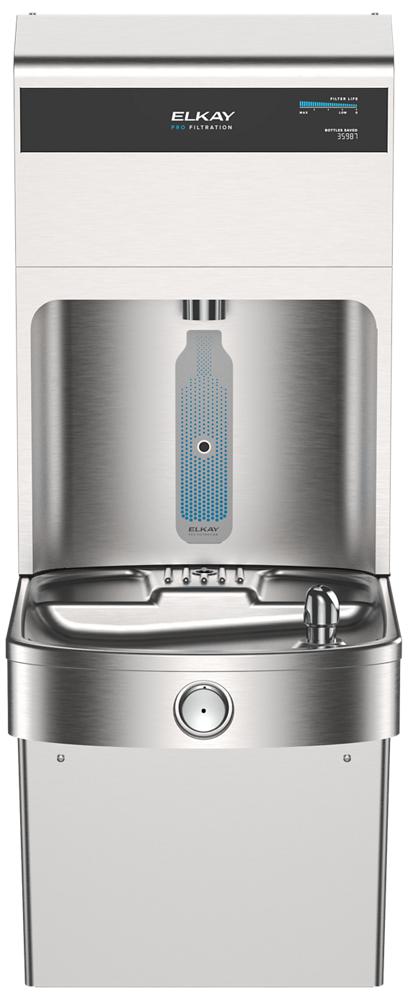

The Elkay LVRCDWSPRO-FSR5 Series is a wall-mount Pro Filtration bottle filling station and water fountain with a 10,000-gal. ultra-capacity filter and sediment prefilter.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Cysts, Asbestos, Chlorine Taste & Odor, Turbidity, Particulate Class 1
- Filter Capacity: 10,000 Gal. (FL10 Ultra-Capacity Filter) + Stage 1 Sediment Prefilter (FSR5)
- Refrigeration: Non-refrigerated, refers to LVRC8WSPRO series for refrigerated option
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Cloud-Connected Monitoring: The Elkay LVRCDWSPRO-FSR5 Series features plumbSMART connectivity, allowing facility managers to remotely track filter status, flush the unit, and monitor bottles saved — reducing unplanned downtime (plumbSMART Gateway & Account required).
- Top-Mount Quick Filter Change: Filters are accessible from the top, making replacements fast and easy without disrupting surrounding infrastructure — minimizing maintenance time significantly.
- Vandal-Resistant Construction: Built with a stainless steel alcove and vandal-resistant bubbler, the Elkay LVRCDWSPRO-FSR5 Series is engineered to withstand demanding, high-traffic environments while maintaining a clean, modern appearance.
- Eco-Friendly Impact Tracking: The blue LCD interactive display shows real-time filter capacity and the number of 20 oz. bottles saved, promoting sustainability awareness and encouraging reduced single-use plastic consumption.
FAQ
Q: What filtration system is included with the Elkay LVRCDWSPRO-FSR5 Series, and what contaminants does it reduce?
A: This series includes the FL10 Ultra-Capacity Filter (10,000 gal.) certified to NSF/ANSI 42, 53 & 401, reducing lead, microplastics, cysts, asbestos, chlorine taste & odor, and more. It also includes the FSR5 Stage 1 Sediment Prefilter, certified to NSF/ANSI 42 and NSF/ANSI/CAN 372 for lead-free compliance.
Q: Does the cloud connectivity feature require any additional hardware or accounts?
A: Yes. The plumbSMART cloud connection requires a plumbSMART Gateway (ZGW-LORA-W1-LTE) and an active plumbSMART account to remotely monitor filter status, flush the unit, and track sustainability metrics.
Q: Is this unit suitable for outdoor installation?
A: No. The Elkay LVRCDWSPRO-FSR5 Series is designed for indoor installation only, wall-mounted (on wall), and serves 1 station.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

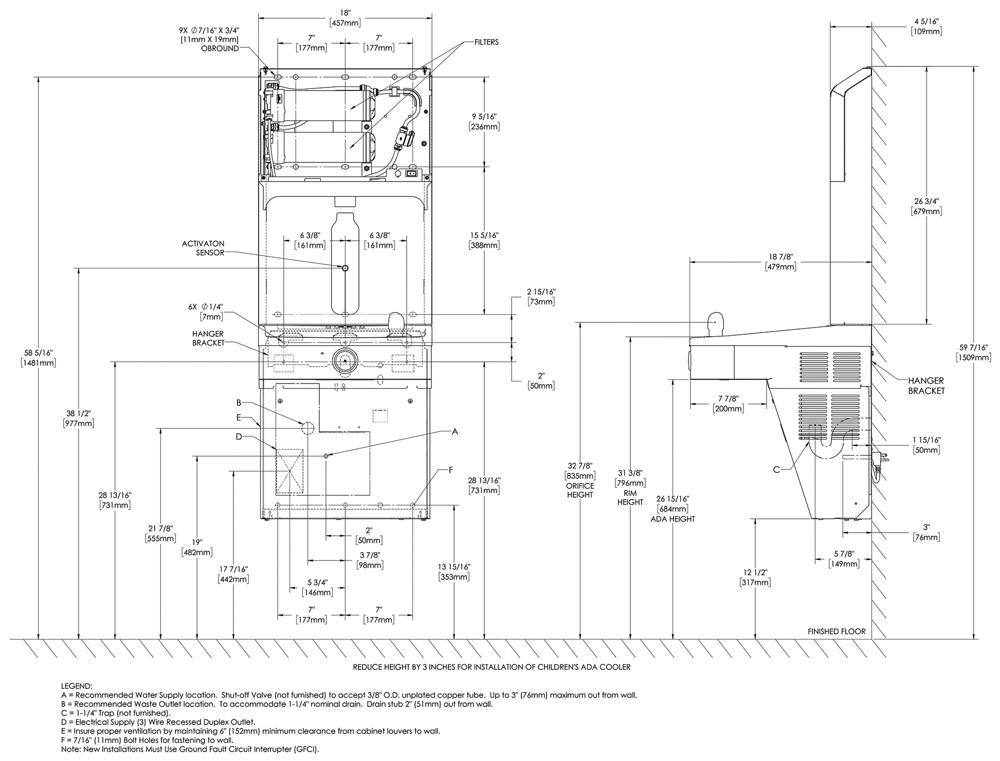

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
